Wiring Diagrams

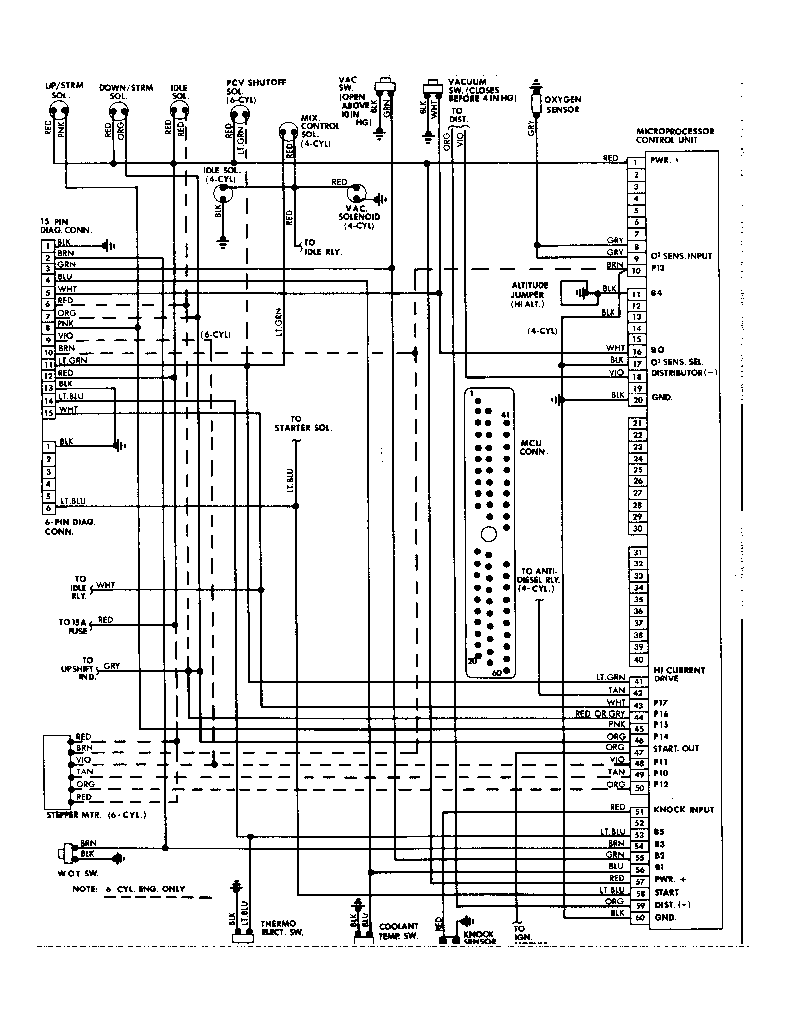

Fig 1: 1984-86 Jeep 4.2L 6-Cylinder CEC System Wiring Diagram
G9534

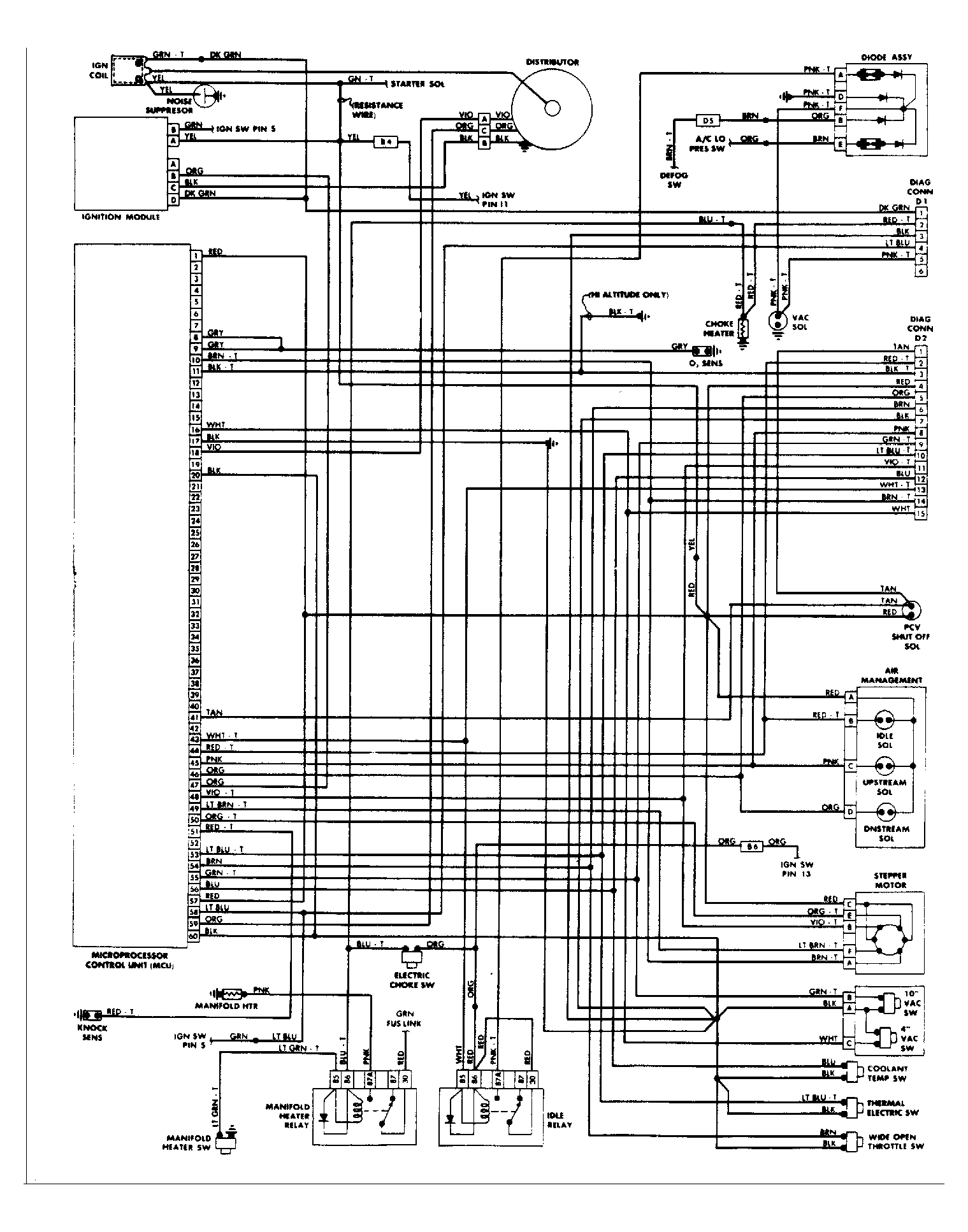

Fig 2: 1987-89 Jeep 4.2L 6-Cylinder CEC System Wiring Diagram
G12414
