System Power Relay

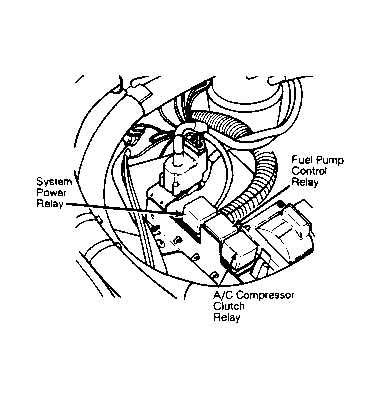

Located on the right strut tower, this relay is energized during engine start up and remains energized until 3 to 5 seconds after the engine is stopped. This permits the ECU to extend the idle speed actuator for the next start up and then cease operation. See Fig 1 .
