4.0L CEC System: Testing

NOTE: Refer to Fig 1 through Fig 3 for Testing information.

Fig 1: Throttle Position Sensor Diagnostics

G12422

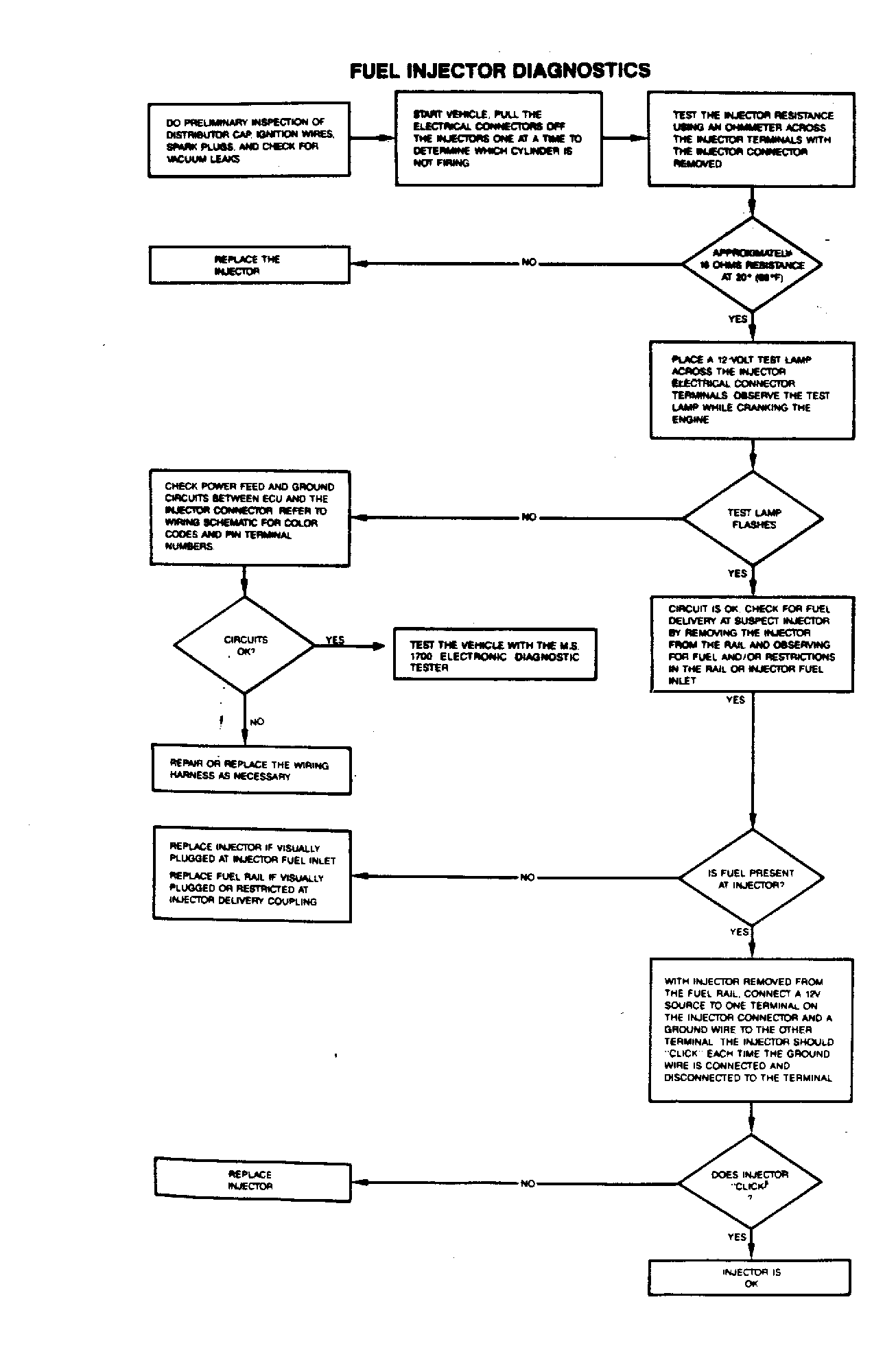

Fig 2: Fuel Injector Diagnostics

G12423

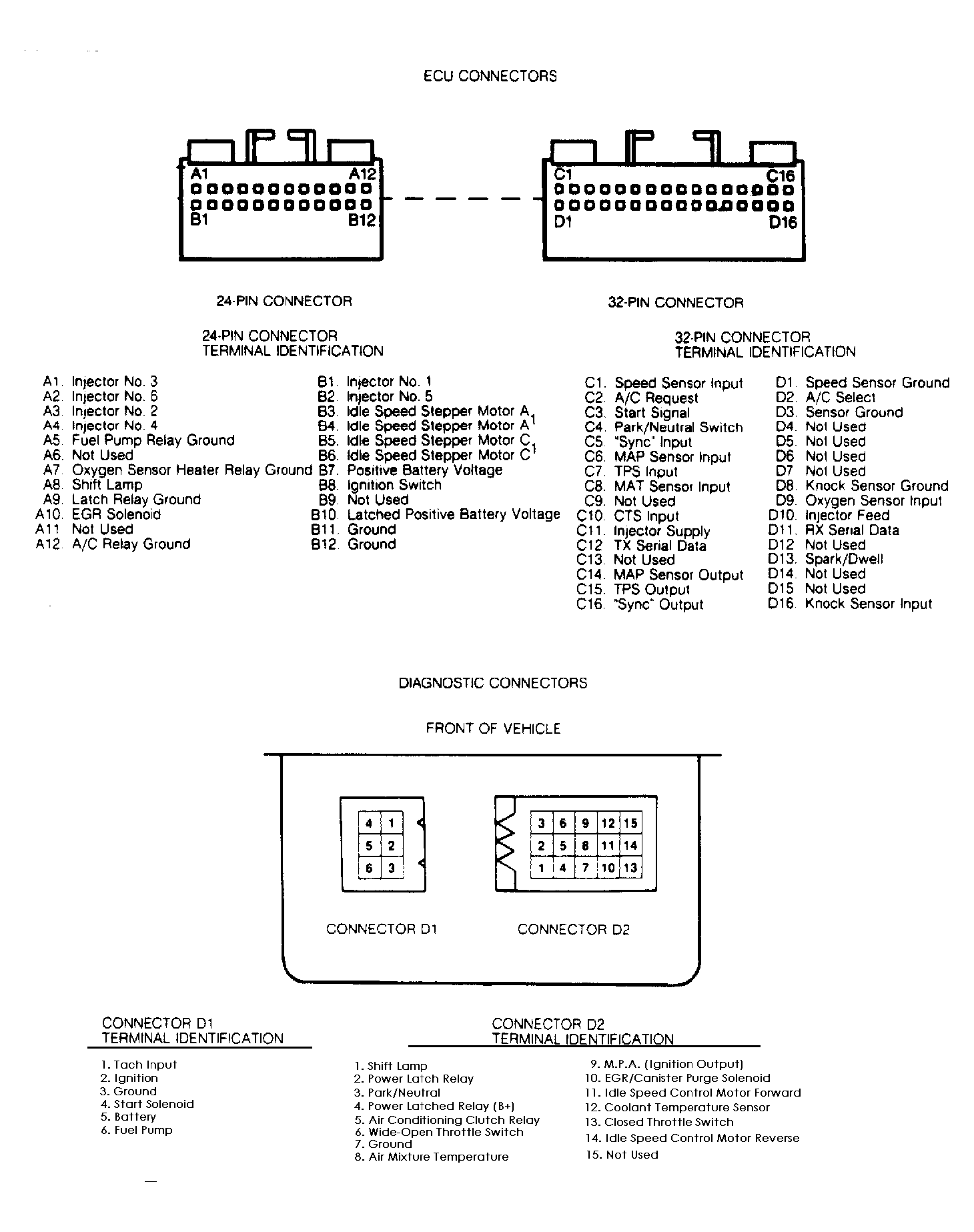

Fig 3: ECU Connector Pin & Diagnostic Connector Pin Identification

G12424
