System Testing Charts

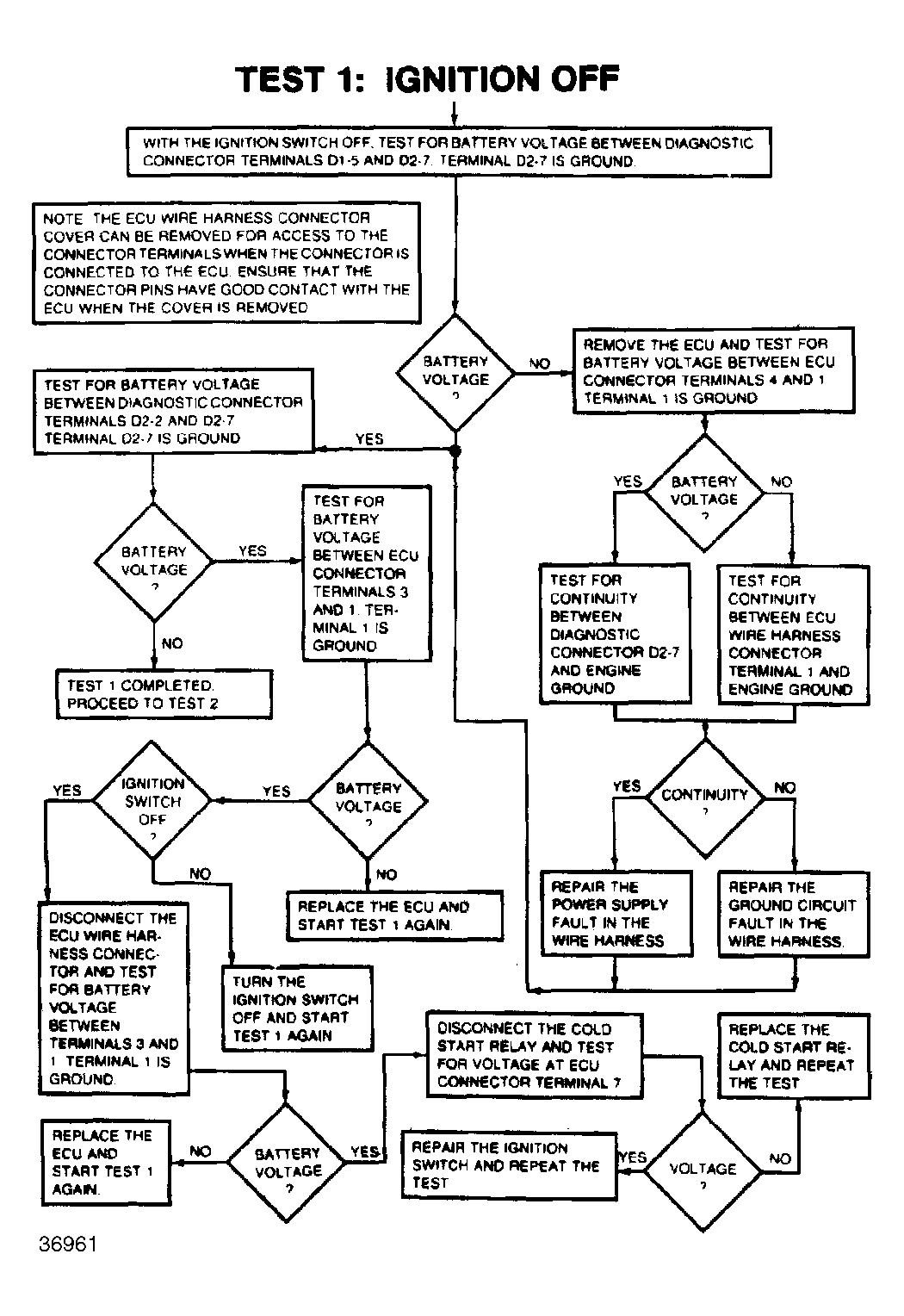

Fig 1: TEST 1: IGNITION OFF

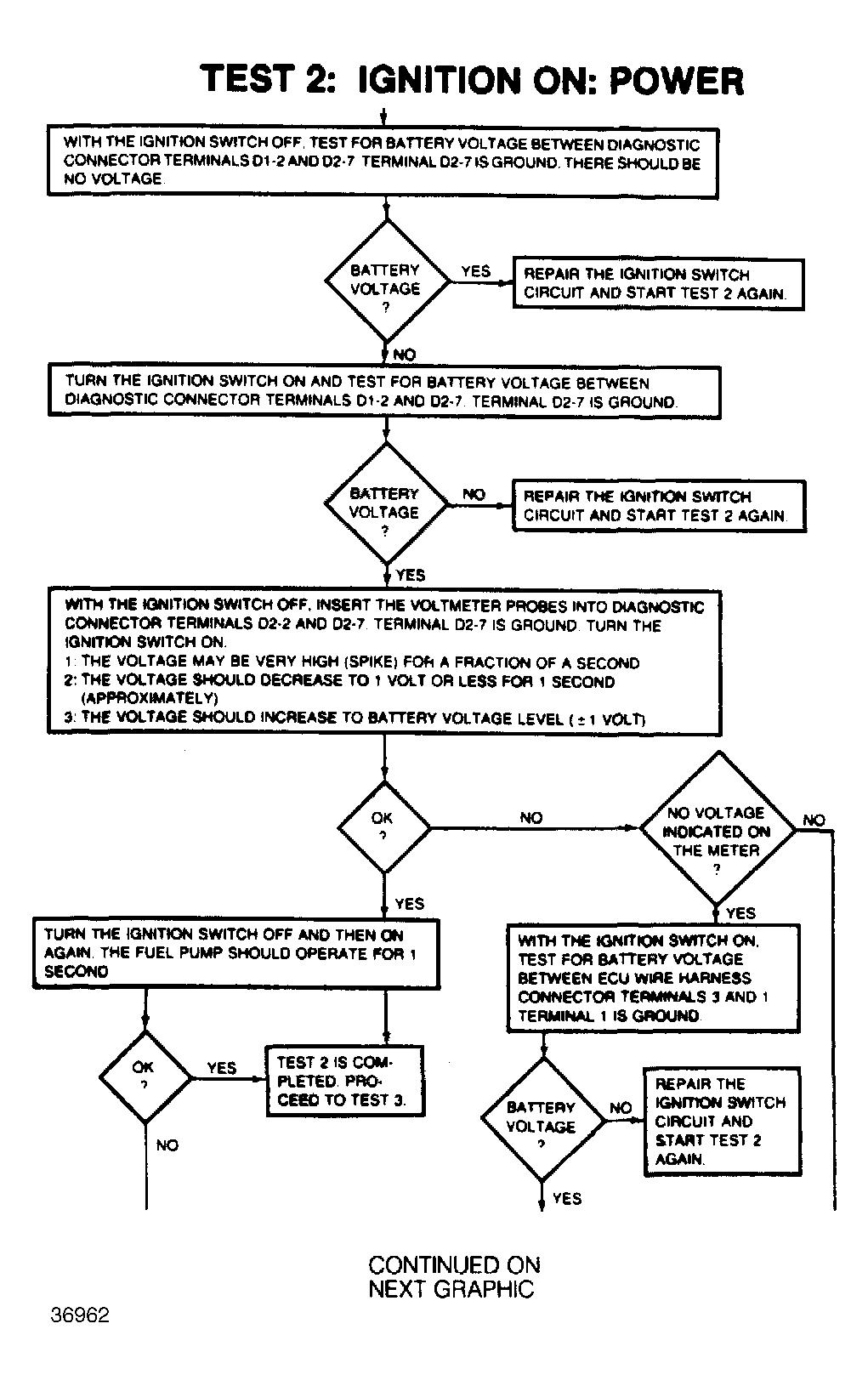

Fig 2: TEST 2: IGNITION ON: POWER

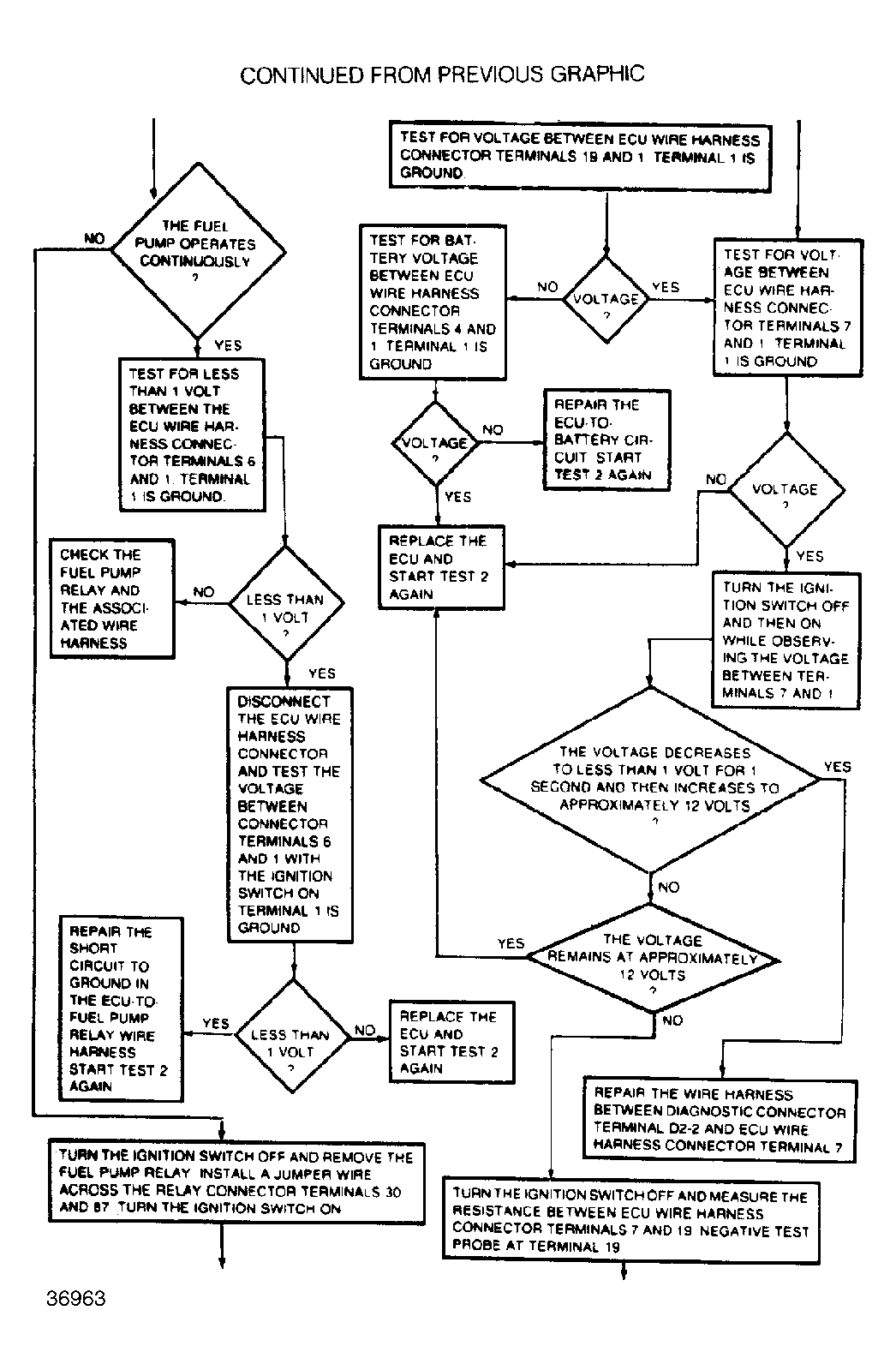

Fig 3: TEST 2: IGNITION ON: POWER (Cont.)

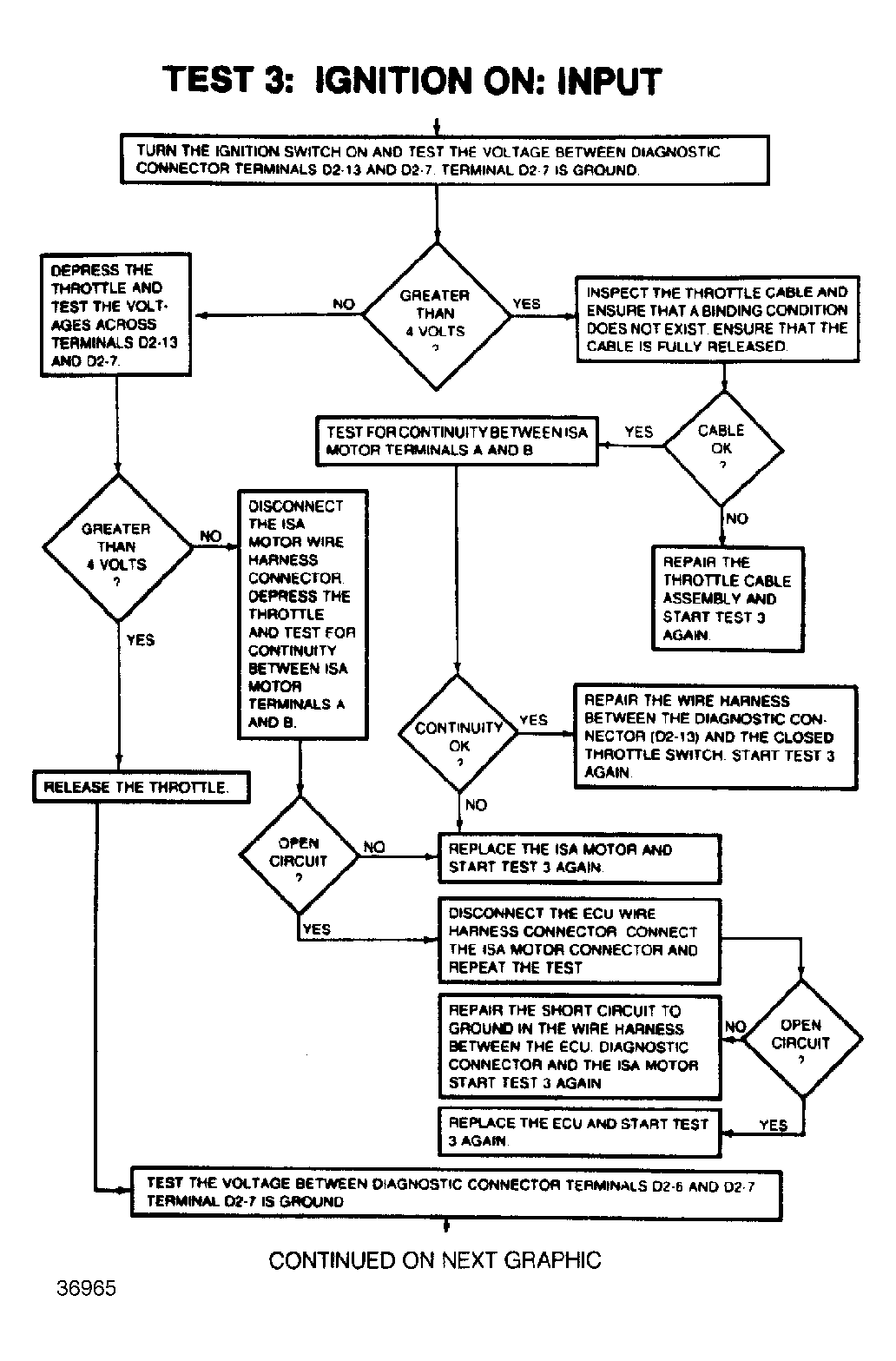

Fig 4: TEST 3: IGNITION ON: INPUT

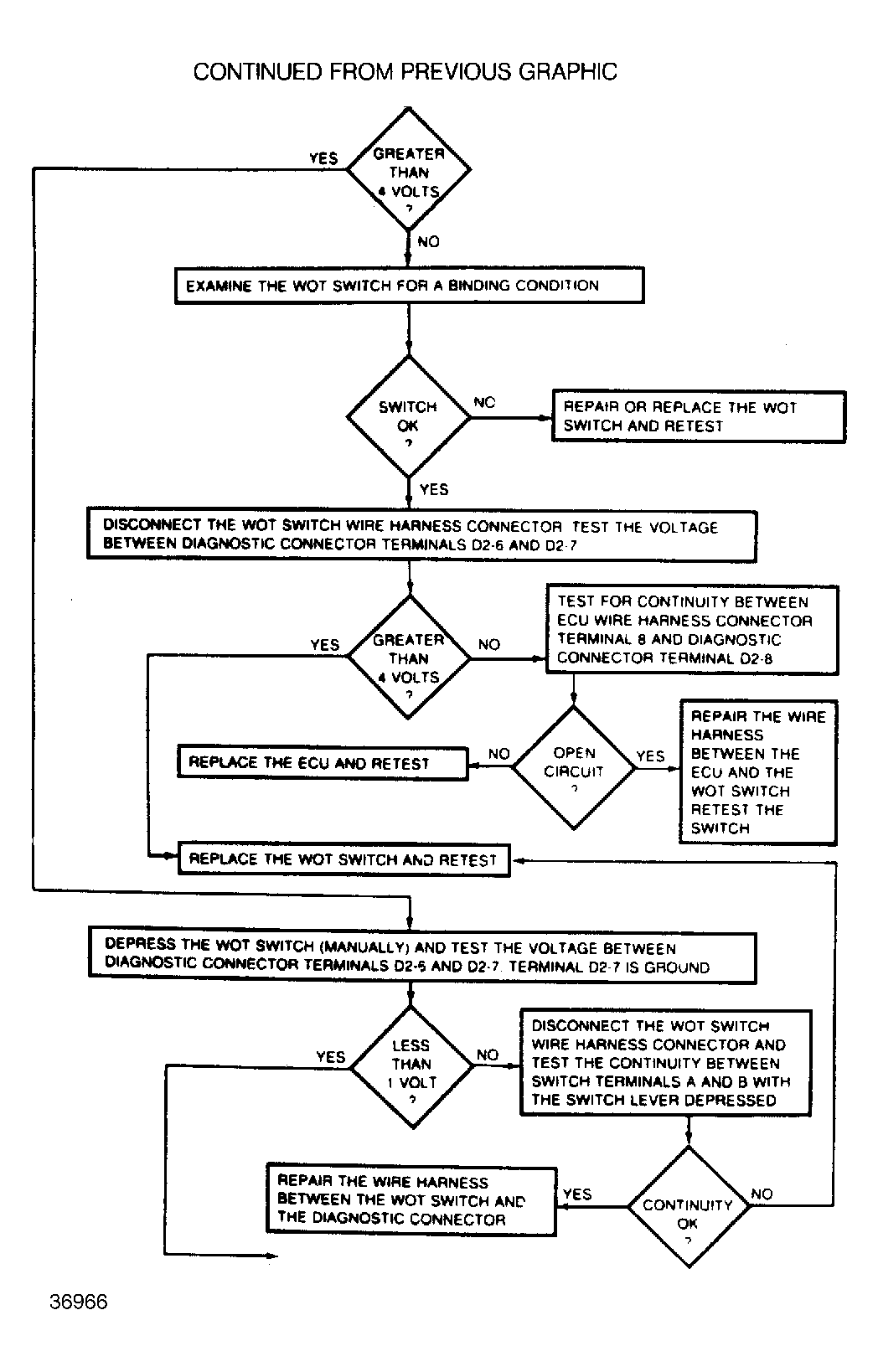

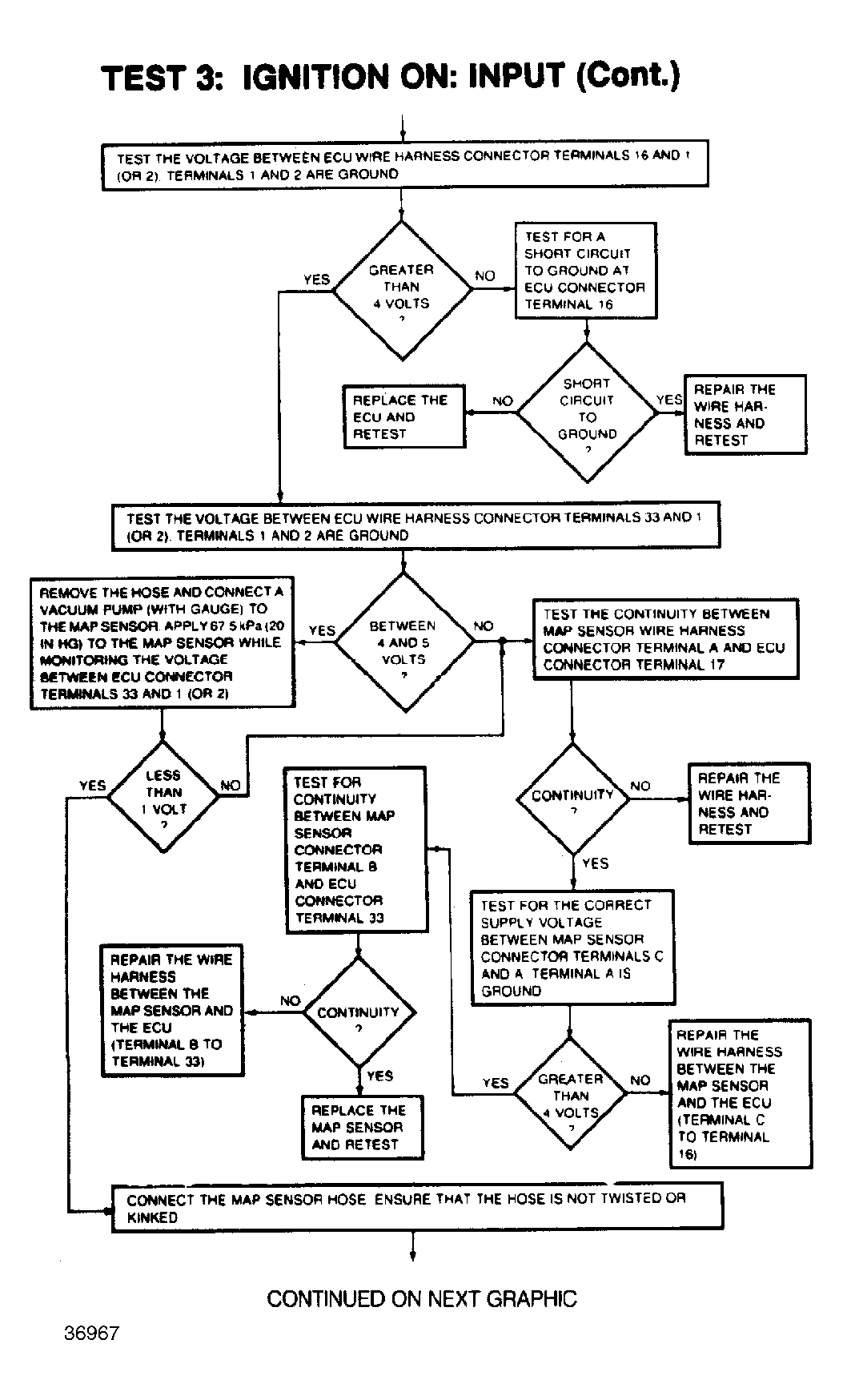

Fig 5: TEST 3: IGNITION ON: INPUT (Cont.)

Fig 6: TEST 3: IGNITION ON: INPUT (Cont.)

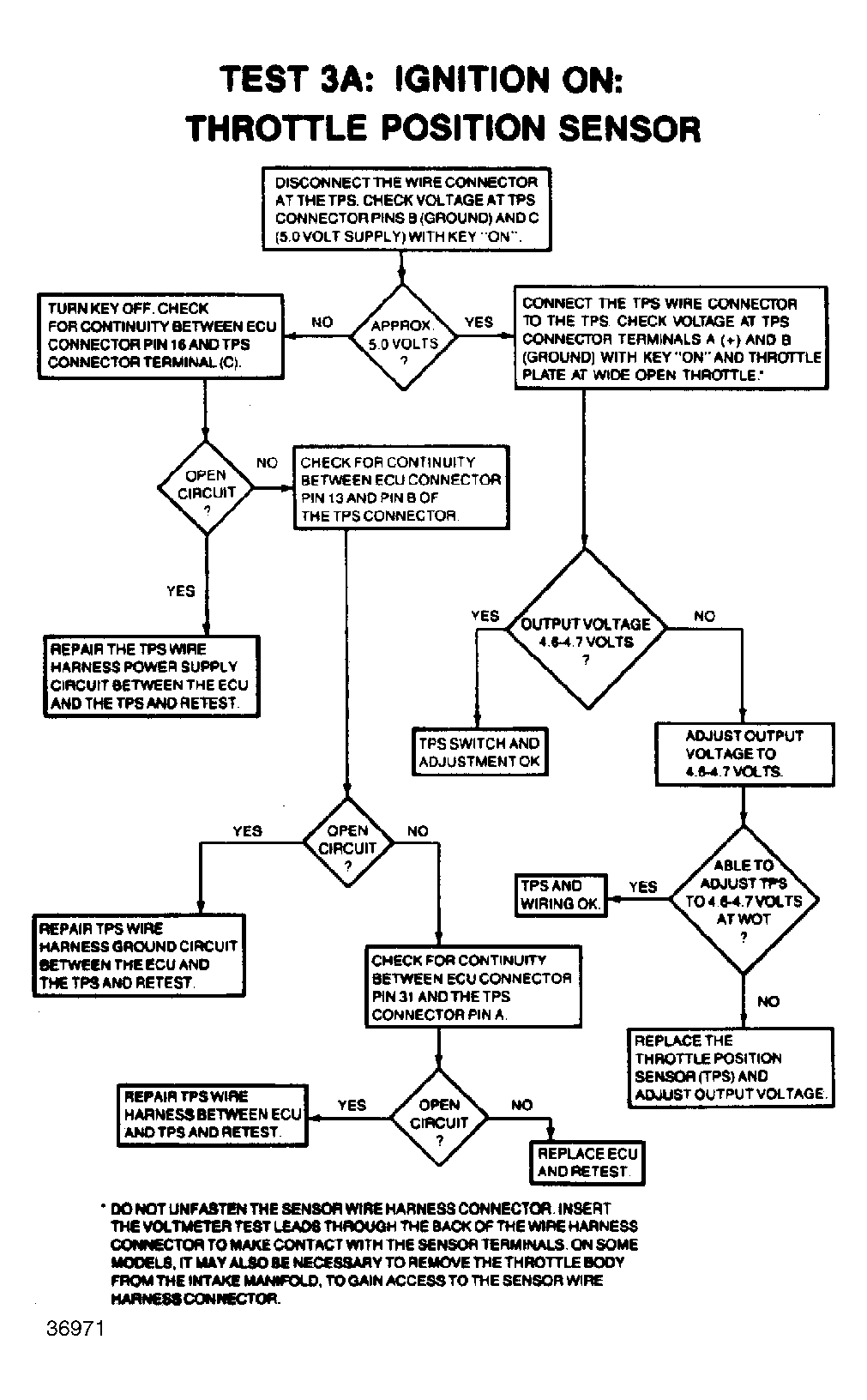

Fig 7: TEST 3A: IGNITION ON: THROTTLE POSITION SENSOR (M/T)

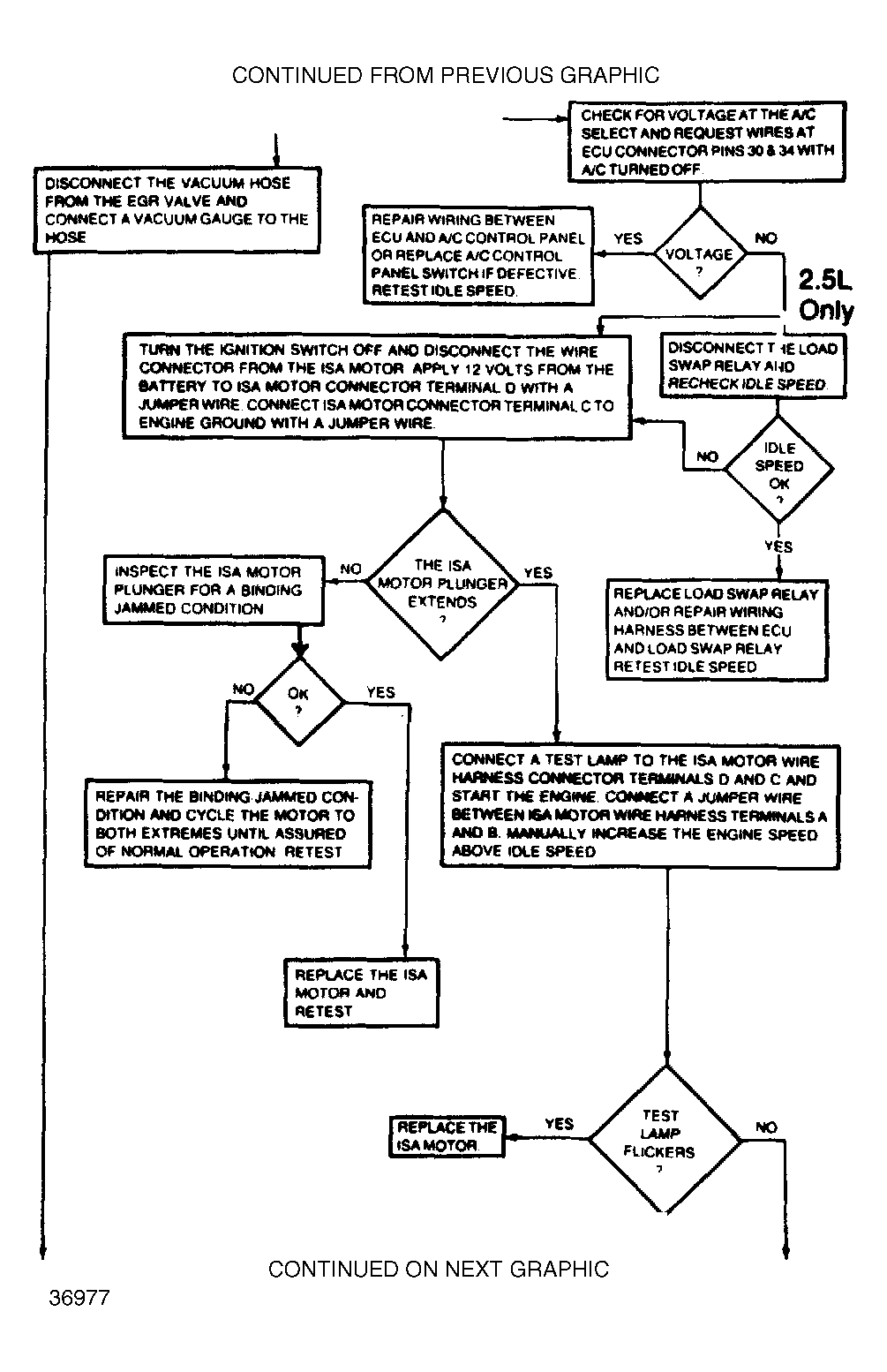

Fig 8: TEST 4: SYSTEM OPERATIONAL

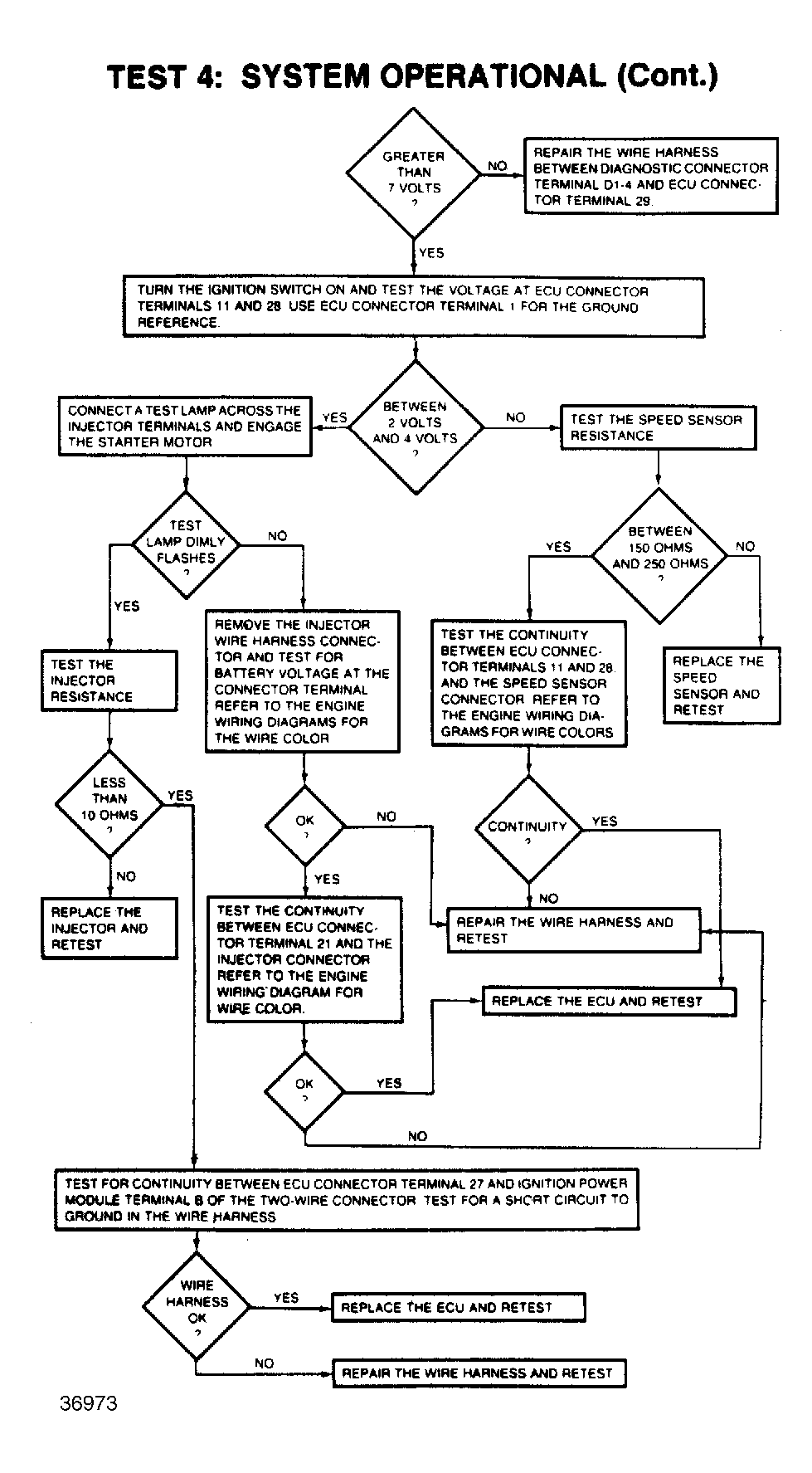

Fig 9: TEST 4: SYSTEM OPERATIONAL (Cont.)

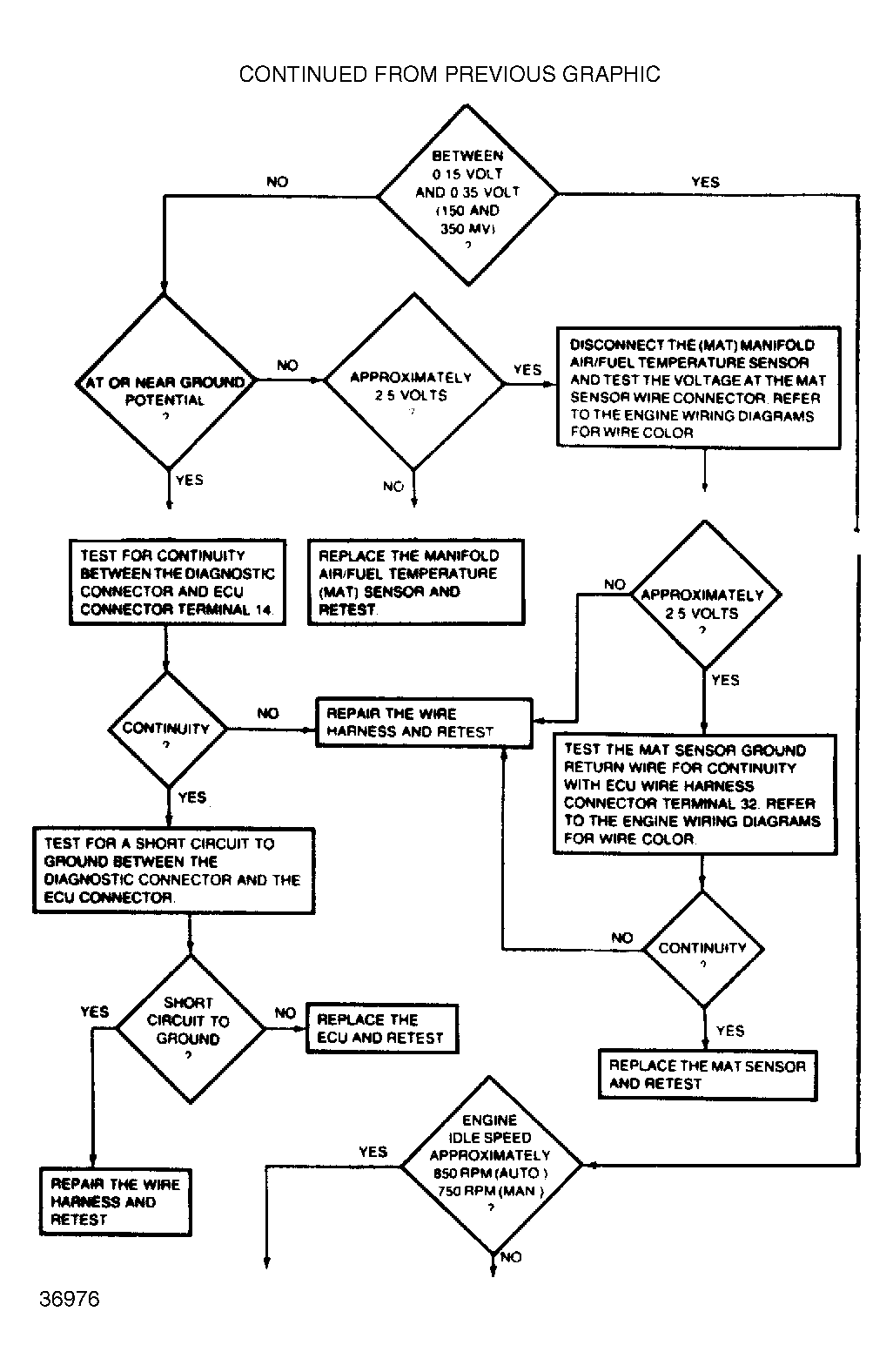

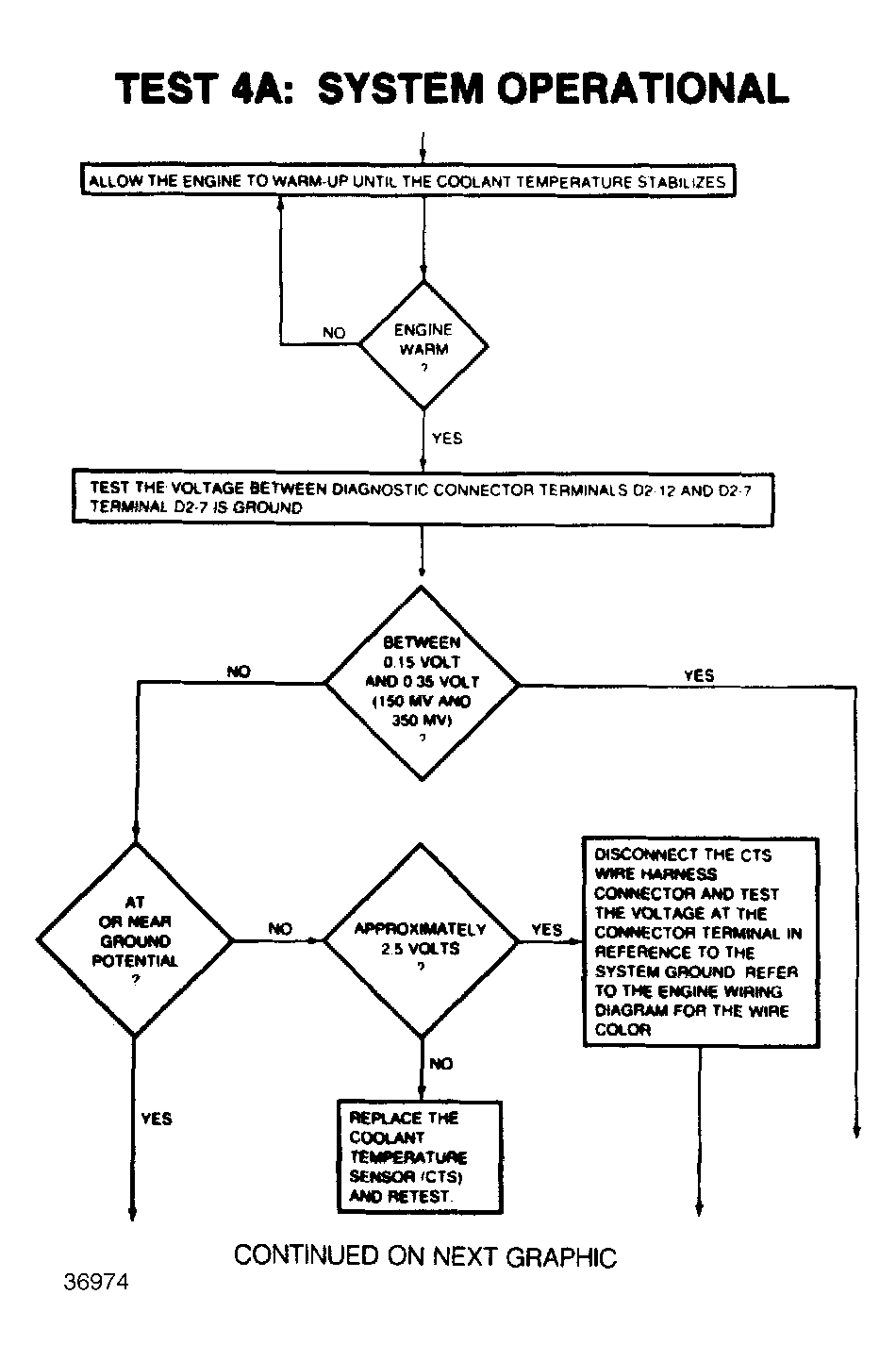

Fig 10: TEST 4A: SYSTEM OPERATIONAL

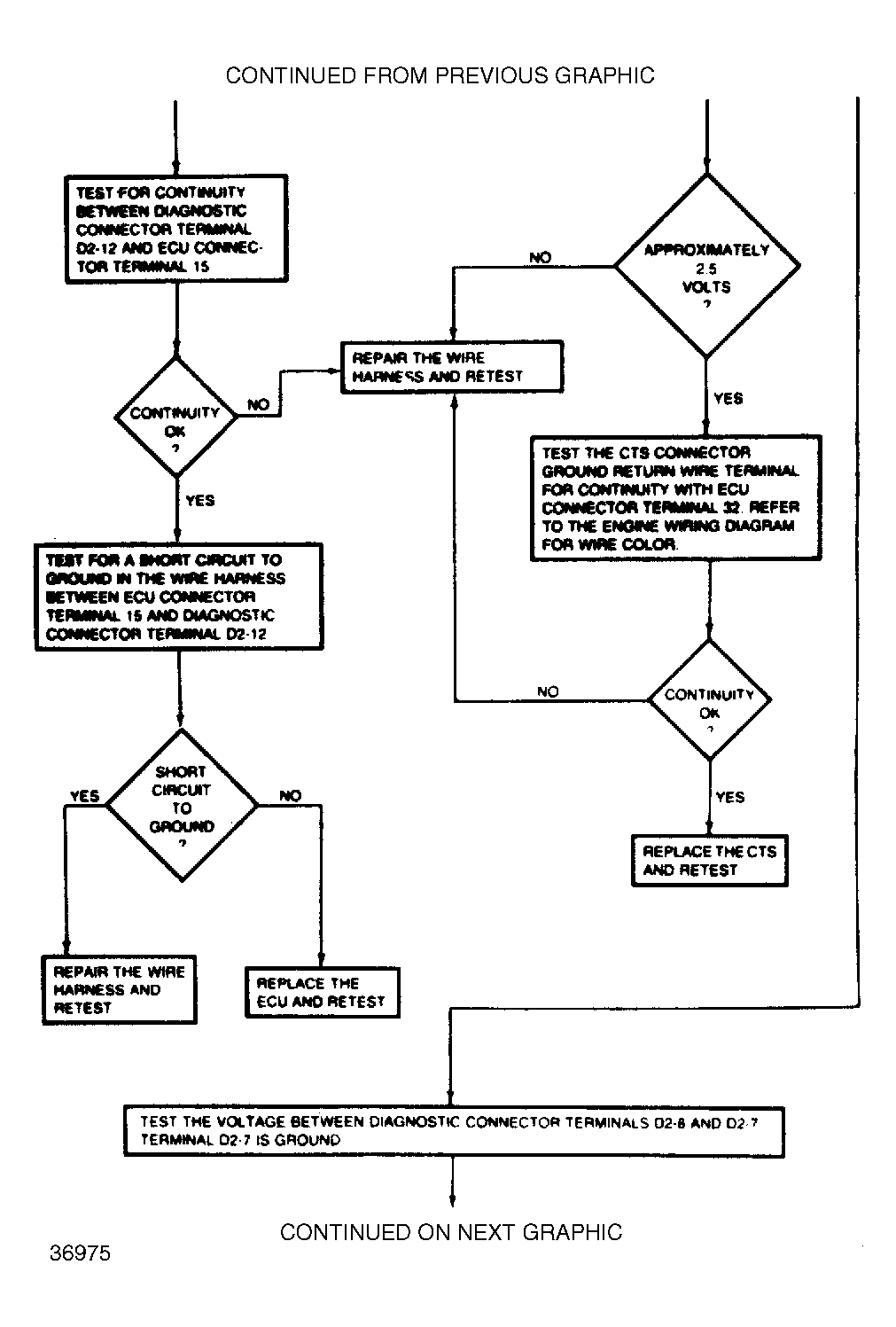

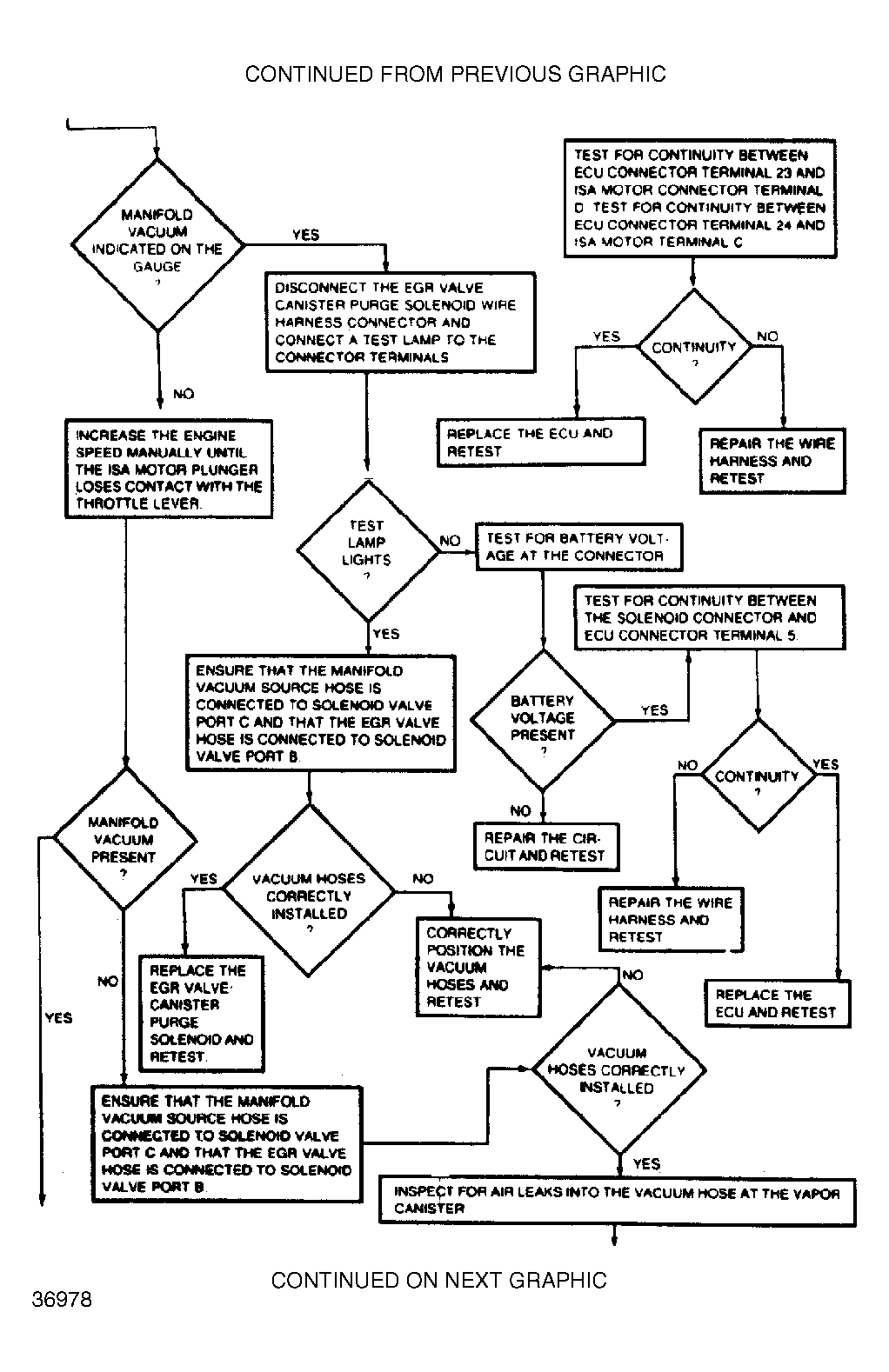

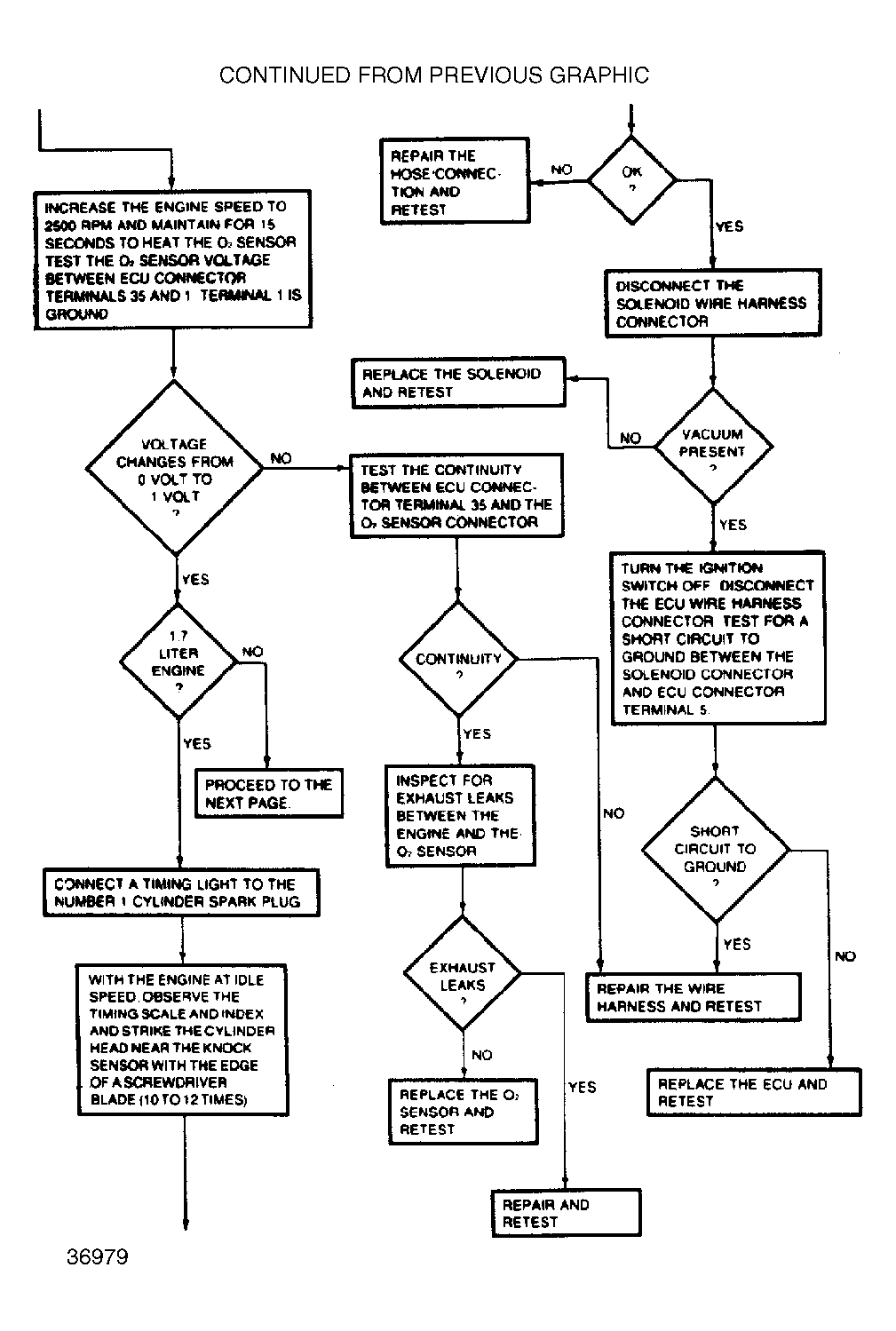

Fig 11: TEST 4A: SYSTEM OPERATIONAL (Cont.)

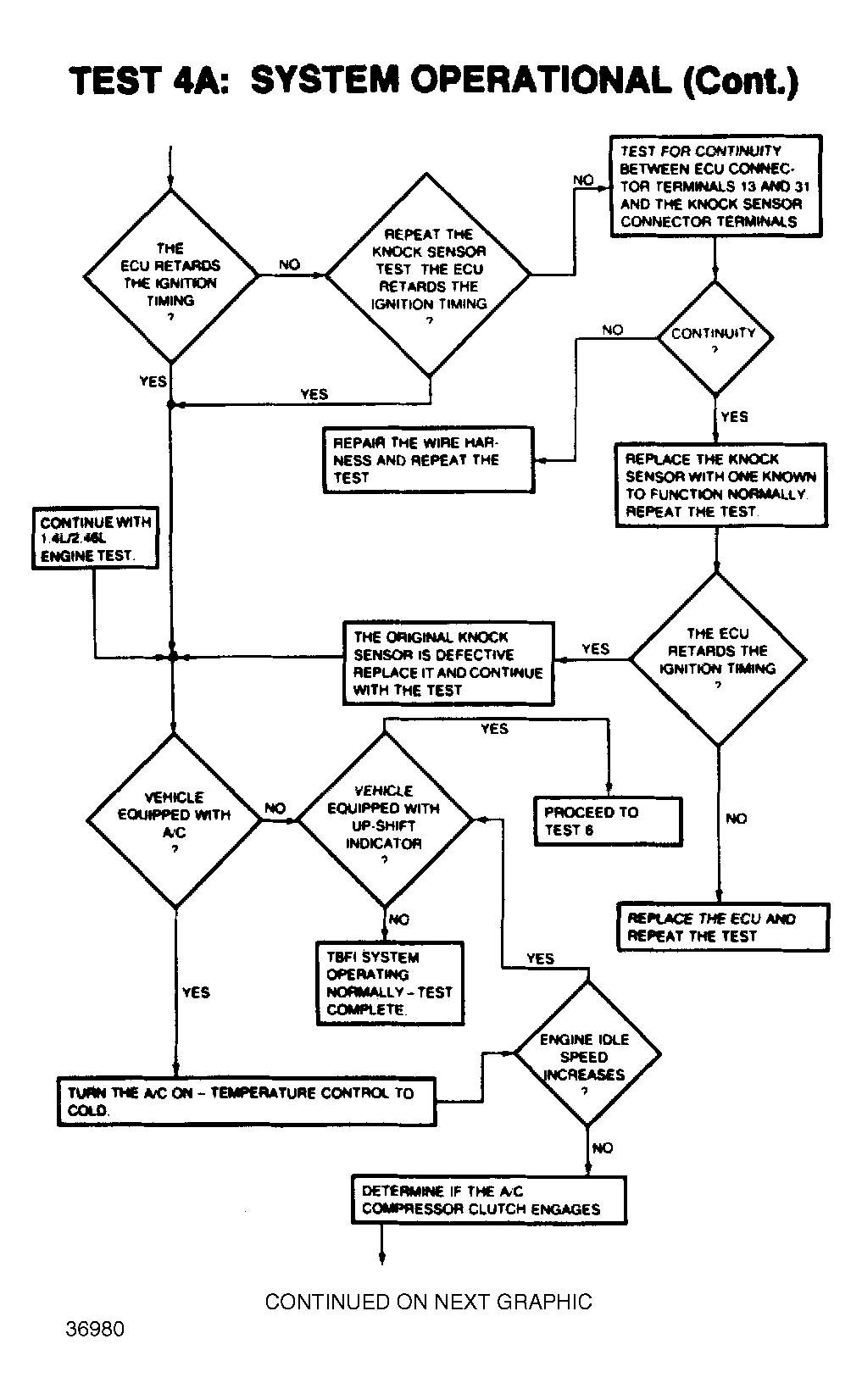

Fig 12: TEST 4A: SYSTEM OPERATIONAL (Cont.)

Fig 13: TEST 4A: SYSTEM OPERATIONAL (Cont.)

NOTE: For additional oxygen sensor information, see TITANIA OXYGEN SENSOR TESTING article.

Fig 14: TEST 4A: SYSTEM OPERATIONAL (Cont.)

Fig 15: TEST 4A: SYSTEM OPERATIONAL (Cont.)

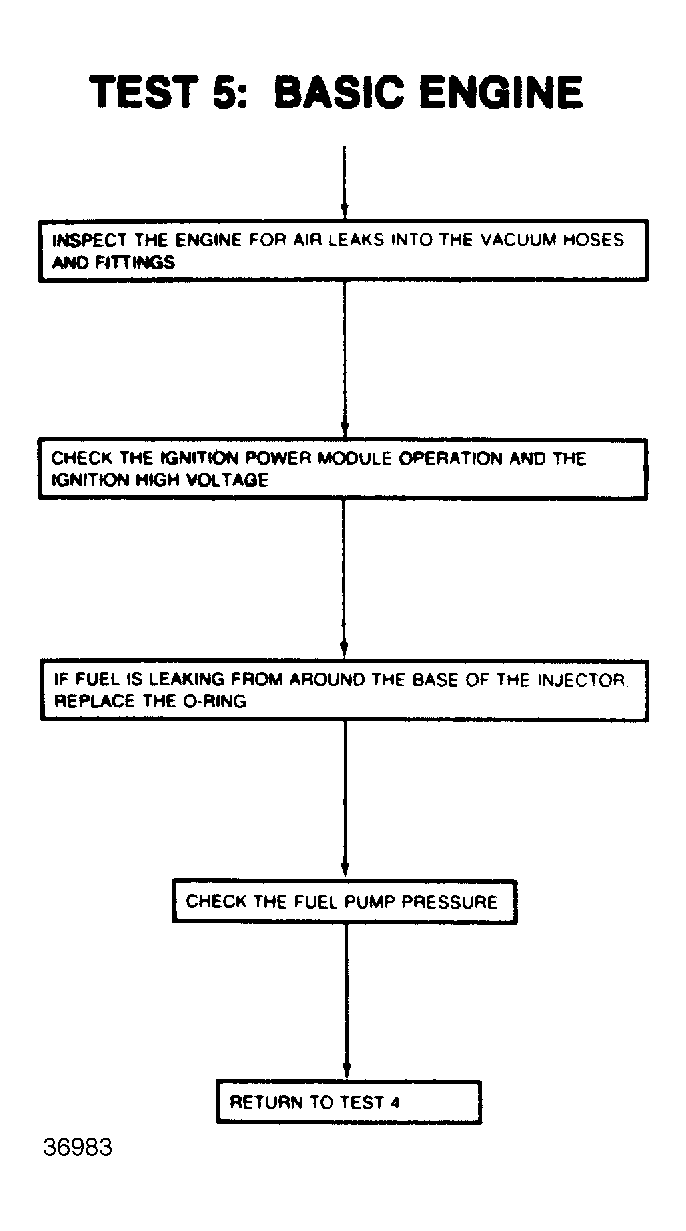

Fig 16: TEST 5: BASIC ENGINE

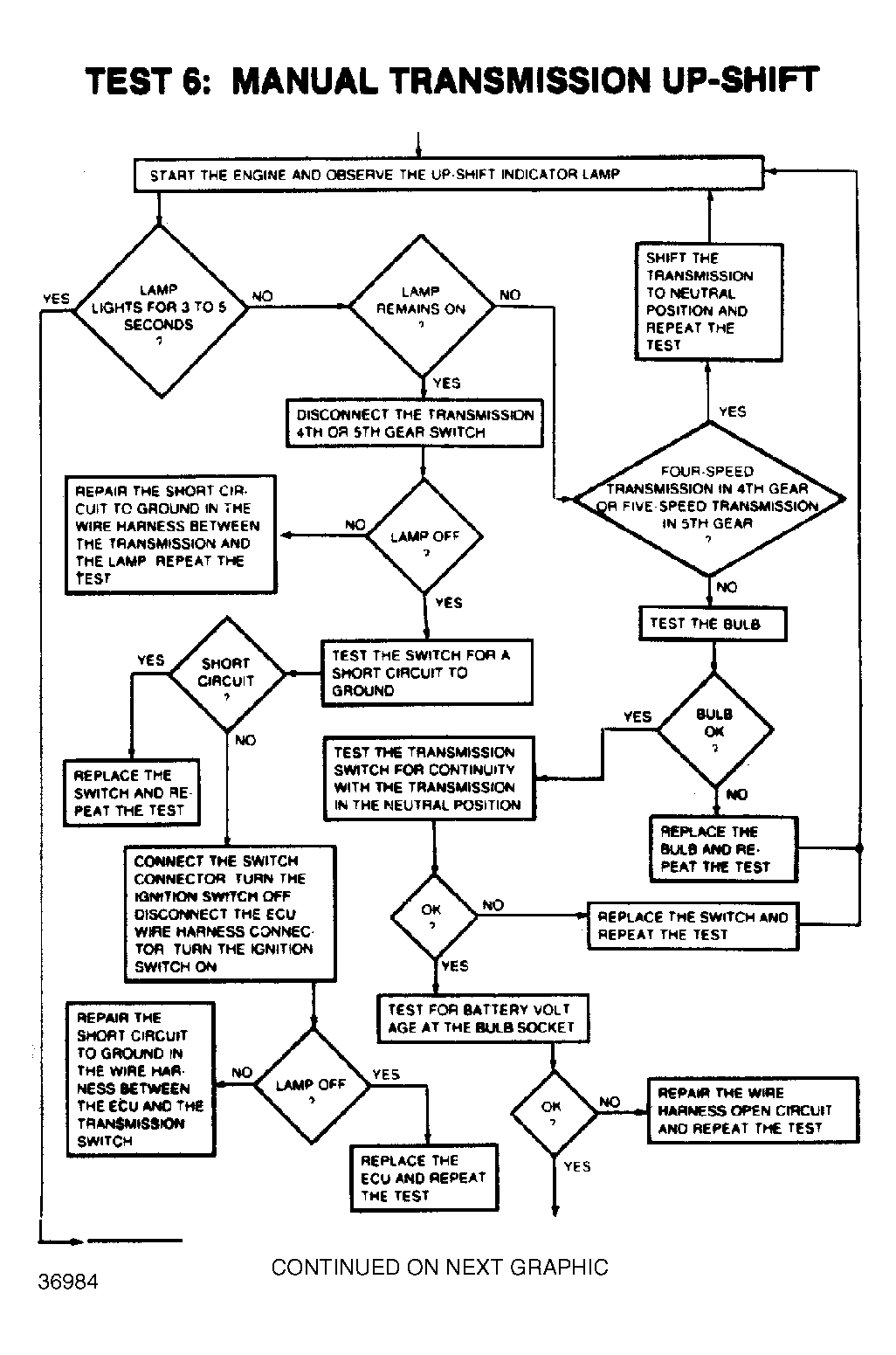

Fig 17: TEST 6: MANUAL TRANSMISSION UPSHIFT
