Wiring Diagrams

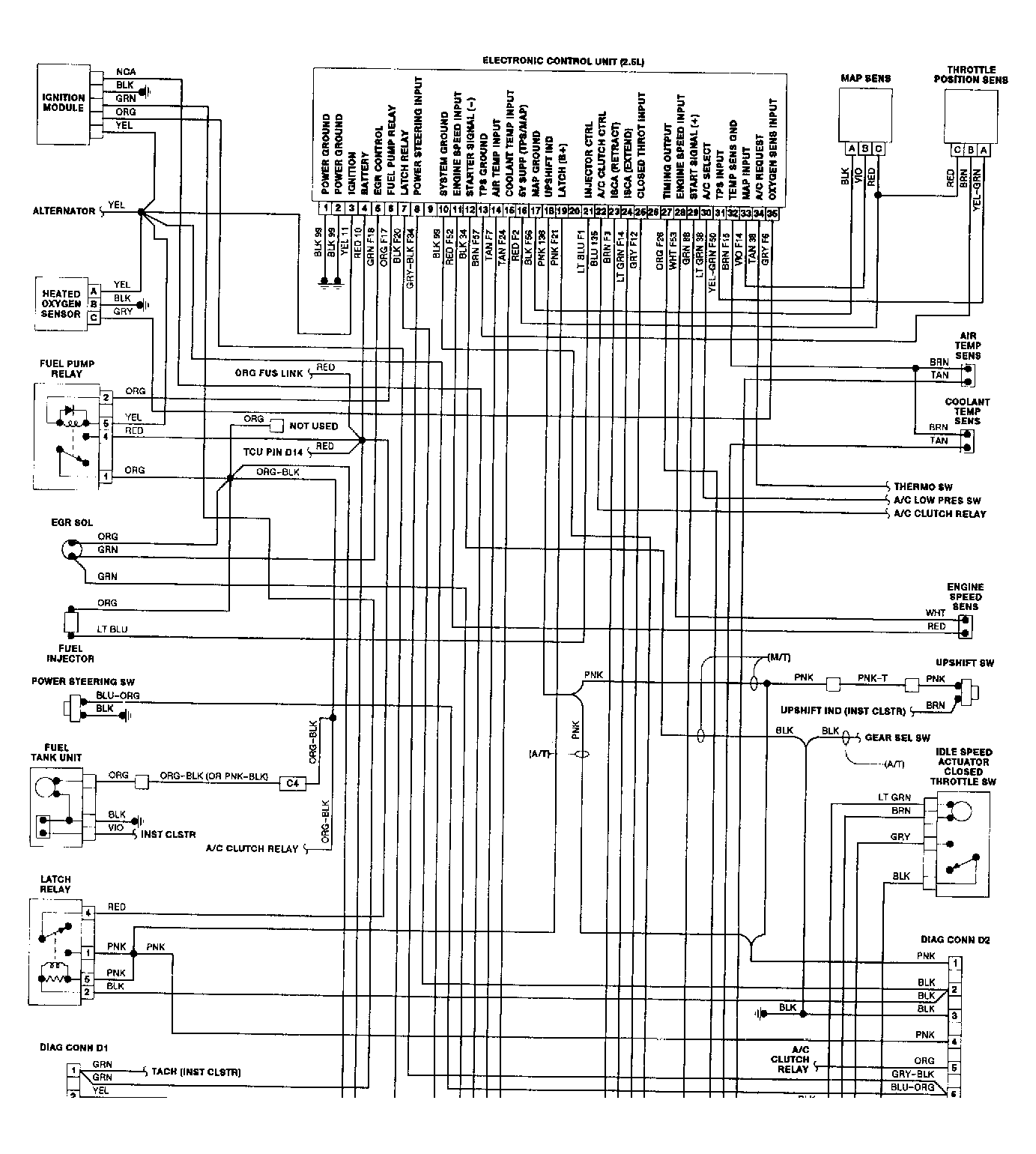

Fig 1: TBI System Wiring Diagram (Except Wrangler)
G120995Courtesy of CHRYSLER MOTORS.

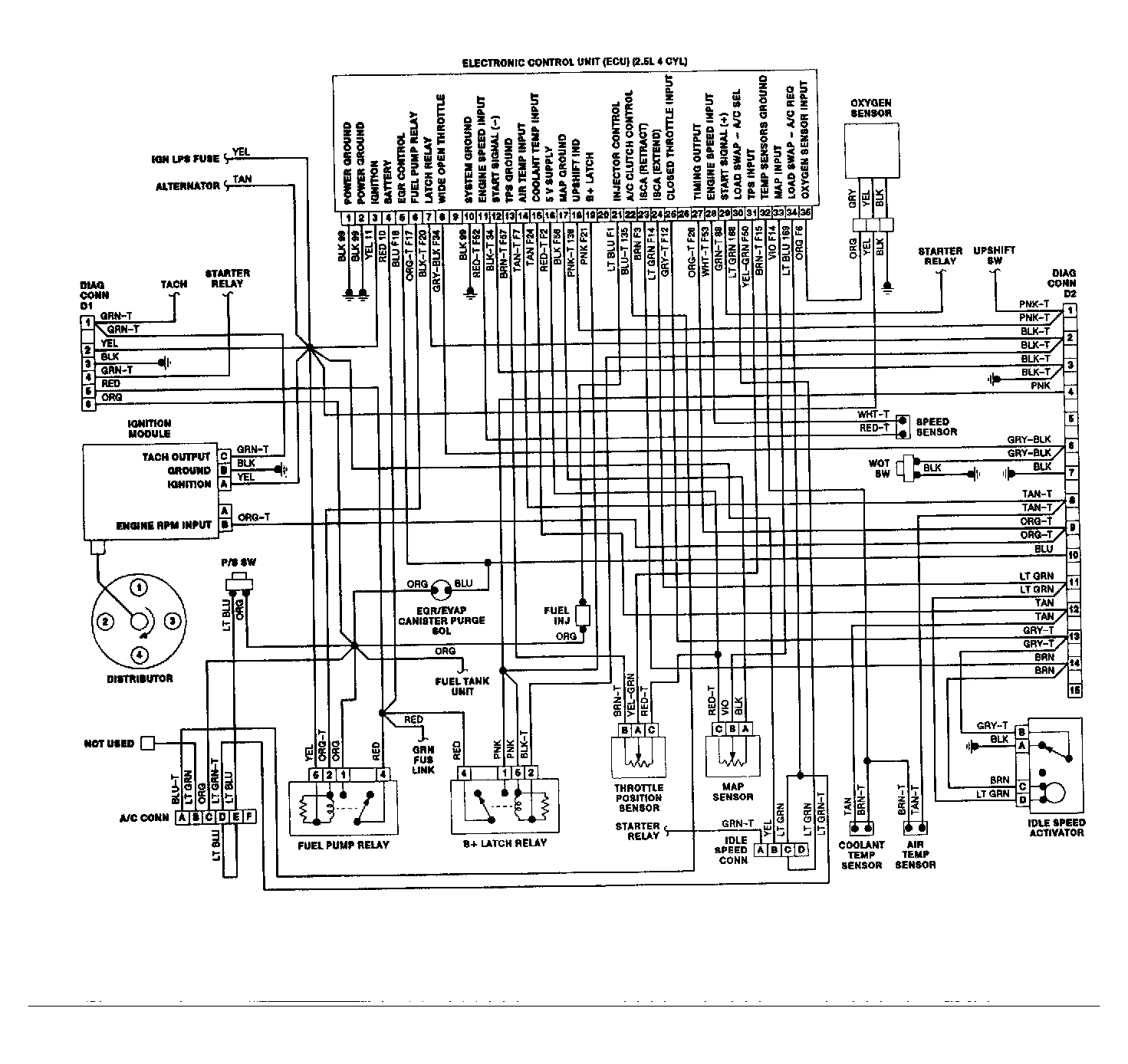

Fig 2: TBI System Wiring Diagram (Wrangler)
G120996Courtesy of CHRYSLER MOTORS.
