Fault Code 1013 - Ignition Control Module Line High

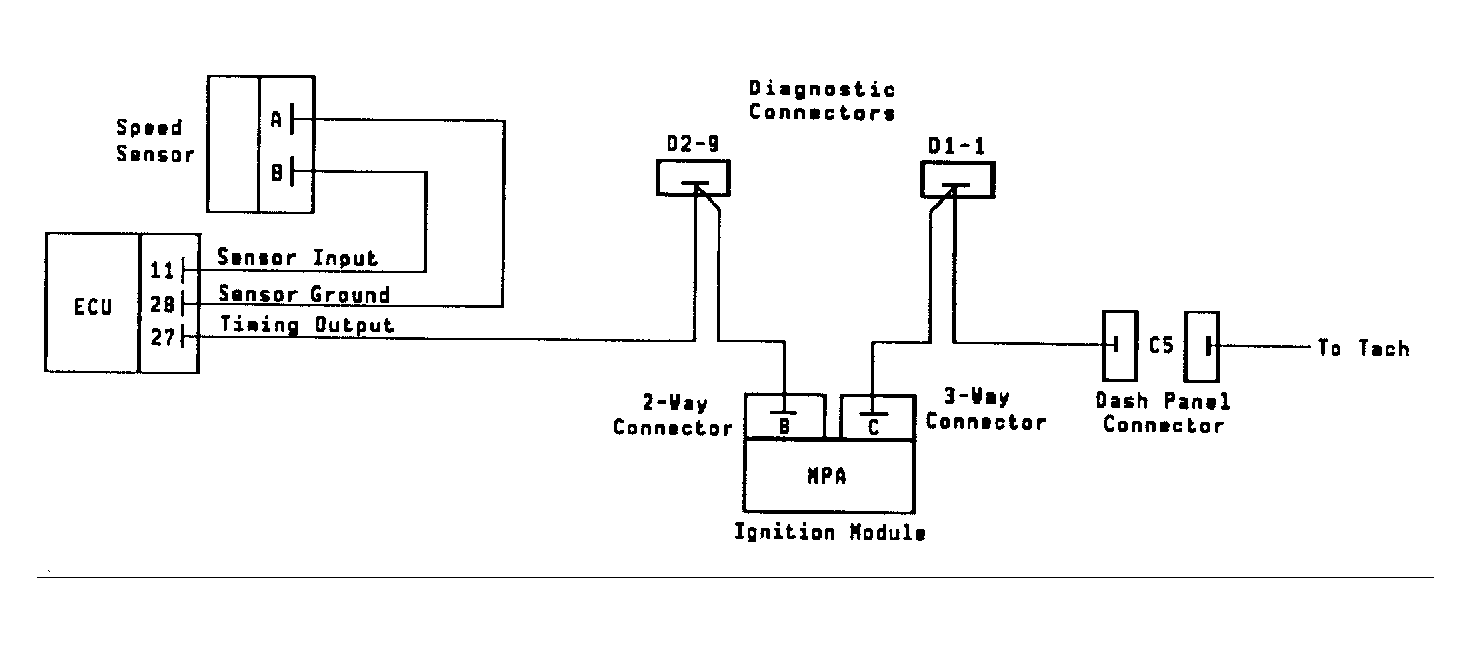

Fig 1: Ignition Control System Circuit Diagram

Courtesy of CHRYSLER MOTORS.

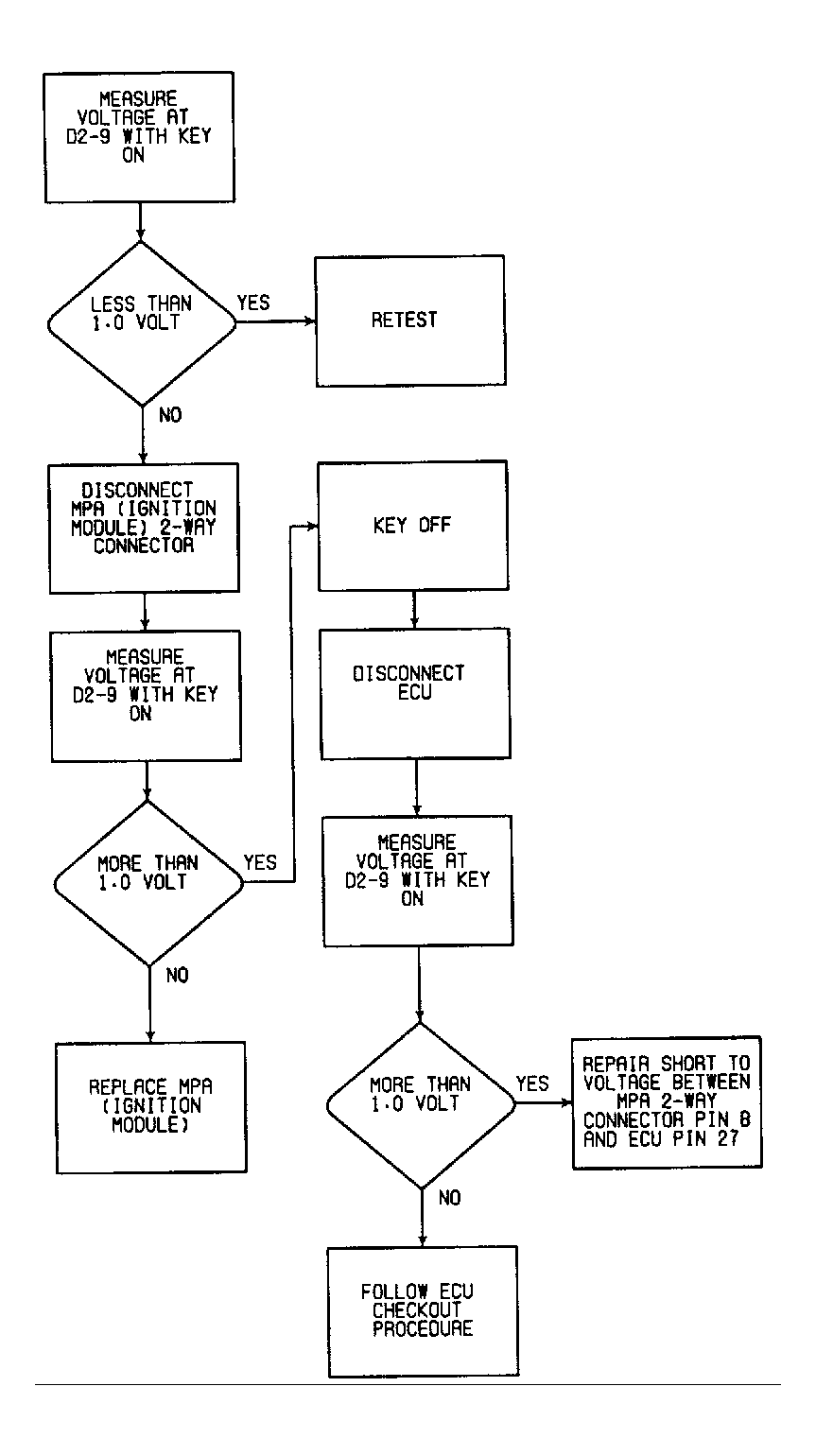

Fig 2: Testing For Fault Code 1013 - Ignition Module Line High

Courtesy of CHRYSLER MOTORS.
