Removal & Installation: Distributor: Installation

1. If necessary, use a flat blade screwdriver to turn oil pump gear shaft until slot is slightly past the 11 o'clock position. See Fig 1 .

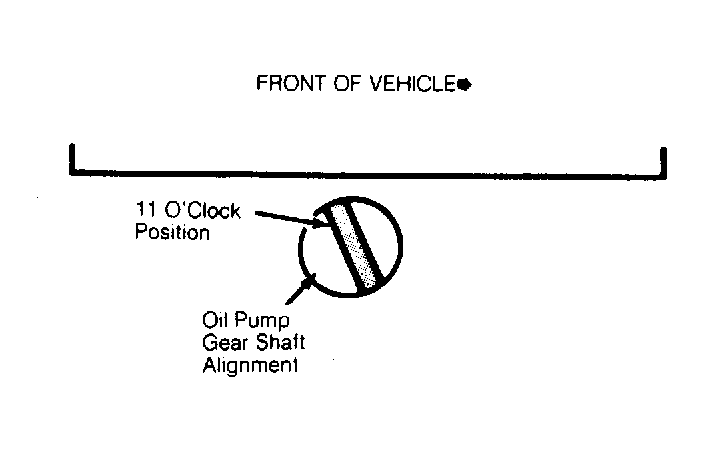

   Fig 1: Aligning Oil Pump Gear Shaft

   Courtesy of CHRYSLER MOTORS.
2. With gasket and rotor installed on distributor, position distributor into hole in engine block. Do not engage distributor gear into cam gear. Visually line up hold-down ear of distributor housing with hold-down clamp hole.
3. Turn rotor to the 4 o'clock position. See Fig 2 . Slide distributor down into block until it seats. Keep hold down ear aligned to hole in block.
4. Rotor should be in the 5 o'clock position with the trailing edge of rotor blade lined up with index mark previously scribed on distributor housing. Install distributor hold down clamp bolt and tighten to 9-14 ft. lbs. (12-19 N.m).
5. Install distributor cap and connect distributor electrical connector. If previously removed, install electrical cooling fan and shroud. Connect negative battery cable.

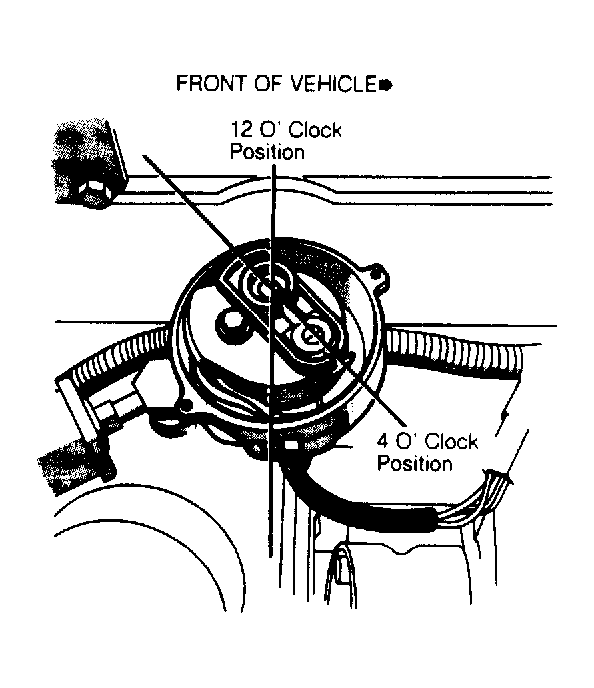

Fig 2: Positioning Rotor Before Installing Distributor

Courtesy of CHRYSLER MOTORS.
