Speed Sensor Test

Disconnect speed sensor connector from ignition control module. Place an ohmmeter between terminals "A" and "B". (Marked on connector). See Fig 1 . If continuity is present, replace ECU. If continuity is not present, replace speed sensor.

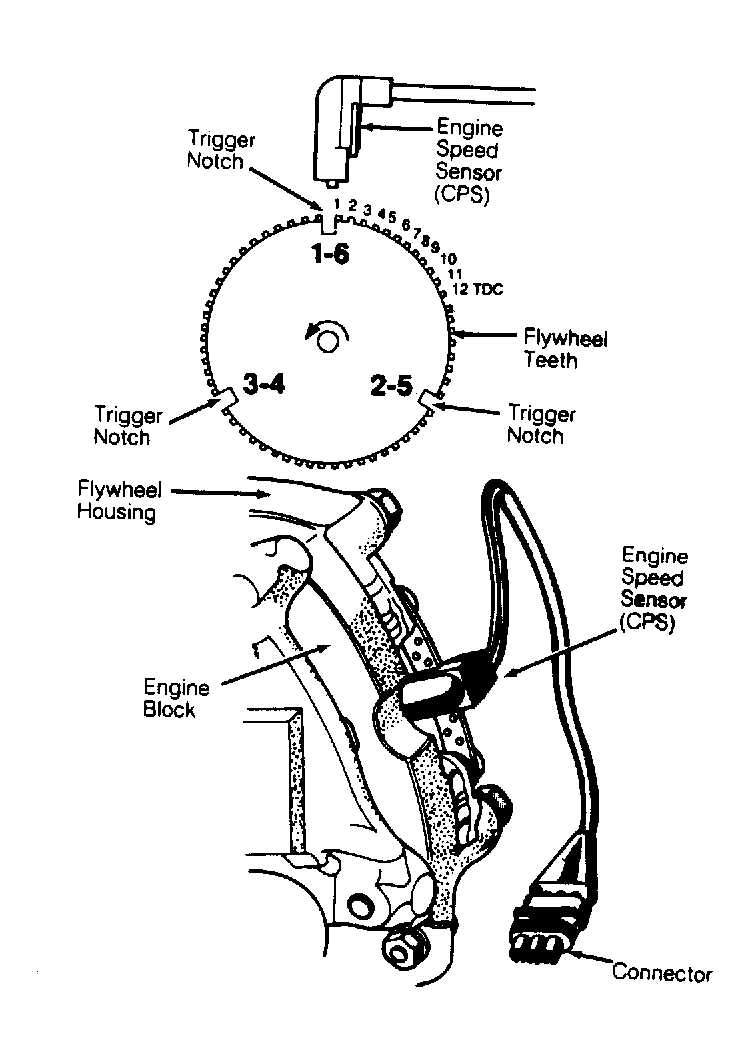

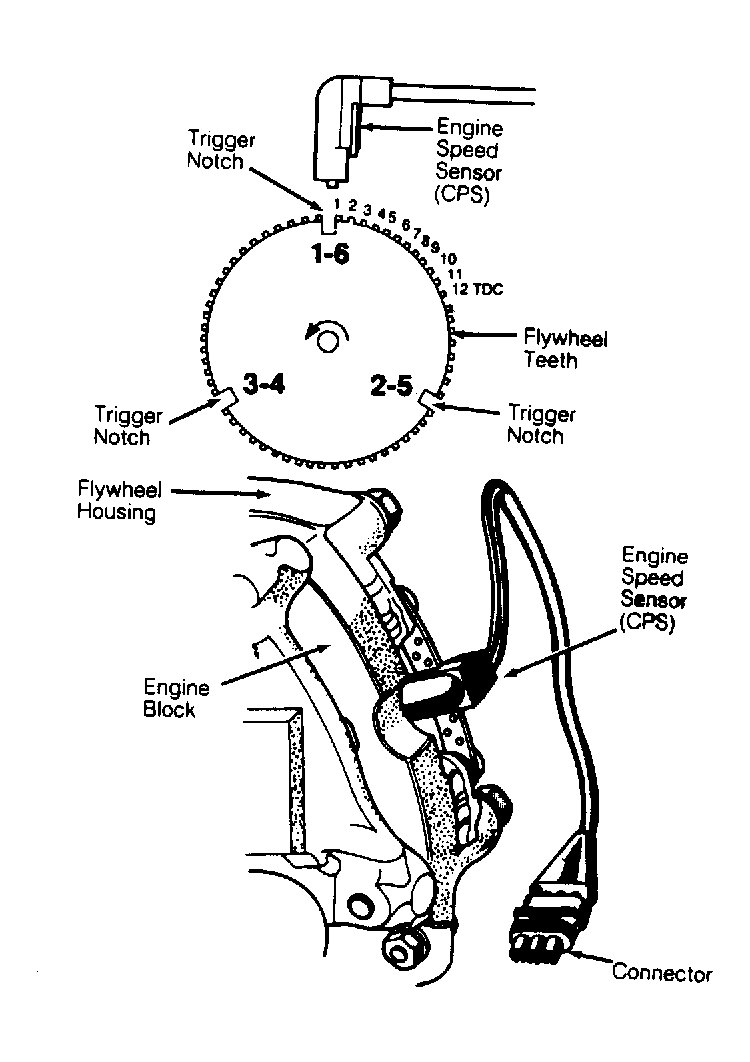

Fig 1: Engine Speed Sensor/Crankshaft Position Sensor (CPS) Location

Courtesy of CHRYSLER MOTORS.
