Power Windows: Testing
TESTING POWER WINDOW
| Test | OK | Not OK | |
|---|---|---|---|
| No Windows Operate - Power window circuit breaker installed | |||
| Probe terminal S on fuse panel | Battery voltage | Replace circuit breaker | |
| Side of cigar lighter socket to ground | Zero ohms | Repair open to ground | |
| Remove master door lock/power window switch assembly mounting screws & probe terminal BY at left switch | Battery voltage | Repair open to circuit breaker | |
| Probe BLK wire (terminal DX) at left switch | Zero ohms | Repair open to ground splice of IP harness | |
| Operate window switch | Windows move & down | Go to Switch Testing | |
| Master power window switch | Passes test | Replace defective motors | |
| One Window Operates - Remove door panel of inoperative window, and probe harness side of unplugged motor connector. | |||
| Terminal A of connector, holding switch in DOWN position | Battery voltage | Repair open back to master switch if additional switch is in circuit (not left motor), refer to Switch Testing | |
| Terminal B of connector, holding switch in DOWN position | Zero ohms, Caution, maintain DOWN position while meter lead is attached | Repair open back to master switch if additional switch in circuit (not left motor), refer to Switch Testing. If both tests are OK, replace motor. | |

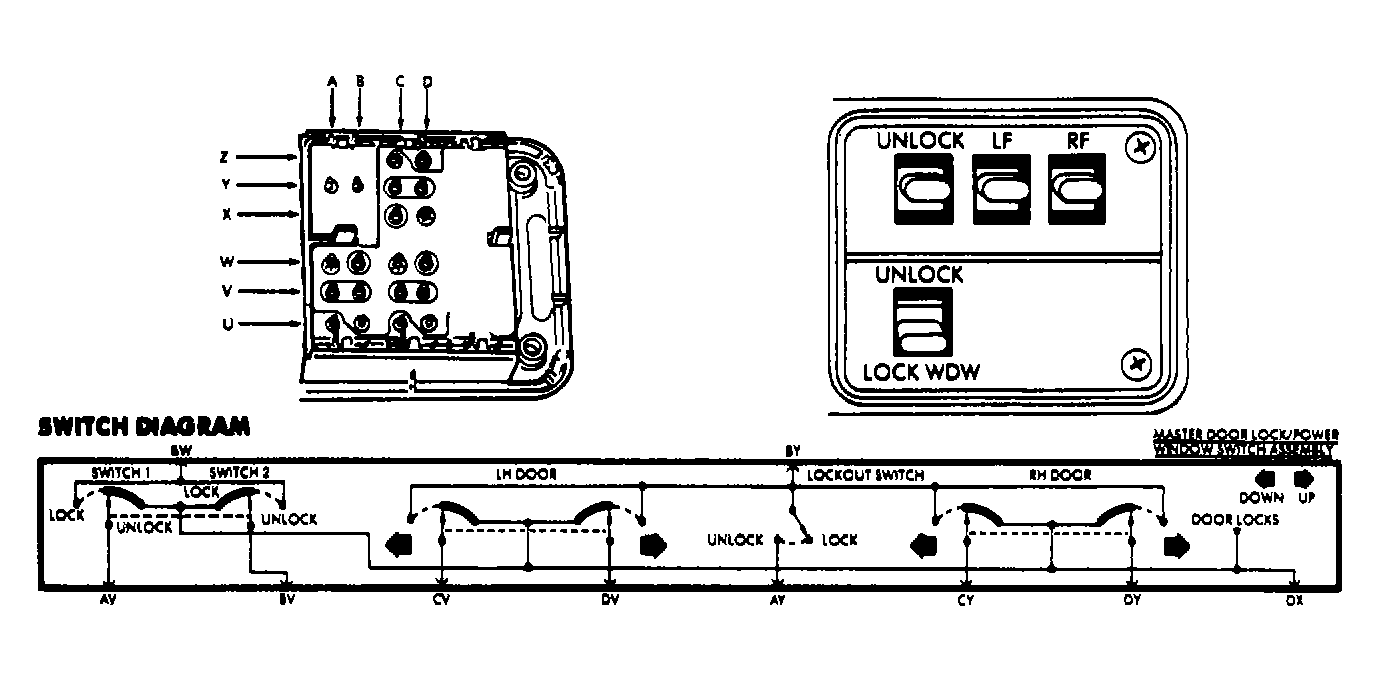

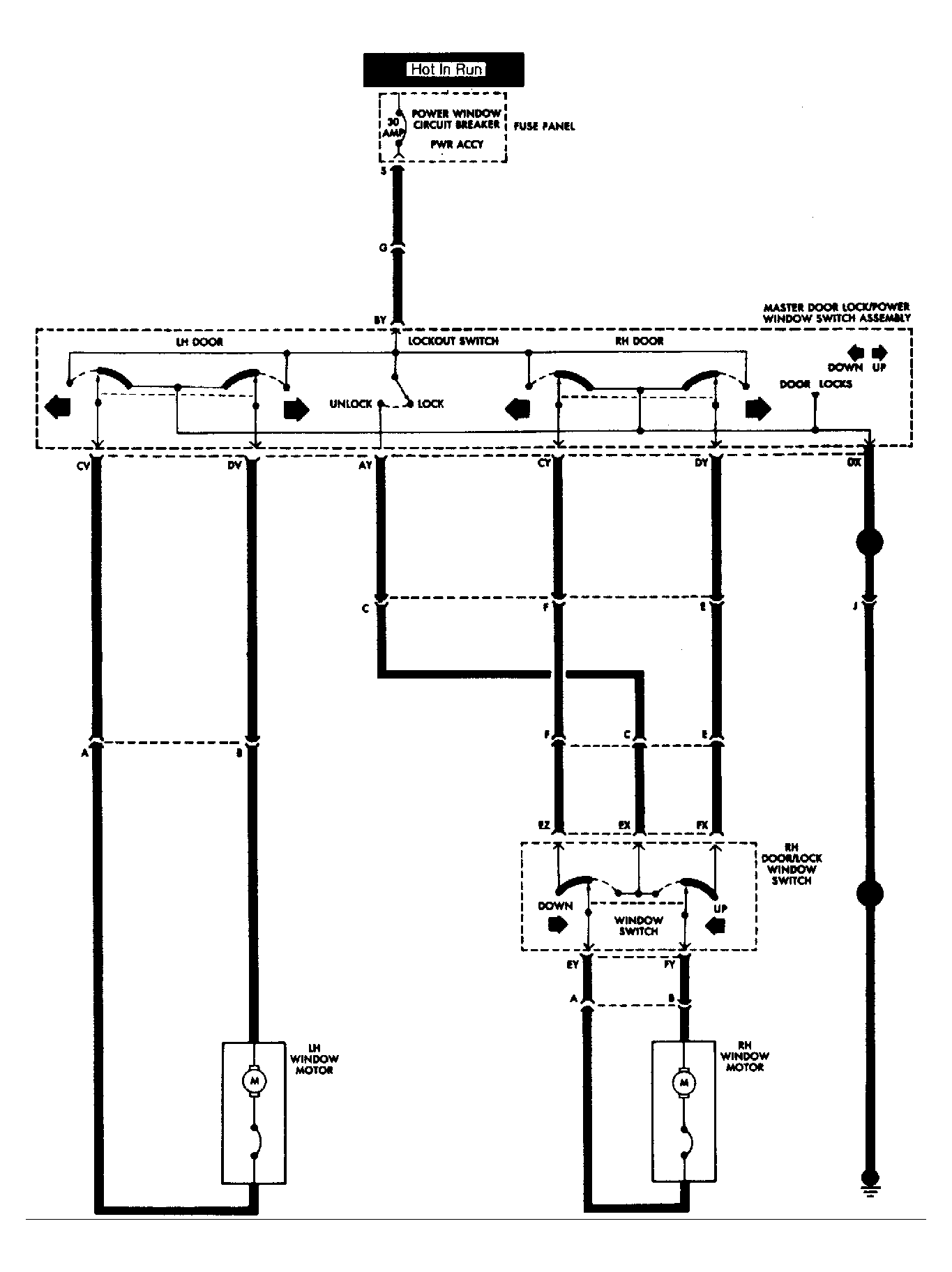

TESTING MASTER POWER WINDOW SWITCH (2-DOOR)
| Test & Switch Position | Terminals | Zero Ohms | |
|---|---|---|---|
| Switch Grounds | |||
| Off (Normal) | DX and: AV, BV, CV, DV, CY, DY | Yes | |
| BW & DX | No | ||
| BY & DX | No | ||
| Left Door | |||
| Up | BY & DV | Yes | |
| Down | BY & CV | Yes | |
| Right Door | |||
| Up | BY & DY | Yes | |
| Down | BY & CY | Yes | |
| Lockout Switch | |||
| Up (Unlock) | AY & BY | Yes | |
| Down (Lock) | AY & BY | No | |

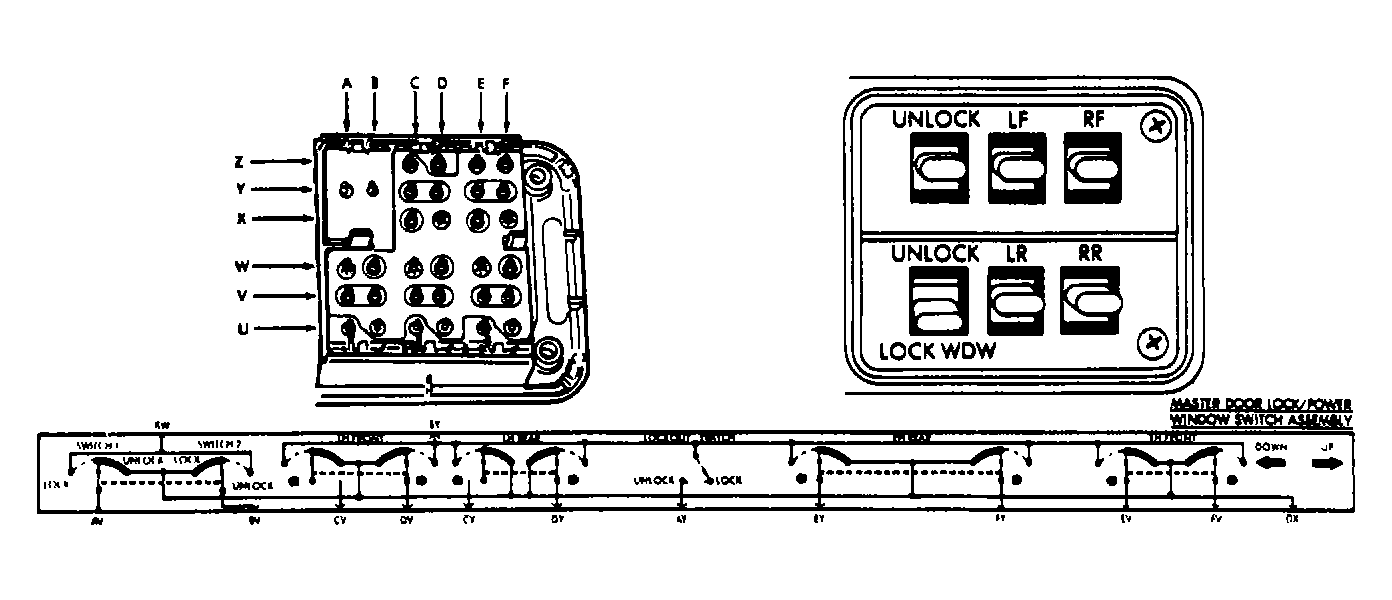

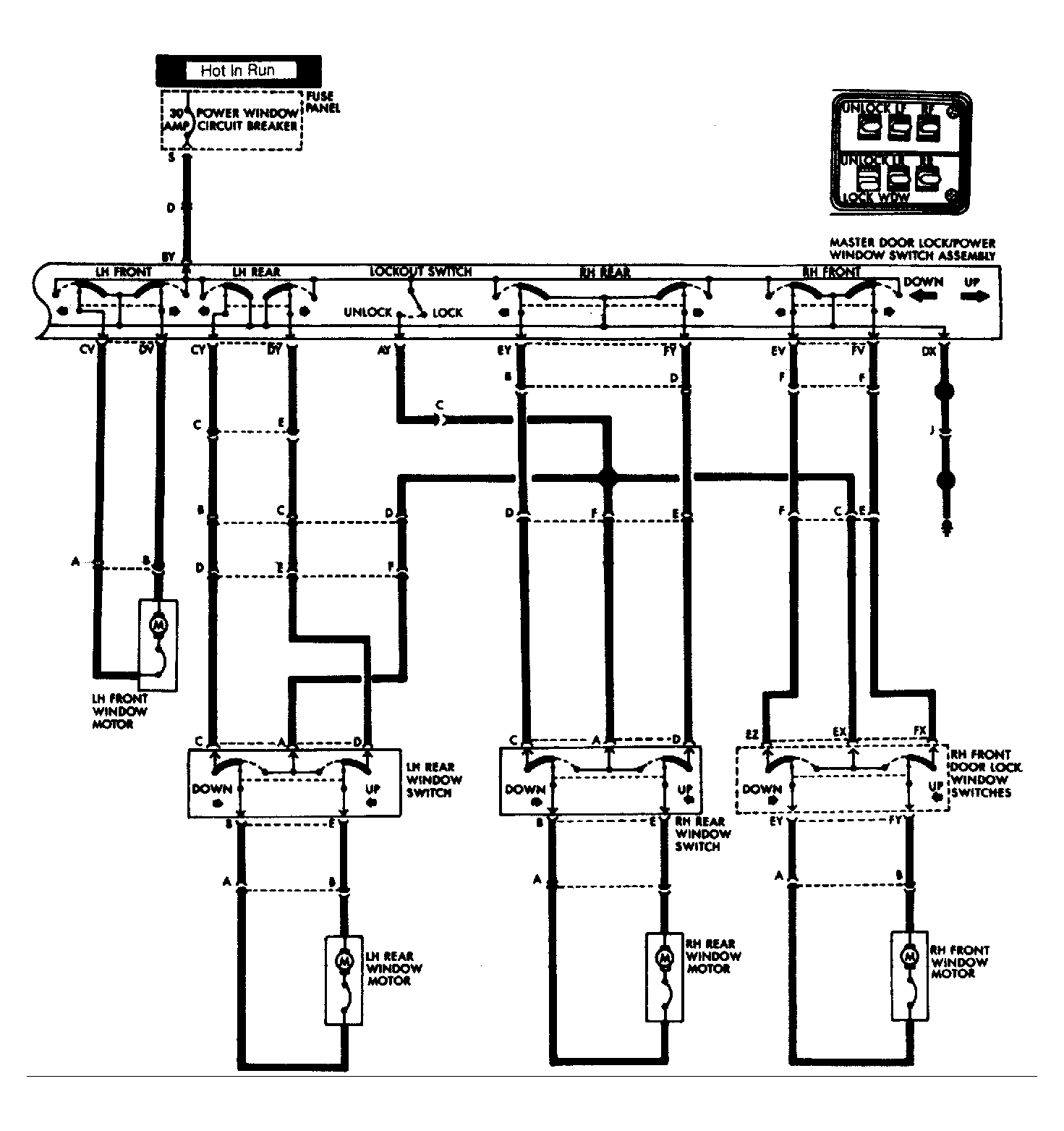

TESTING MASTER POWER WINDOW SWITCH (4-DOOR)
| Test & Switch Position | Terminals | Zero Ohms | |
|---|---|---|---|
| Switch Grounds | |||
| Off (Normal) | DX and: AV, BV, CV, DV, CY, DY, EY, FY, EV, FV | Yes | |
| BW & DX | No | ||
| BY & DX | No | ||
| Left Front | |||
| Up | BY & DV | Yes | |
| Down | BY & CV | Yes | |
| Left Rear | |||
| Up | BY & DY | Yes | |
| Down | BY & CY | Yes | |
| Lockout Switch | |||
| Up (Unlock) | AY & BY | Yes | |
| Down (Lock) | AY & BY | No | |
| Right Rear | |||
| Up | BY & FY | Yes | |
| Down | BY & EY | Yes | |
| Right Front | |||
| Up | BY & FV | Yes | |
| Down | BY & EV | Yes | |

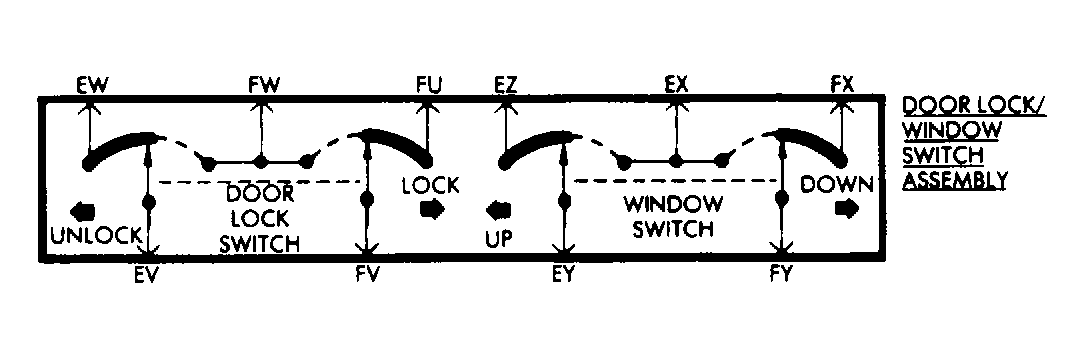

| Window Switch | |||
| Off (Normal) | EY & EZ | Yes | |
| FY & FX | Yes | ||
| All Others | No | ||
| Up | EY & EZ | Yes | |
| EX & FY | Yes | ||
| All Others | No | ||
| Down | EX & EY | Yes | |
| FX & FY | Yes | ||
| All Others | No | ||
