Fault 1065: Lean O2 Sensor Input

NOTE: For additional oxygen sensor information, see TITANIA OXYGEN SENSOR TESTING article.

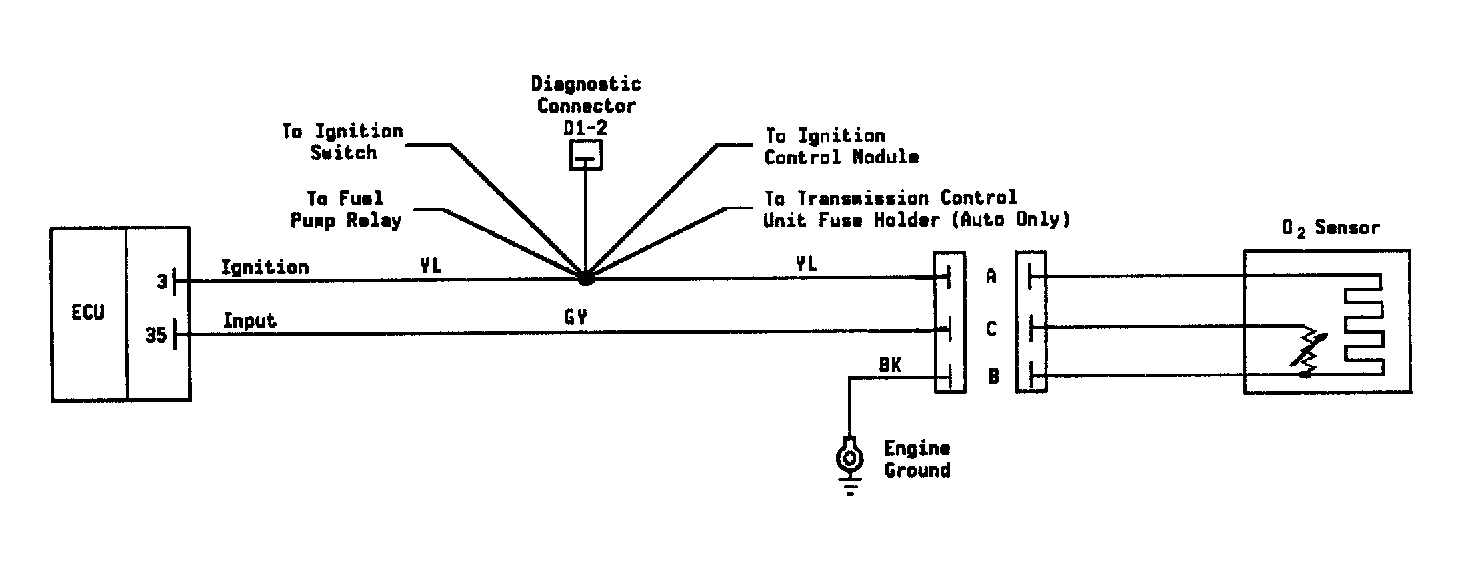

Fig 1: Fault 1065: Circuit Diagram Lean O2 Sensor Input

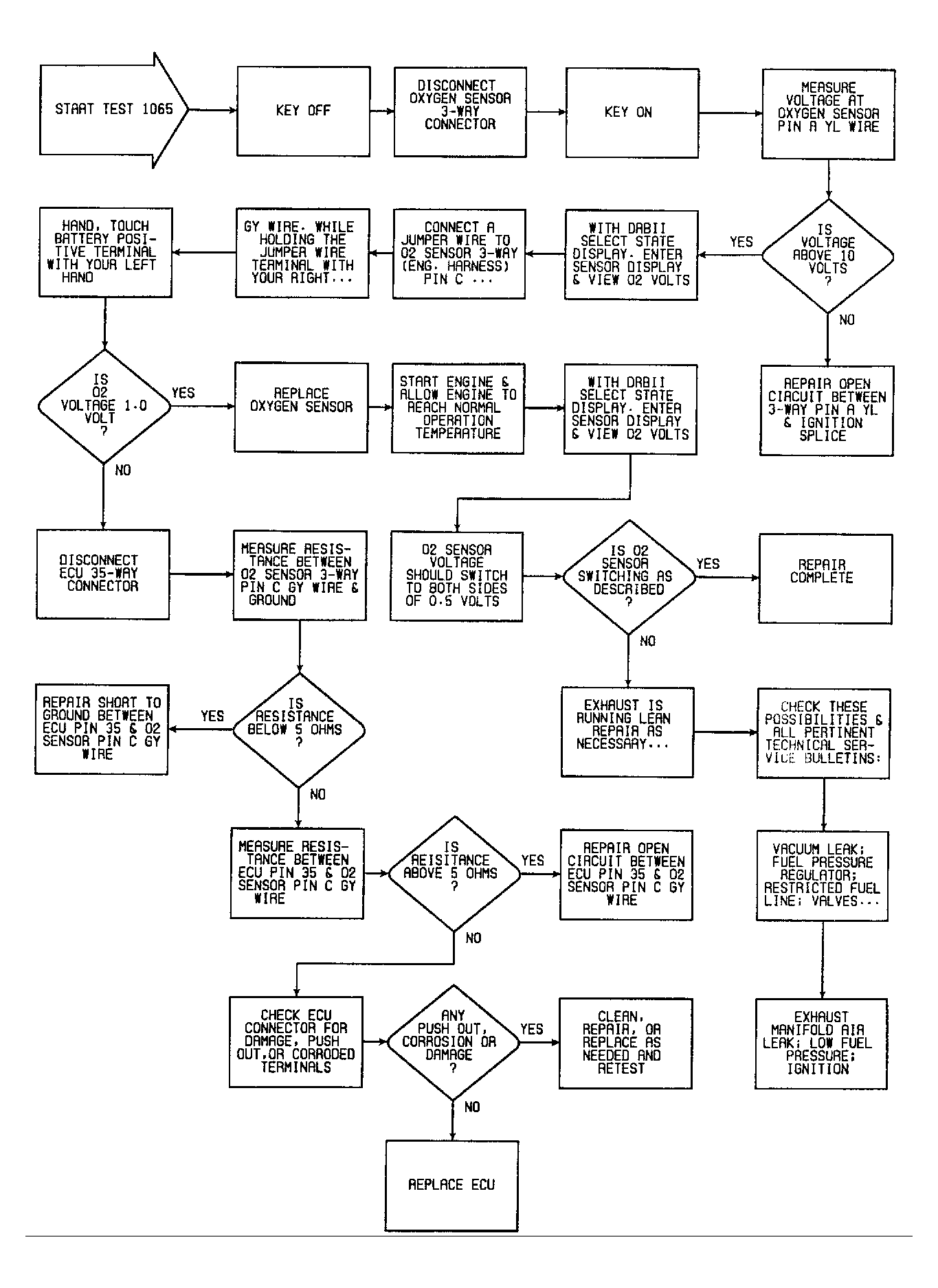

Fig 2: Fault 1065: Flow Chart Lean O2 Sensor Input
