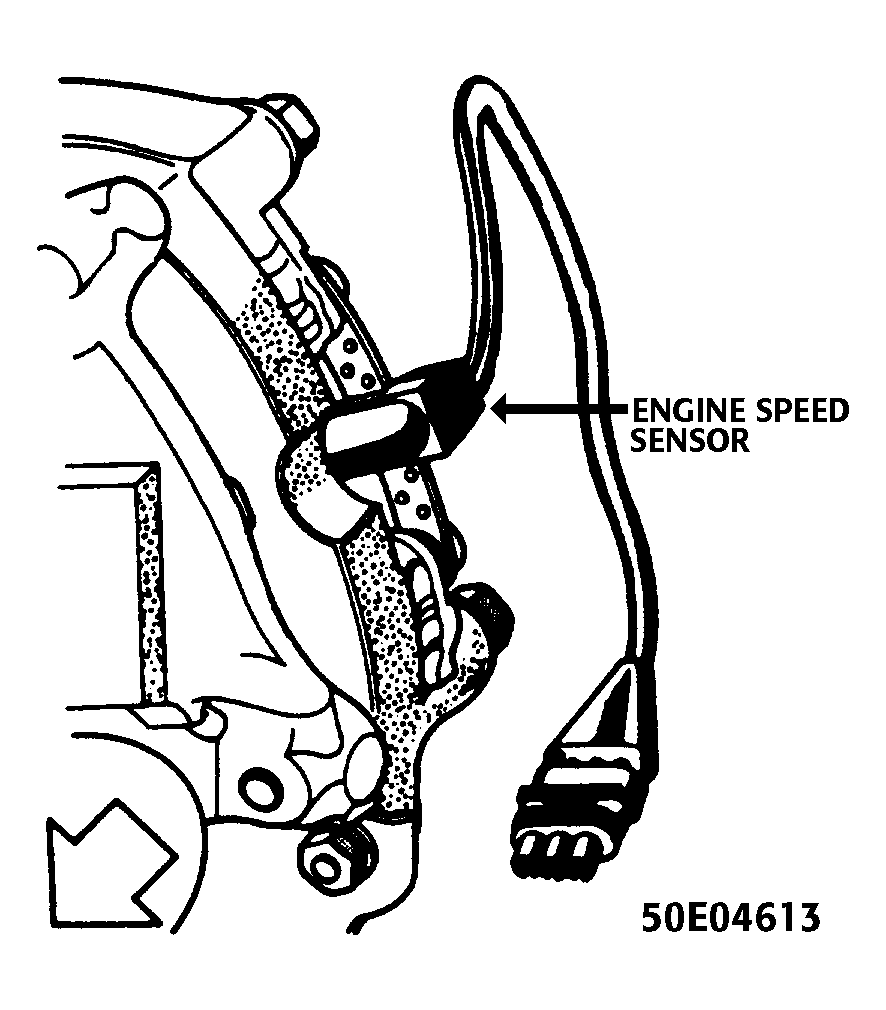

Engine Speed Sensor Test
- Disconnect the engine speed sensor connector from the ignition control module.
- place an ohmmeter between terminals "A" and "B" (marked on the connector). On a hot engine, the resistance reading should be between 125-275 ohms.
- Replace sensor if readings are not within specification.
