Pulse Injection (4.2L)

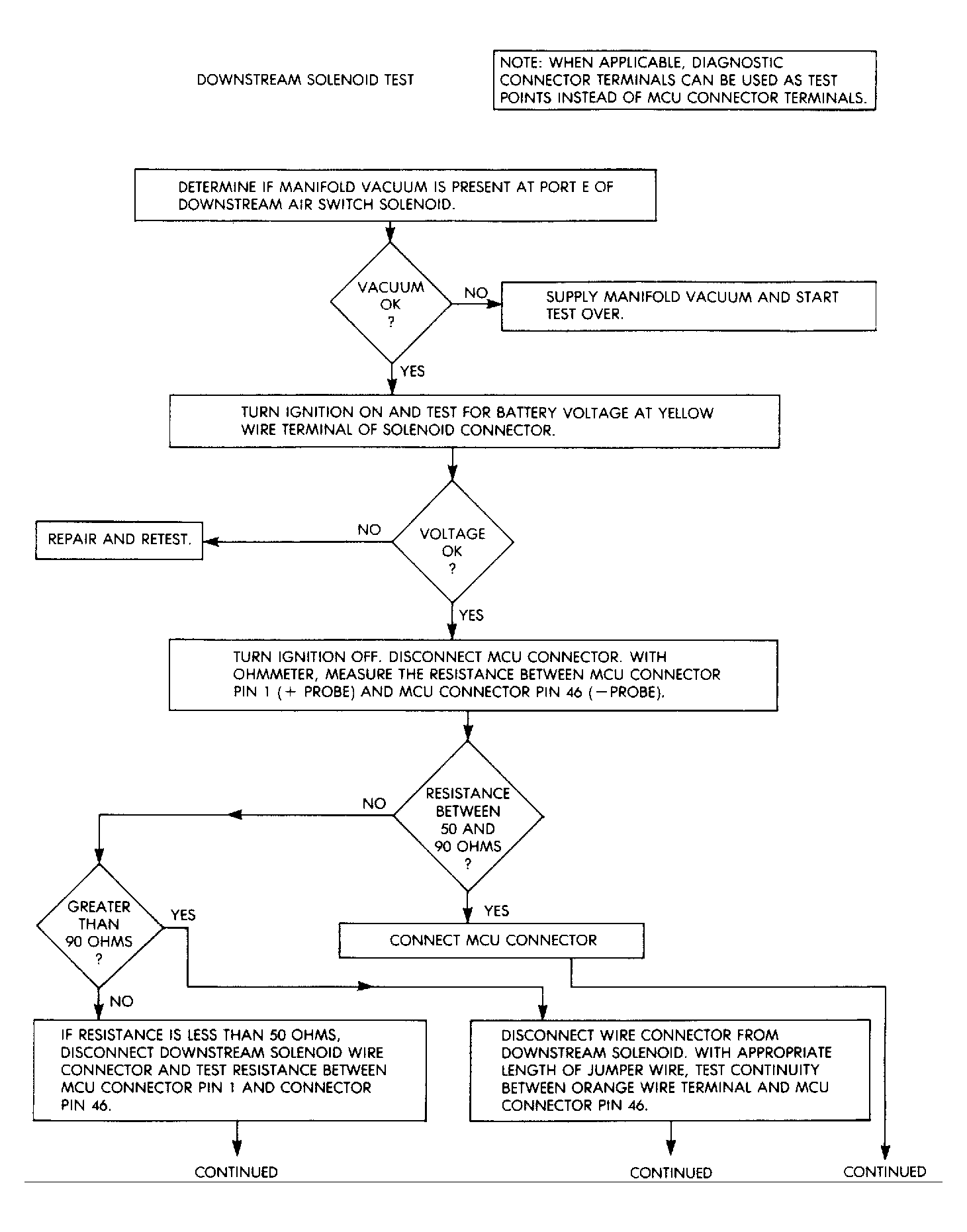

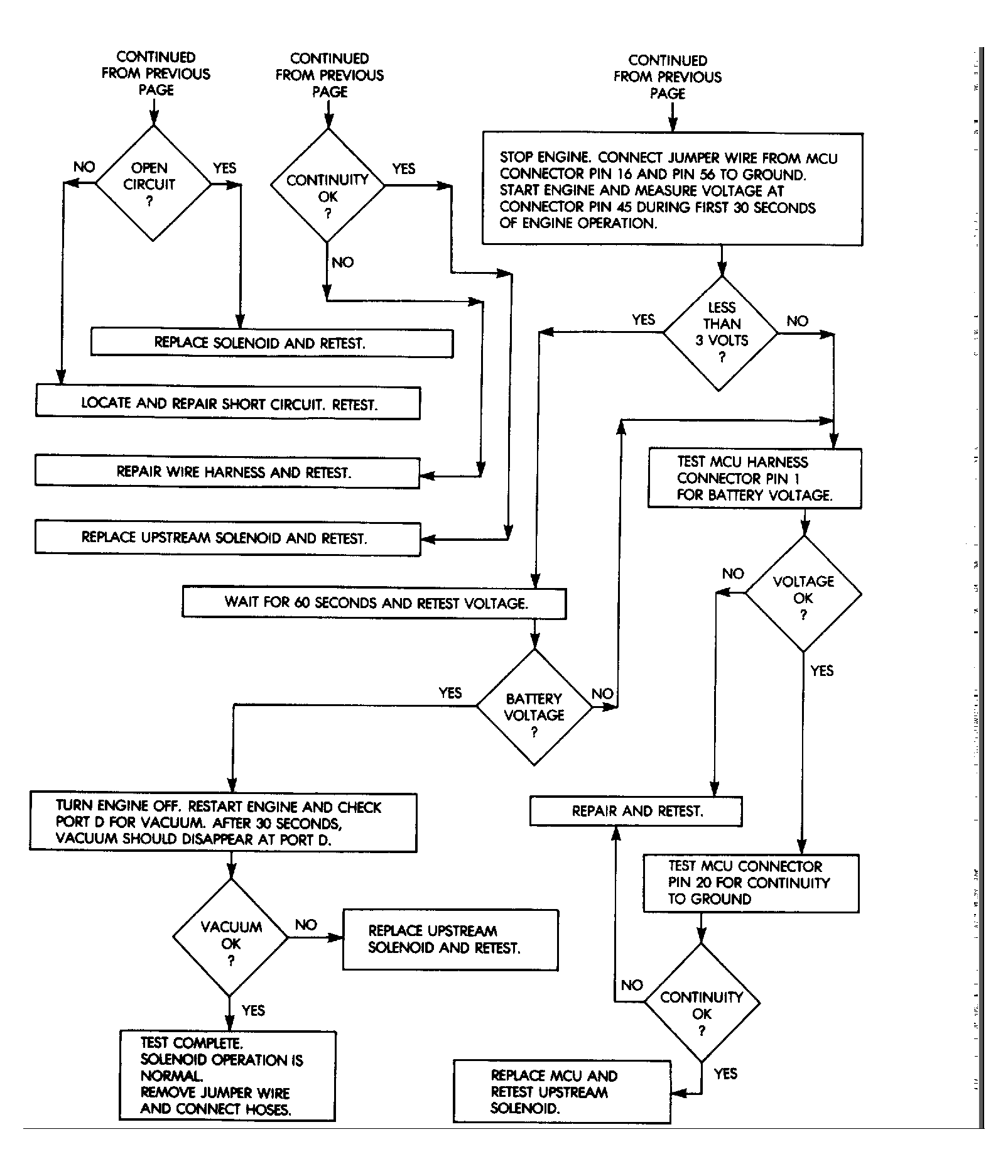

To test pulse injection air switching system on 4.2L, see UPSTREAM and DOWNSTREAM SOLENOID TESTS. See Figure -Figure .
