NS-5A: Checking For Defective Coil Or Control Circuit

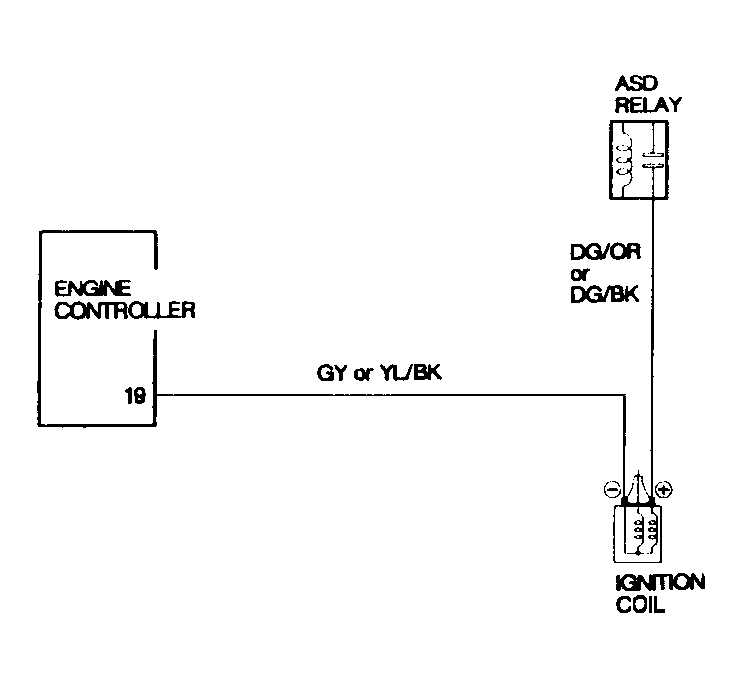

Fig 1: Test NS-5A Schematic, Defective Coil Or Control Circuit

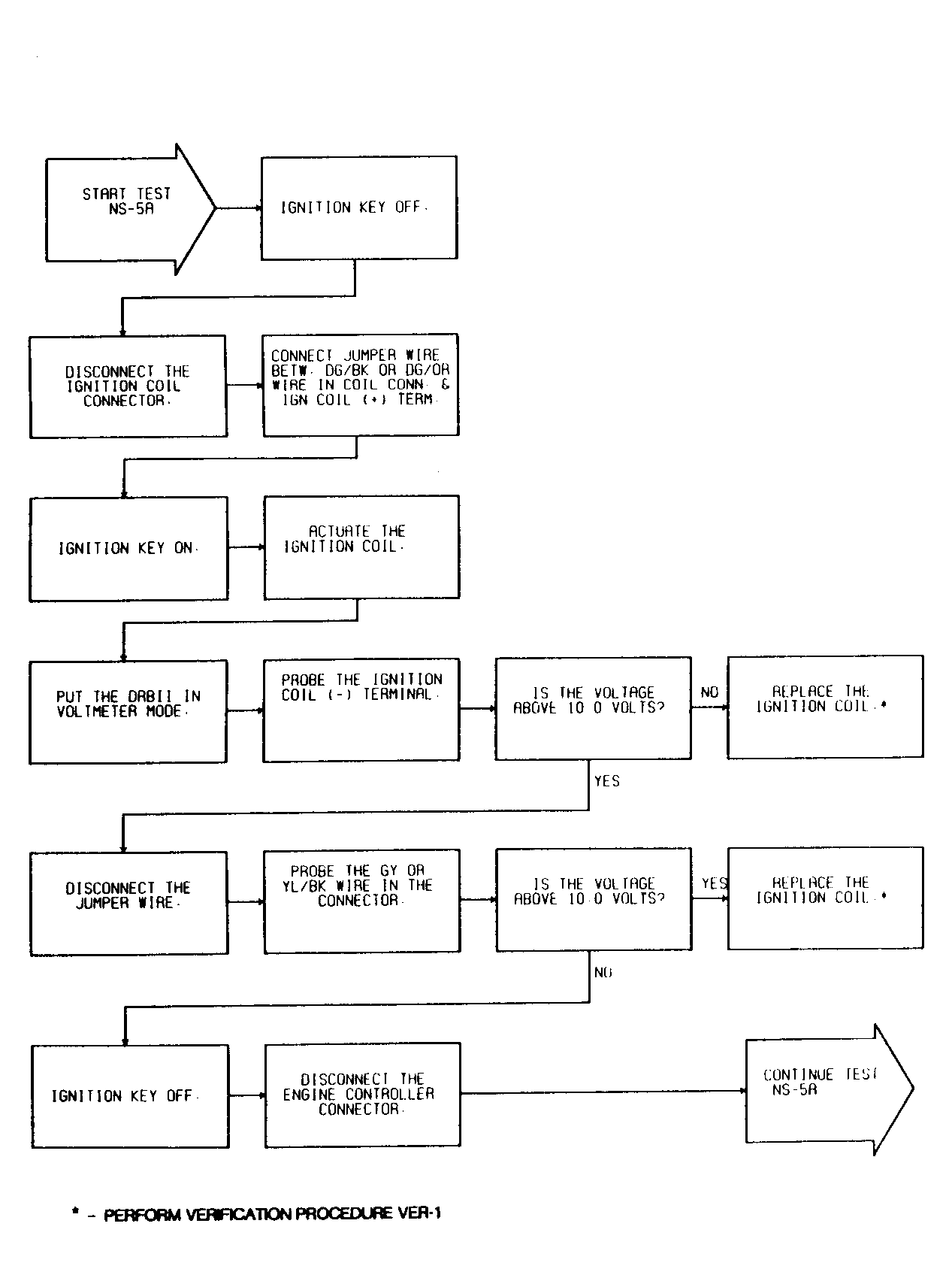

Fig 2: Test NS-5A (1 of 2) Defective Coil Or Control Circuit

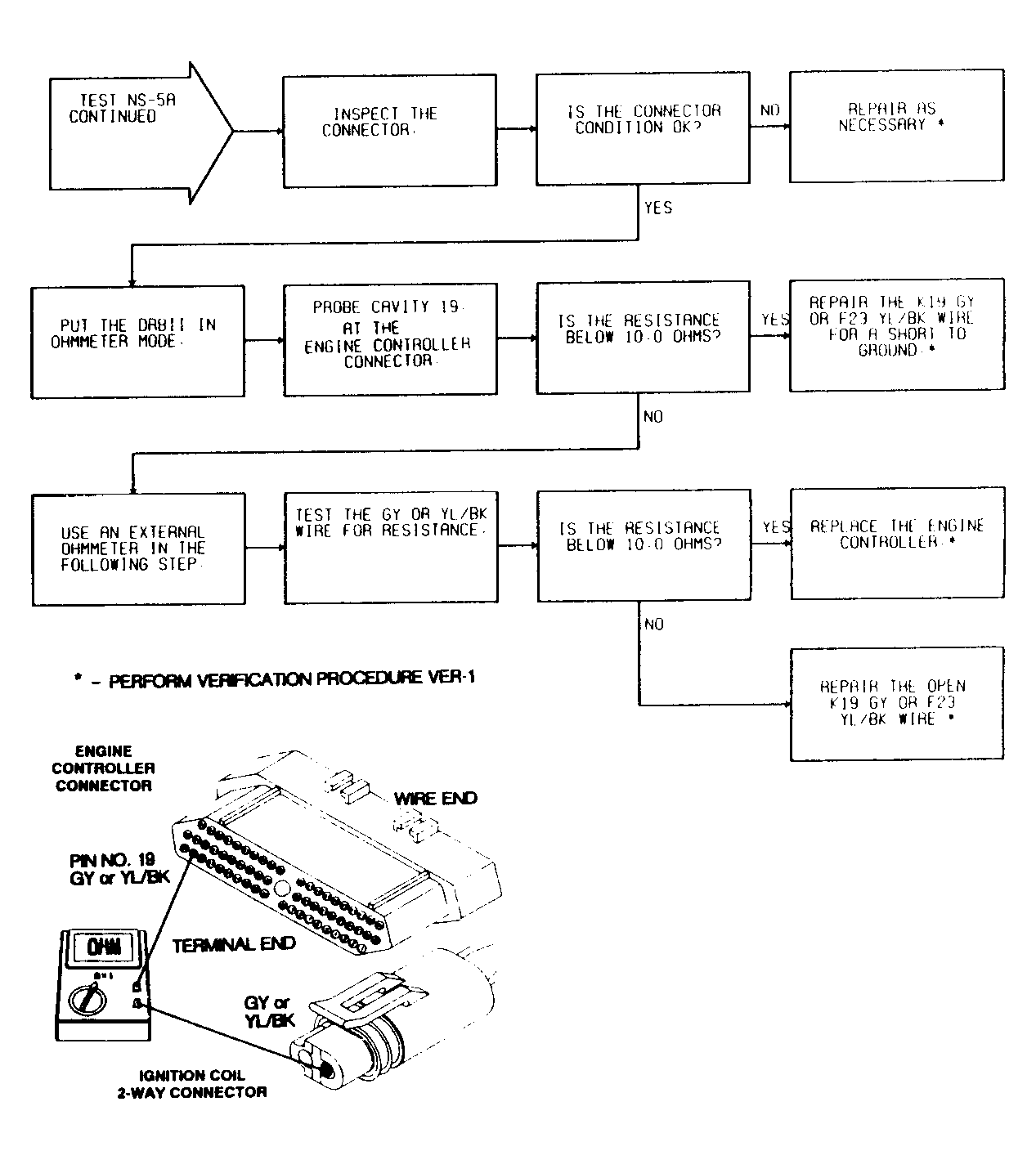

Fig 3: Test NS-5A (2 of 2) Defective Coil Or Control Circuit
