NS-7C: Checking Fuel Pump Power Circuit

Fig 1: Test NS-7C Checking Fuel Pump Power Circuit
G91I13936

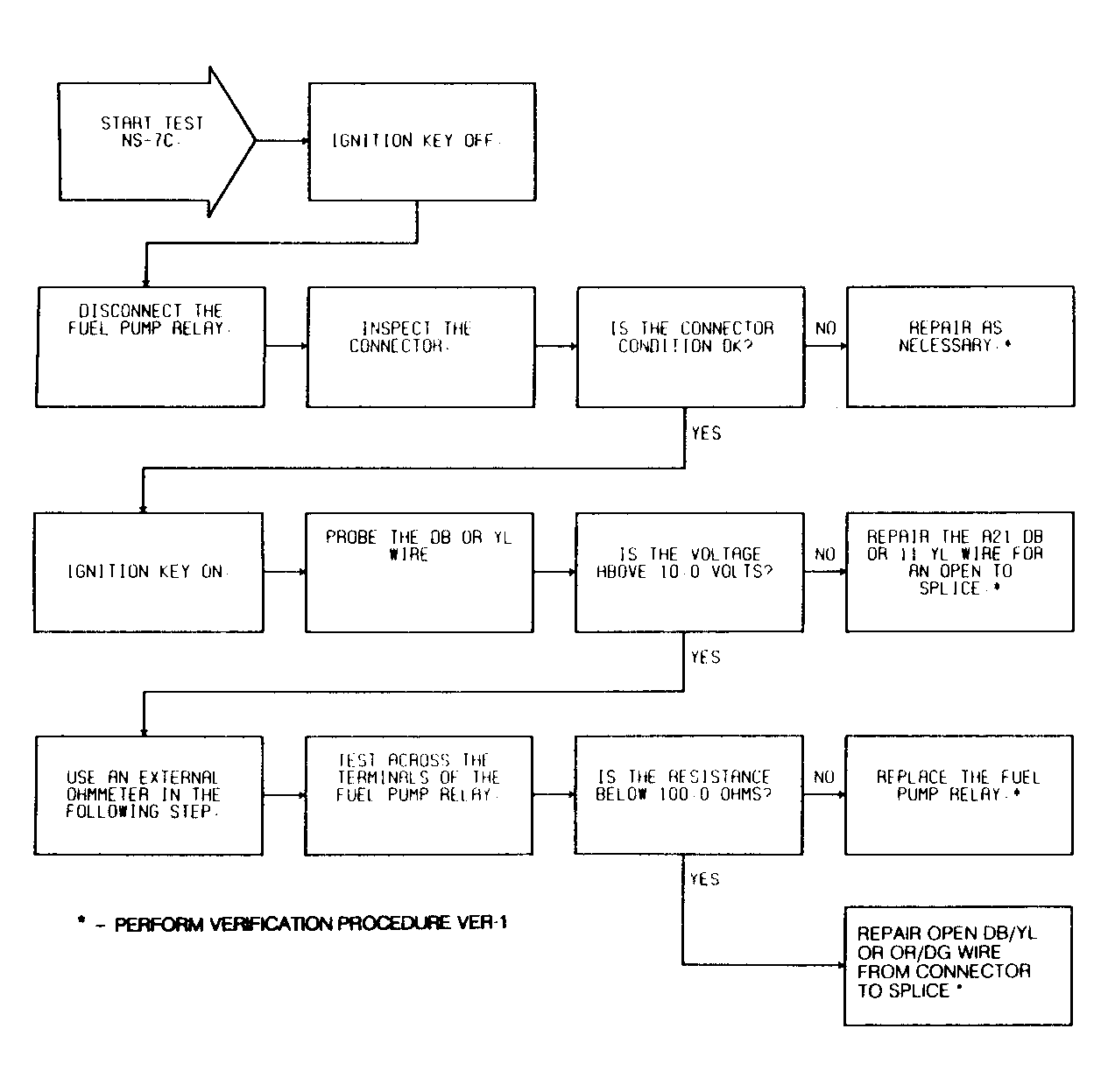

Fig 2: Test NS-7C Checking Fuel Pump Power Circuit
G91H13828
