NS-12D: Checking Idle Speed Motor Operation

Fig 1: Test NS-12D Schematic, Checking Idle Speed Motor Operation
G91H13943

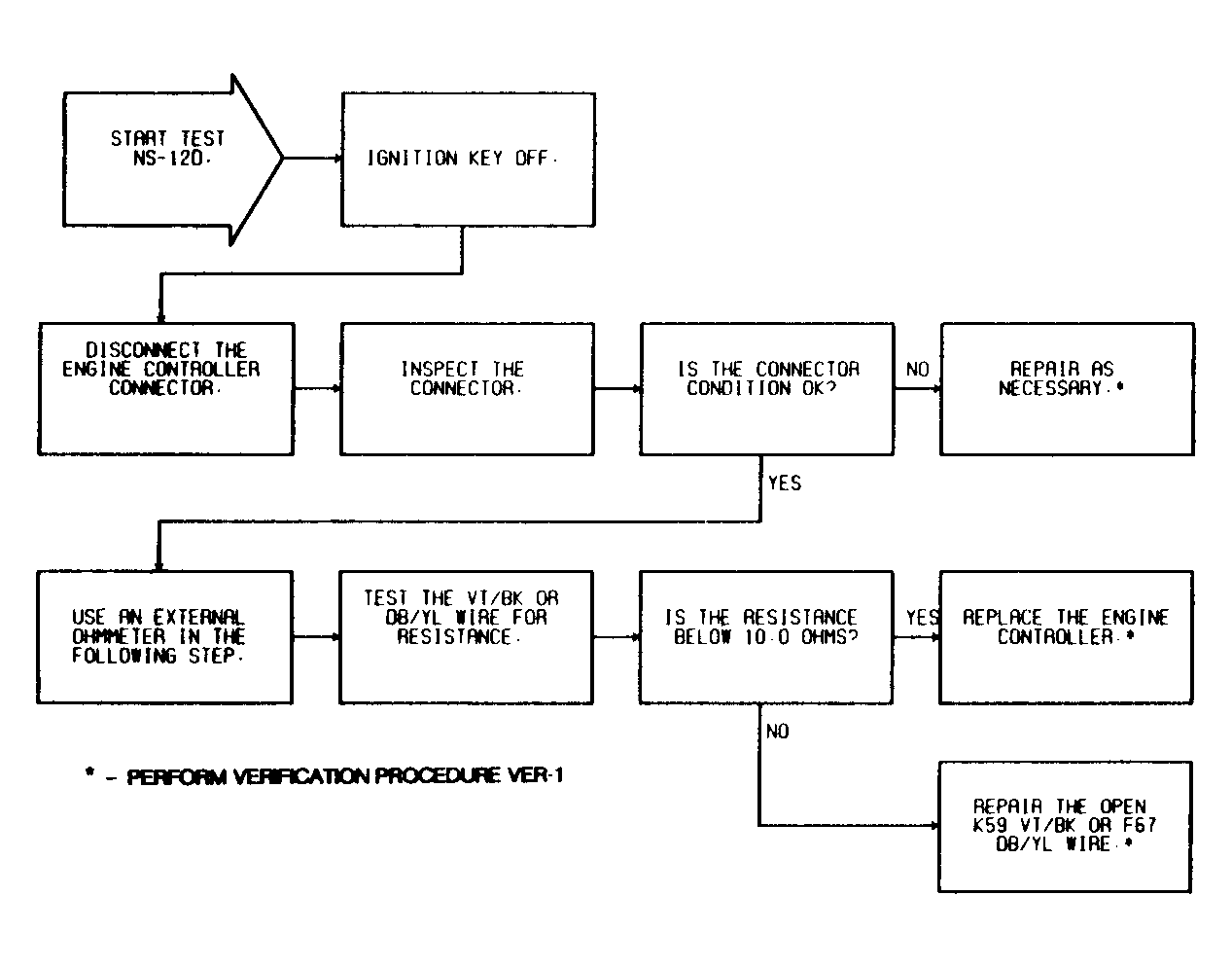

Fig 2: Test NS-12D Checking Idle Speed Motor Operation
G91A13854
