Dr-33A: Checking Engine Controller Grounds & Power Circuits

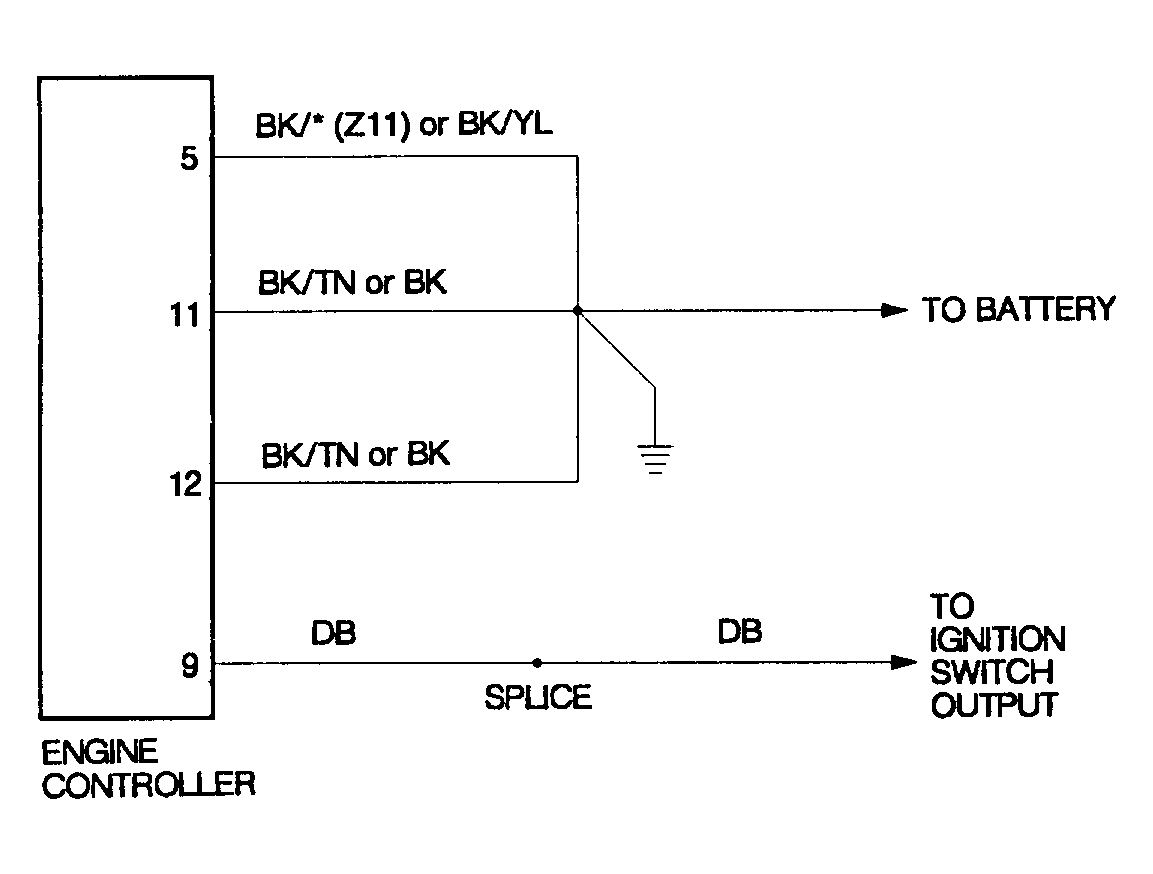

Fig 1: Test DR-33A Schematic, Engine Controller Grounds & Power Circuits

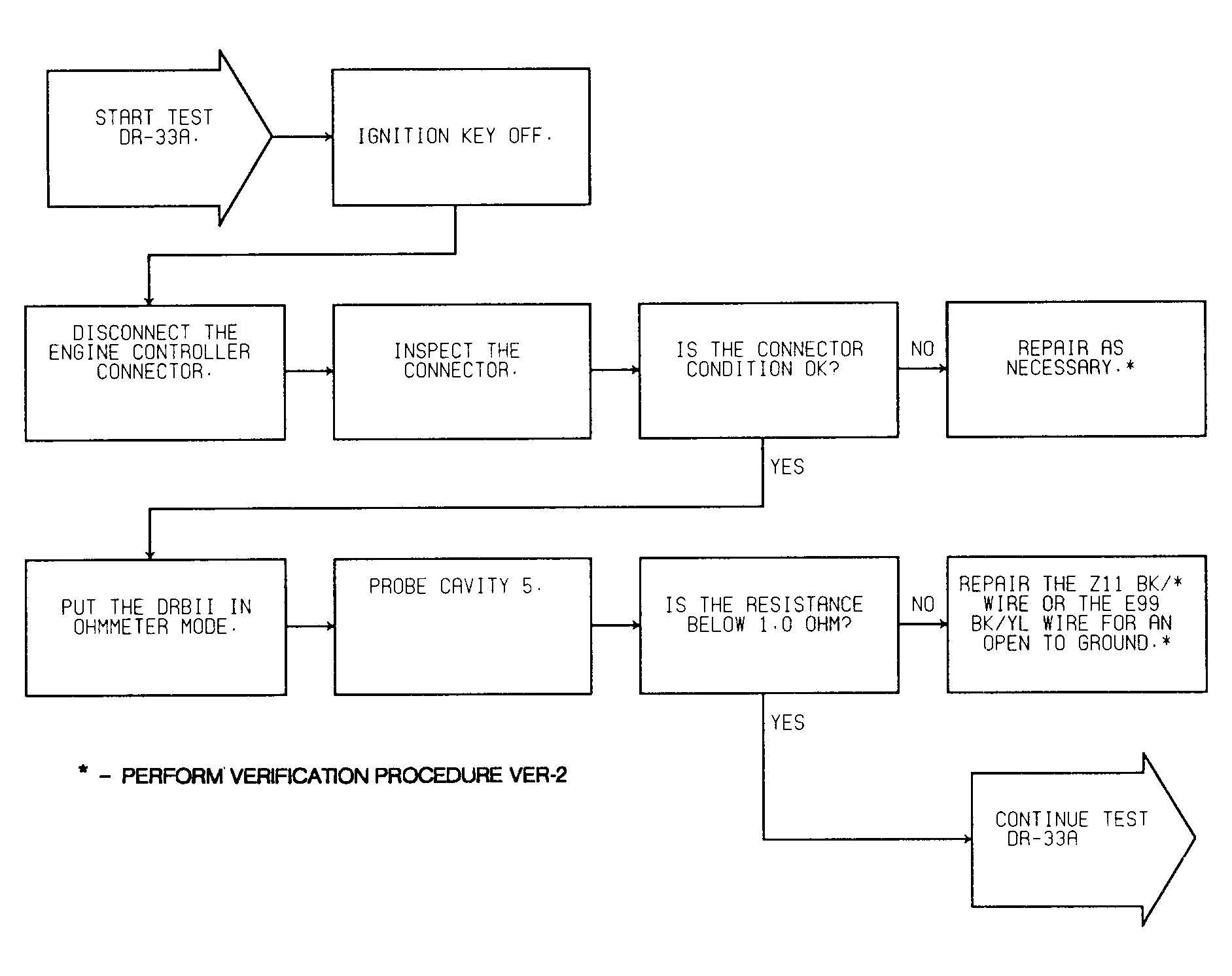

Fig 2: Test DR-33A (1 of 2) Engine Controller Grounds & Power Circuits

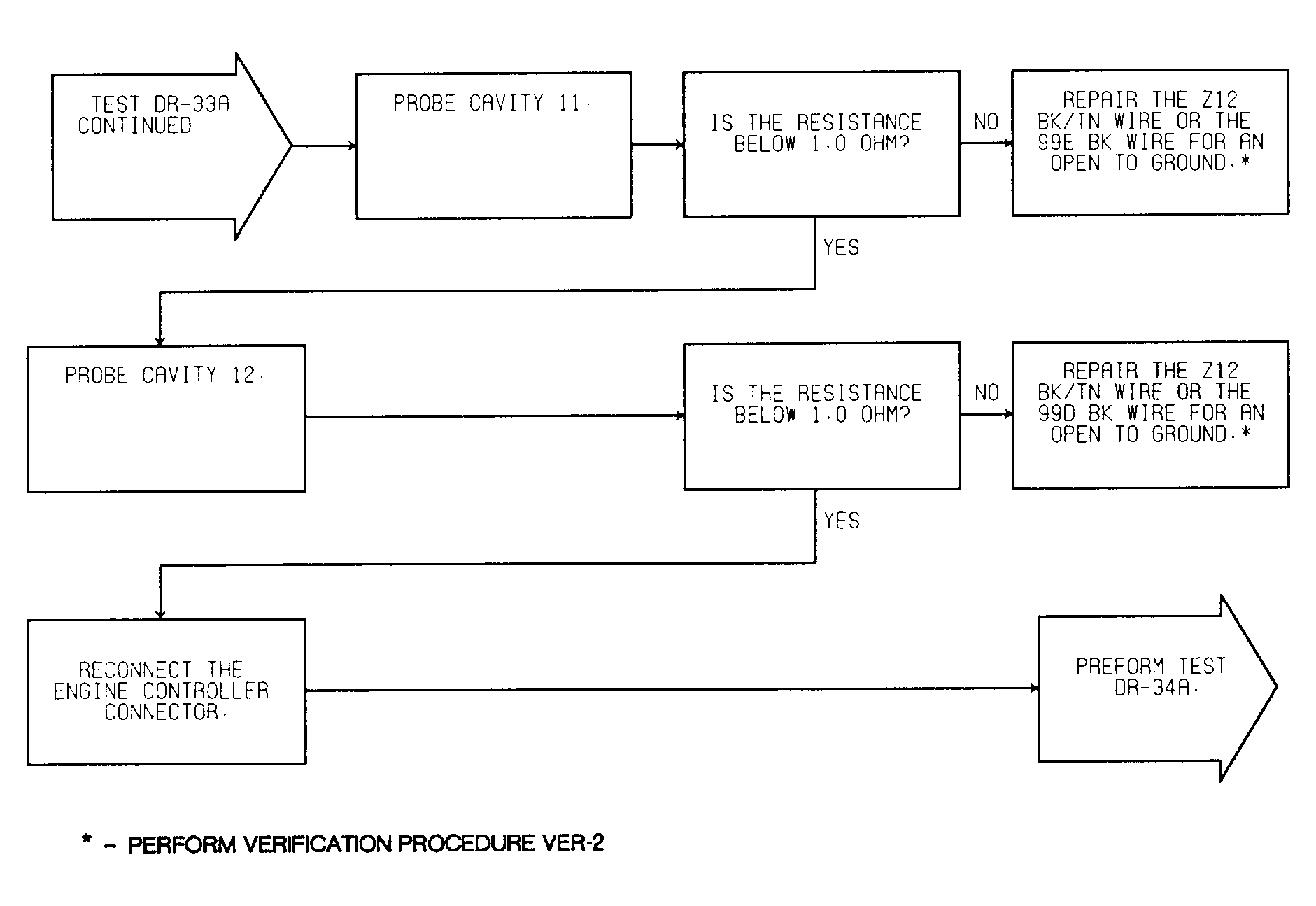

Fig 3: Test DR-33A (2 of 2) Engine Controller Grounds & Power Circuits
