Dr-17A: Repairing Injector #2 Control Circuit

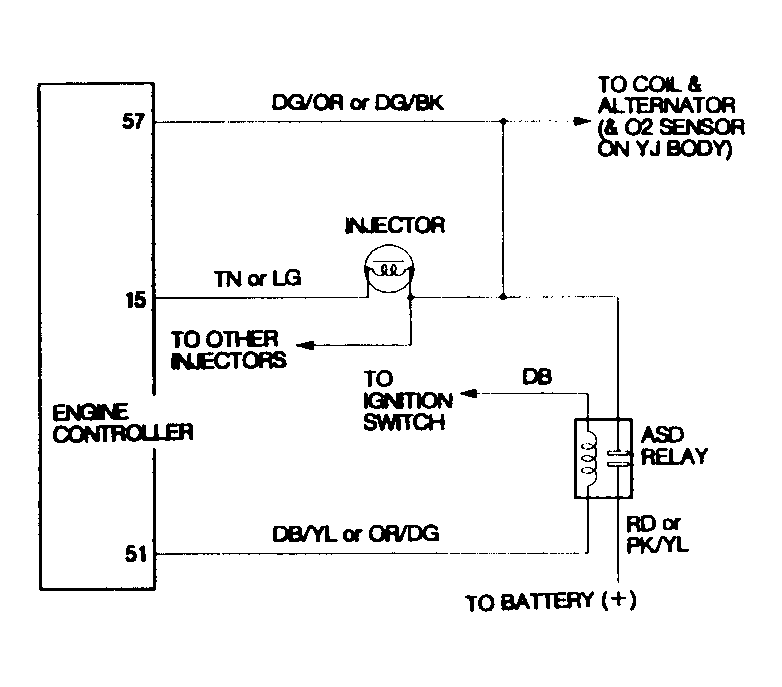

Fig 1: Test DR-17A Schematic, Injector #2 Control Circuit

G91I13951

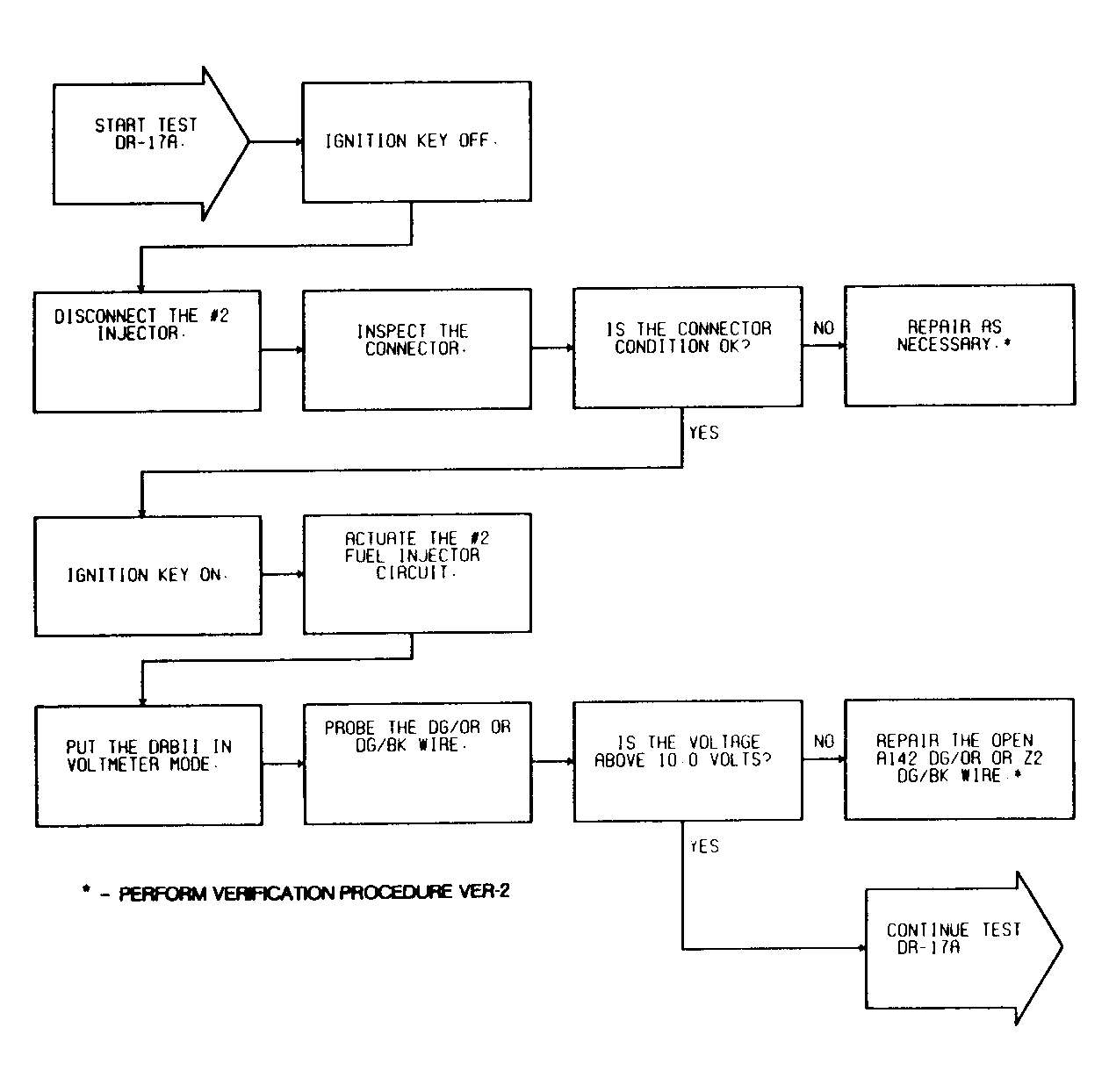

Fig 2: Test DR-17A (1 of 3) Injector #2 Control Circuit

G91J13887

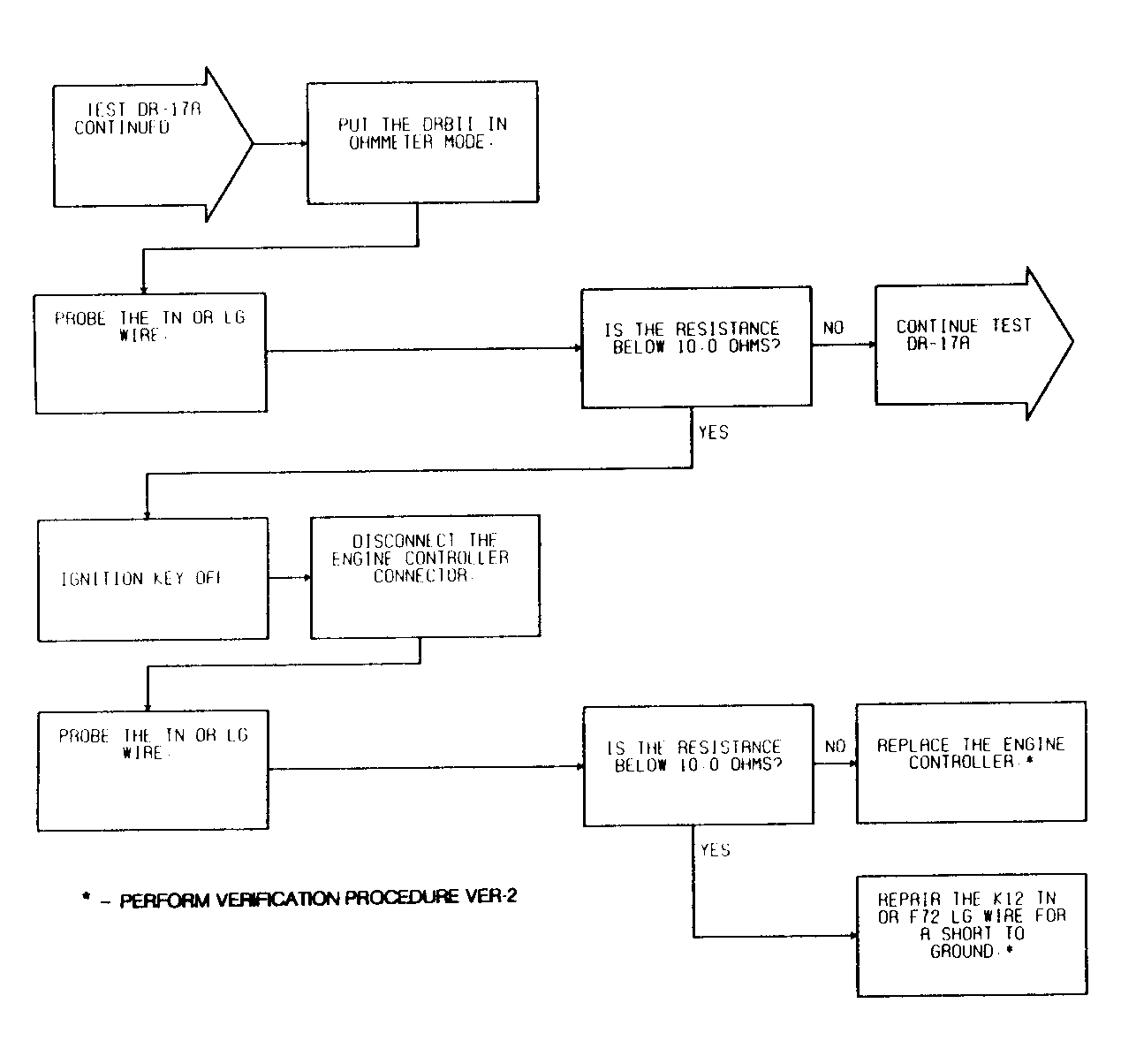

Fig 3: Test DR-17A (2 of 3) Injector #2 Control Circuit

G91A13888

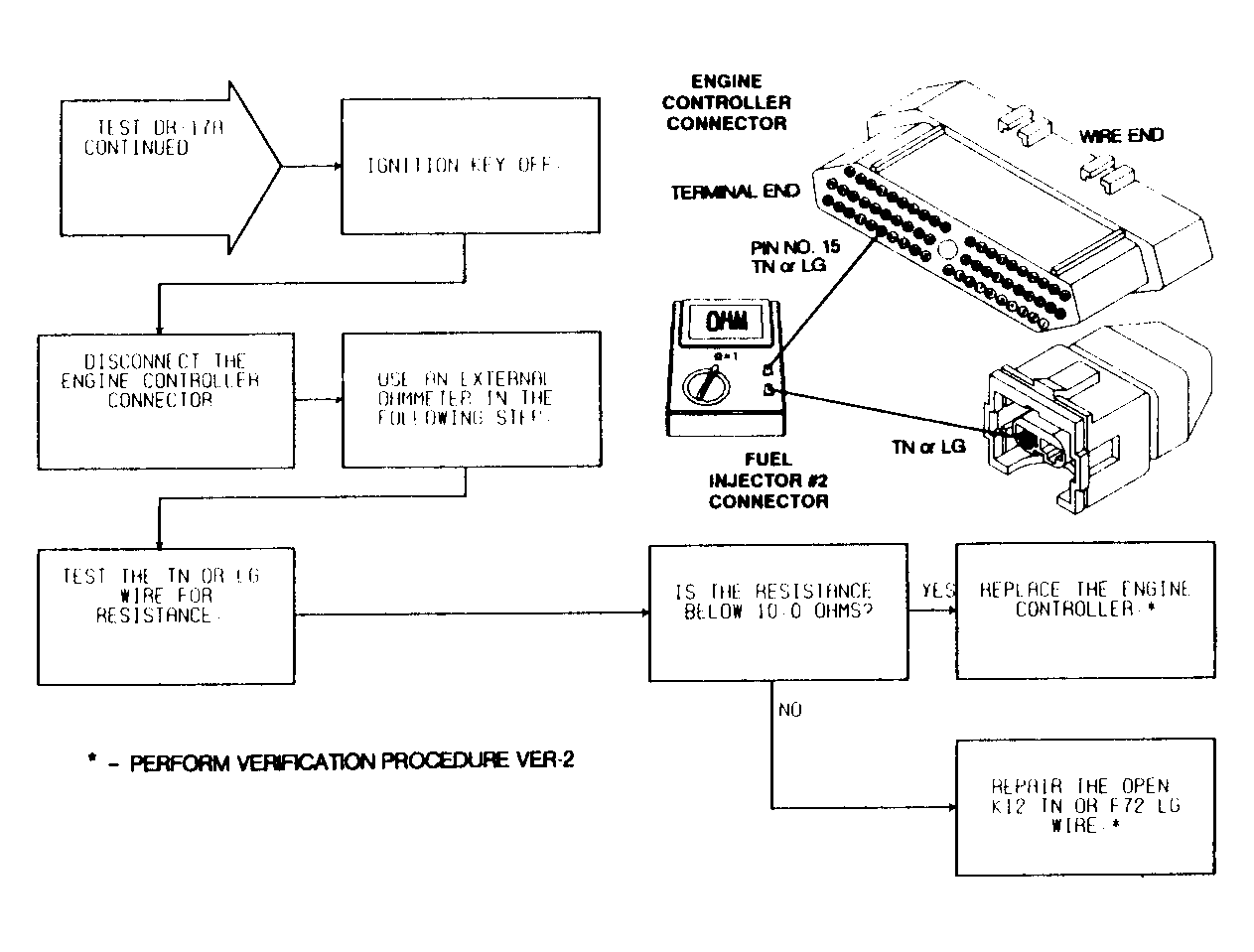

Fig 4: Test DR-17A (3 of 3) Injector #2 Control Circuit

G91B13889
