Dr-21A: Repairing Injector #6 Control Circuit

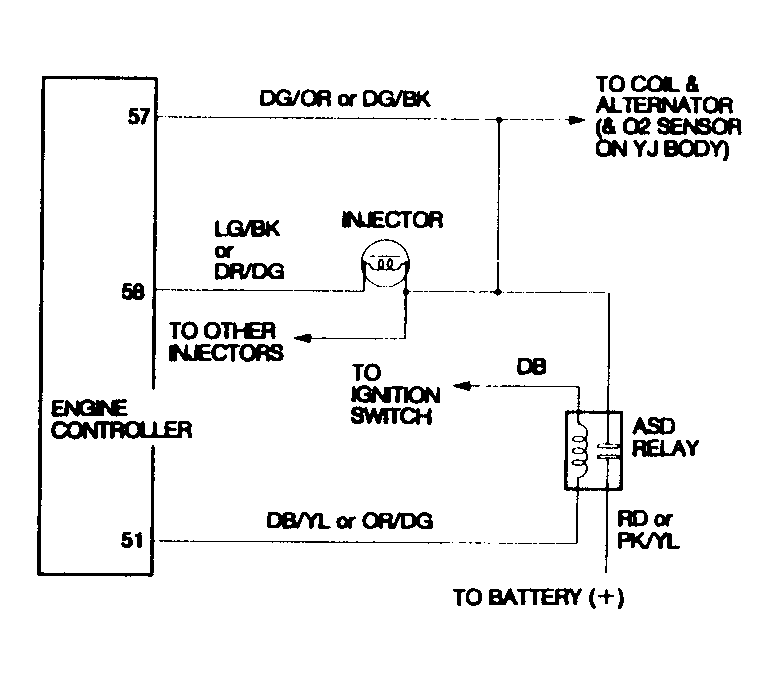

Fig 1: Test DR-21A Schematic, Injector #6 Control Circuit

G91C13955

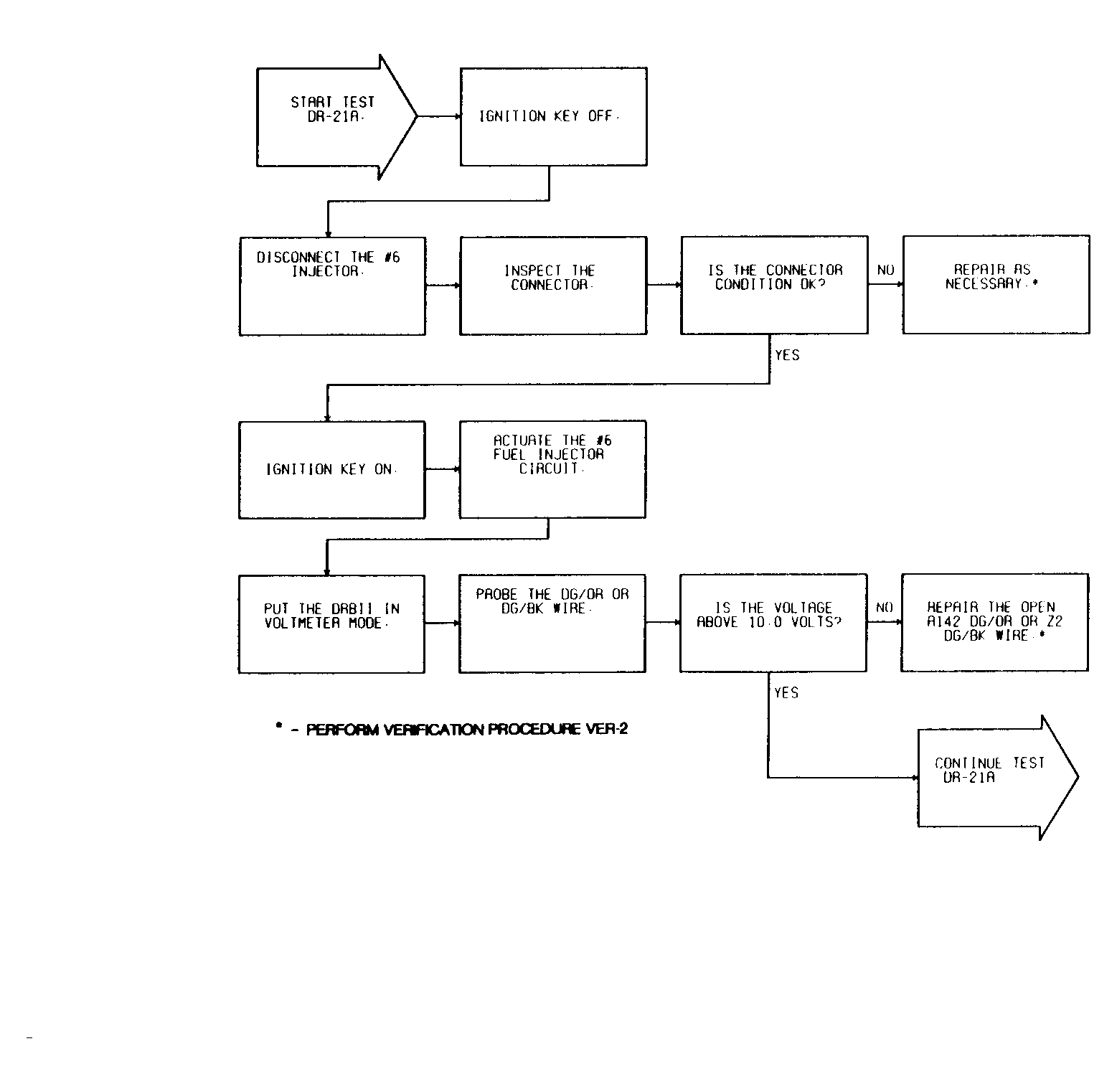

Fig 2: Test DR-21A (1 of 3) Injector #6 Control Circuit

G91D13899

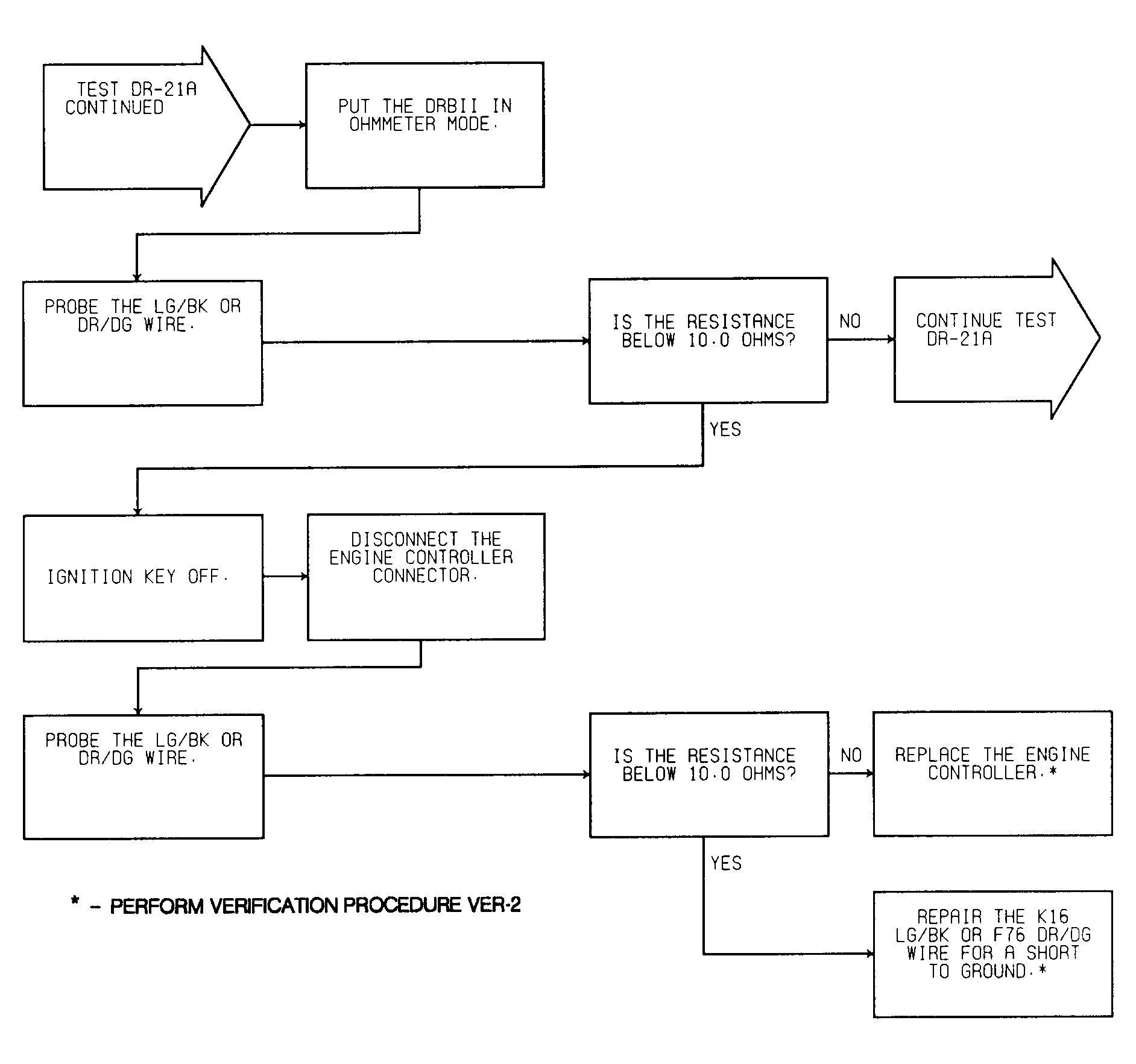

Fig 3: Test DR-21A (2 of 3) Injector #6 Control Circuit

G91G13900

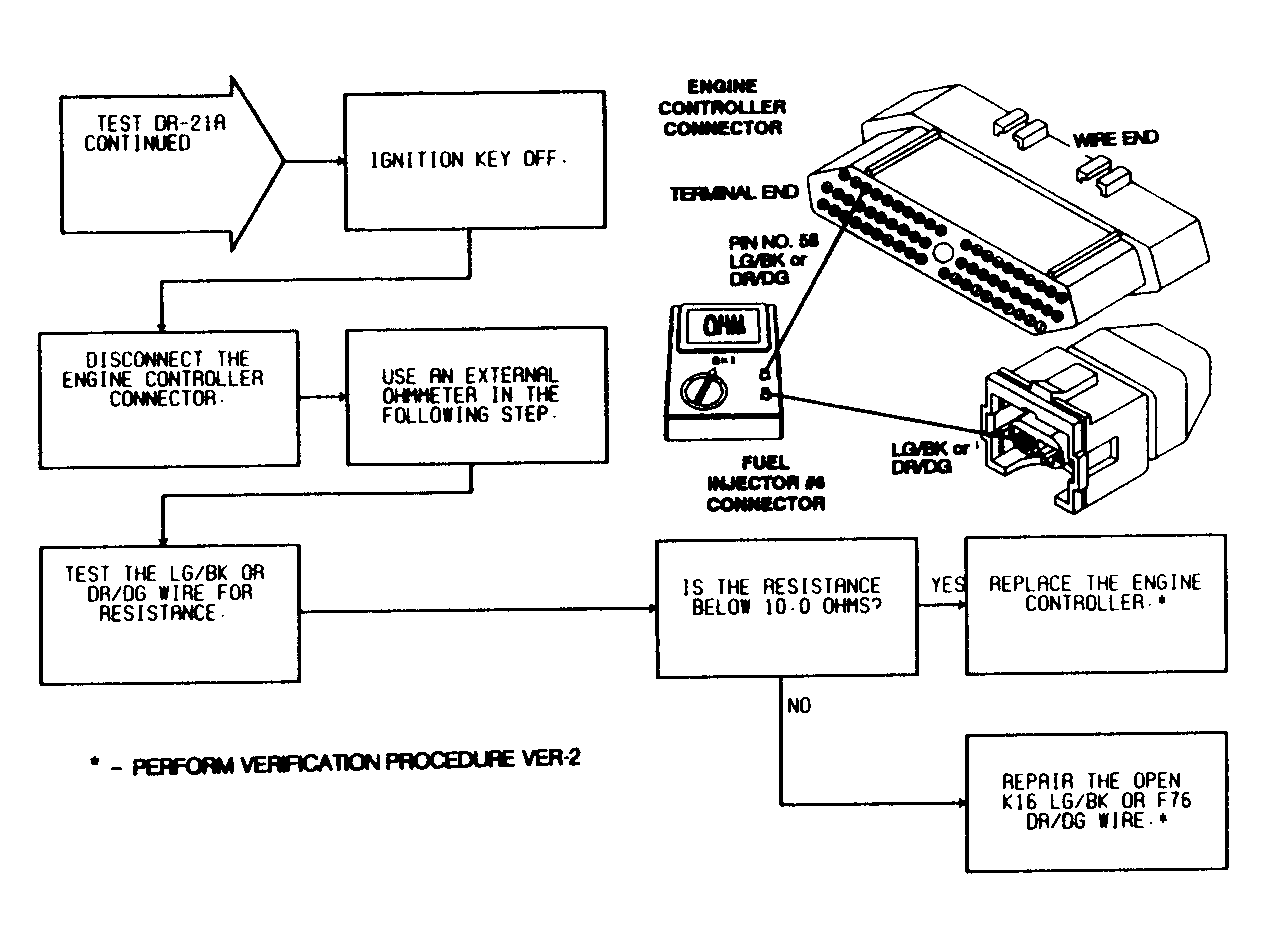

Fig 4: Test DR-21A (3 of 3) Injector #6 Control Circuit

G91H13901
