Dr-22A: Repairing A/C Clutch Relay Circuit
Fig 1: Test DR-22A Schematic, A/C Clutch Relay Circuit

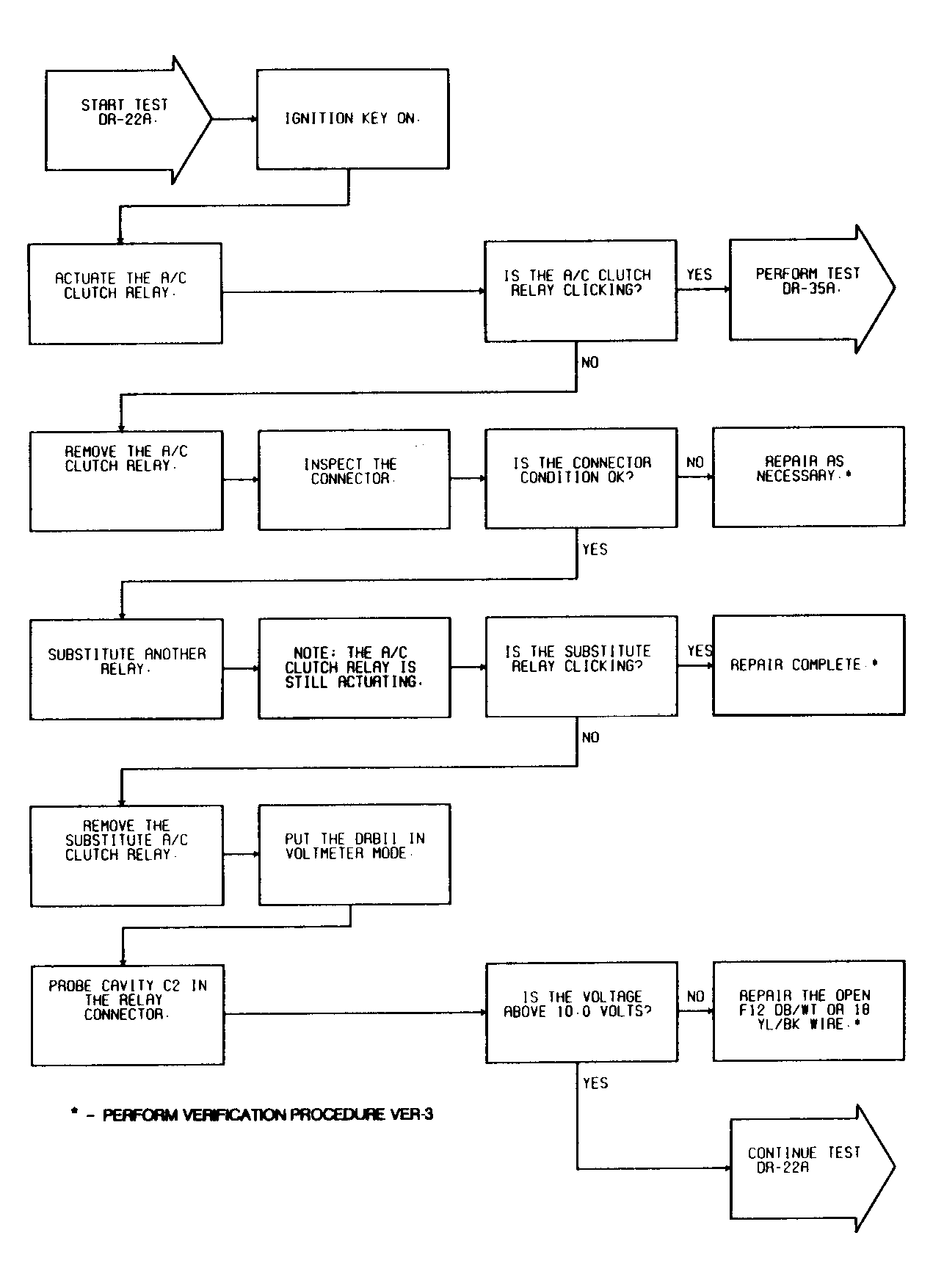

Fig 2: Test DR-22A (1 of 2) A/C Clutch Relay Circuit

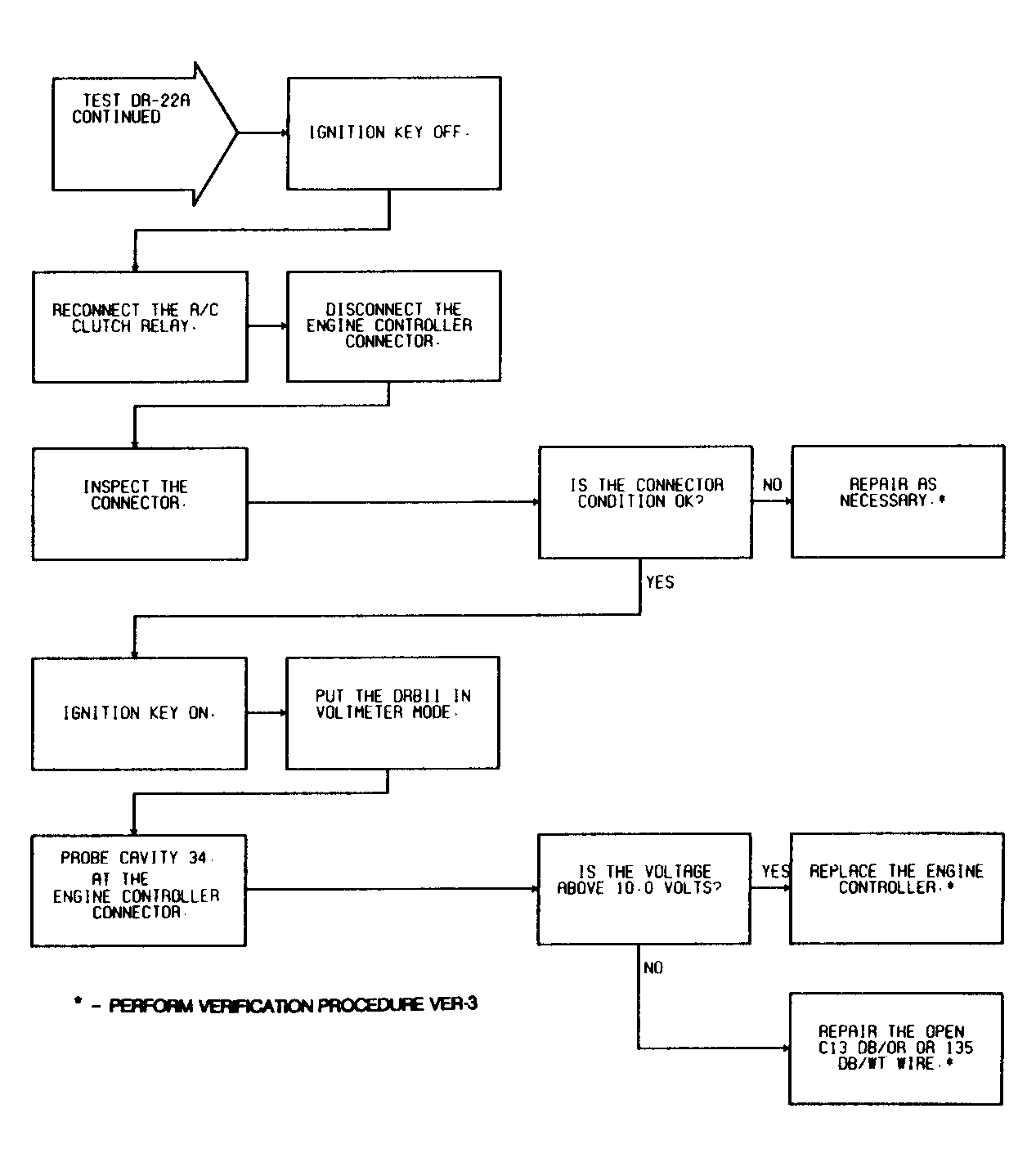

Fig 3: Test DR-22A (2 of 2) A/C Clutch Relay Circuit
