Dr-29A: Checking Map Sensor Calibration

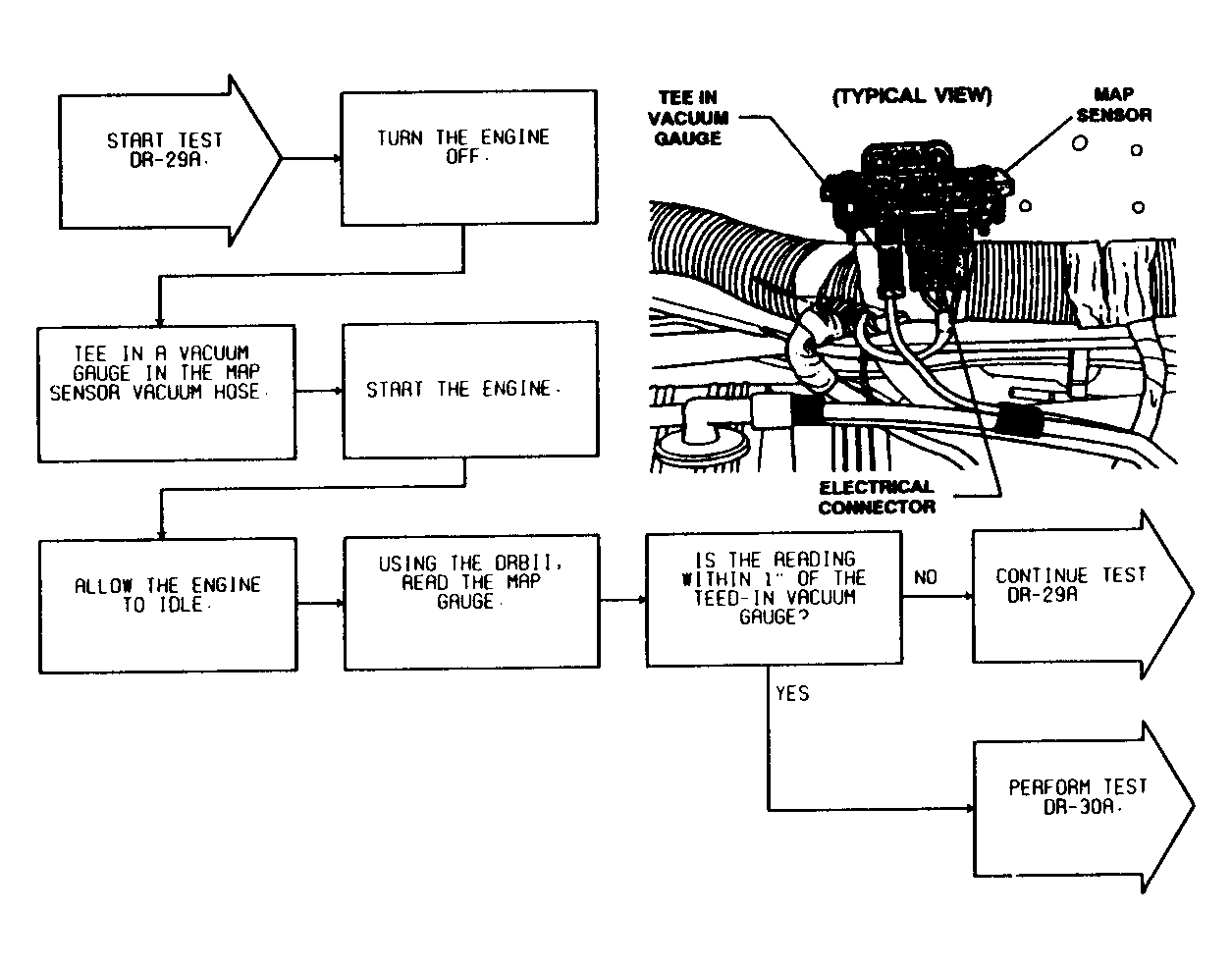

Fig 1: Test DR-29A (1 of 2) Checking MAP Sensor Calibration
G91F13917

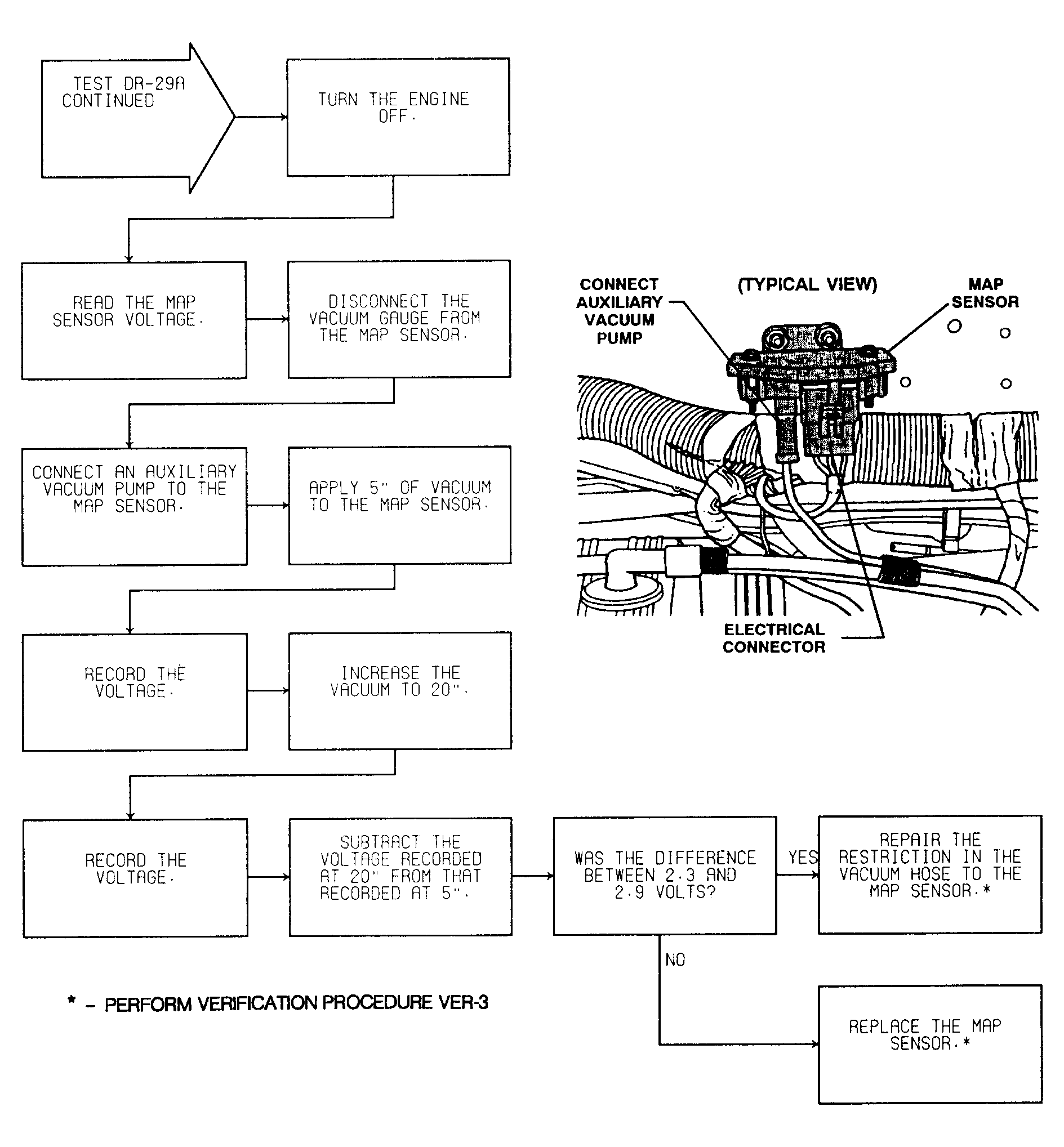

Fig 2: Test DR-29A (2 of 2) Checking MAP Sensor Calibration
G91G13918
