Dr-2A: Repairing Slow Change In Idle Map Signal

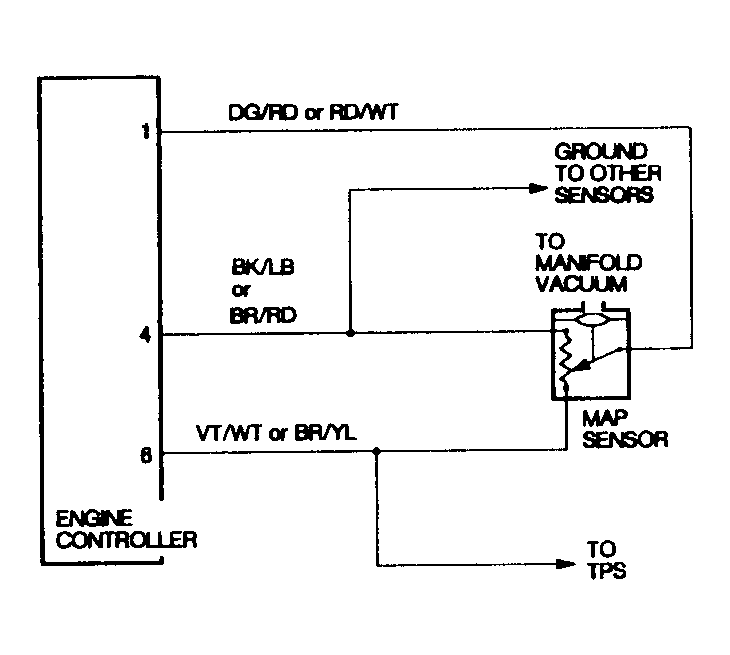

Fig 1: Test DR-2A Schematic, Slow Change In Idle Map Signal Fault

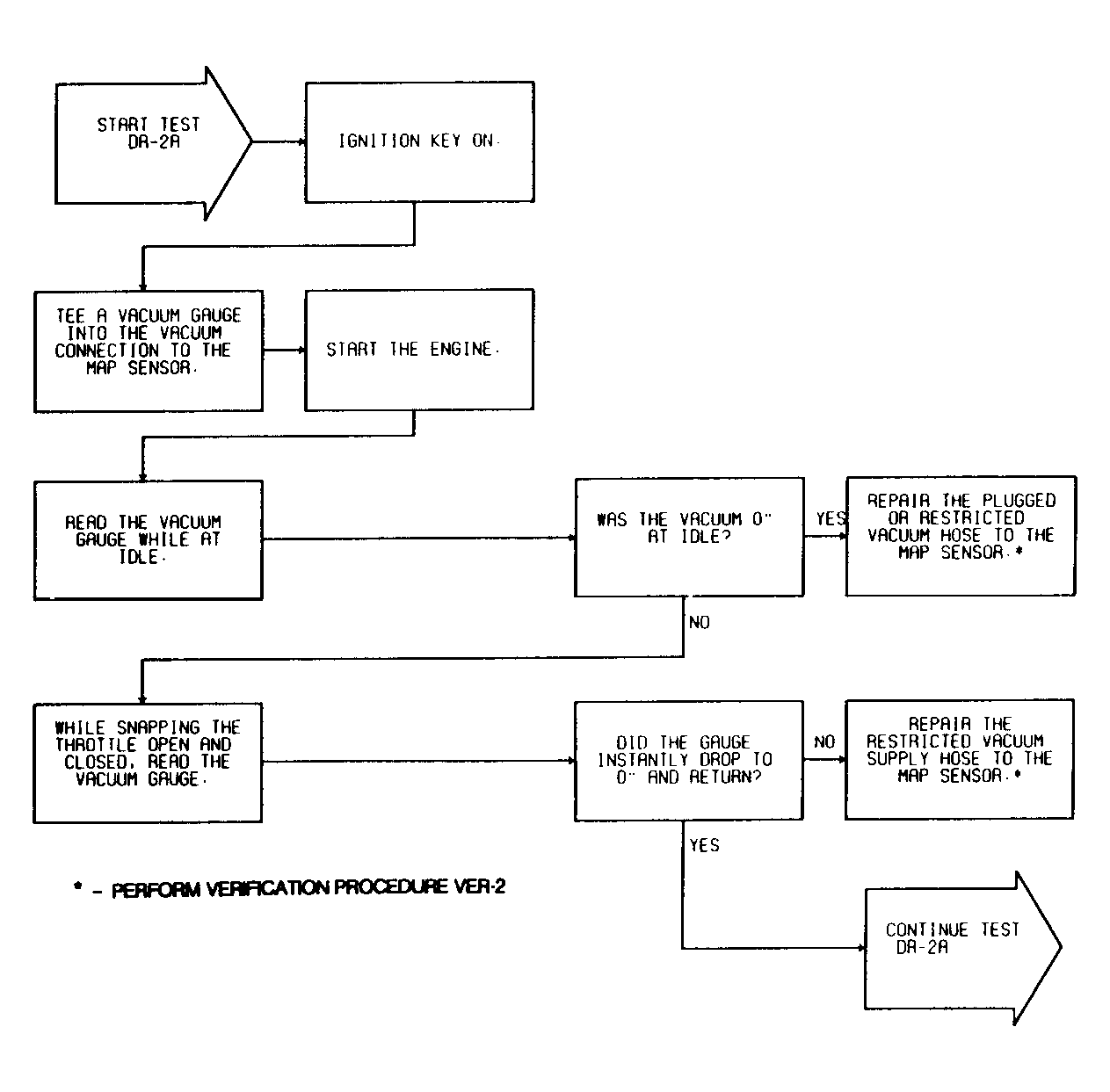

Fig 2: Test DR-2A (1 of 2) Slow Change In Idle Map Signal Fault

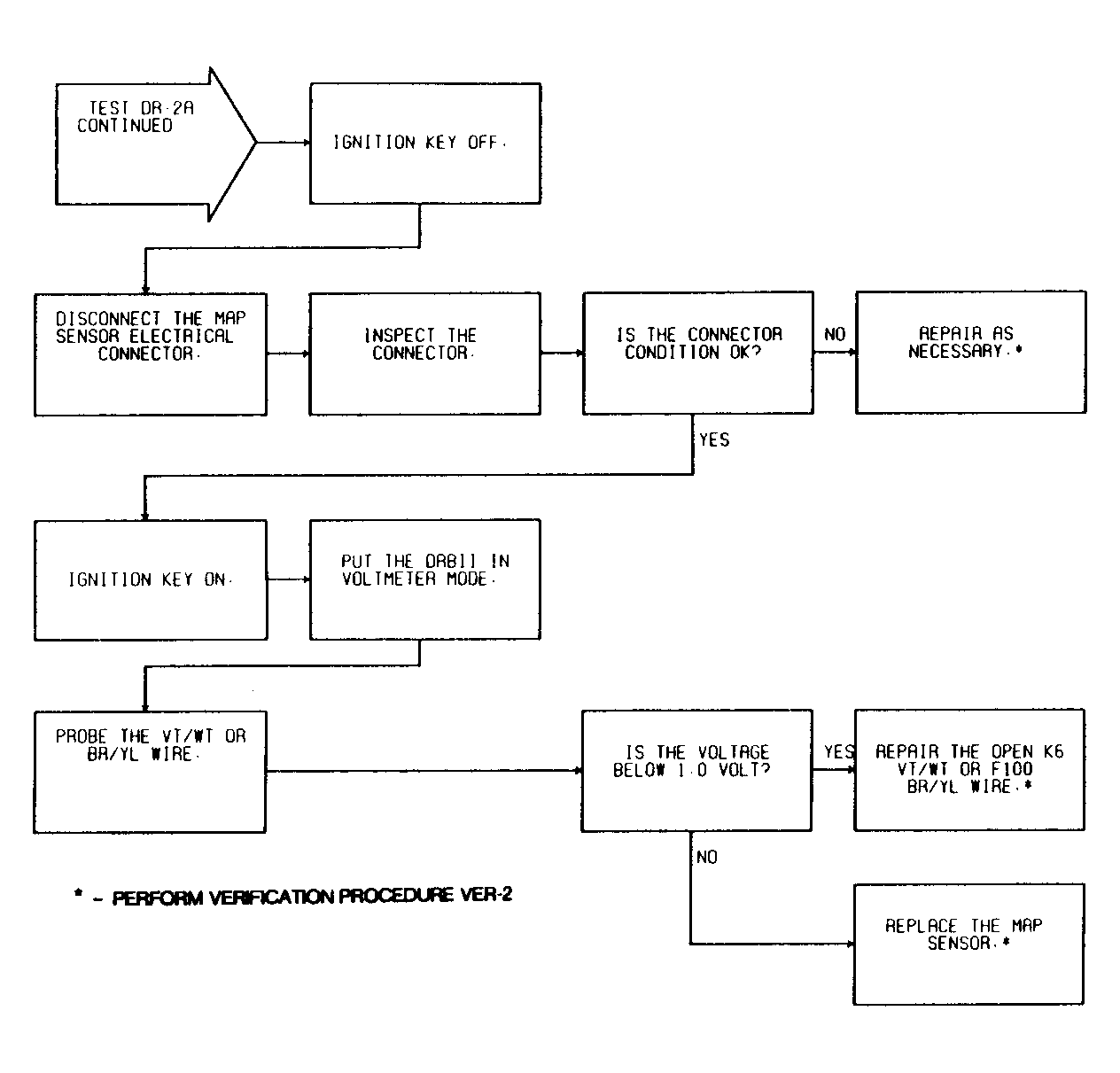

Fig 3: Test DR-2A (2 of 2) Slow Change In Idle Map Signal Fault
