Dr-37A: Intermittent Test For Automatic Idle Speed Motor

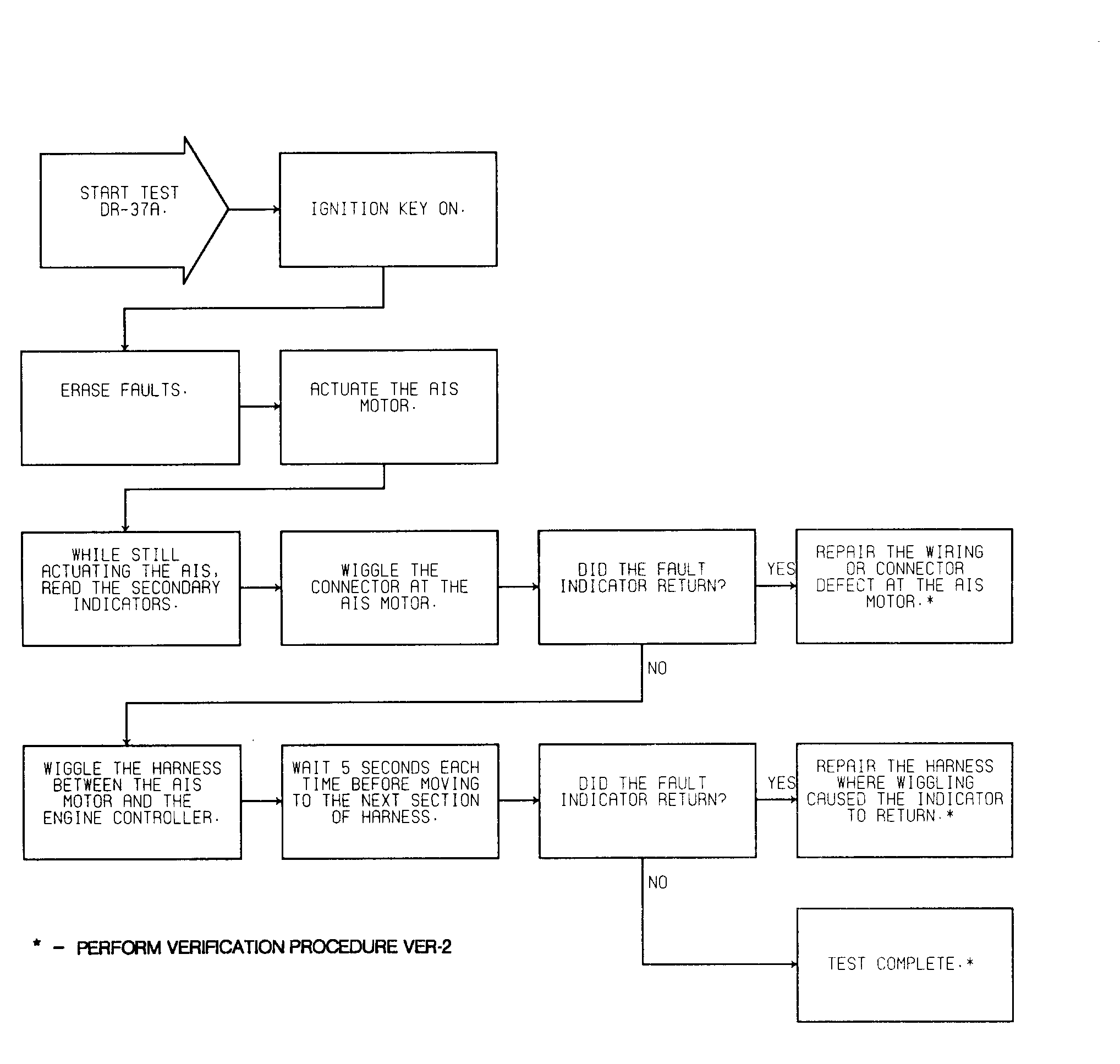

Fig 1: Test DR-37A Intermittent Test For Automatic Idle Speed Motor
DR-38A: INTERMITTENT TEST FOR FUEL INJECTORS

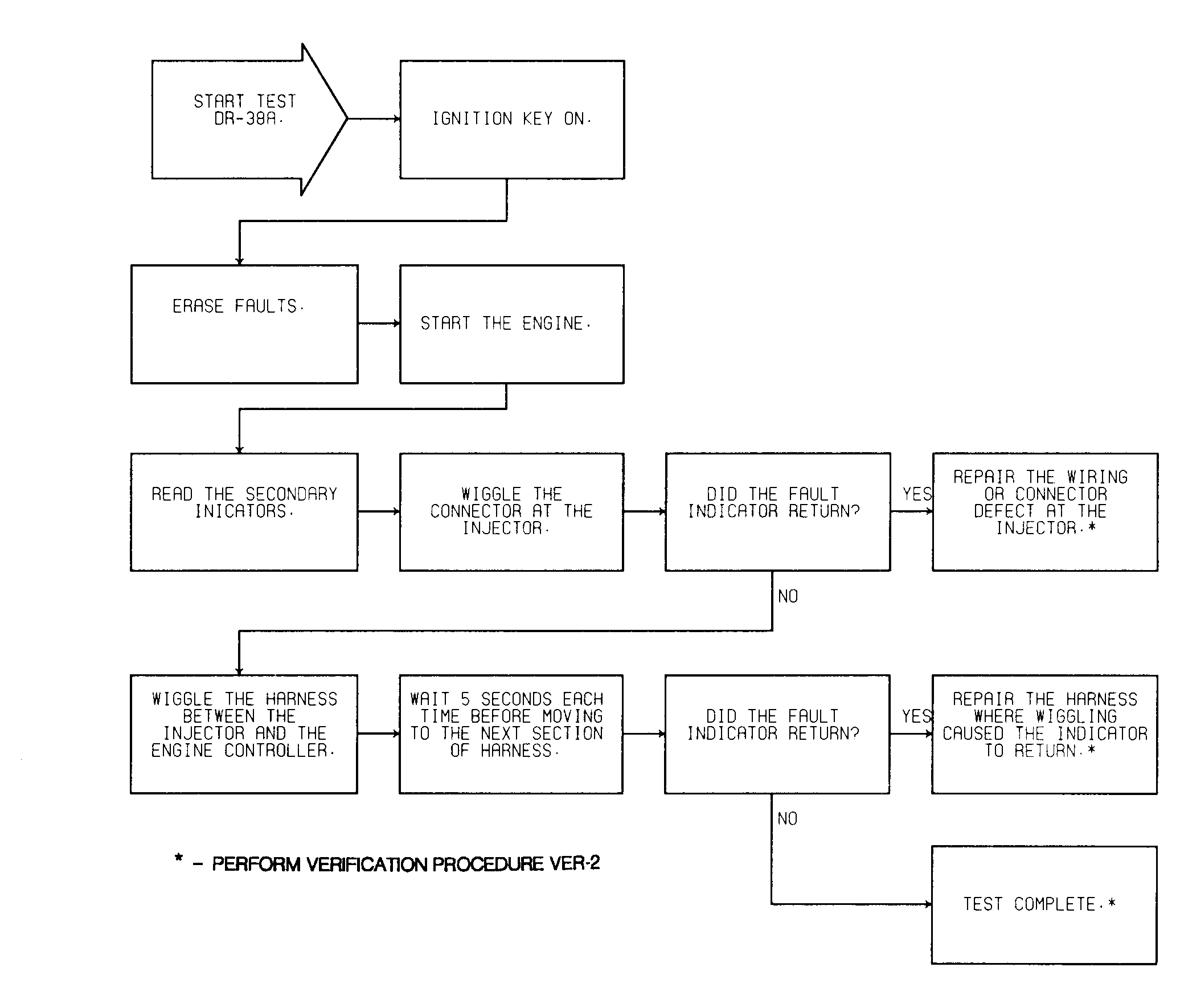

Fig 2: Test DR-38A Intermittent Test For Fuel Injectors
