NS-12C: Checking Idle Speed Motor Operation

Fig 1: Test NS-12C Schematic, Checking Idle Speed Motor Operation
G91H13943

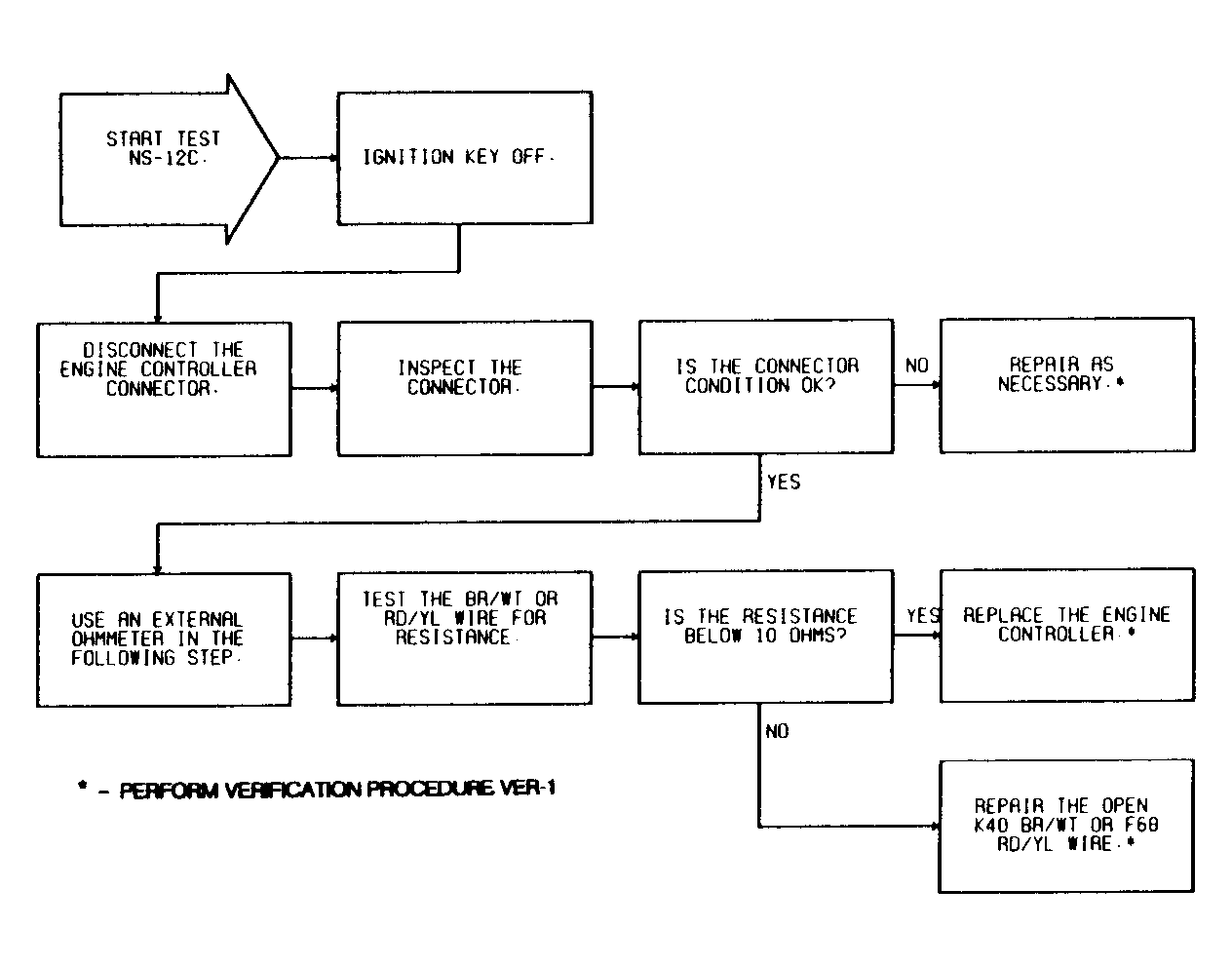

Fig 2: Test NS-12C Checking Idle Speed Motor Operation
G91J13853
