NS-1A: Checking For Fault Messages & Spark

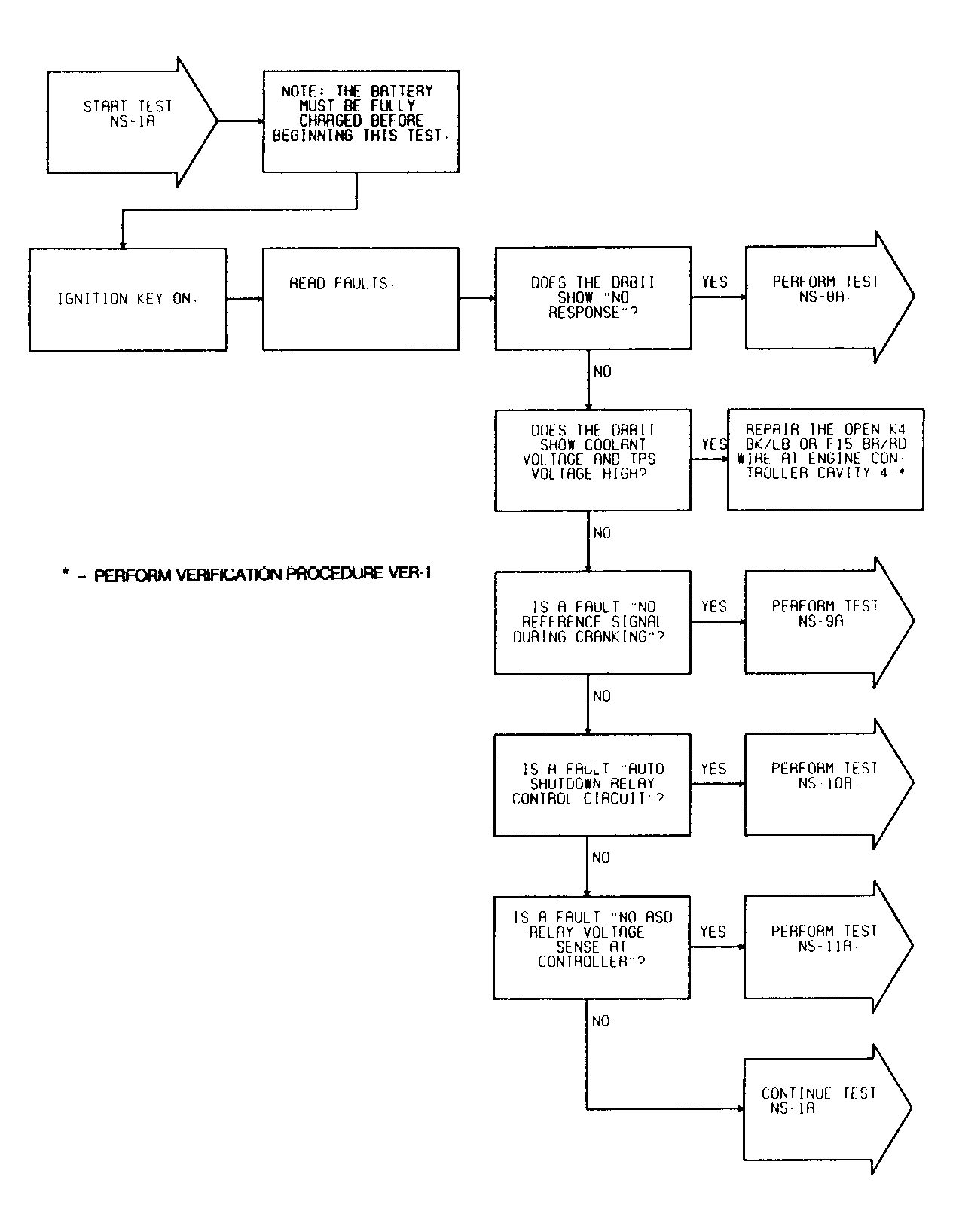

Fig 1: Test NS-1A (1 of 4) Checking For Fault Messages & Spark
G91J13804

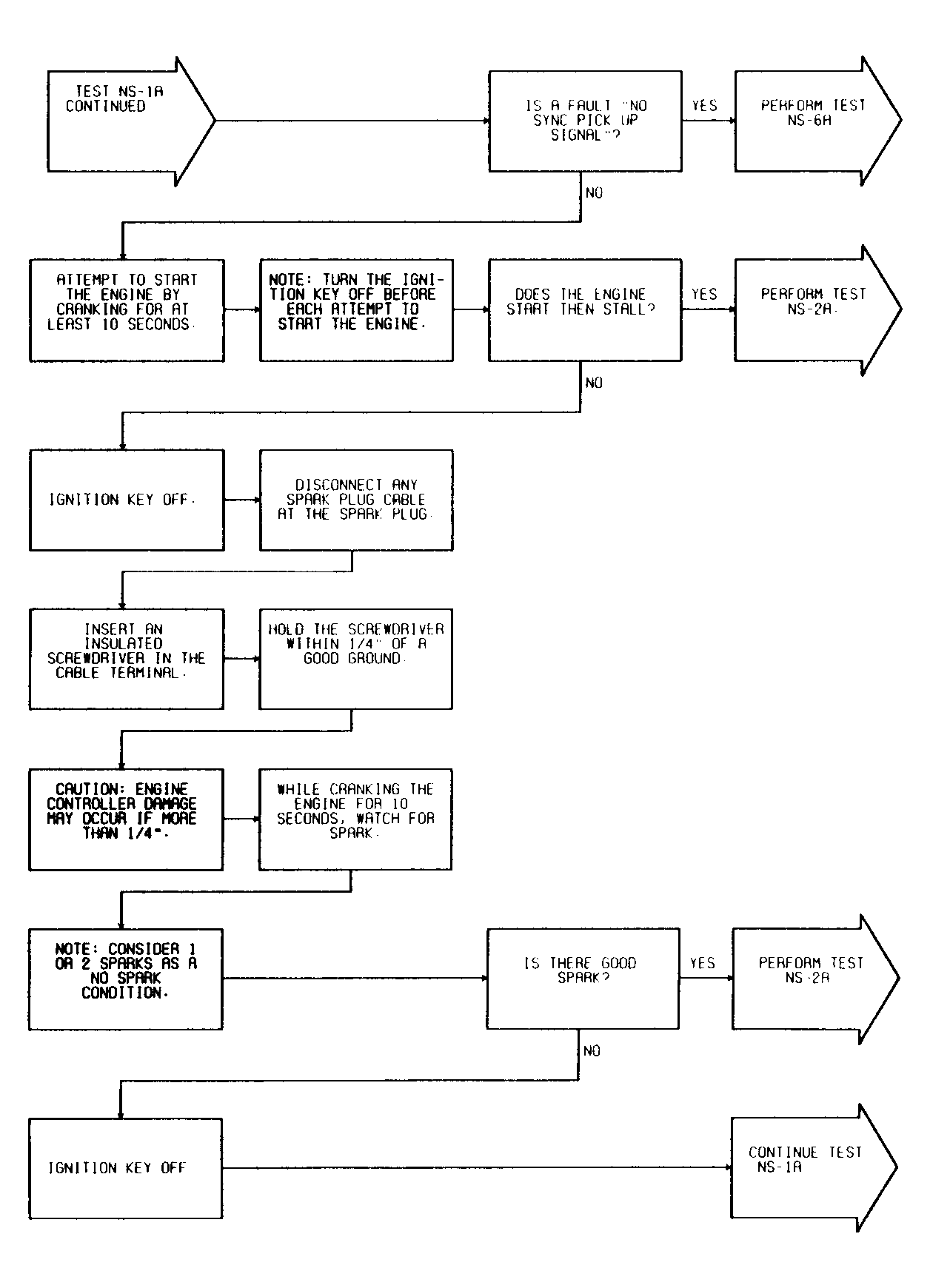

Fig 2: Test NS-1A (2 of 4) Checking For Fault Messages & Spark
G91A13805

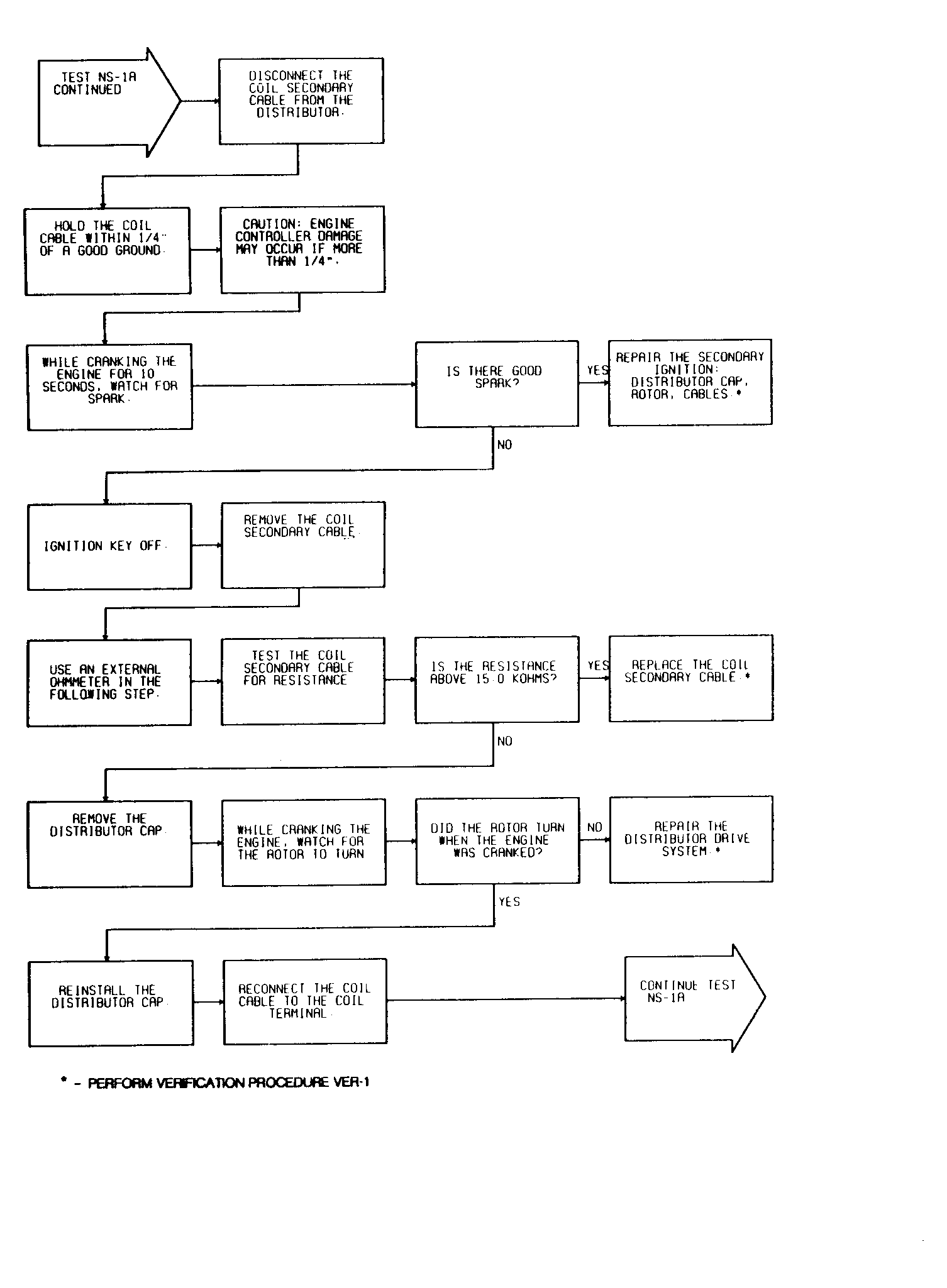

Fig 3: Test NS-1A (3 of 4) Checking For Fault Messages & Spark
G91B13806

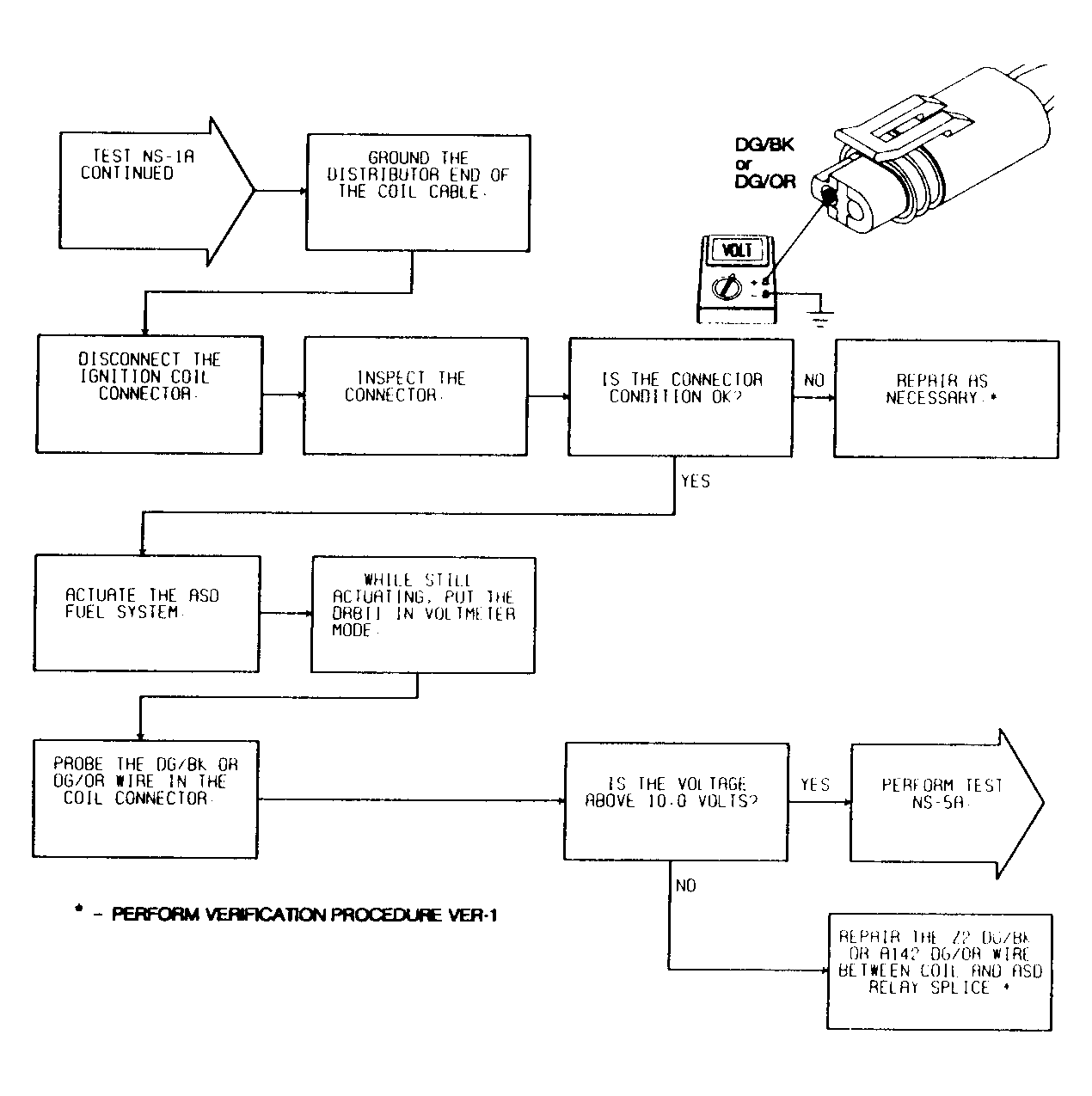

Fig 4: Test NS-1A (4 of 4) Checking For Fault Messages & Spark
G91C13807
