NS-2A: Checking Fuel Delivery System

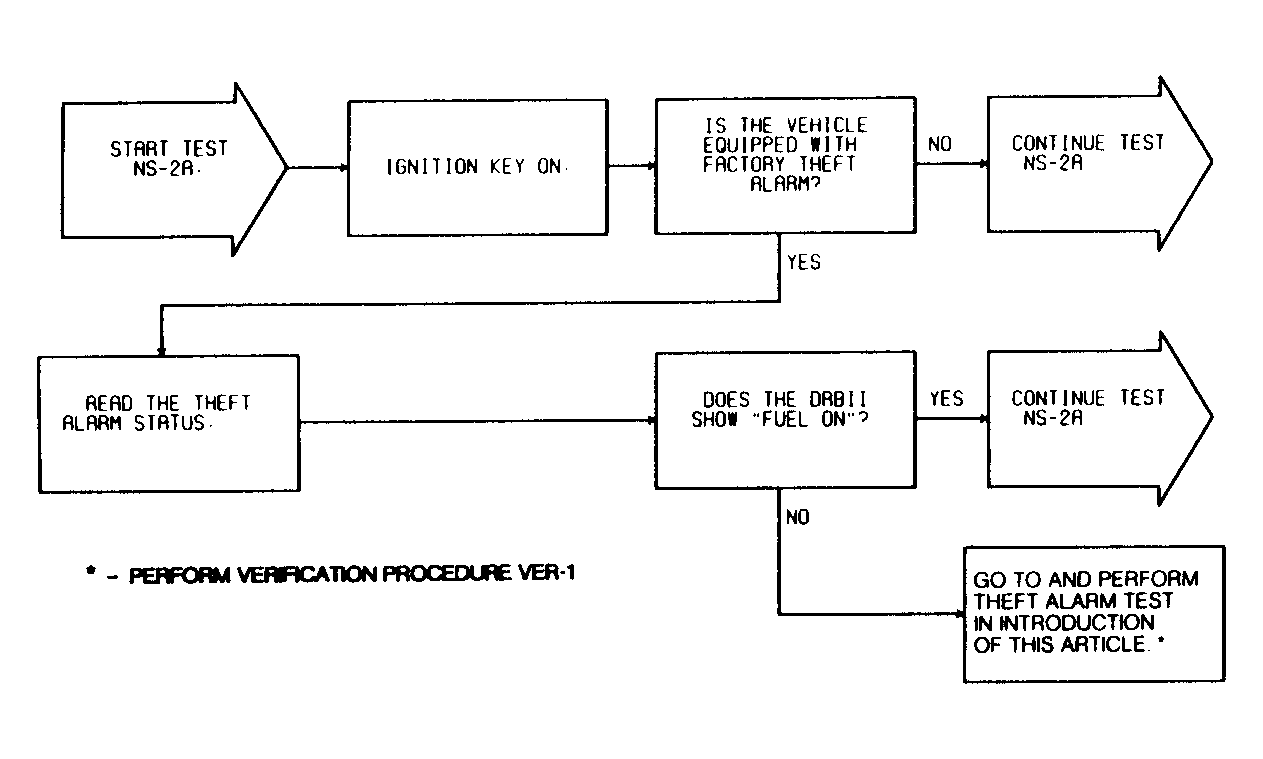

Fig 1: Test NS-2A (1 of 3) Checking Fuel Delivery System

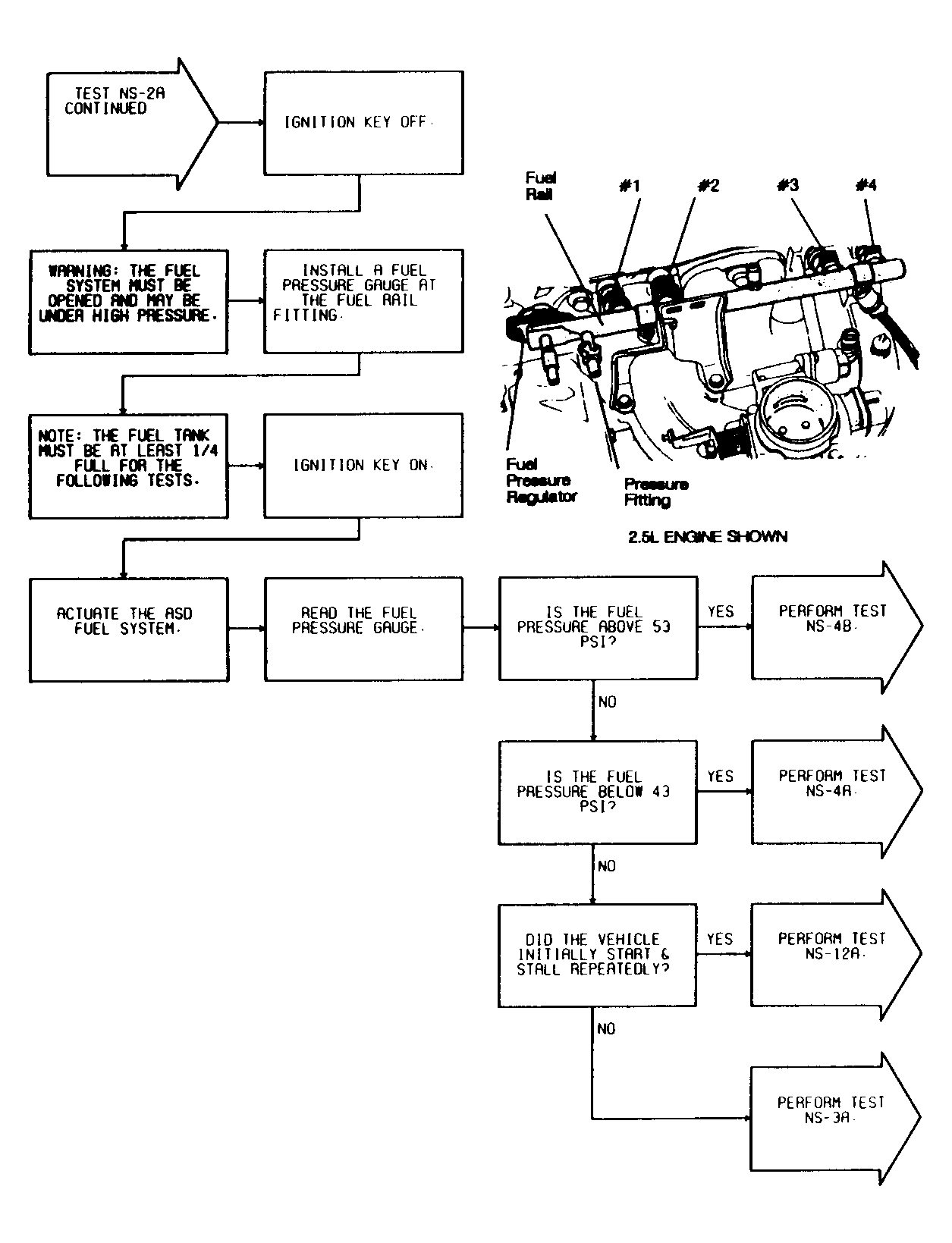

Fig 2: Test NS-2A (2 of 3) Checking Fuel Delivery System

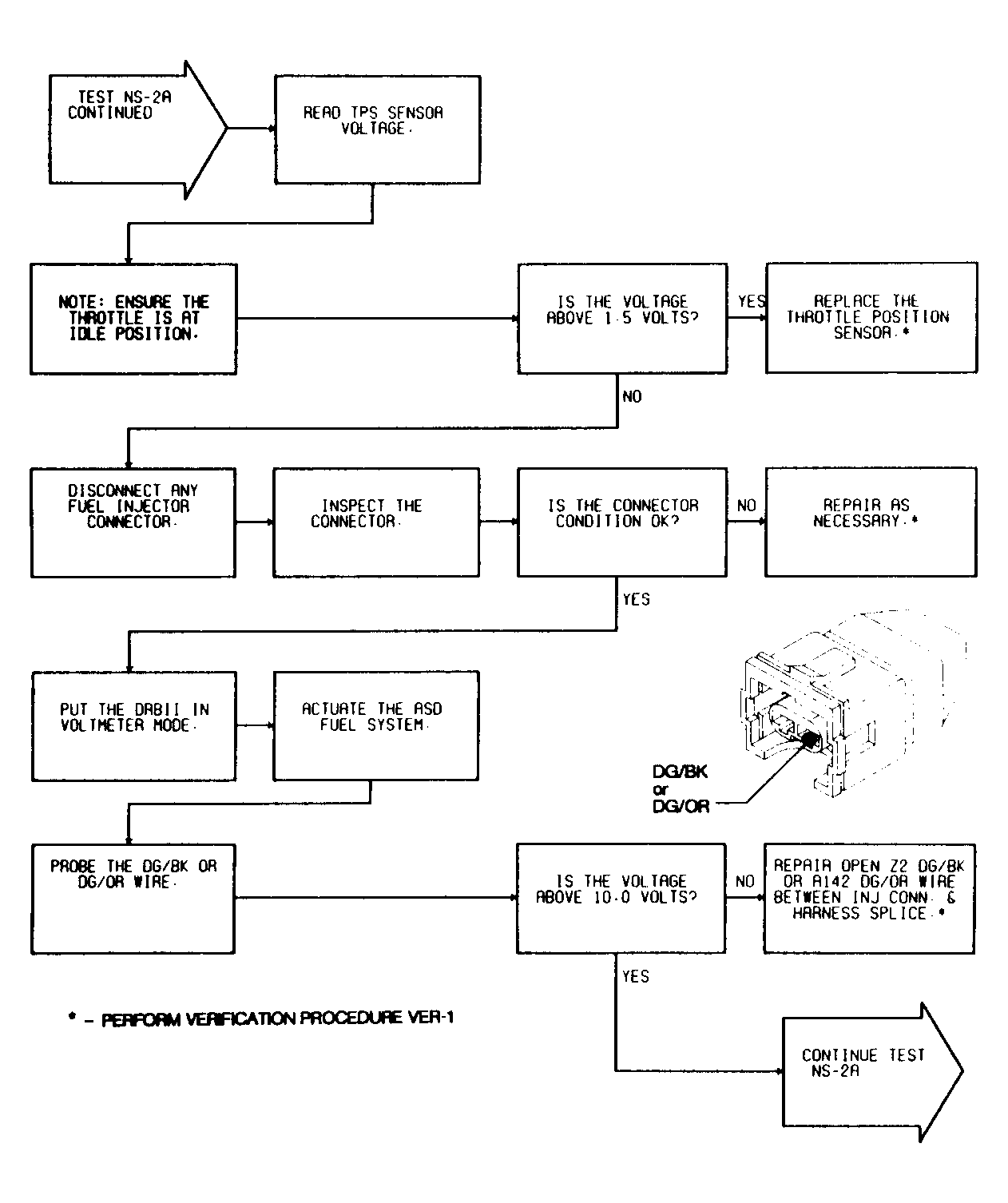

Fig 3: Test NS-2A (3 of 3) Checking Fuel Delivery System
