NS-3A: Checking Spark Delivery & Engine Mechanical Systems

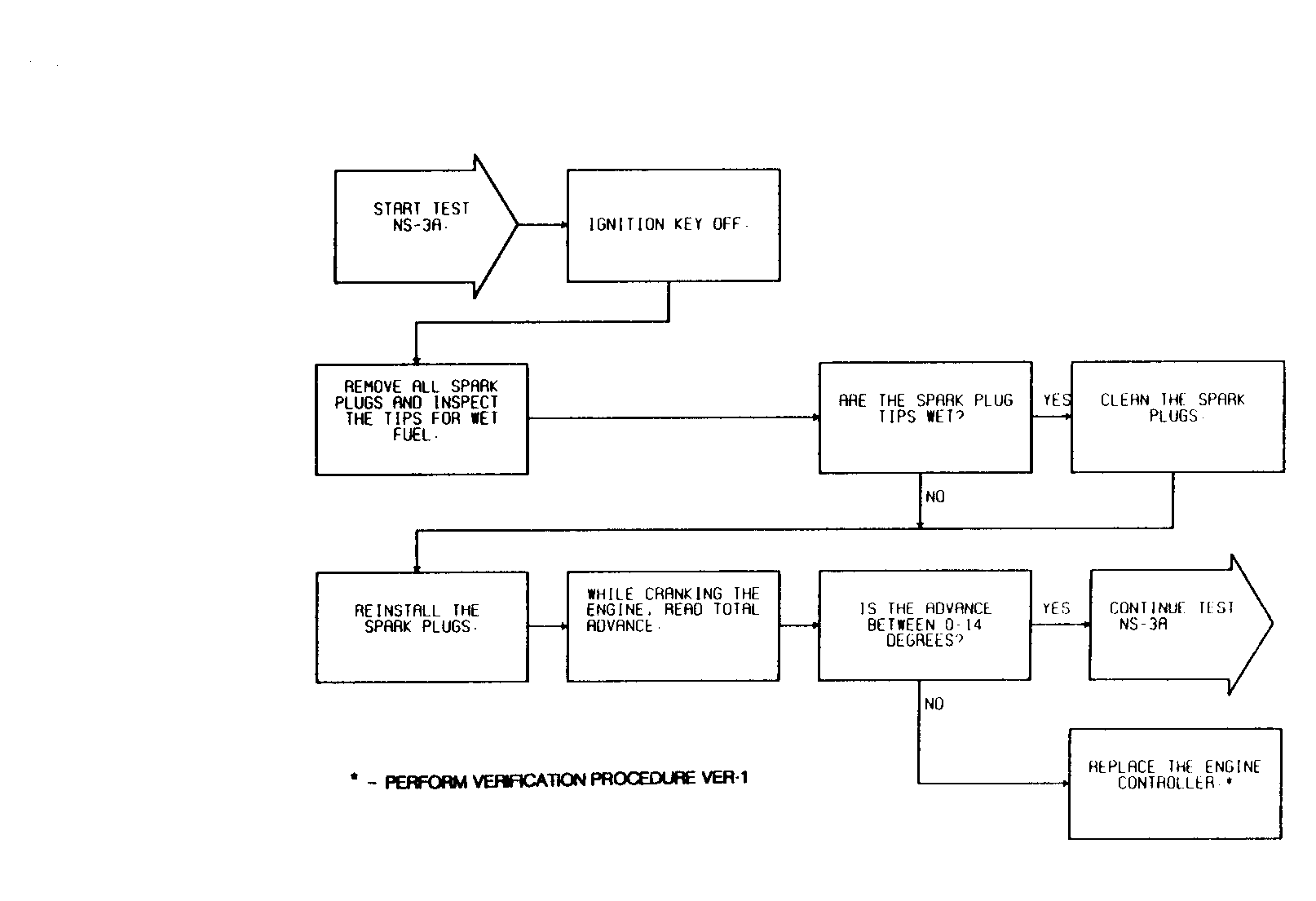

Fig 1: Test NS-3A (1 of 2) Spark Delivery & Engine Mechanical Systems

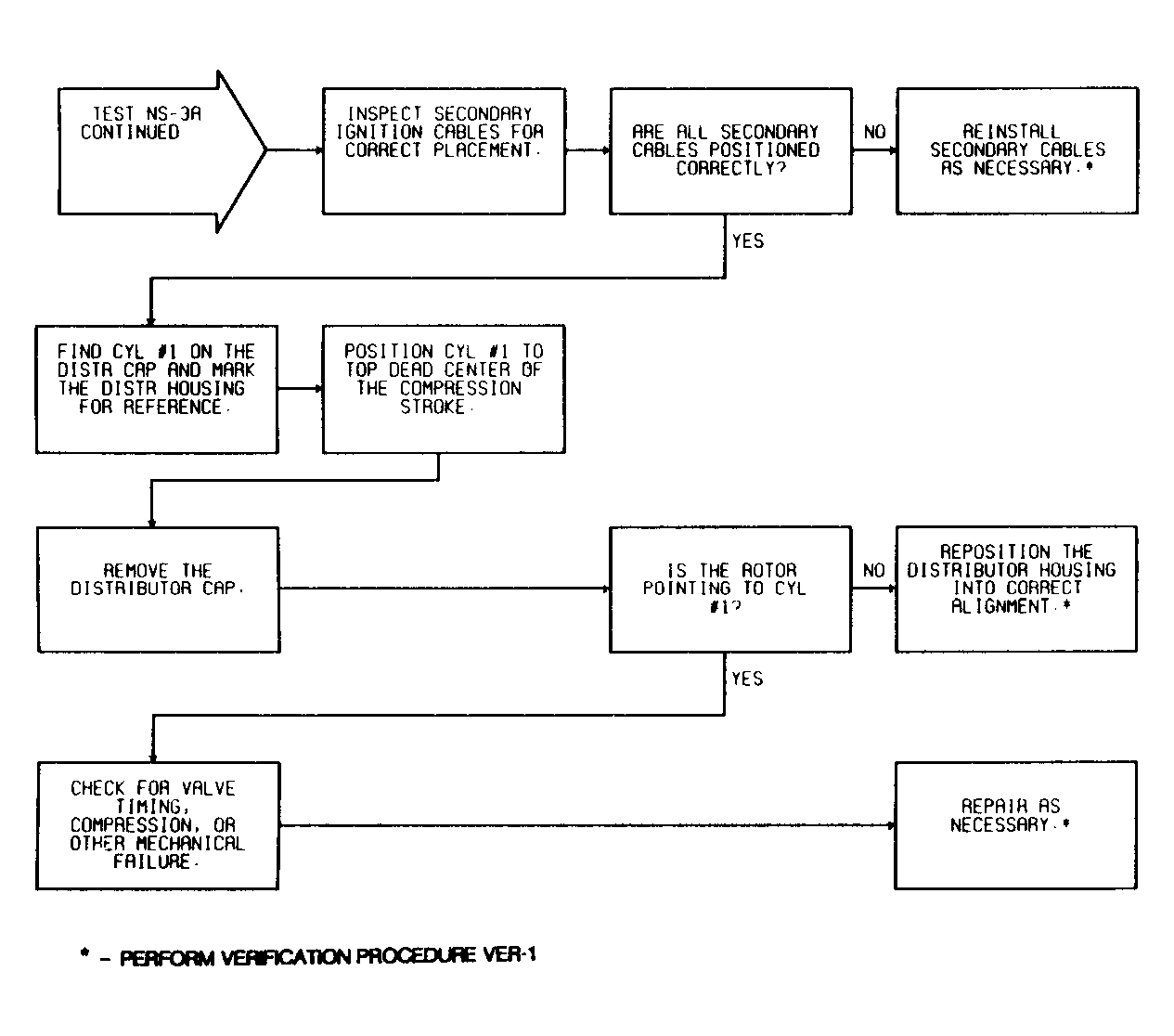

Fig 2: Test NS-3A (2 of 2) Spark Delivery & Engine Mechanical Systems
