NS-4A: Checking Low Fuel Pressure Condition

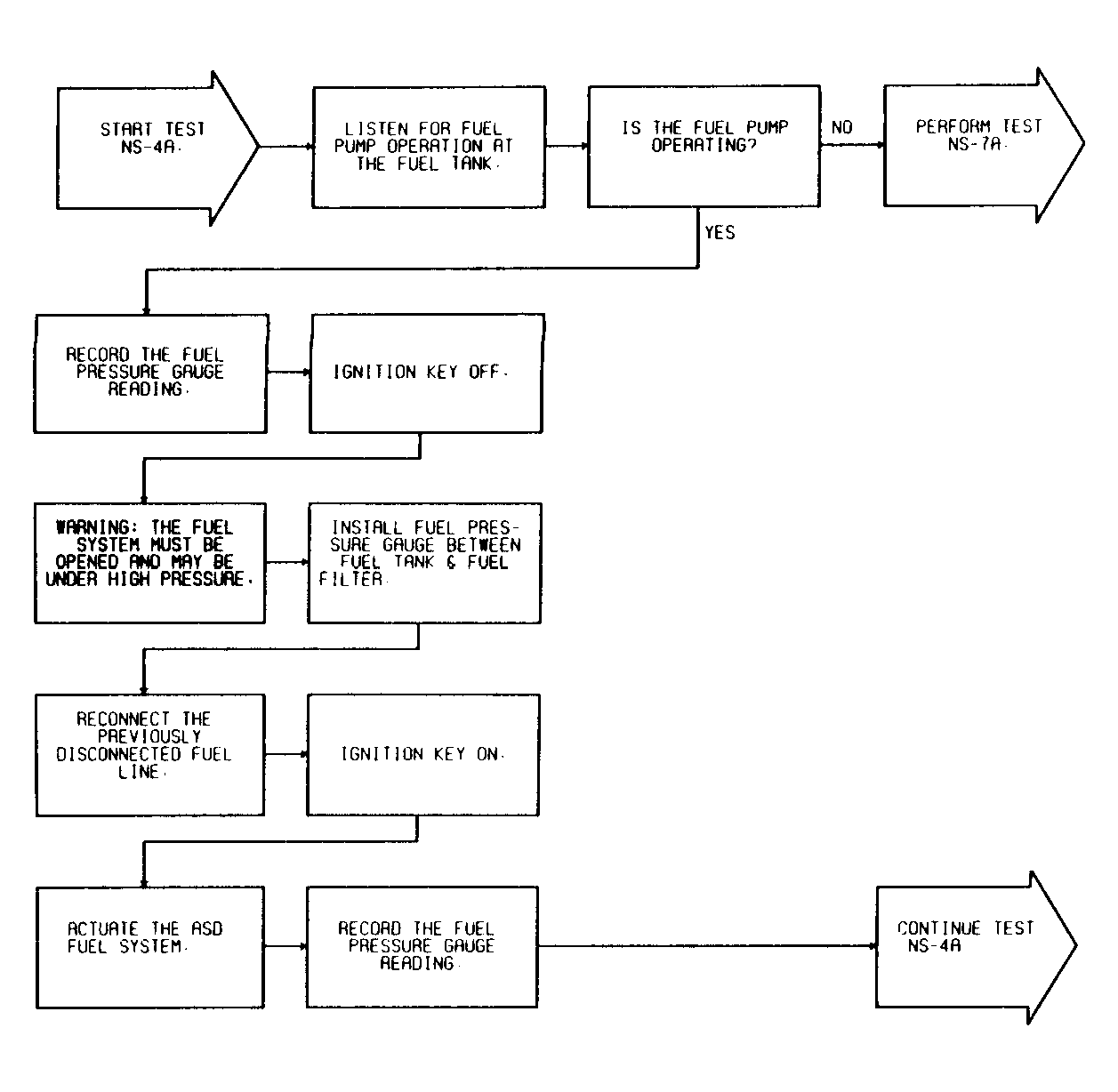

Fig 1: Test NS-4A (1 of 3) Checking Low Fuel Pressure Condition

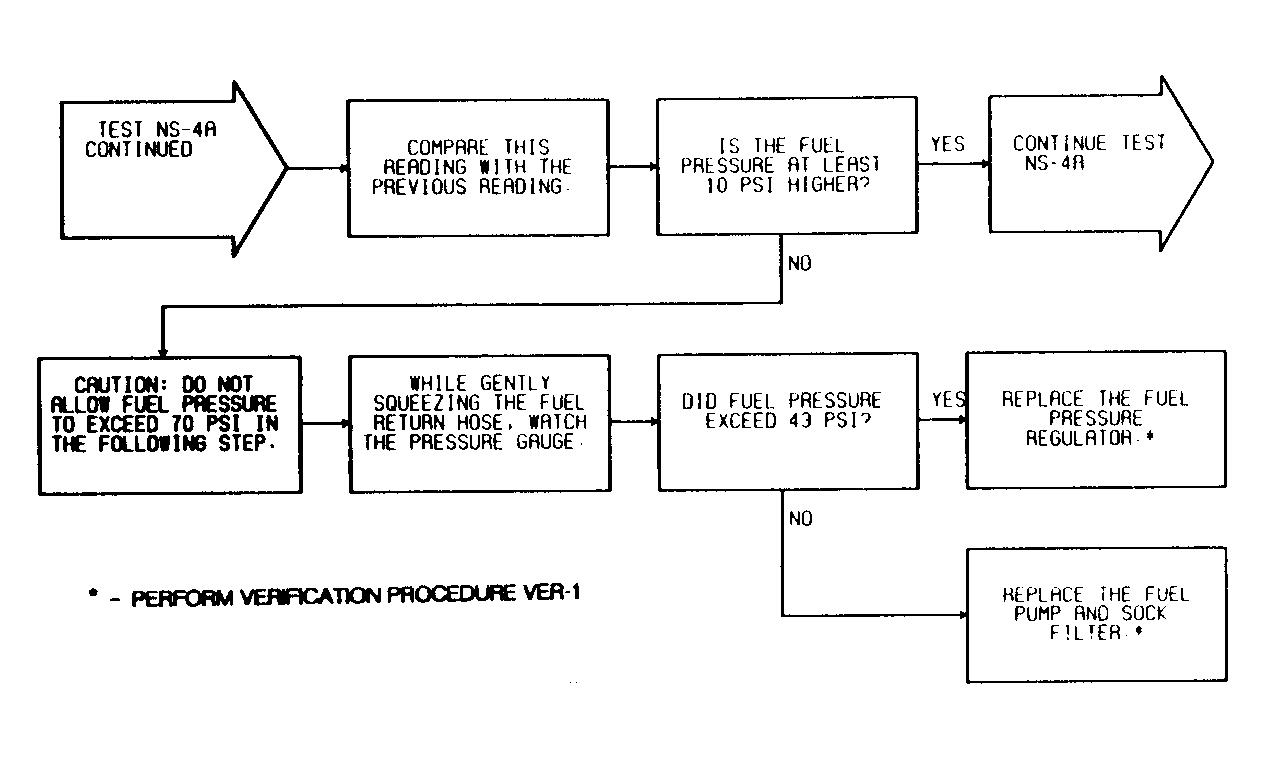

Fig 2: Test NS-4A (2 of 3) Checking Low Fuel Pressure Condition

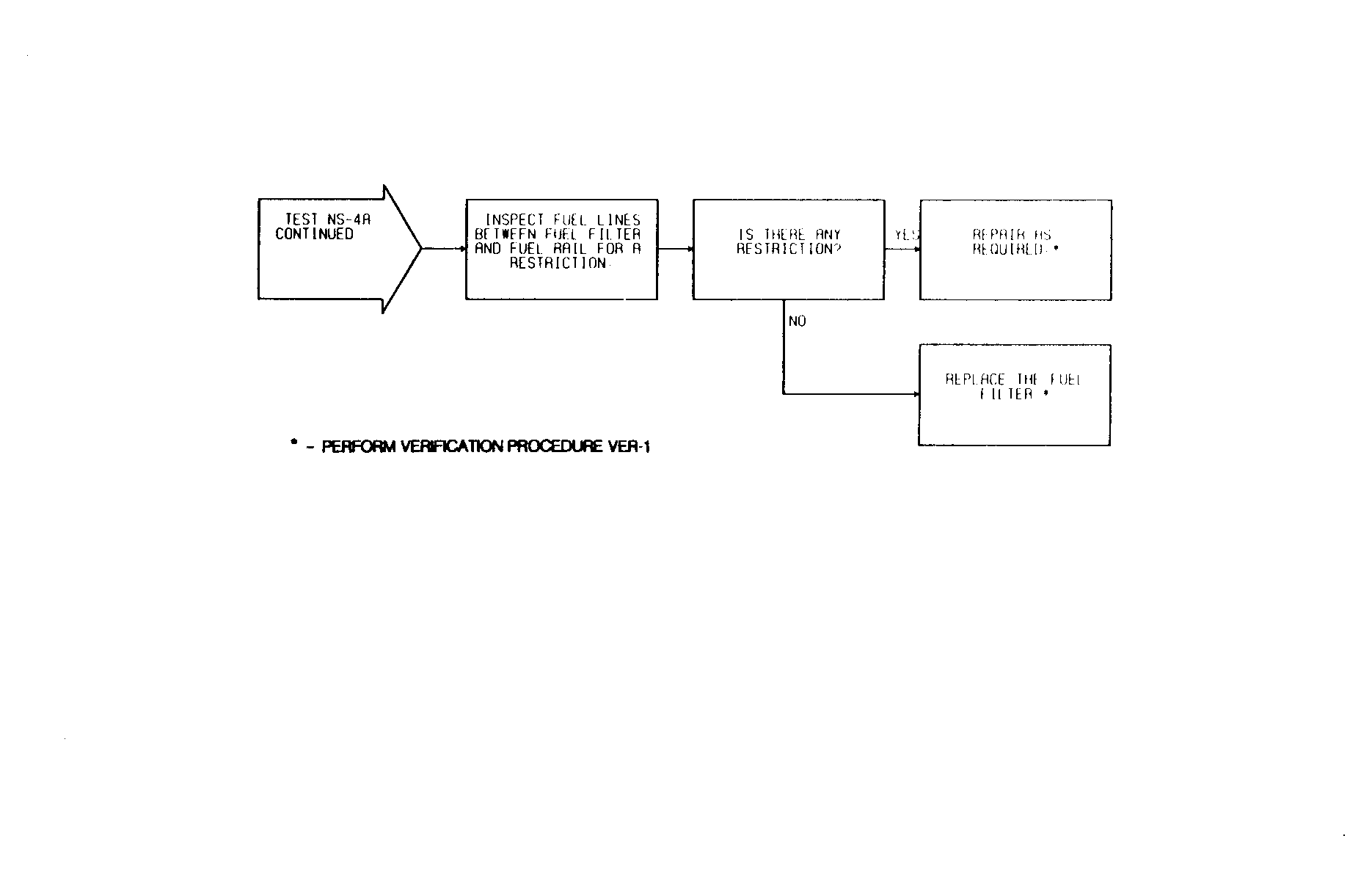

Fig 3: Test NS-4A (3 of 3) Checking Low Fuel Pressure Condition
