NS-7A: Checking Fuel Pump Circuit

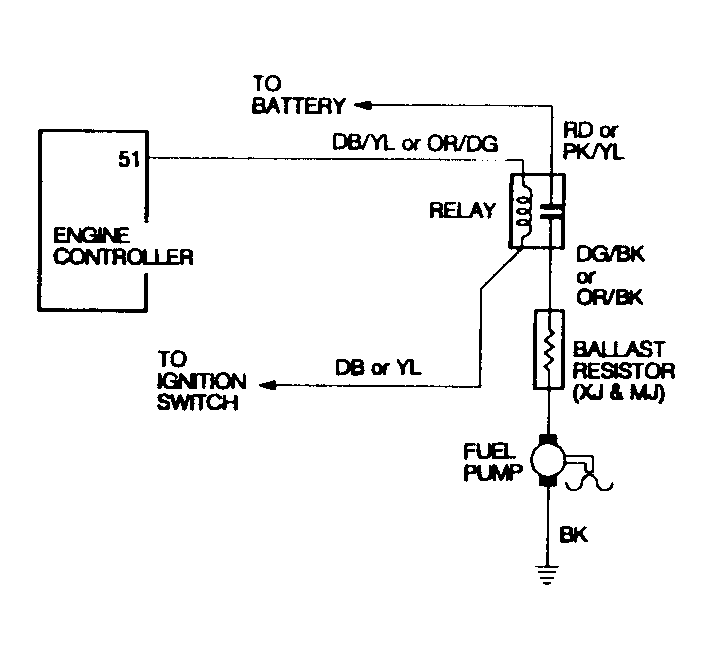

Fig 1: Test NS-7A Schematic, Checking Fuel Pump Circuit

G91I13936

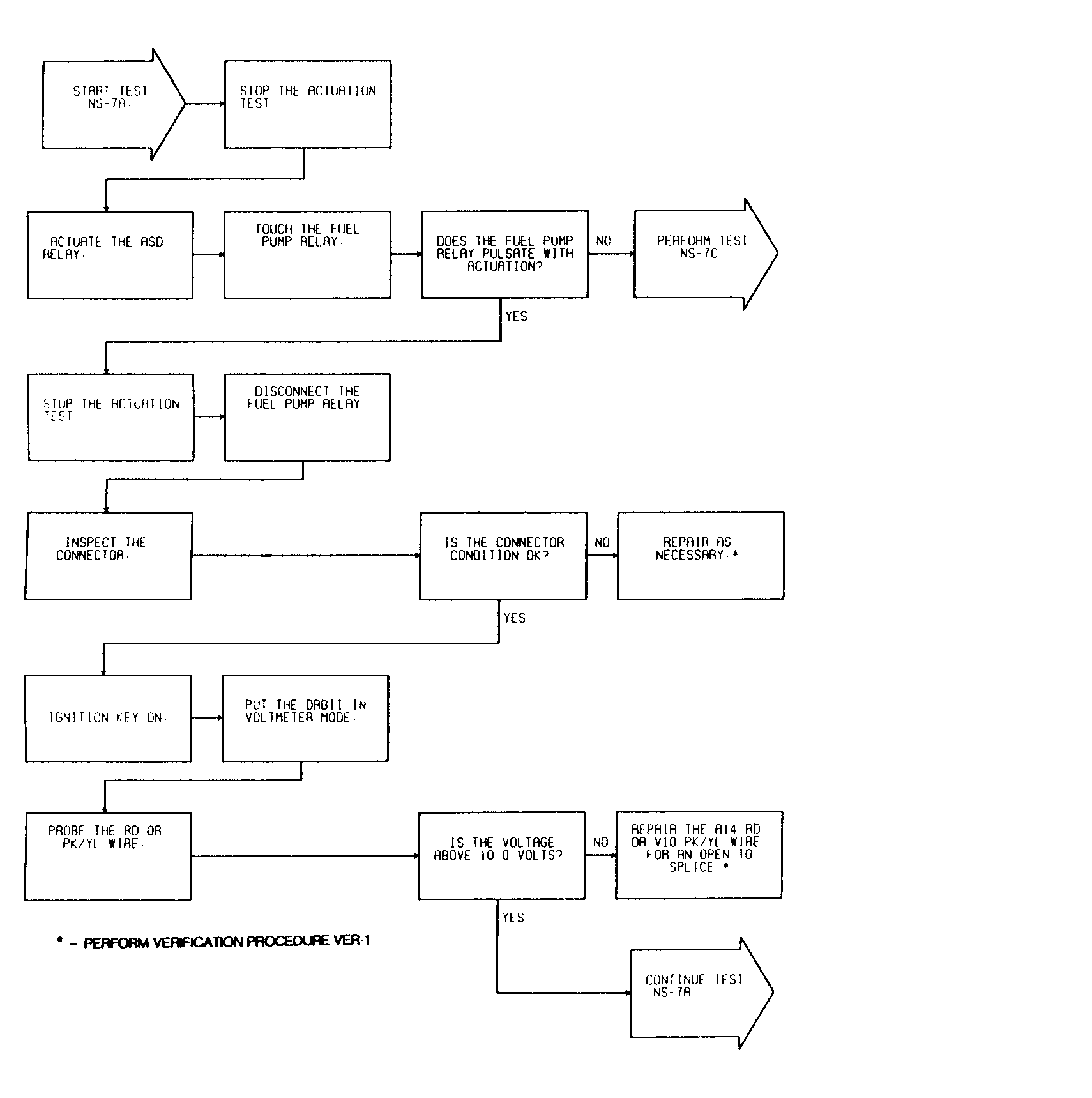

Fig 2: Test NS-7A Checking Fuel Pump Circuit (1 of 3)

G91D13824

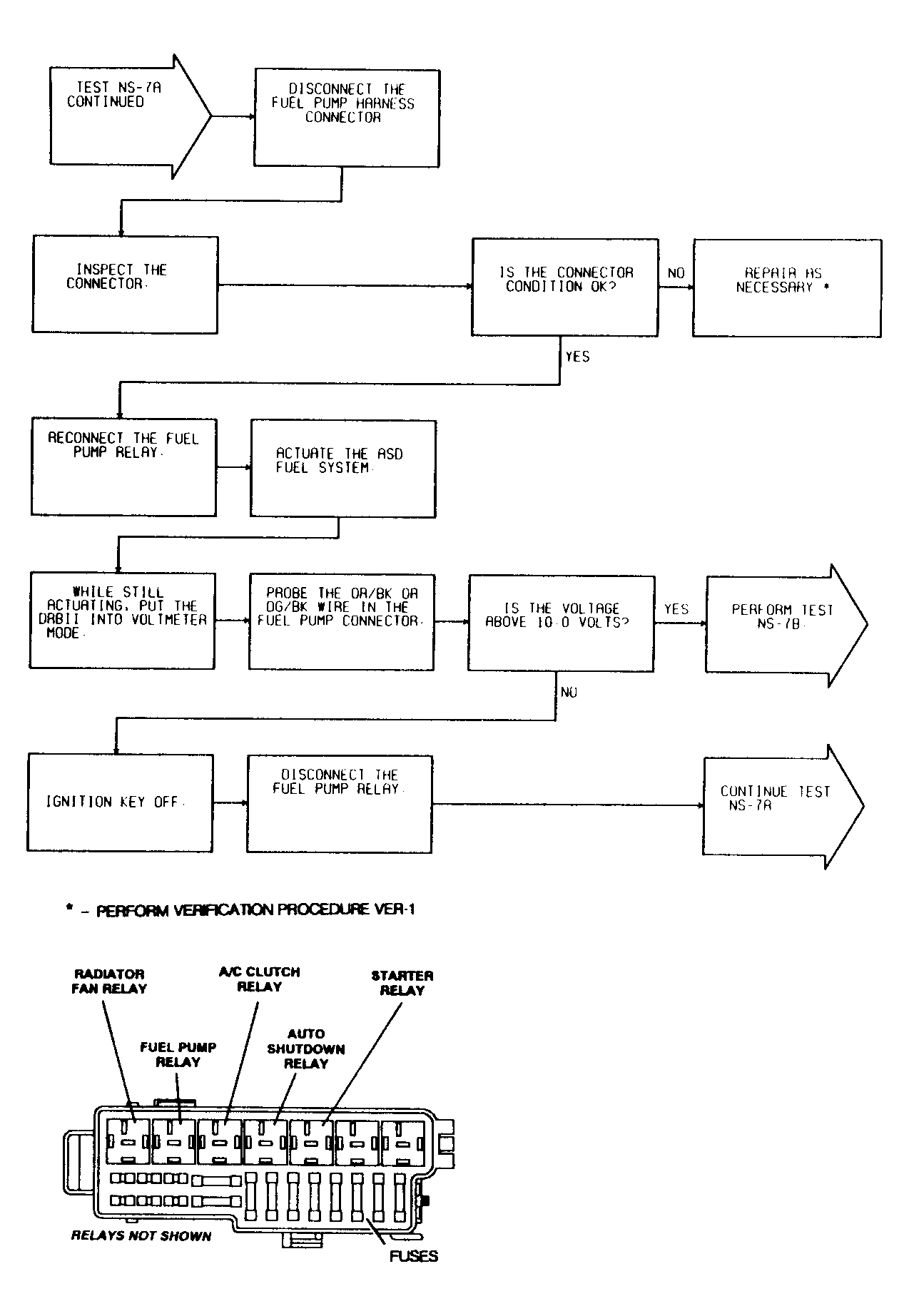

Fig 3: Test NS-7A Checking Fuel Pump Circuit (2 of 3)

G91E13825

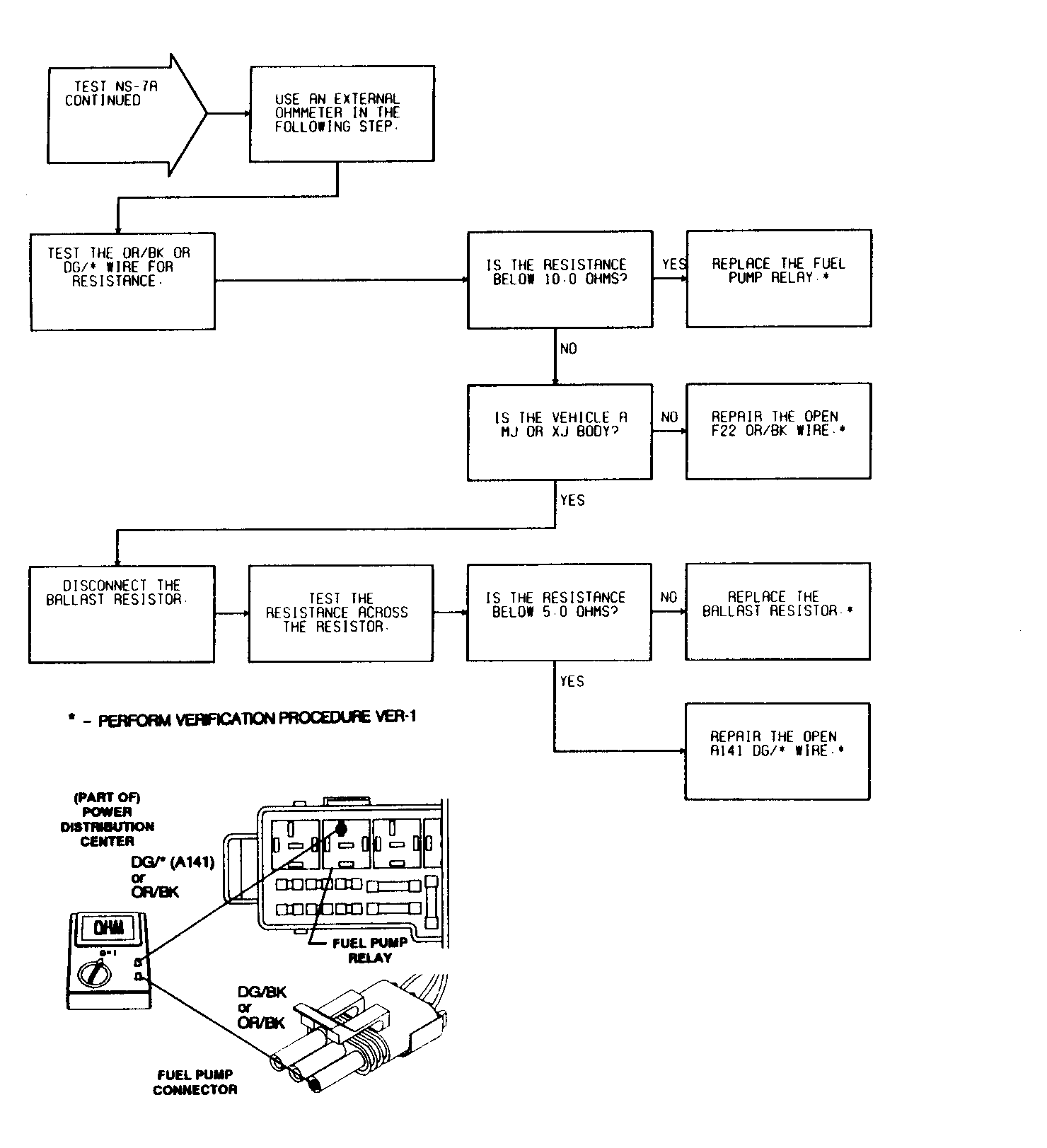

Fig 4: Test NS-7A Checking Fuel Pump Circuit (3 of 3)

G91F13826
