NS-8A: Repairing No Response Condition

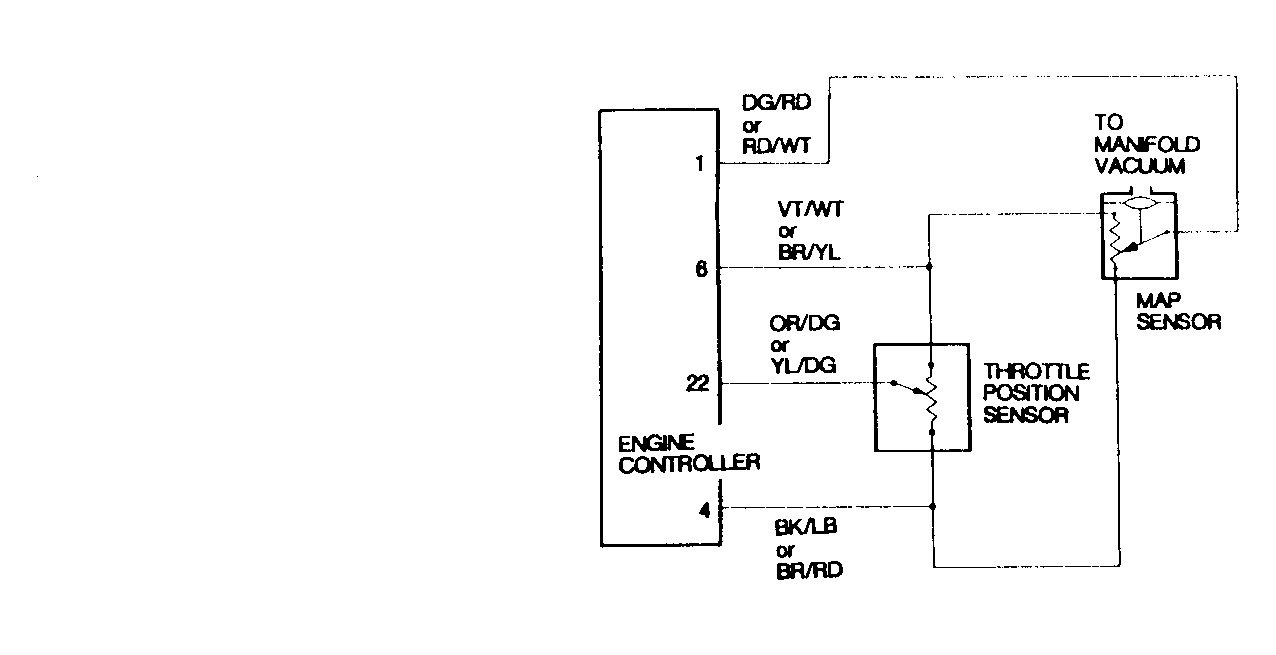

Fig 1: Test NS-8A Schematic, Repairing No Response Condition

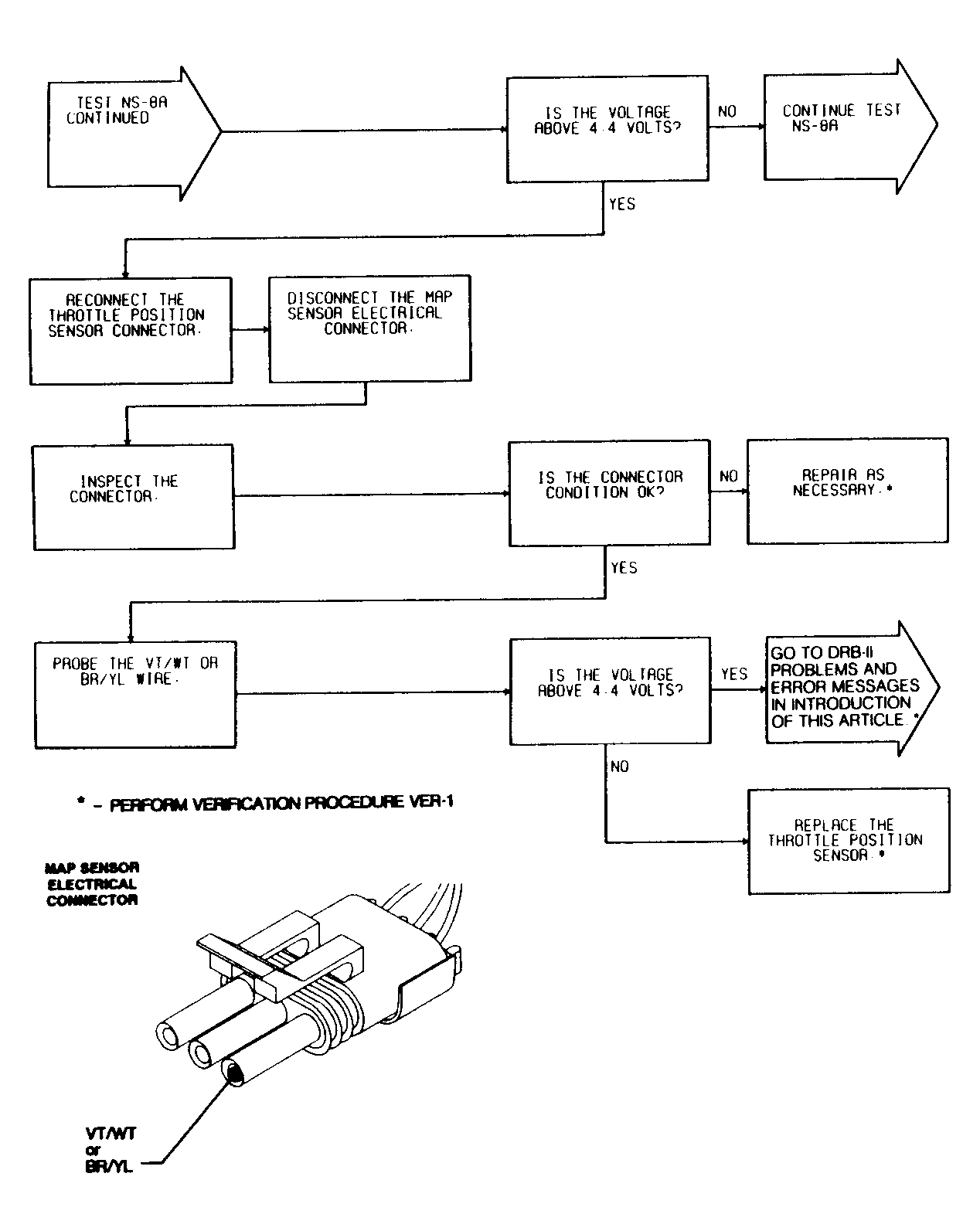

Fig 2: Test NS-8A (1 of 4) Repairing No Response Condition

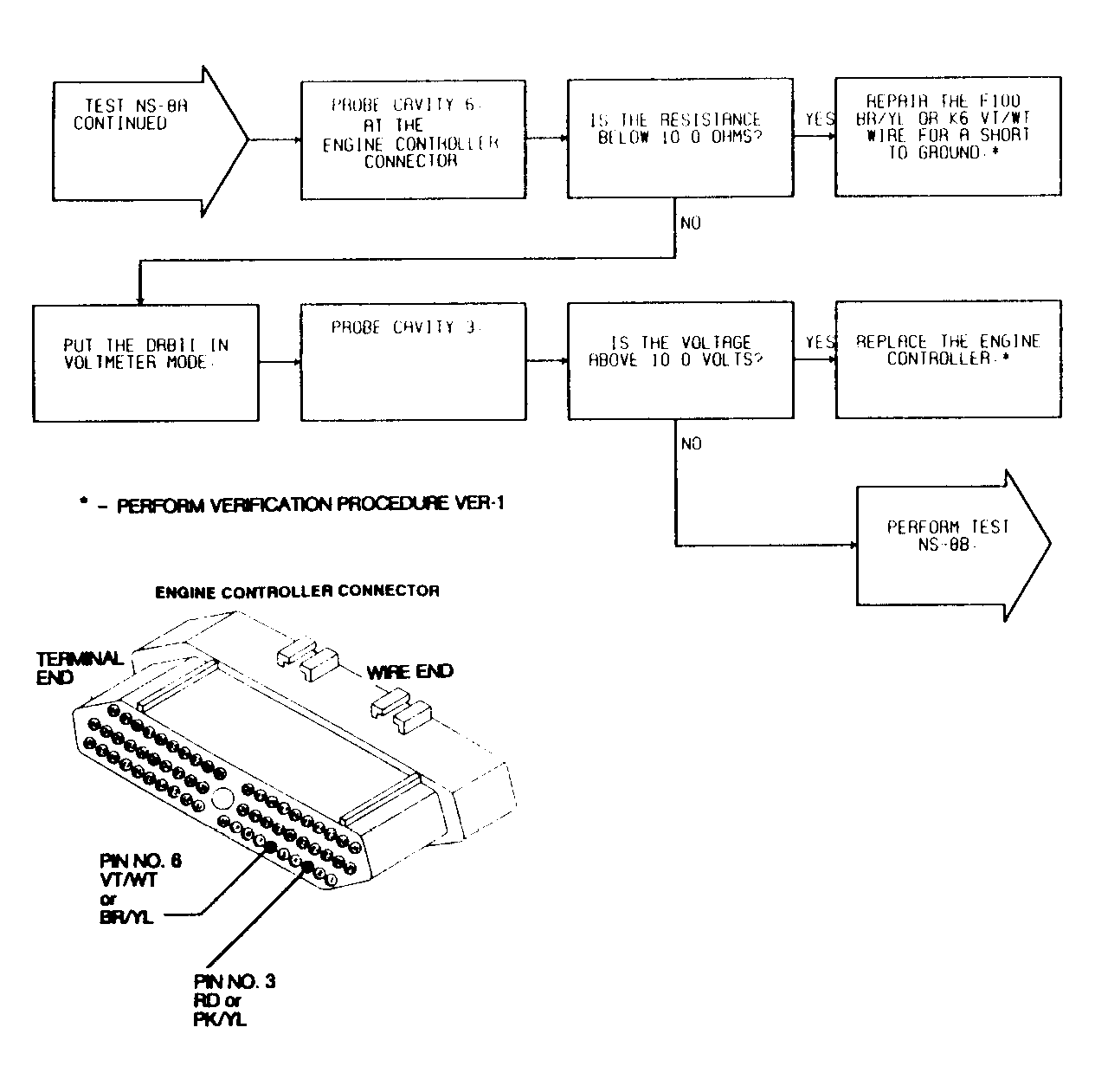

Fig 3: Test NS-8A (2 of 4) Repairing No Response Condition

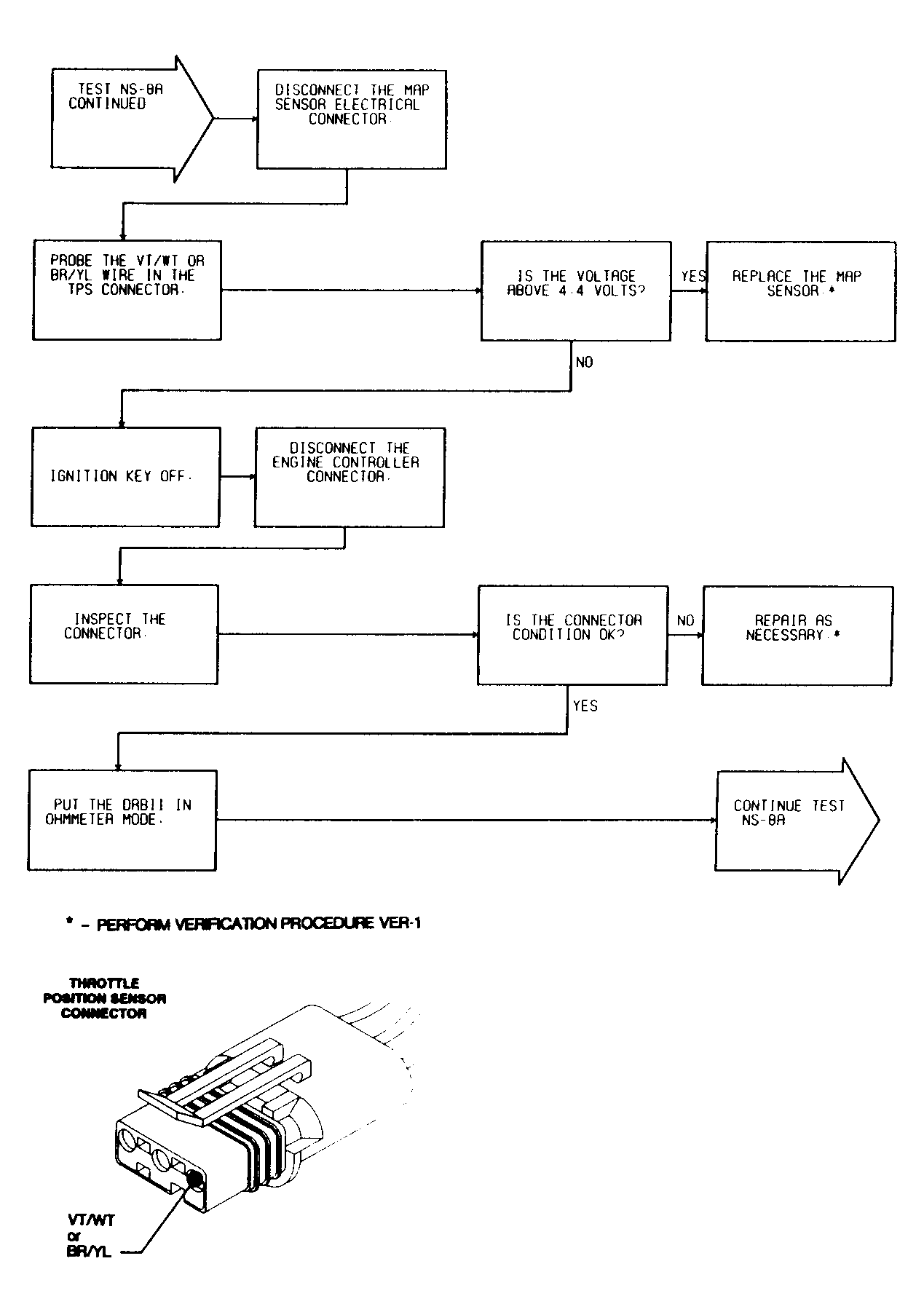

Fig 4: Test NS-8A (3 of 4) Repairing No Response Condition

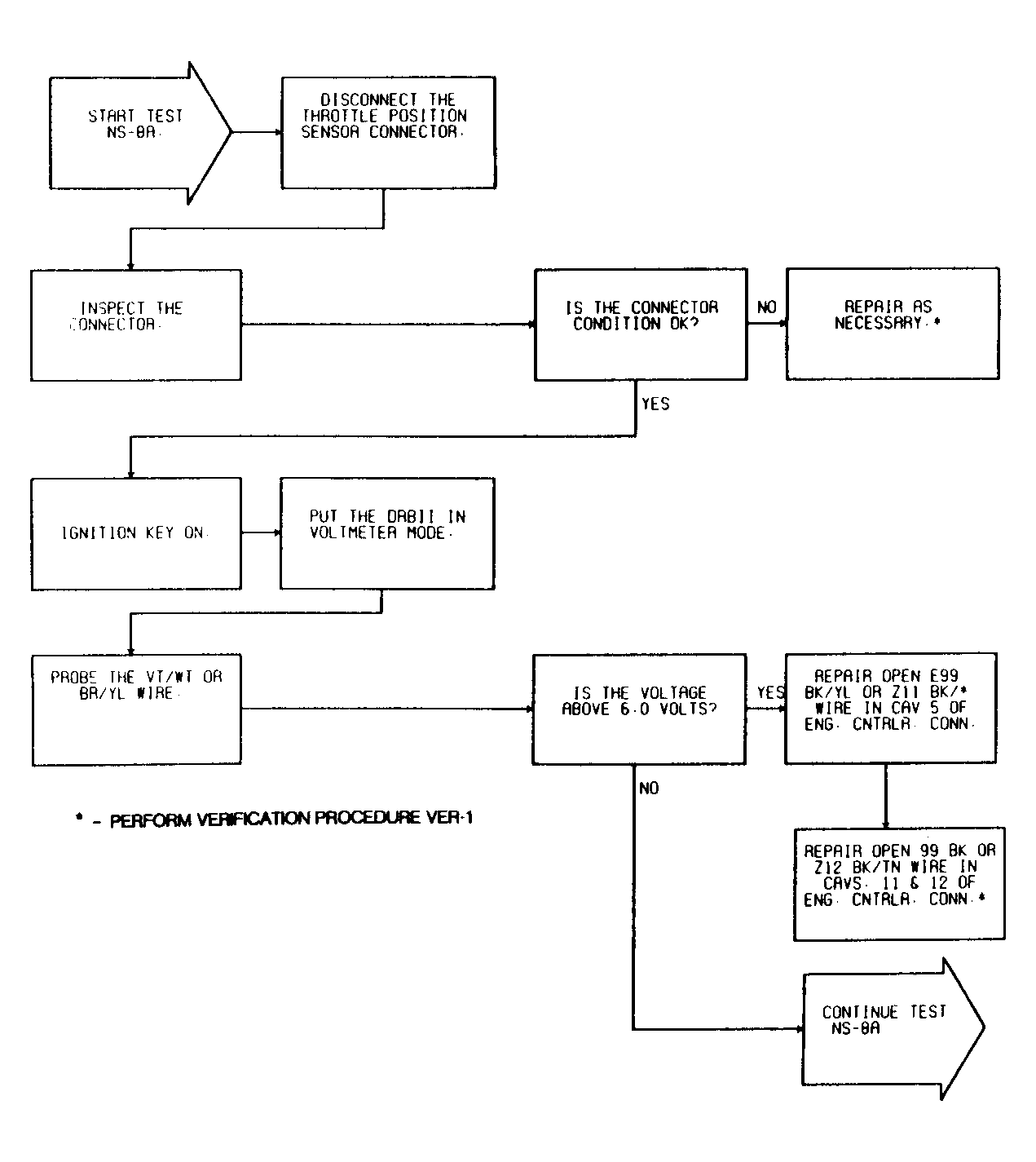

Fig 5: Test NS-8A (4 of 4) Repairing No Response Condition
