NS-8B: Repairing Loss Of Battery Power At Engine Controller

Fig 1: Test NS-8B Schematic, XJ, MJ, Body, No Battery Power At Engine Controller

Fig 2: Test NS-8B Schematic, YJ Body, No Battery Power At Engine Controller

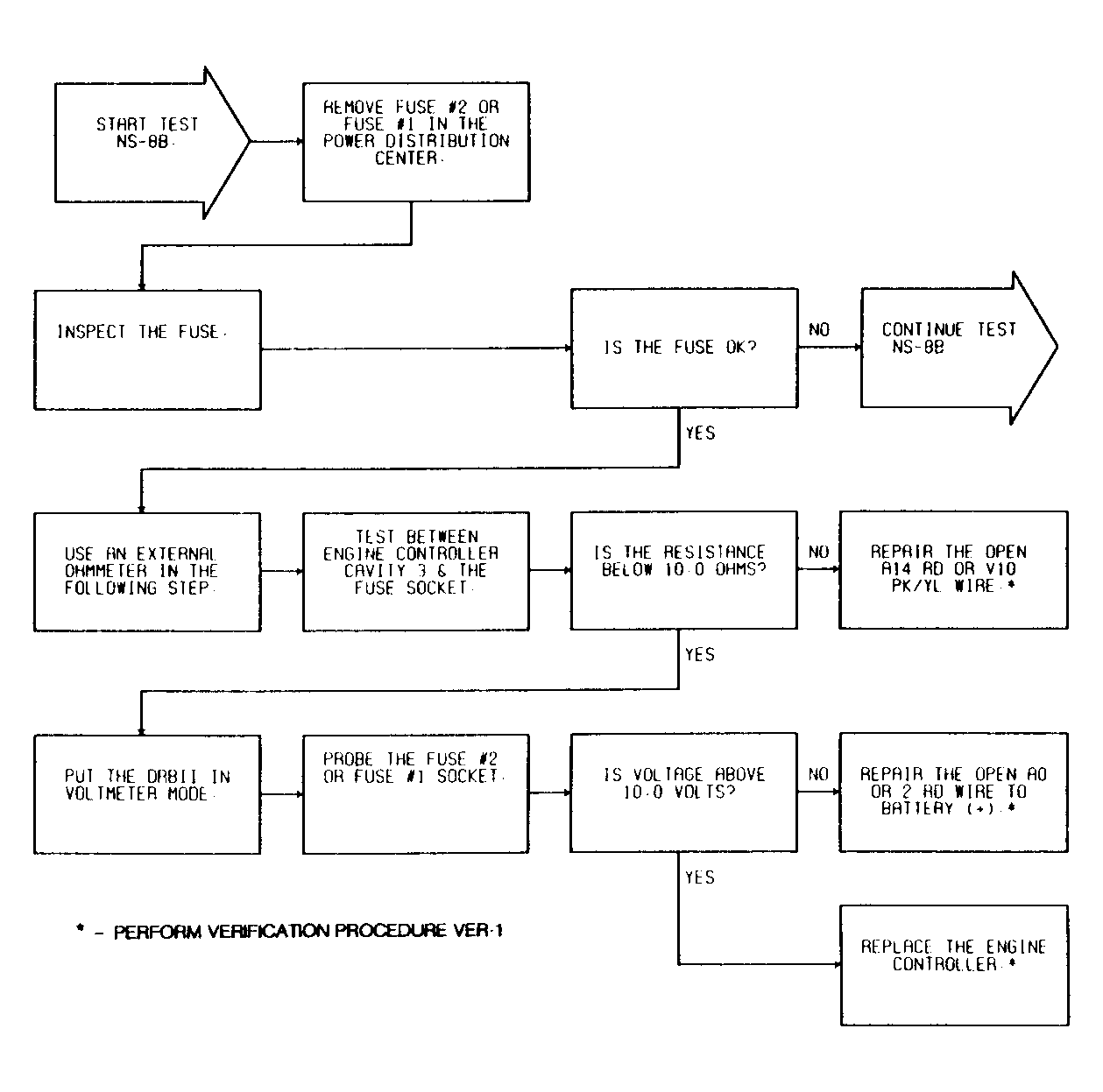

Fig 3: Test NS-8B (1 of 5) No Battery Power At Engine Controller

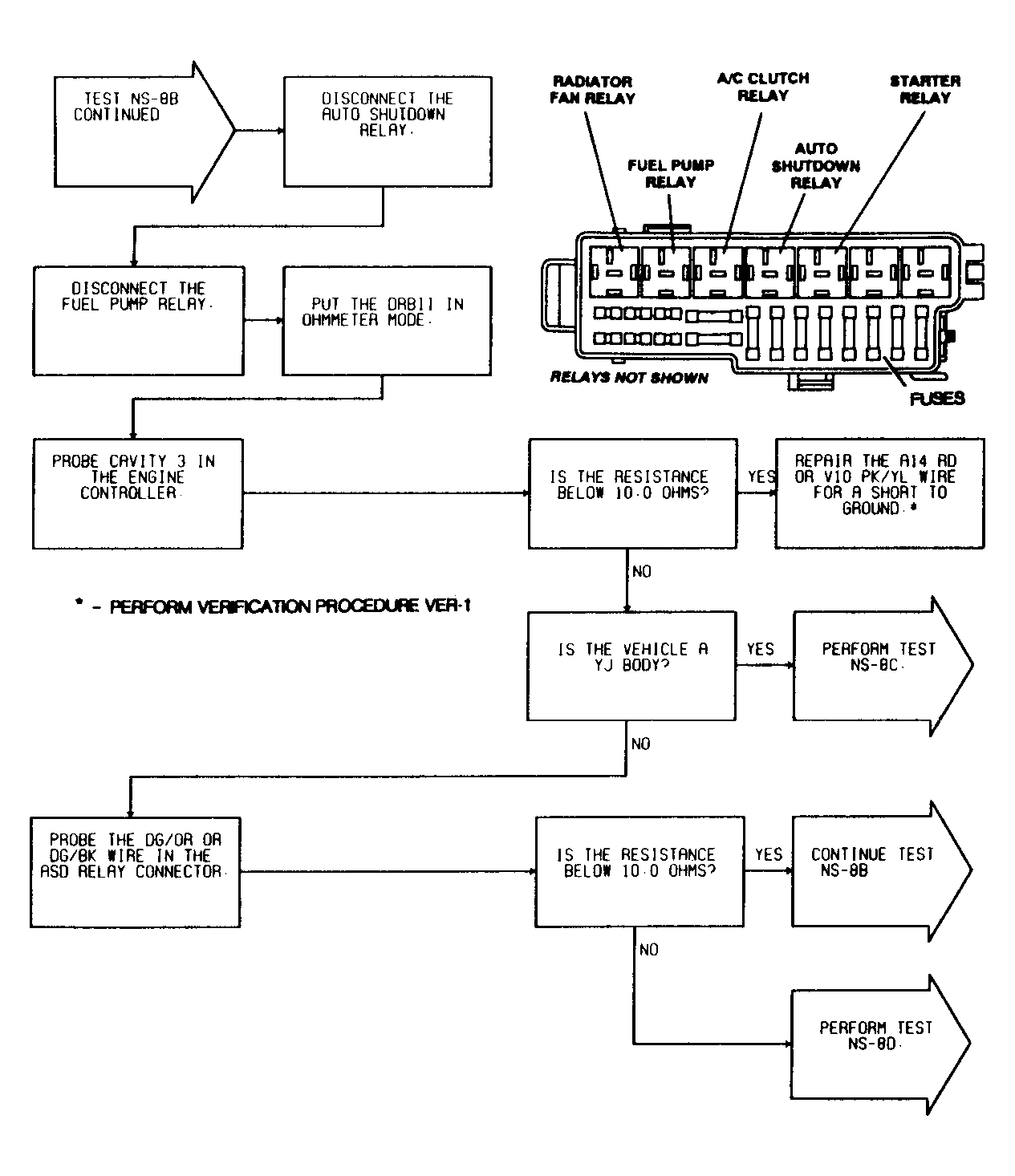

Fig 4: Test NS-8B (2 of 5) No Battery Power At Engine Controller

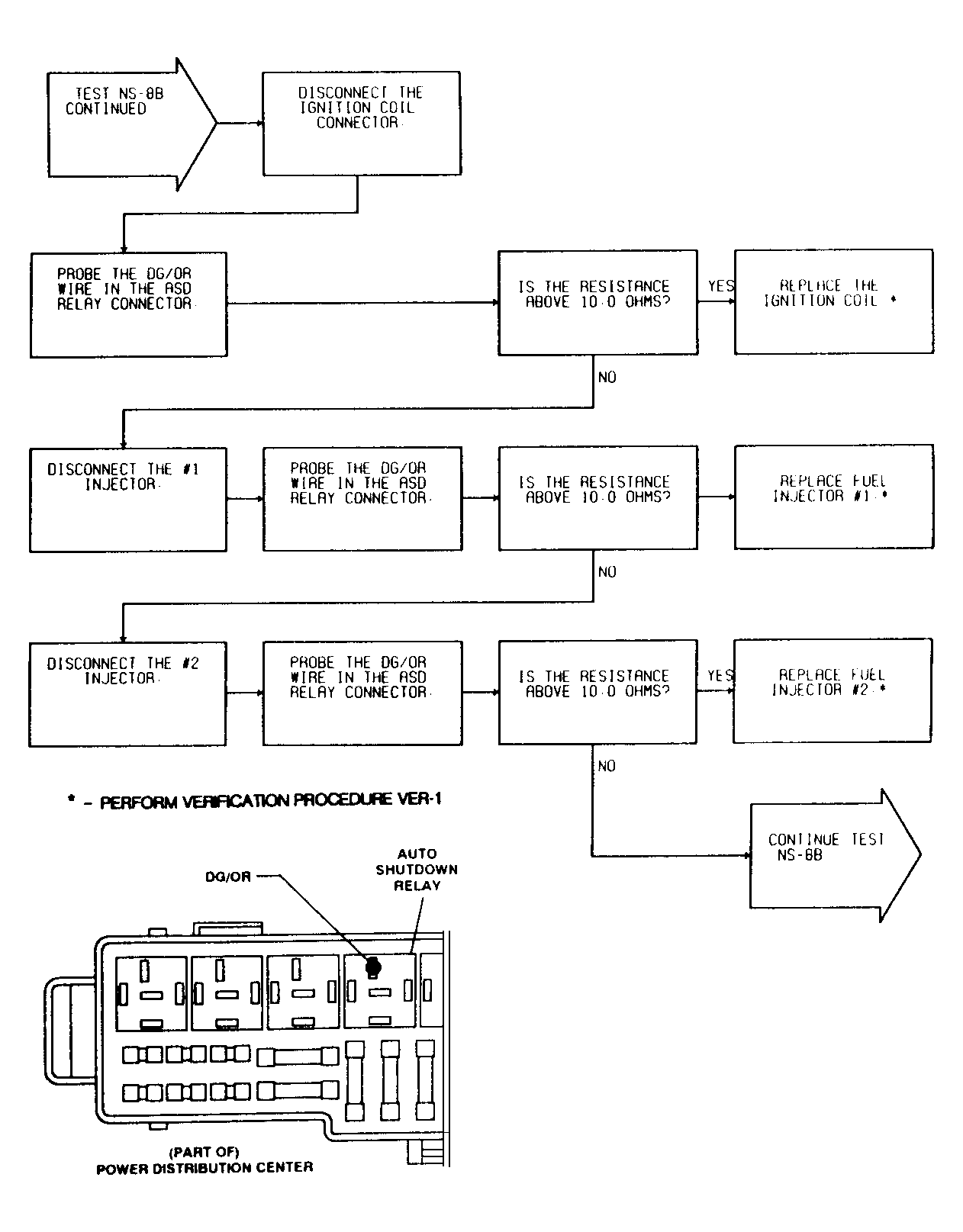

Fig 5: Test NS-8B (3 of 5) No Battery Power At Engine Controller

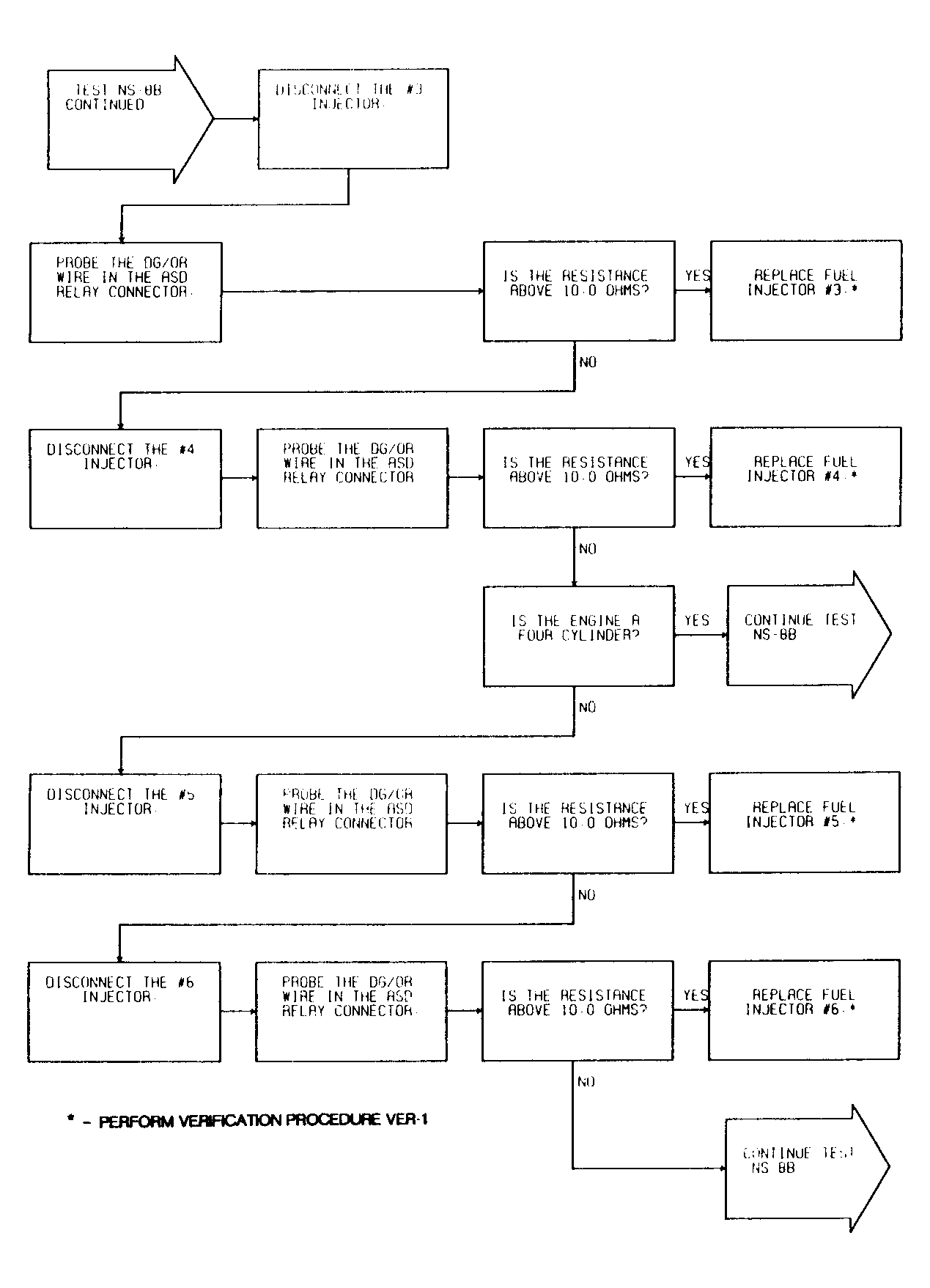

Fig 6: Test NS-8B (4 of 5) No Battery Power At Engine Controller

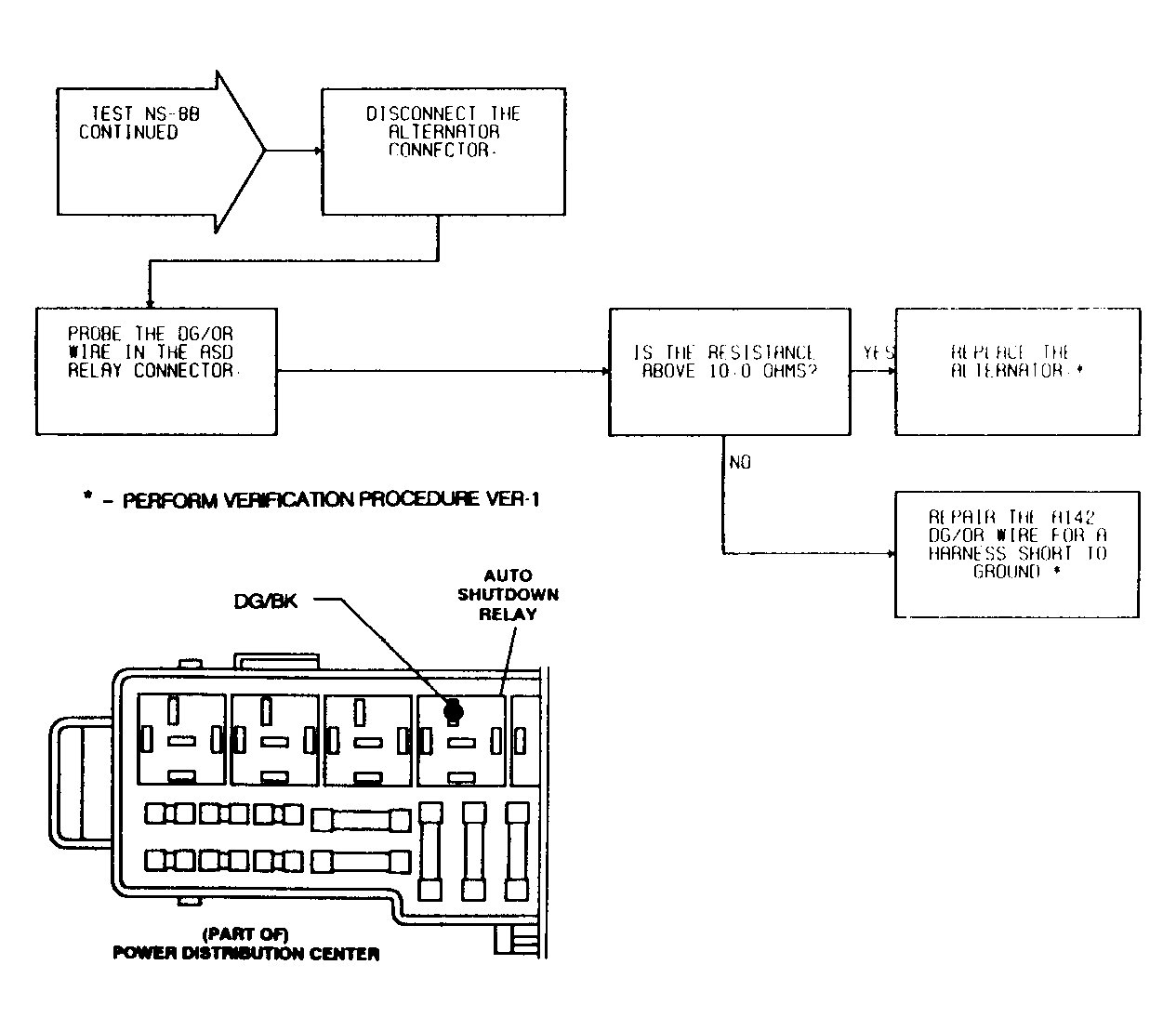

Fig 7: Test NS-8B (5 of 5) No Battery Power At Engine Controller
