NS-8C: Repairing Loss Of Battery Power At Engine Controller

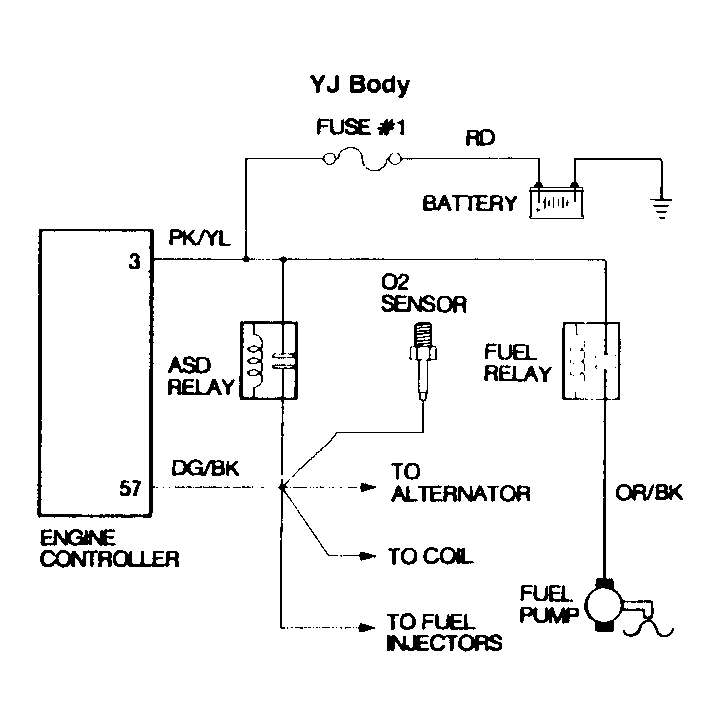

Fig 1: Test NS-8C Schematic, No Battery Power At Engine Controller

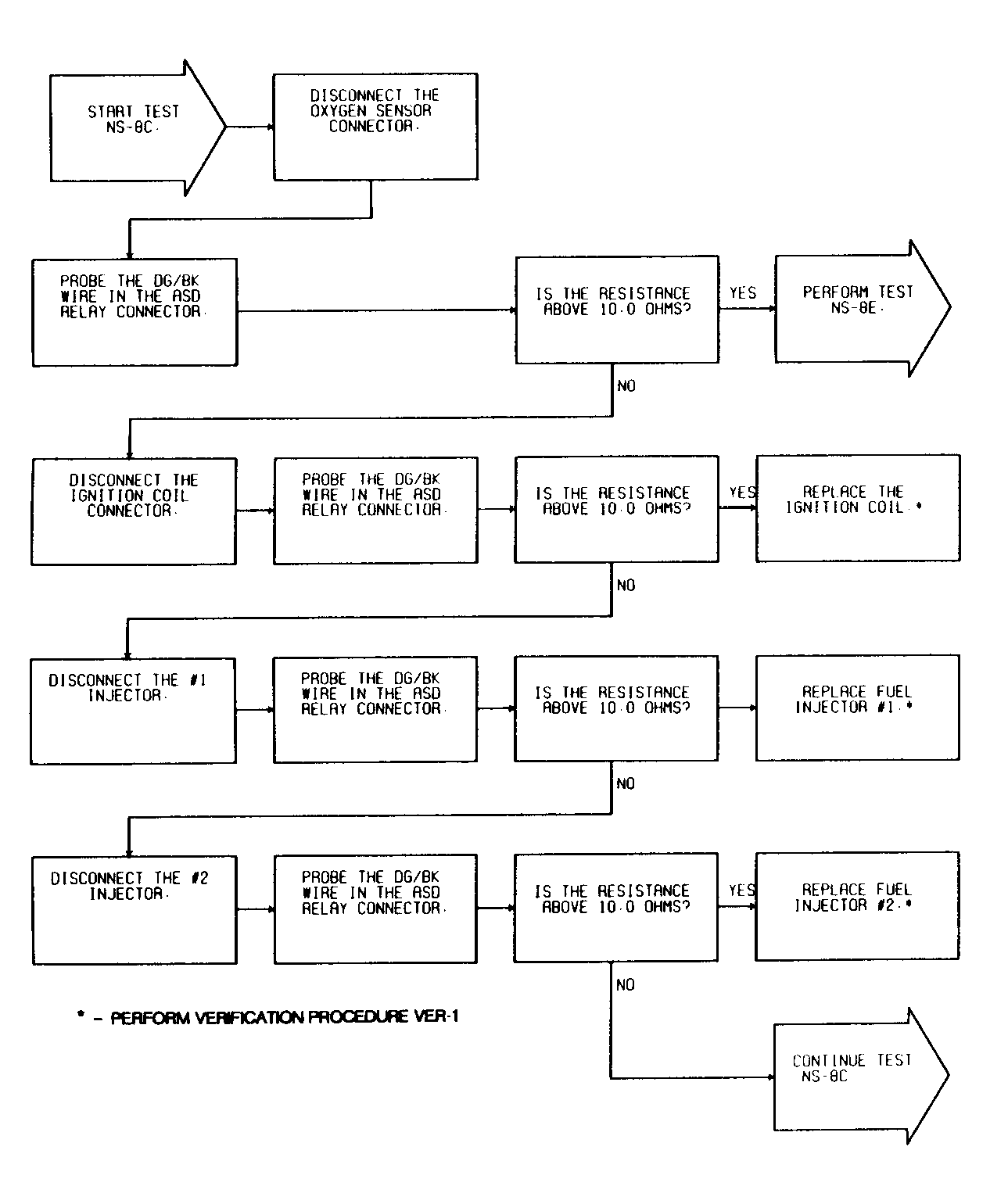

Fig 2: Test NS-8C (1 of 3) No Battery Power At Engine Controller

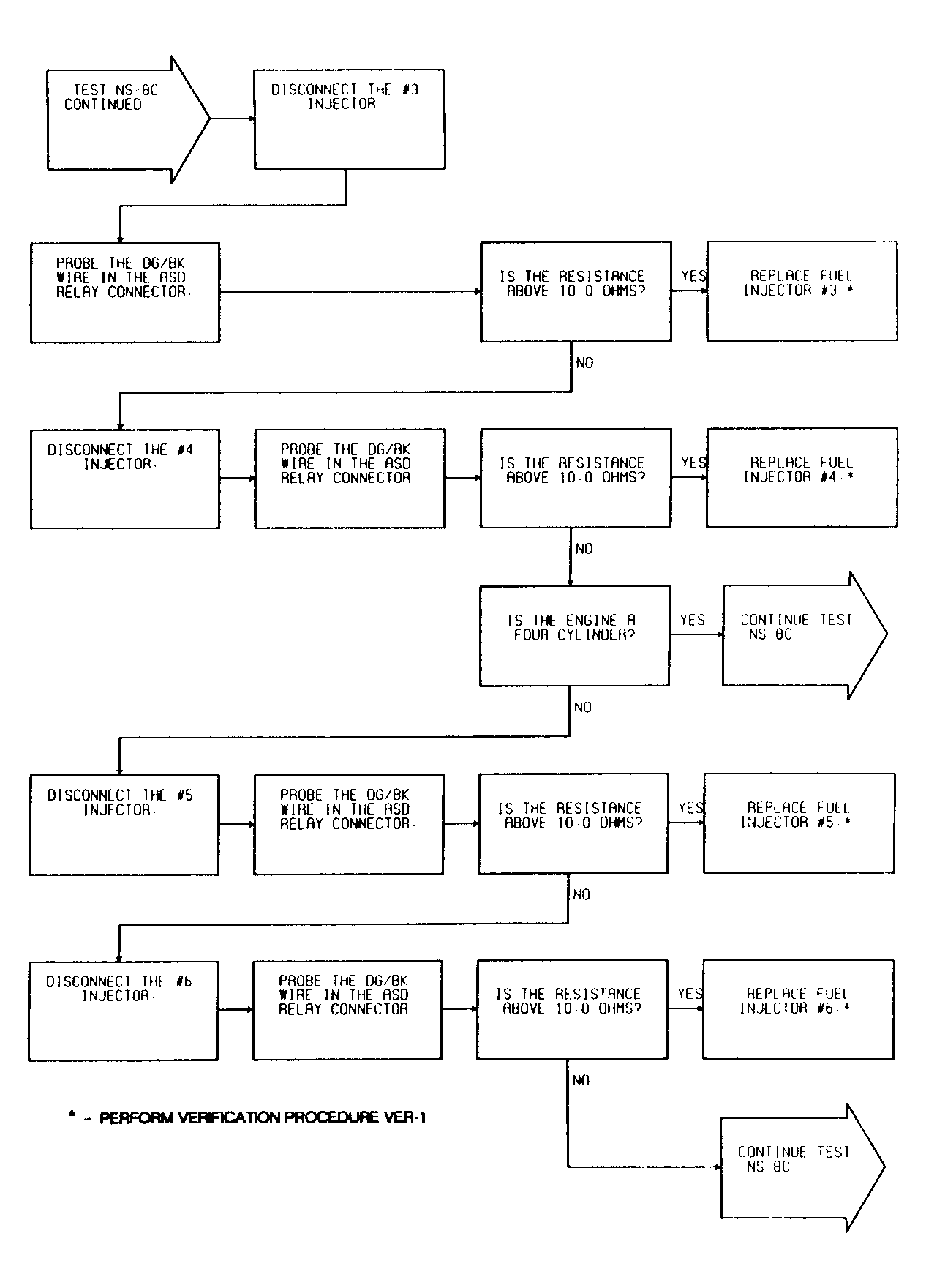

Fig 3: Test NS-8C (2 of 3) No Battery Power At Engine Controller

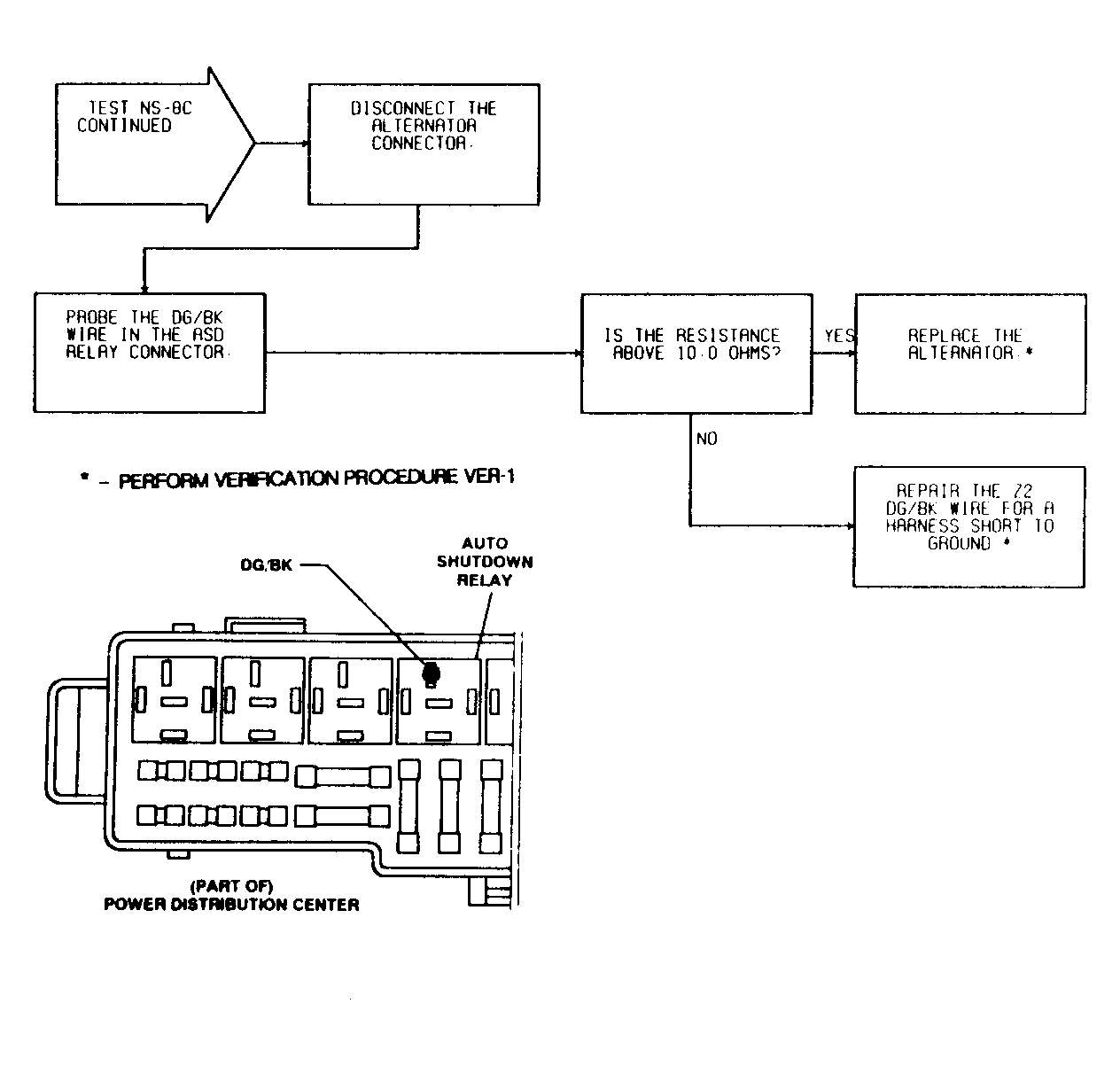

Fig 4: Test NS-8C (3 of 3) No Battery Power At Engine Controller
