NS-9A: Repairing No Reference Signal During Cranking Fault

Fig 1: Test NS-9A Schematic, No Reference Signal During Cranking

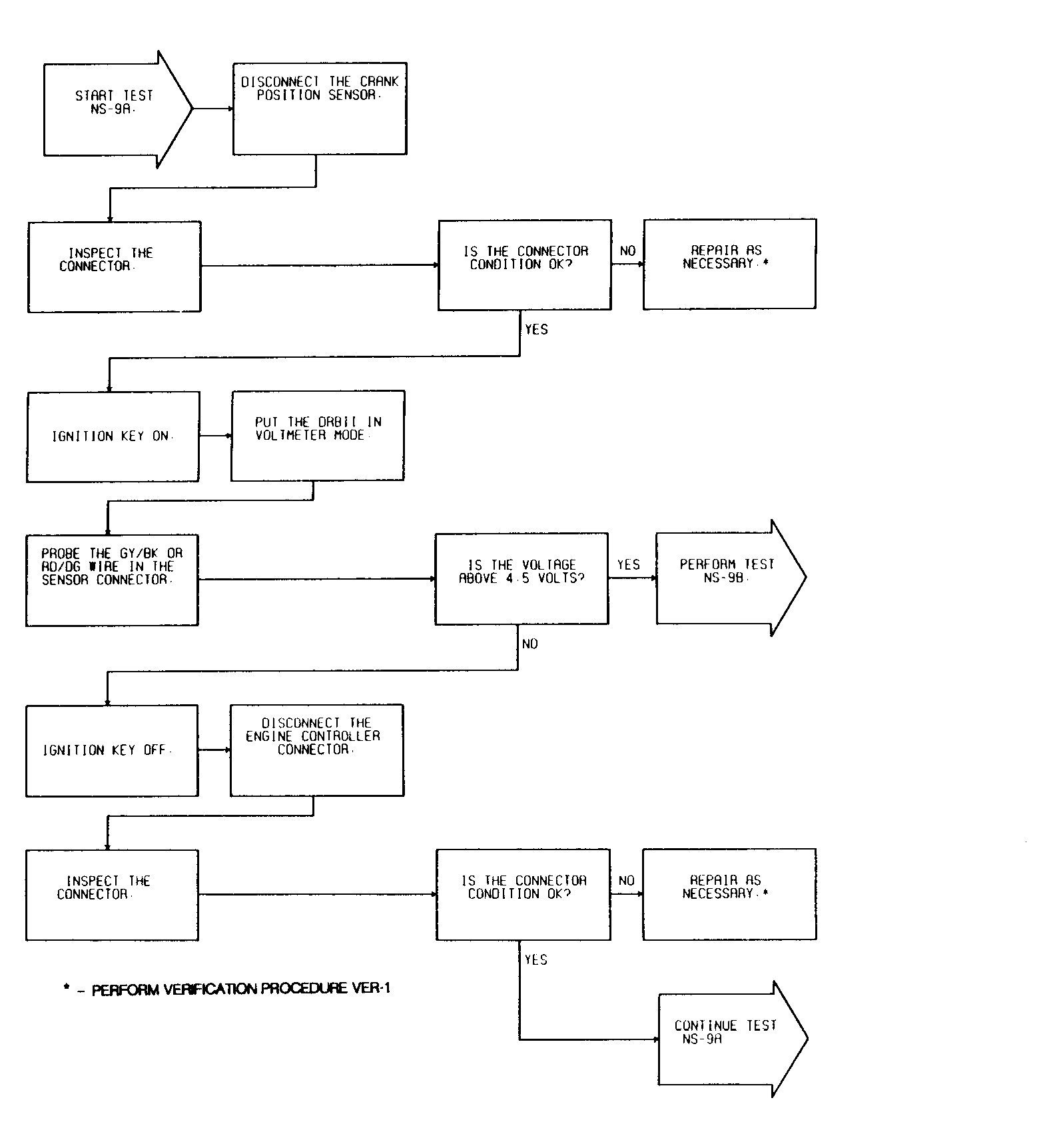

Fig 2: Test NS-9A (1 of 2) No Reference Signal During Cranking

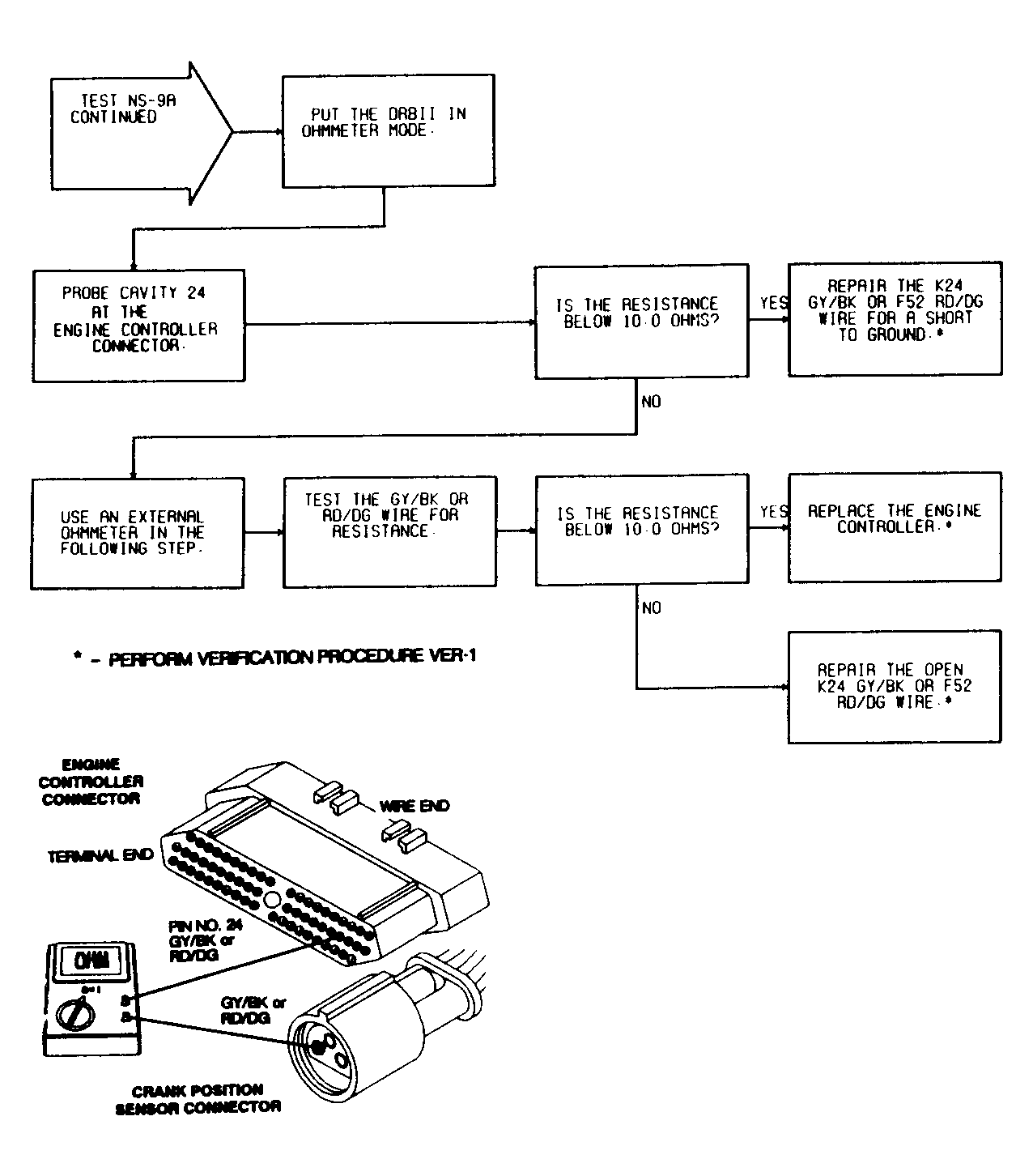

Fig 3: Test NS-9A (2 of 2) No Reference Signal During Cranking
