Vehicles Tested Mode

  1. Vehicles tested mode is used to show what vehicles are covered by DRB-II cartridge. To access vehicles tested mode, ensure ignition is off.

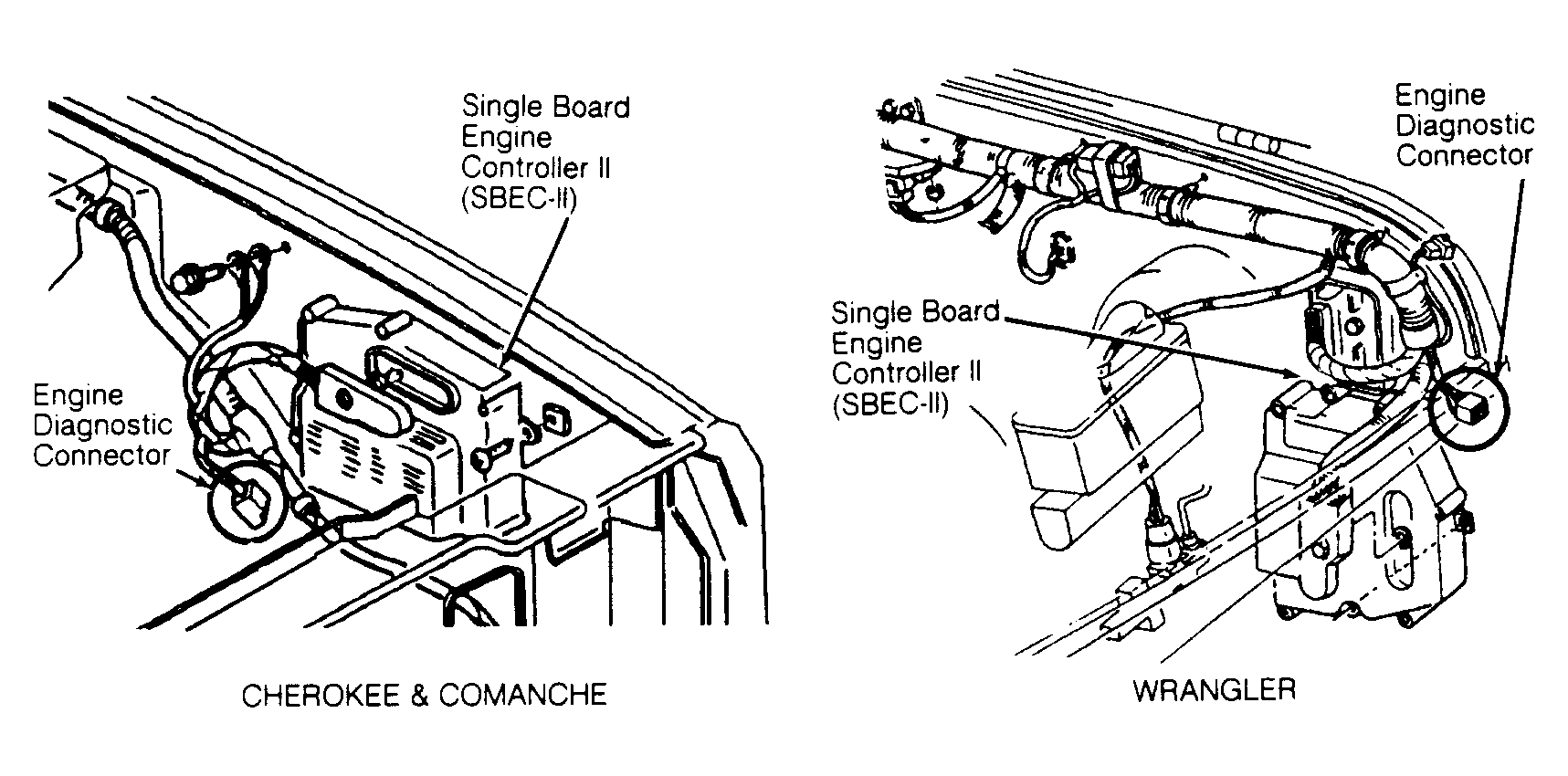

  2. Connect DRB-II to engine diagnostic connector. Connector is located on left side of engine compartment, near SBEC-II. See Figure . Turn ignition switch to RUN position.
  3. The copyright information and diagnostic program version will appear on screen for a few seconds. After a few seconds DRB-II menu will appear. At DRB-II menu, press "1" (VEHICLES TESTED) key. Press ENTER key. DRB-II will display vehicles covered by cartridge. Screen will display for 5 seconds and return to DRB-II menu.
