Dr-16A: Repairing Injector #1 Control Circuit

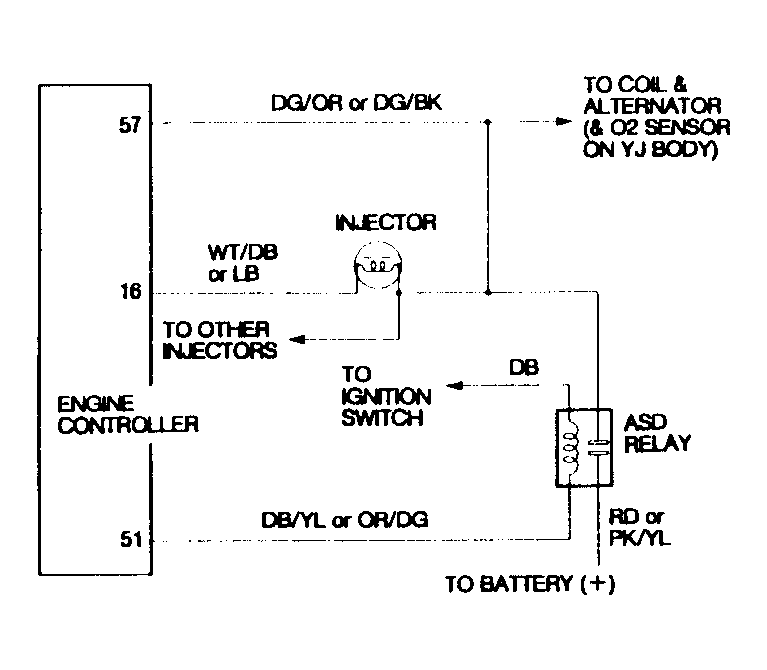

Fig 1: Test DR-16A Schematic, Injector #1 Control Circuit
G91H13950

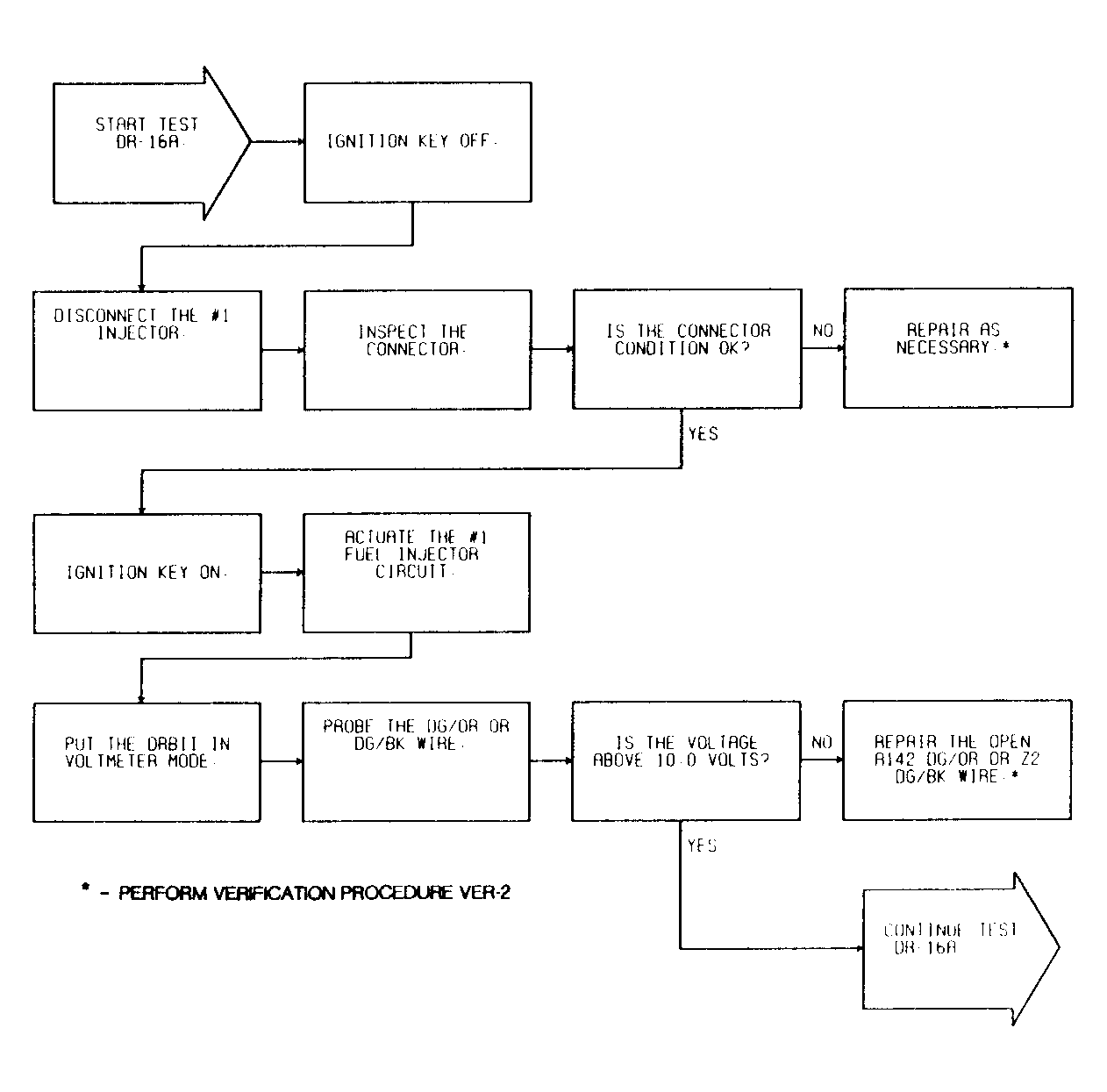

Fig 2: Test DR-16A (1 of 3) Injector #1 Control Circuit
G91G13884

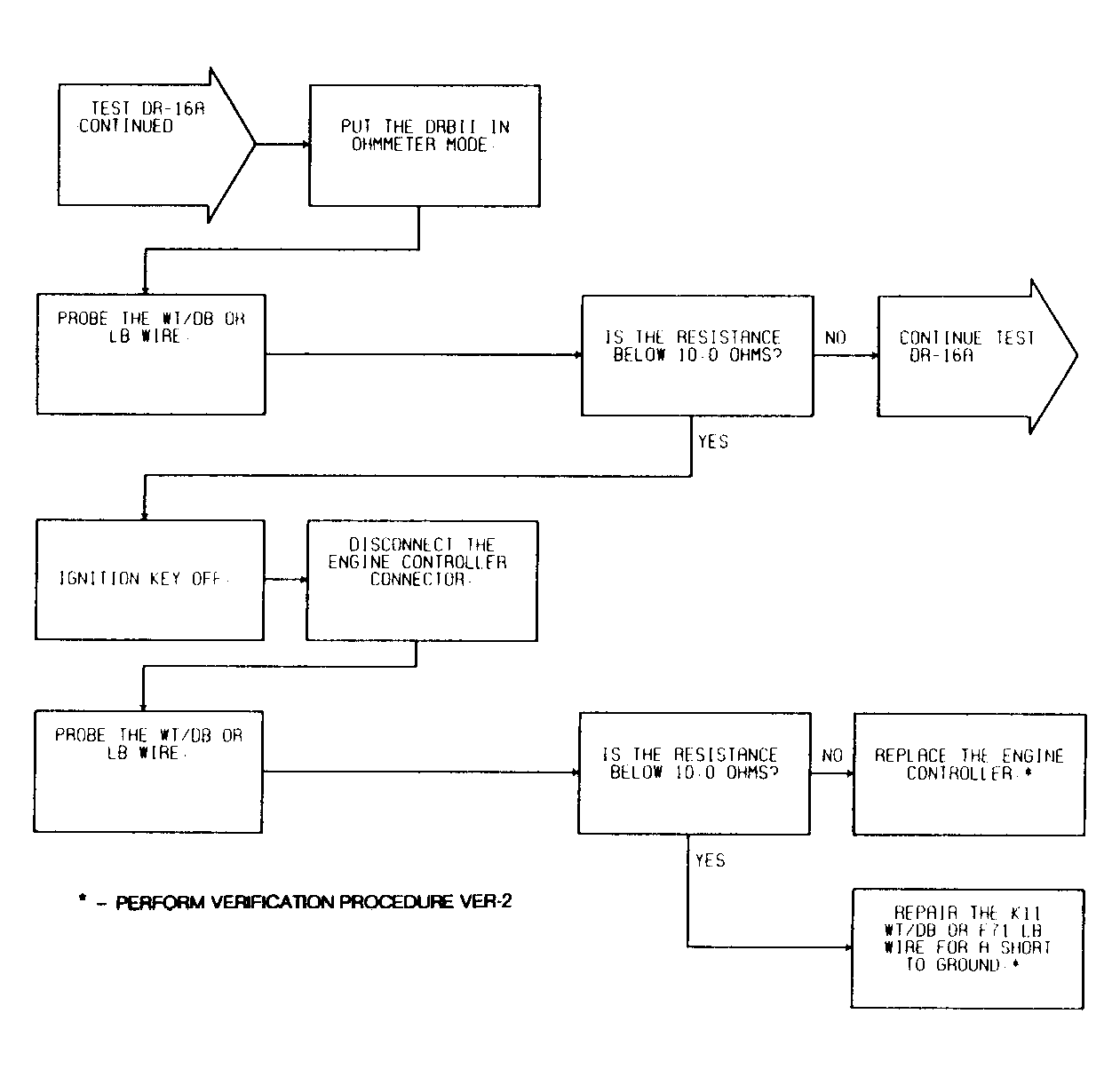

Fig 3: Test DR-16A (2 of 3) Injector #1 Control Circuit
G91H13885

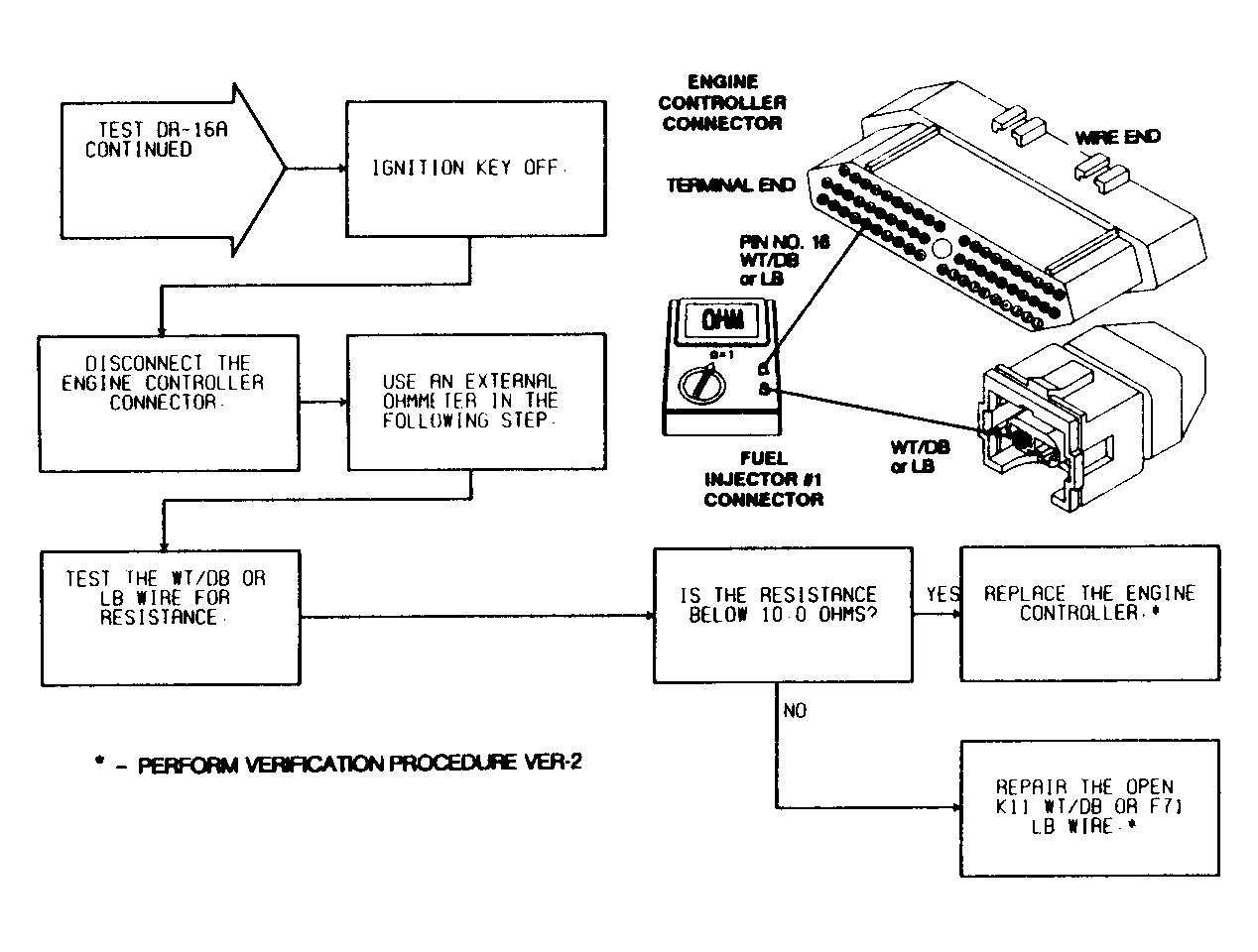

Fig 4: Test DR-16A (3 of 3) Injector #1 Control Circuit
G91I13886
