NS-10A: Repairing Auto Shutdown Relay Control Circuit Fault

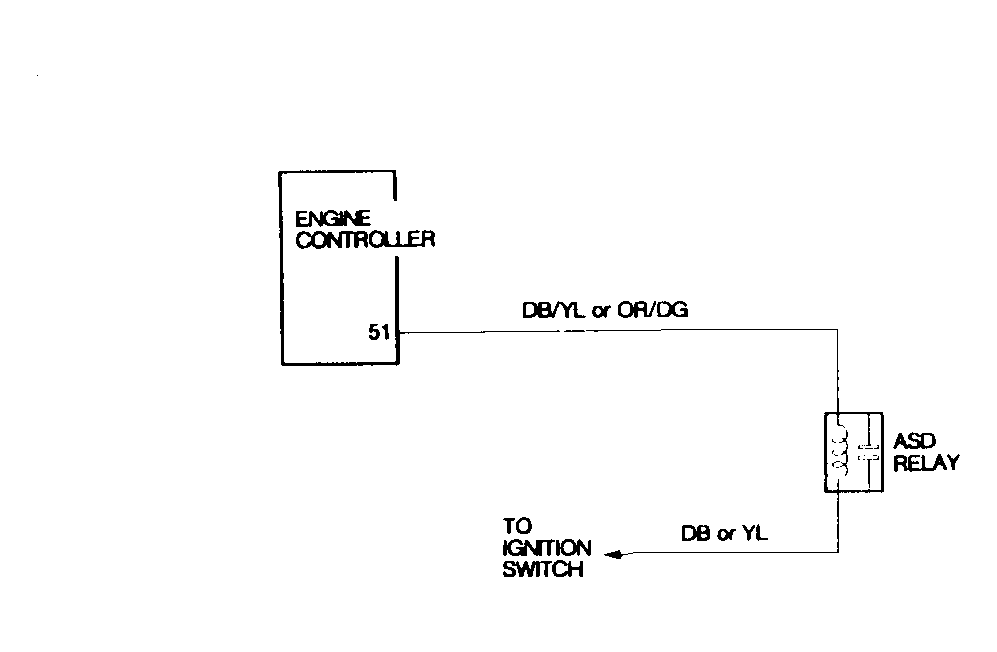

Fig 1: Test NS-10A Schematic, Auto Shutdown Relay Control Circuit

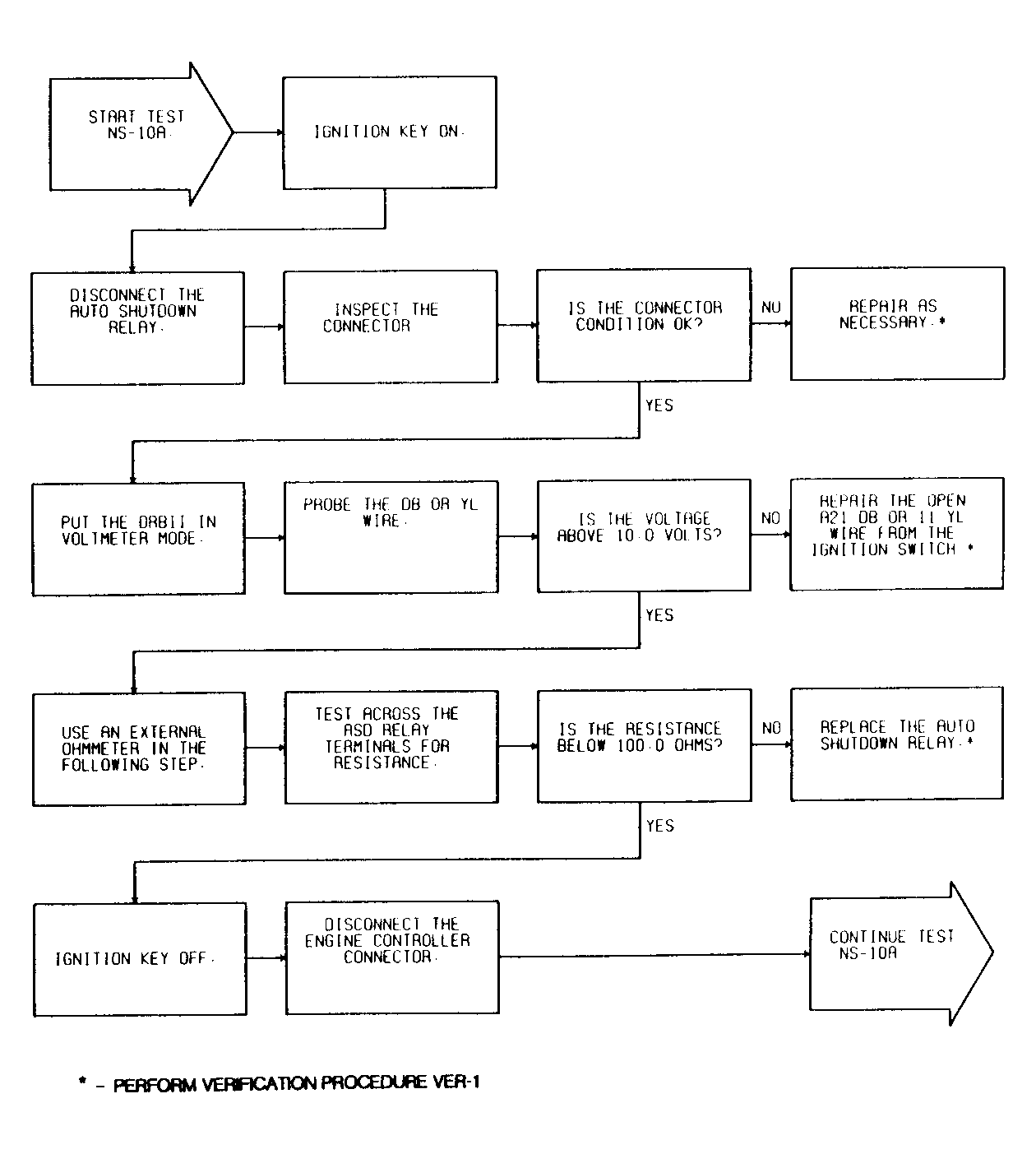

Fig 2: Test NS-10A (1 of 2) Auto Shutdown Relay Control Circuit

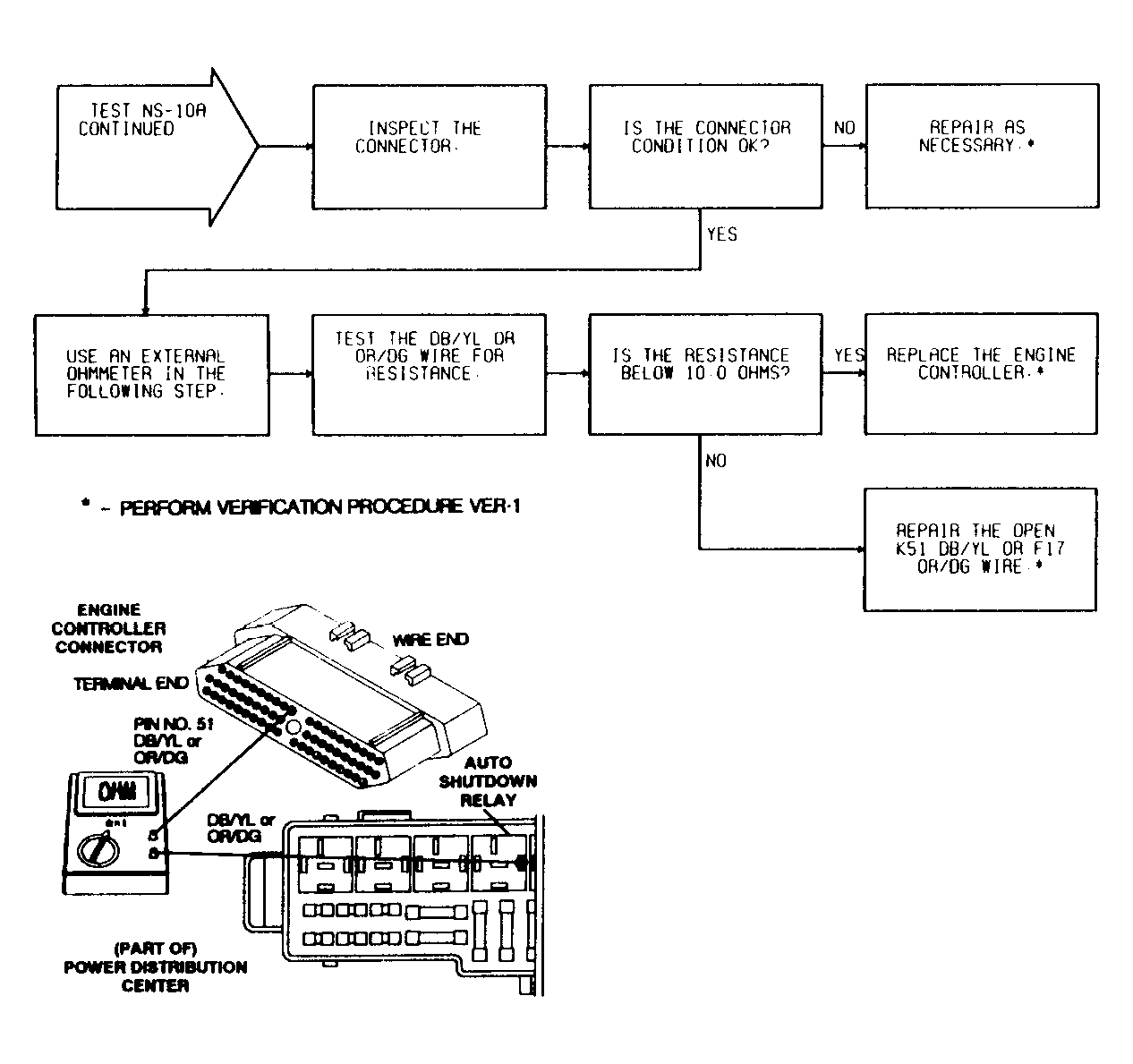

Fig 3: Test NS-10A (2 of 2) Auto Shutdown Relay Control Circuit
