Component Locations
COMPONENT LOCATIONS
Component
Location
Fuse Block
Under Left Side Of Dash
Power Distribution Center
On Right Fender Apron
Power Window Fuse (No. 6)
In Fuse Block
Power Window Motor
Behind Trim Panel, In Center Of Respective Door

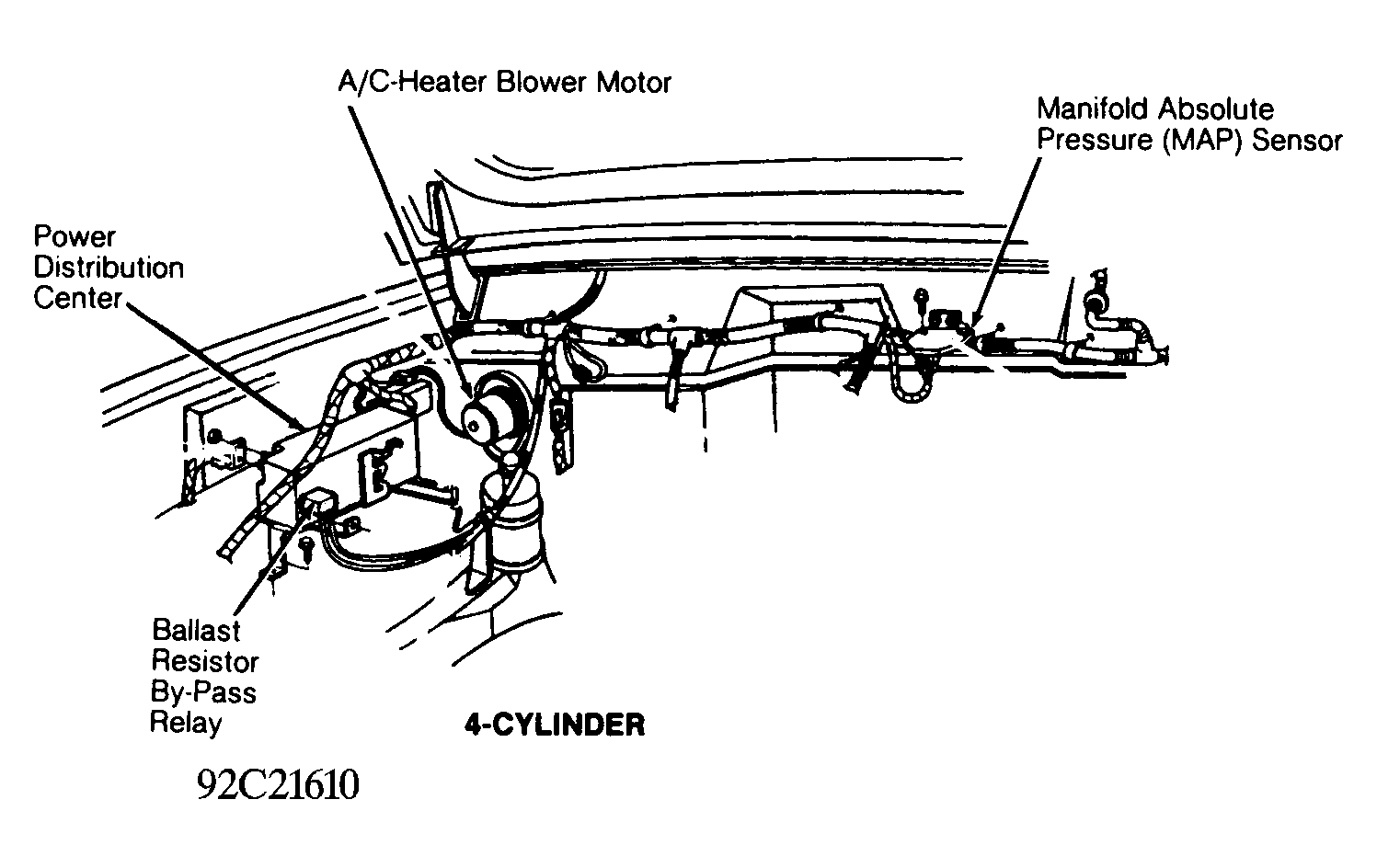

Fig 1: Locating Power Distribution Center (4-Cyl.)

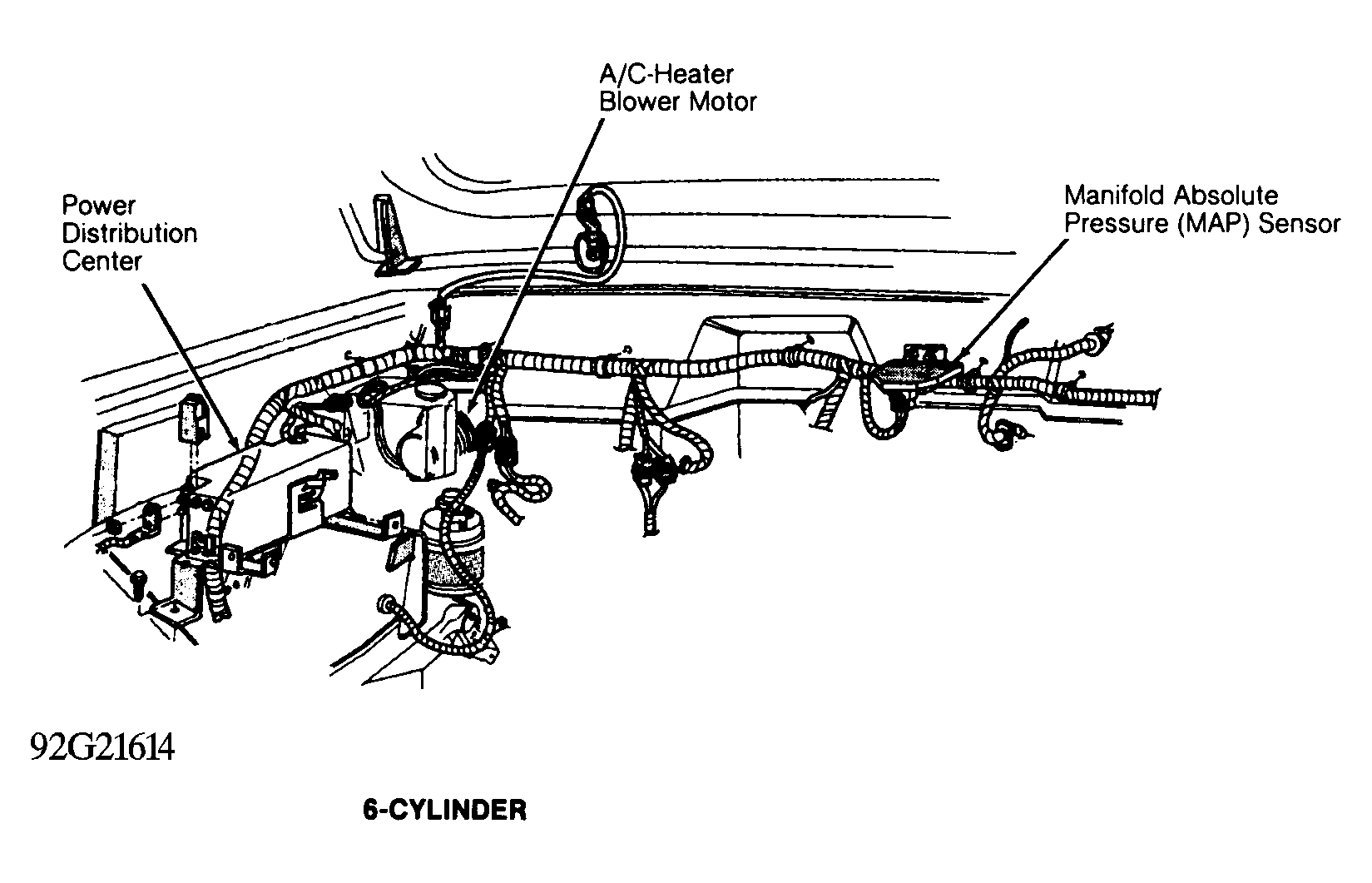

Fig 2: Locating Power Distribution Center (6-Cyl.)
