Wiring Diagrams

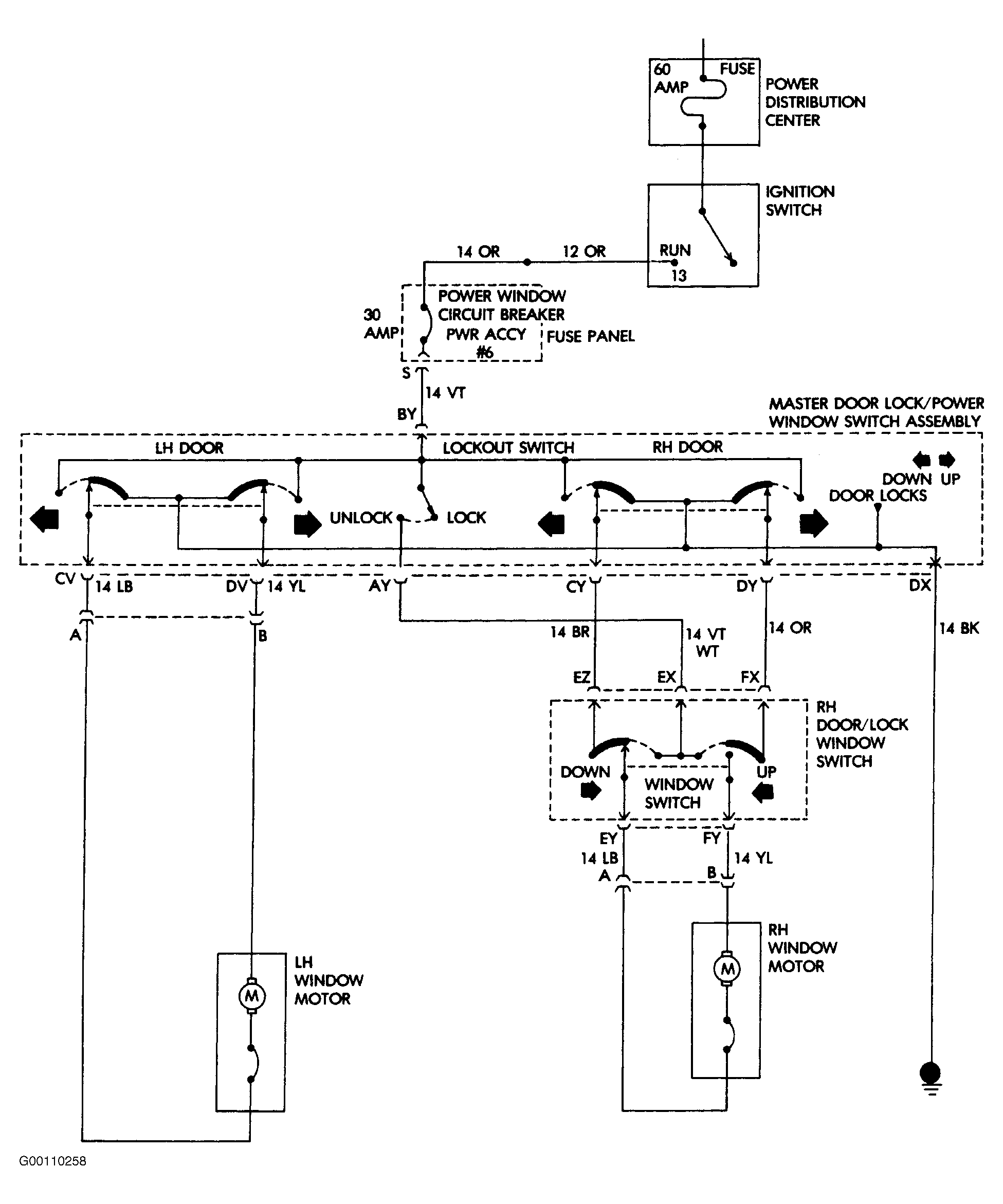

Fig 1: Power Windows Wiring Diagram - Cherokee (2-Door)
G00110258Courtesy of CHRYSLER CORP.

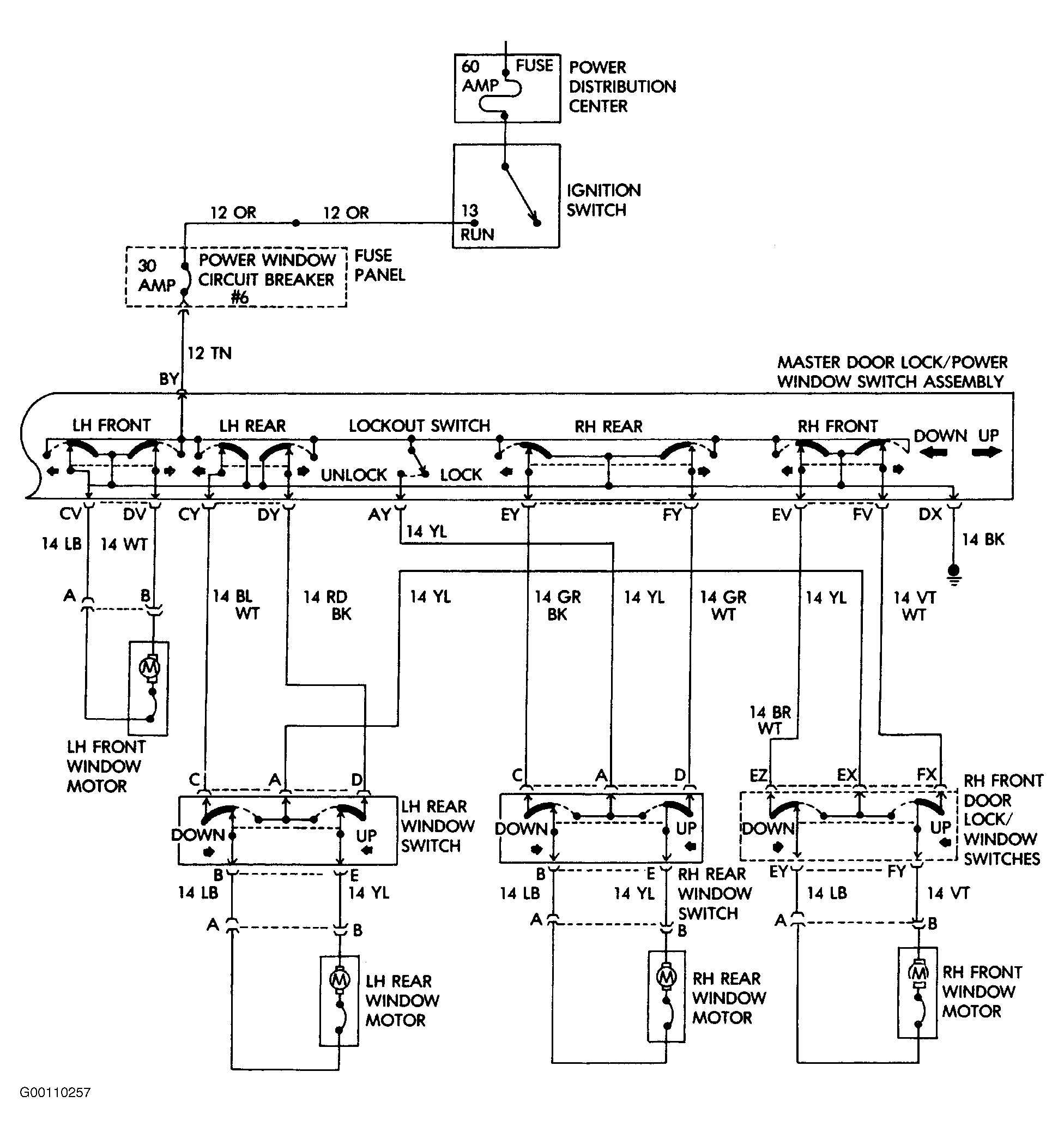

Fig 2: Power Windows Wiring Diagram - Cherokee (4-Door)
G00110257Courtesy of CHRYSLER CORP.
