Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Circuit Breakers | ||
| Trailer Tow | Taped to harness, left rear quarter panel. | |
| Windshield Wipers | In fuse block, under left side of dash. See Figure . | |
| Fuse Block | Under left side of dash. See Figure . | |

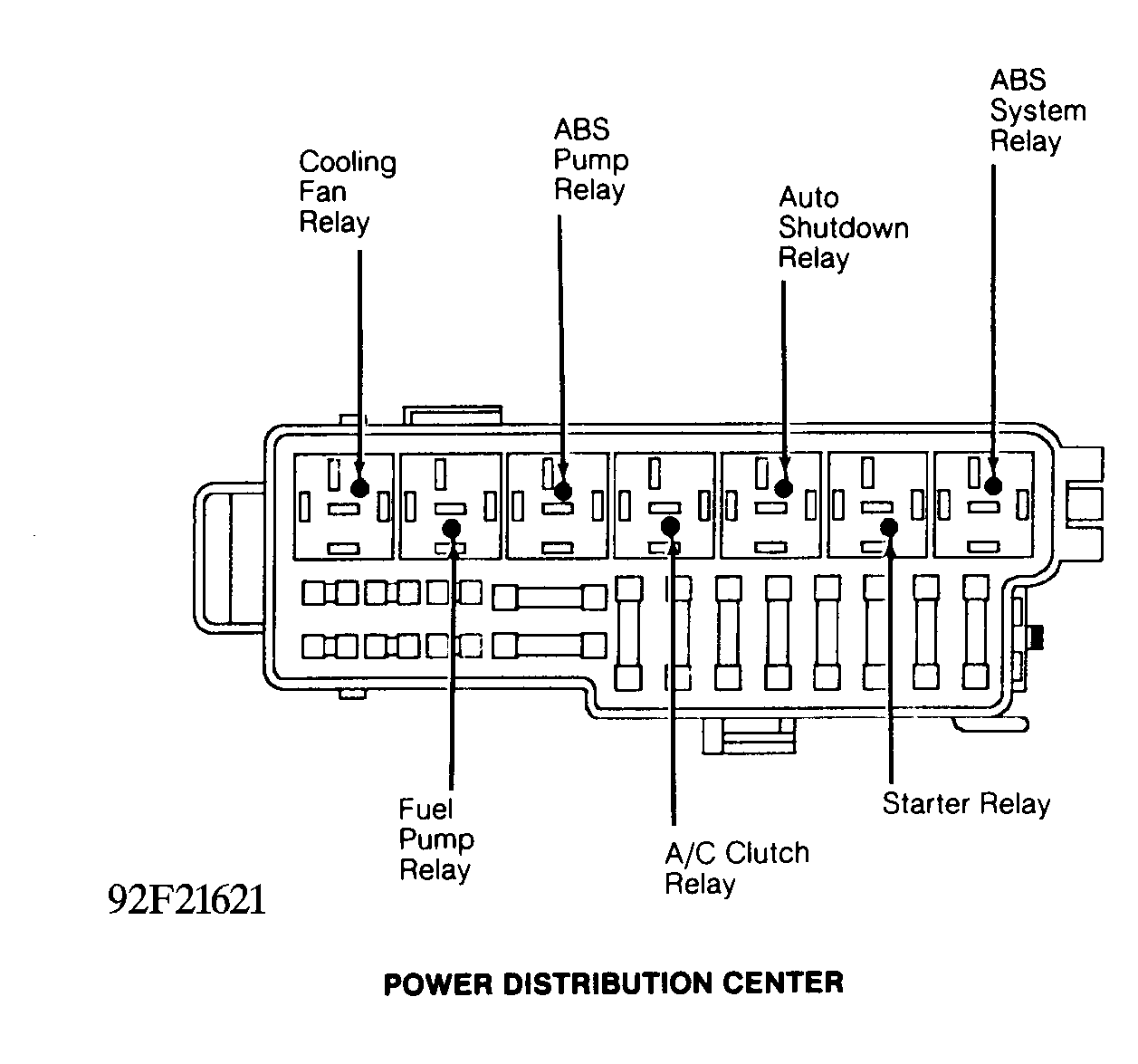

| Power Distribution Center | ||

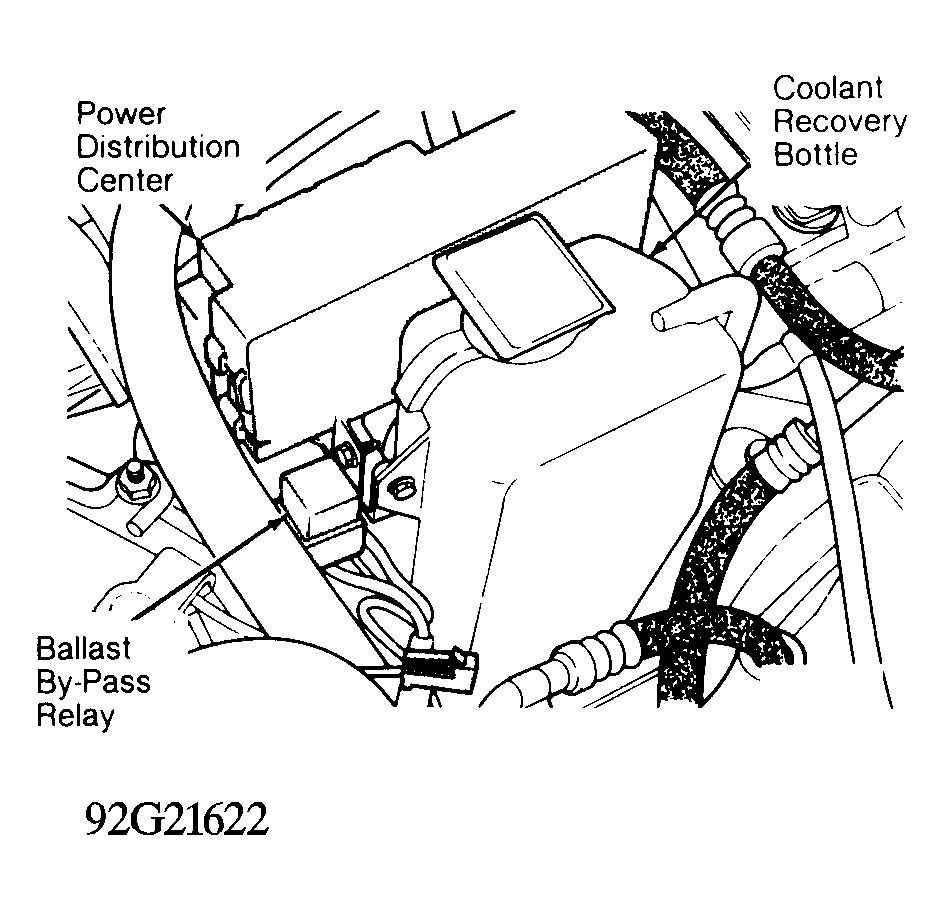

| 4-Cyl. | Right side of engine bay, on right fender apron. See Figure & Figure . | |
| 6-Cyl. | Right side of engine bay, on right fender apron.See Figure & Figure . | |
| Power Distribution Center Relay | On right fender apron. See Figure . | |
