Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Module | Under left rear seat. | |

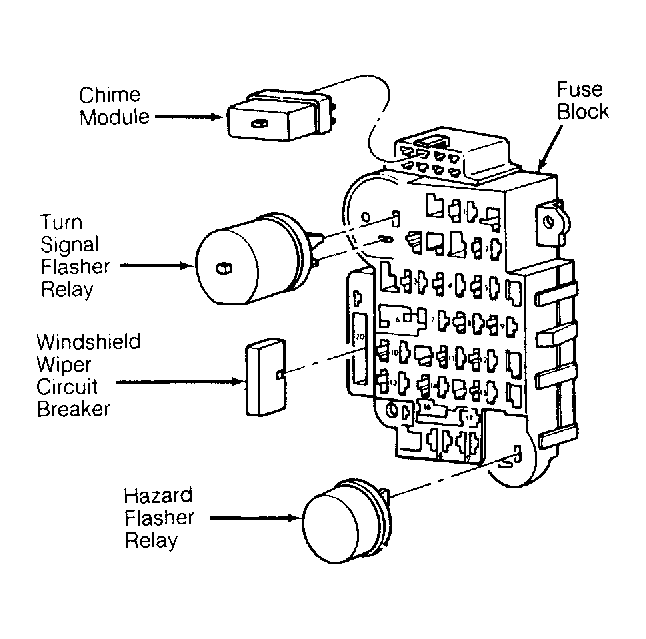

| Chime Module | On top of fuse block. See Figure . | |
| ECAT Module | Behind right side of dash. | |
| Headlight Delay Module | Under dash, next to headlight switch. See Figure . | |
| Intermittent Wiper Module | Under left side of dash, left of steering column. | |
| Keyless Entry Module | Between sun visors. | |
| Security System Module | On bracket, left side of A/C-heater housing. | |
| Single-Board Engine Controller (SBEC) | ||

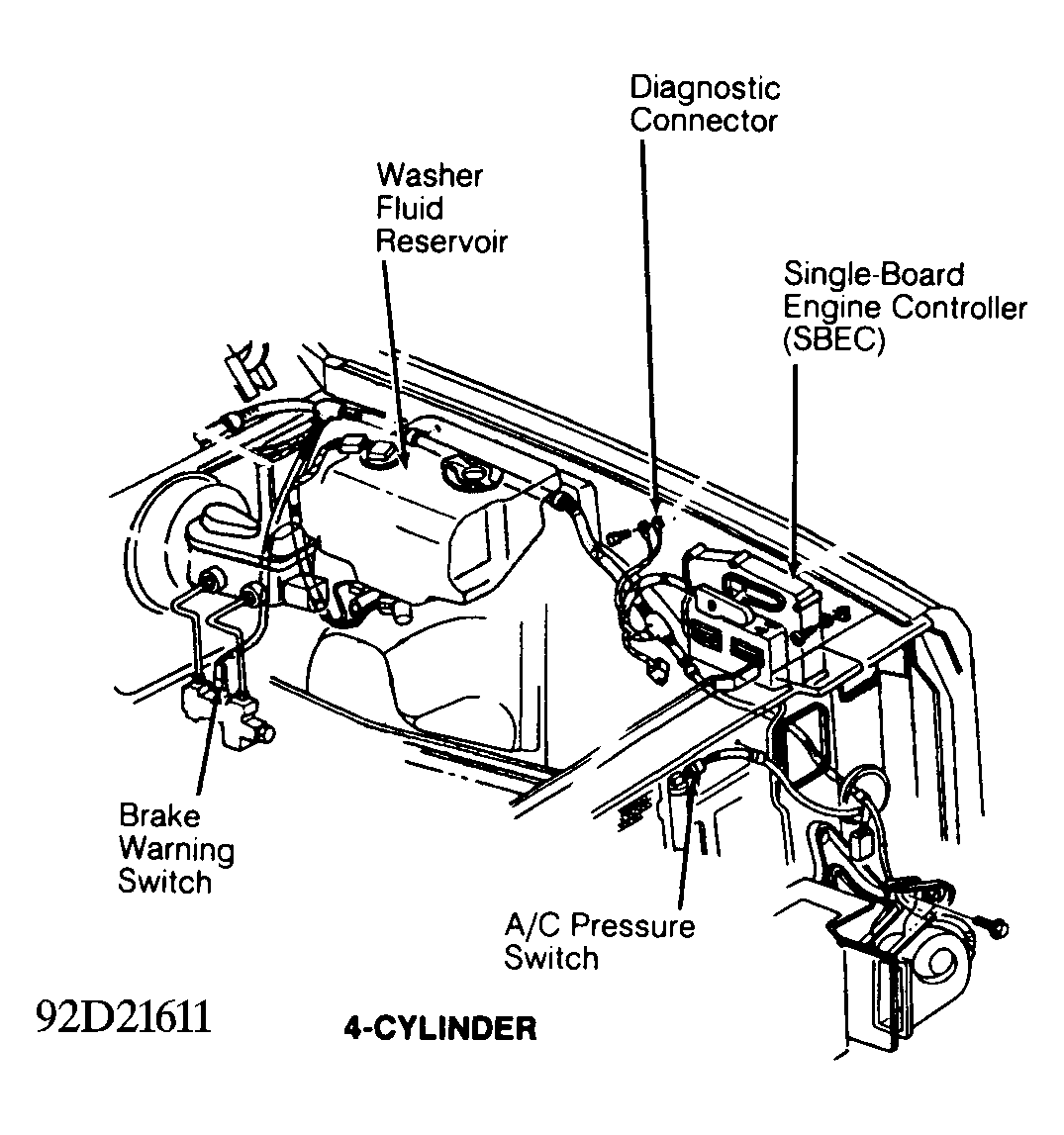

| 4-Cyl. | Left side of engine bay, on left front fender apron, behind air cleaner. See Figure . | |

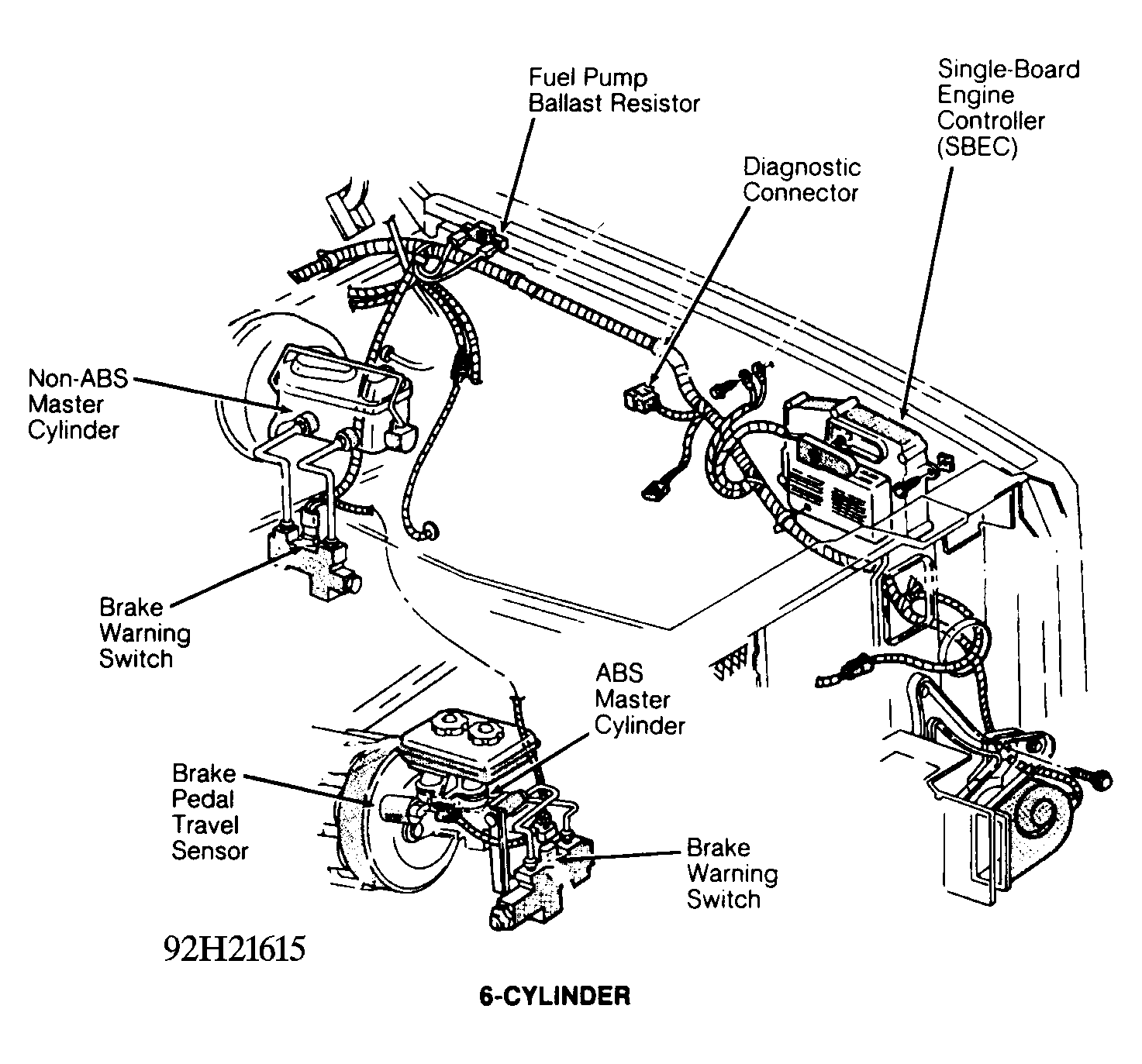

| 6-Cyl. | Left side of engine bay, on left front fender apron, behind air cleaner. See Figure . | |
