Jeep
>>
1992
>>
Cherokee Limited
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

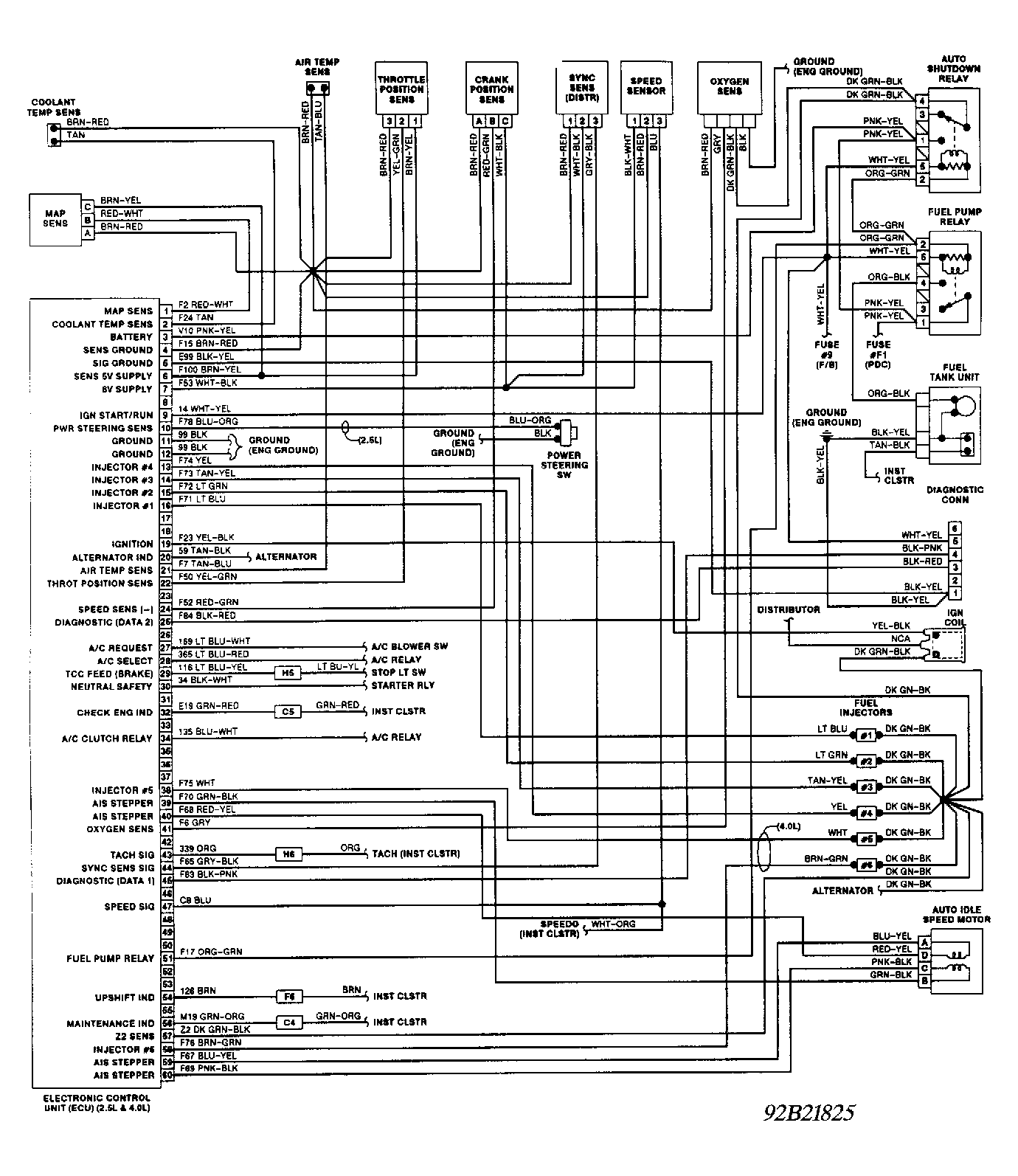

Fig 1: Wiring Diagram (2.5L & 4.0L - Cherokee & Comanche)

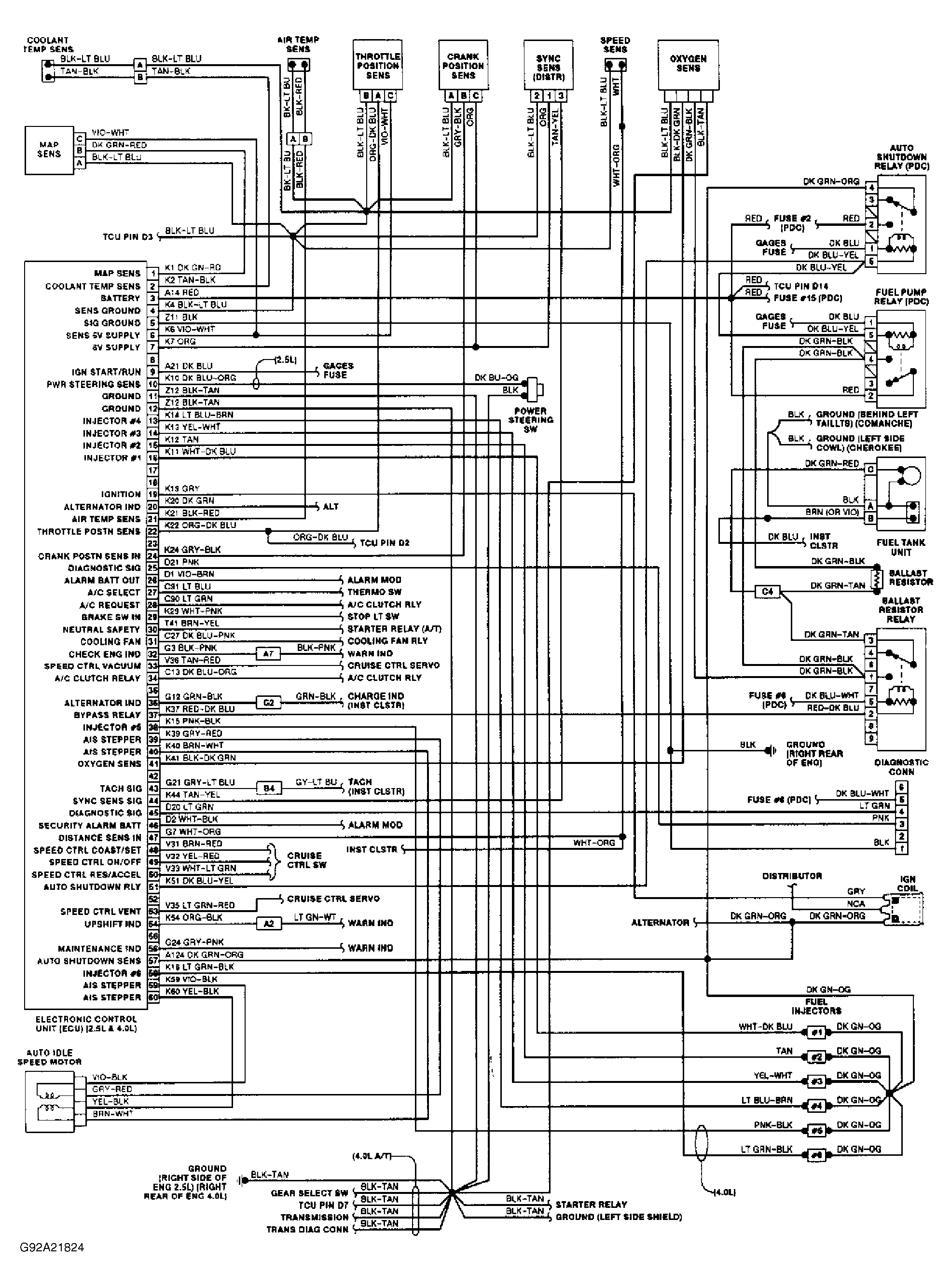

Fig 2: Wiring Diagram (2.5L & 4.0L - Wrangler)
