Toe-In Adjustment: Wrangler

  1. Center front wheels straight ahead and lock steering wheel in centered position. Measure toe and compare to specifications. See ALIGNMENT SPECIFICATIONS  .
  2. Loosen tie rod adjustment sleeve clamp bolts. See Fig 1 . Rotate sleeve to adjust toe to specification. See ALIGNMENT SPECIFICATIONS  . After adjustment, position clamp bolts so threaded ends face rearward and are angled upward. Tighten sleeve clamp to specification. See TORQUE SPECIFICATIONS  .
  3. If necessary, steering wheel can be centered by adjusting the drag link adjustment sleeve. When adjustment is complete, position sleeve as described earlier and tighten to specifications. See TORQUE SPECIFICATIONS  .

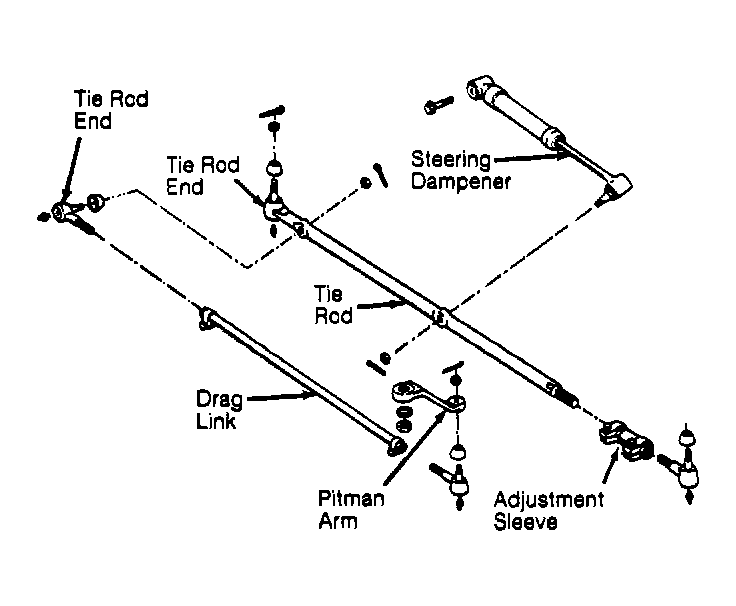

Fig 1: Exploded View Of Steering Linkage (Wrangler)
G90E17081Courtesy of CHRYSLER MOTORS.
