Body Control System Connectors
NOTE:
For terminal identification of body control system connectors, see Fig 1
-17. Connector terminal numbers are molded into connectors. If connector terminal identification differs from what is shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see WIRING DIAGRAMS
at the end of this article.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See Figure | |
|---|---|---|
| Body Control Module | ||

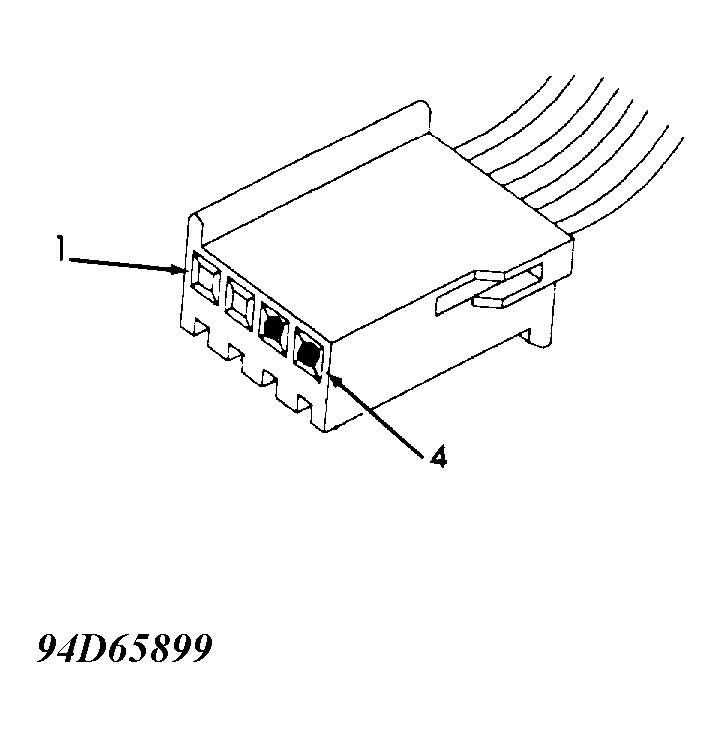

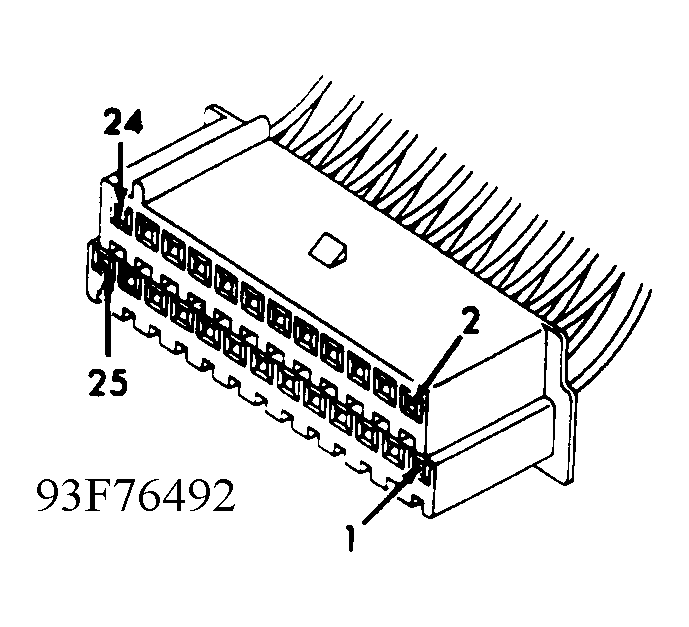

| Blue | Fig 1 | |
| Natural | Fig 2 | |
| CCD BUS Data Link | Fig 3 | |
| Compass/Mini-Trip Module | Fig 4 | |
| Front & Side Door Jamb Switch | Fig 5 | |
| Fuel Pump/Sending Unit | Fig 6 | |
| Instrument Cluster | Fig 7 | |
| Ignition Key-In-Ignition Switch | Fig 8 | |
| Left Pod Switch Assembly | Fig 9 | |
| Left Pod Switch Connectors | ||
| Black | Fig 10 | |
| Blue & Gray | Fig 11 | |
| Liftgate Switch | Fig 12 | |
| Multifunction Switch | Fig 13 | |
| Powertrain Control Module (PCM) | Fig 14 | |

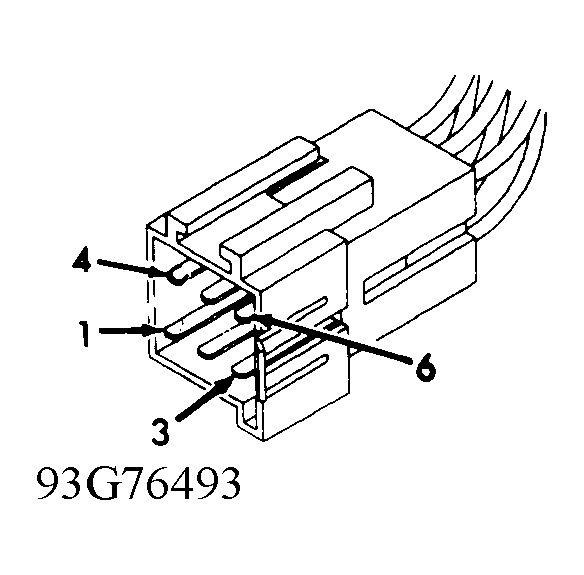

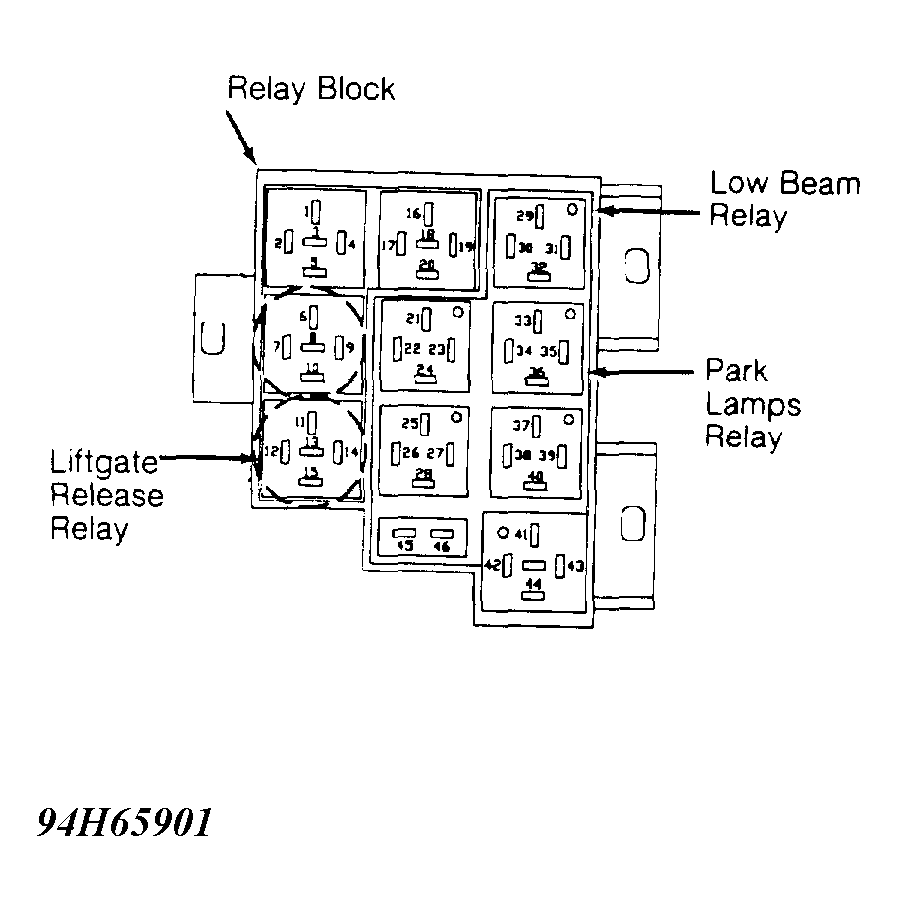

| Relay Block | Fig 15 | |
| Remote Keyless Entry (RKE) | Fig 16 | |
