Body Control System Connectors
NOTE:

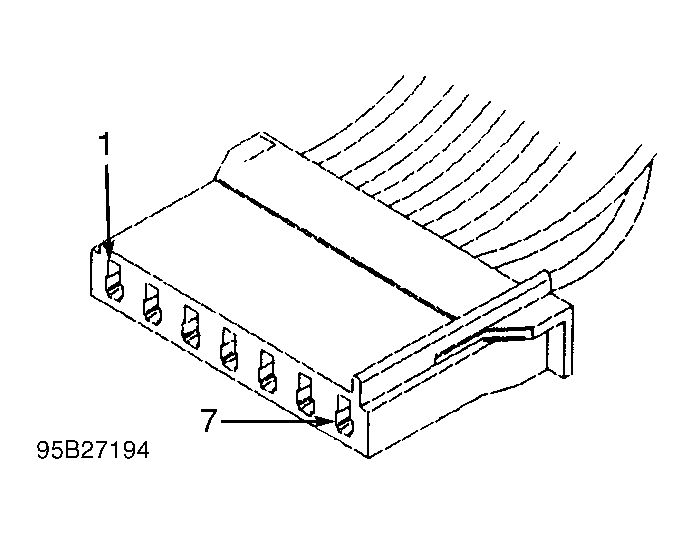

For terminal identification of body control system connectors, see Fig 1-21. Connector terminal numbers are molded into connectors. If connector terminal identification differs from what is shown in figure, use wire colors to ensure correct circuit is being tested. For wiring diagrams, see WIRING DIAGRAMS section at the end of this article.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Illustration | |
|---|---|---|
| Body Control Module | ||

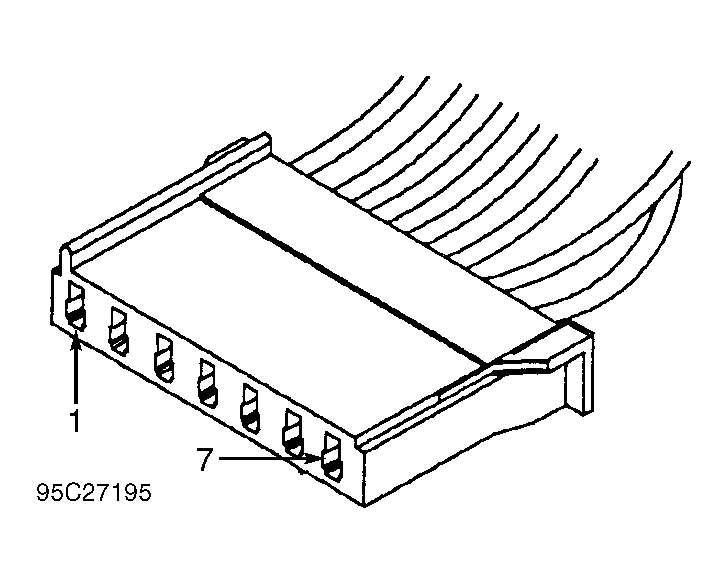

| Blue | See Fig 1 | |

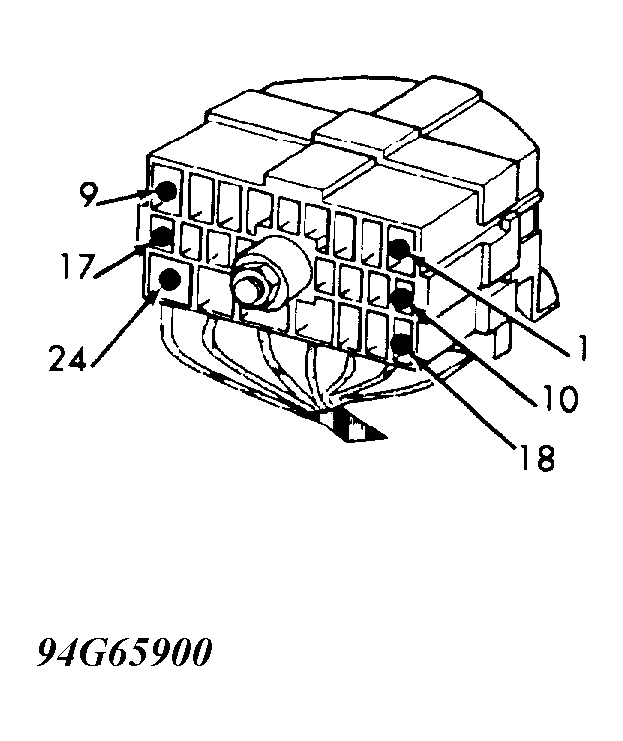

| Natural | See Fig 2 | |

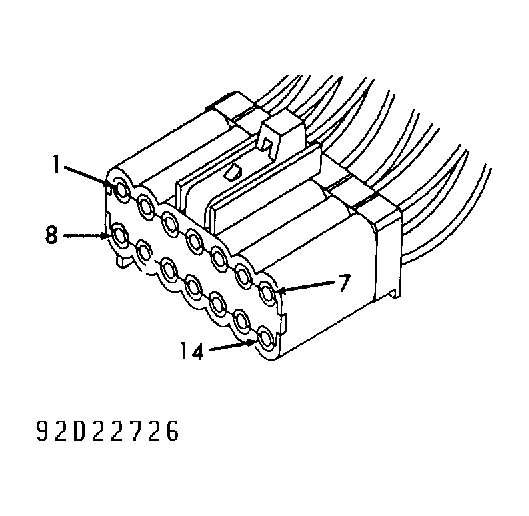

| CCD BUS Data Link | See Fig 3 | |

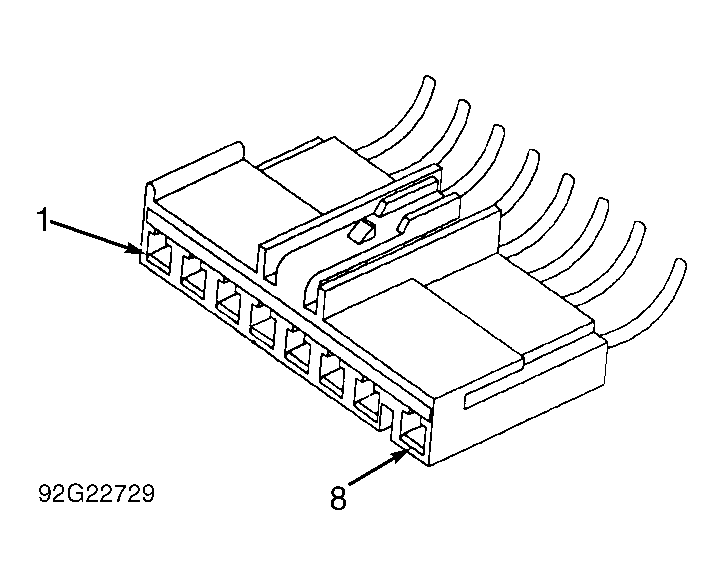

| Compass/Mini-Trip Module | See Fig 4 | |

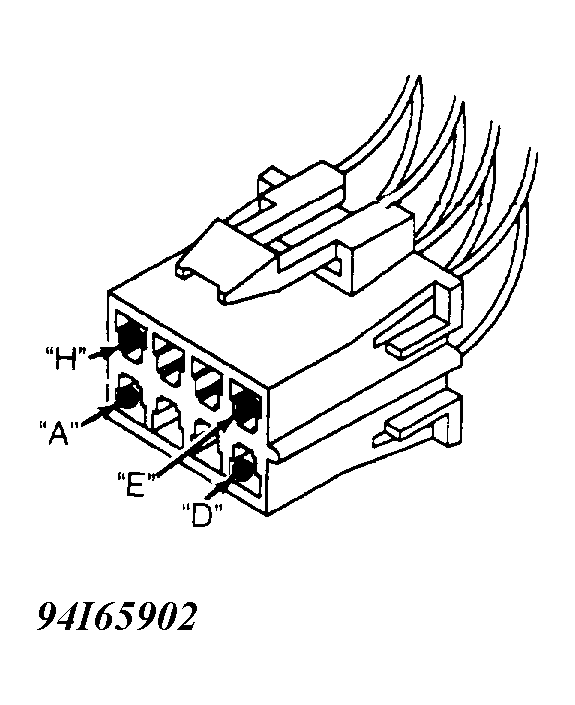

| Front & Side Door Jamb Switch | See Fig 5 | |

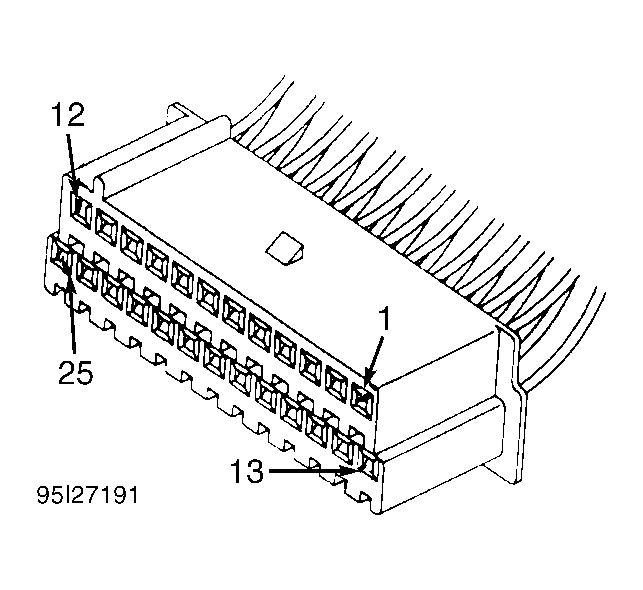

| Fuel Pump/Sending Unit | See Fig 6 | |

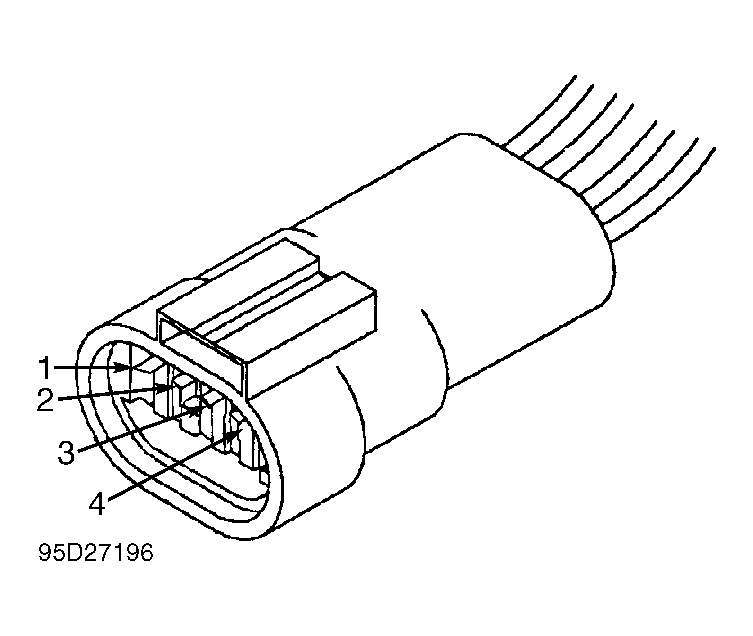

| Instrument Cluster | See Fig 7 | |

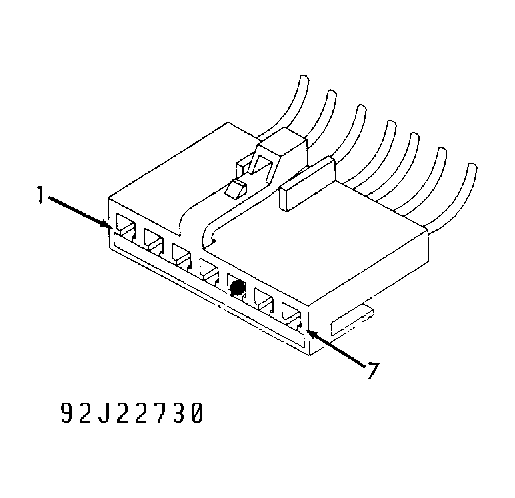

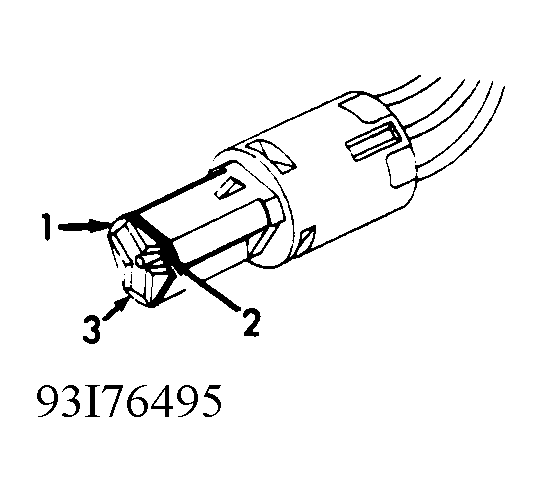

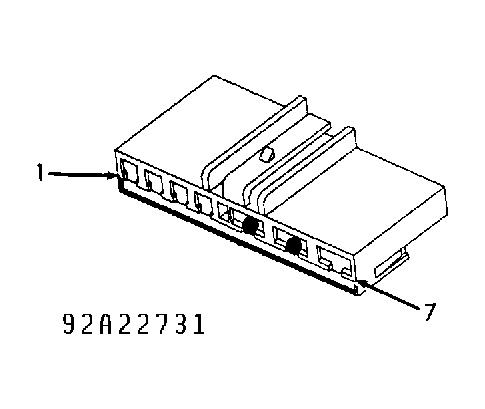

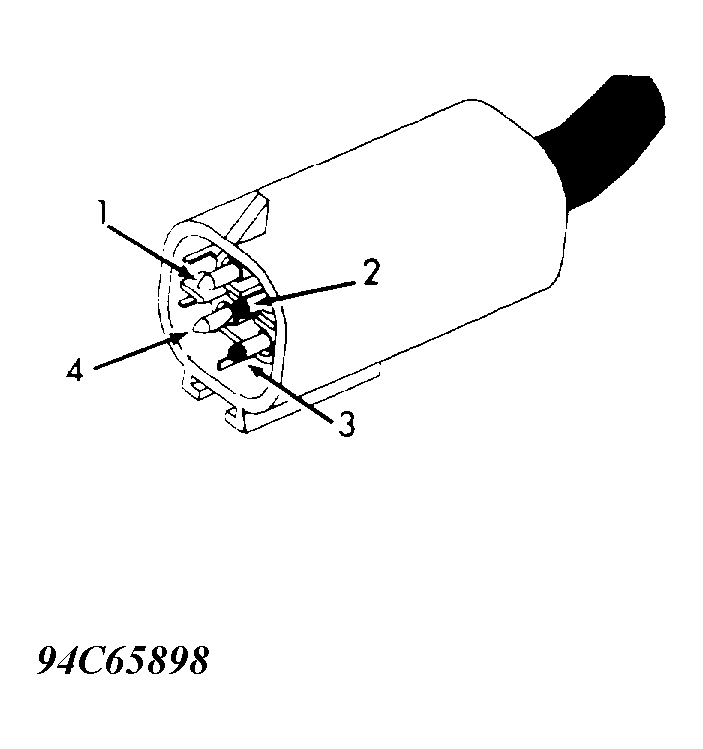

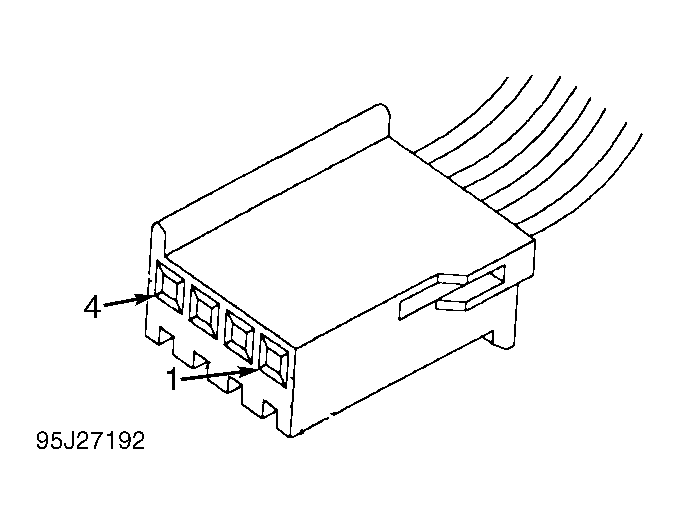

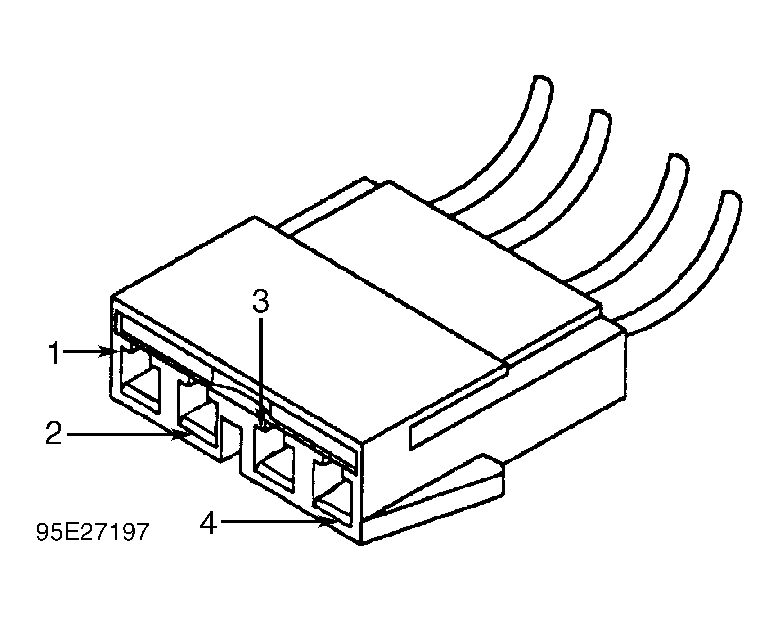

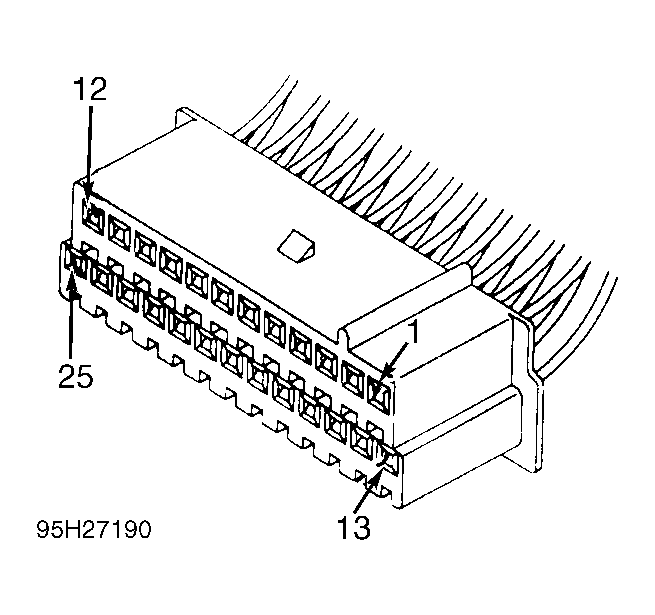

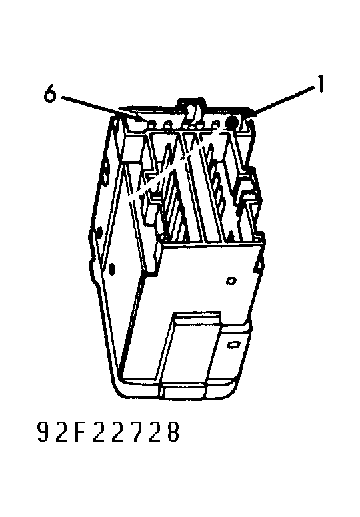

| Ignition Key In Ignition Switch | See Fig 8 | |
| Left Pod Switch Assembly | See Fig 9 | |
| Left Pod Switch Connectors | ||
| Black | See Fig 10 | |
| Blue & Gray | See Fig 11 | |
| Liftgate Switch | See Fig 12 | |
| Multifunction Switch | See Fig 13 | |
| Powertrain Control Module (PCM) | See Fig 14 | |
| Radio Connectors | ||
| Black | See Fig 15 | |
| Gray | See Fig 16 | |

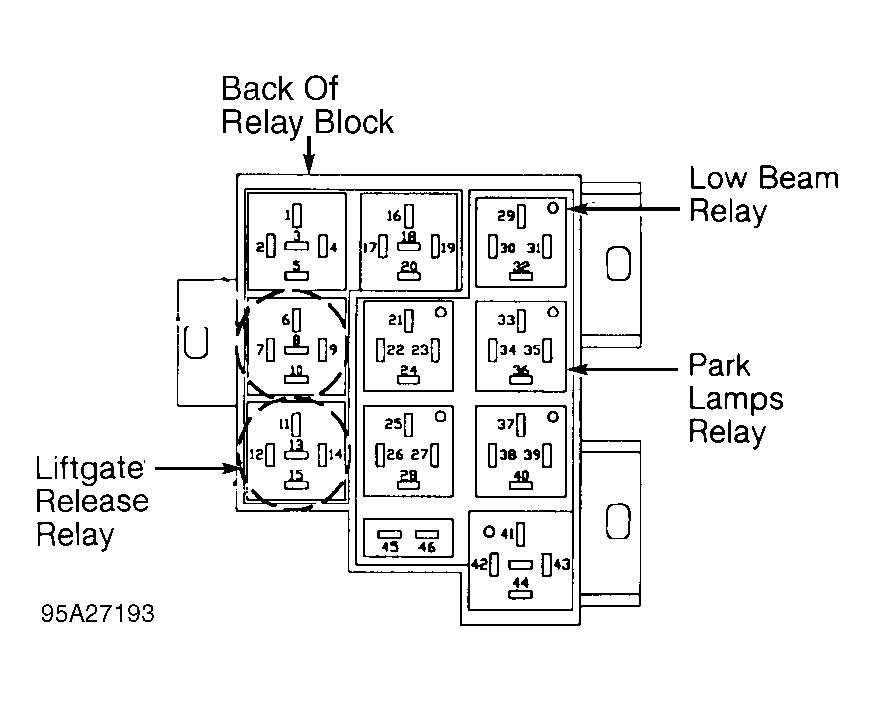

| Relay Block | See Fig 17 | |
| Remote Keyless Entry (RKE) Module | See Fig 18 | |
| Speaker Connectors | ||
| Door | See Fig 19 | |
| Rear | See Fig 20 | |
