Component Locations

NOTE: For additional component locations, refer to illustrations. See Fig 1 -Fig 4 .

COMPONENT LOCATION

Description	Location
Air Bag Control Module (ACM)	Under Center Console
Compass/Mini-Trip Computer (CMTC)	In Headliner
Power Distribution Center	In Engine Compartment, Between Washer Fluid Reservoir & Coolant Reservoir
Powertrain Control Module (PCM)	Front Of Left Inner Fender
Sentry Key Immobilizer Module (SKIM)	On Steering Column, Surrounding Ignition Lock Cylinder
Transmission Control Module (TCM)	Next To Accelerator Pedal

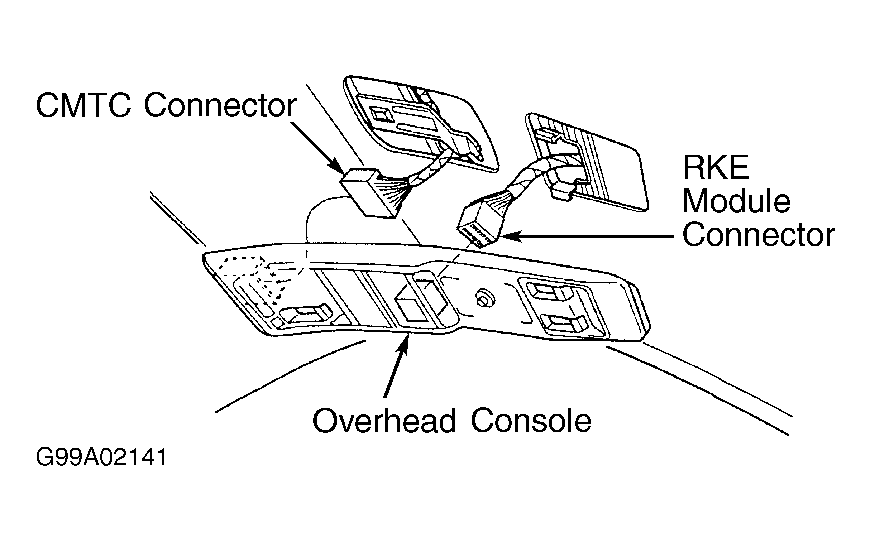

Fig 1: Locating Compass/Mini-Trip Computer (CMTC) Connectors

Courtesy of CHRYSLER CORP.

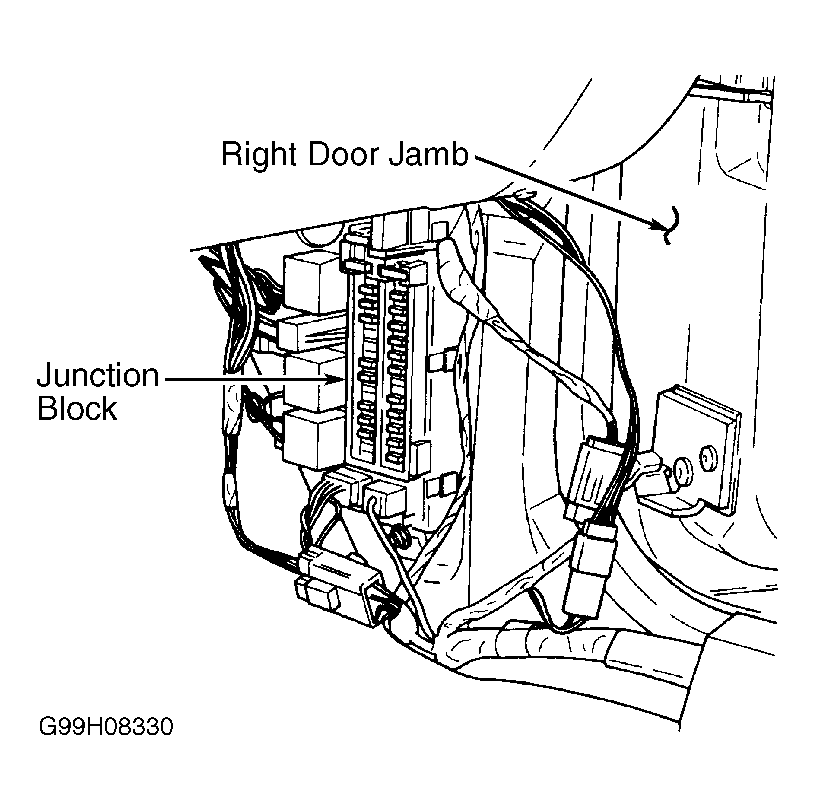

Fig 2: Locating Junction Block

Courtesy of CHRYSLER CORP.

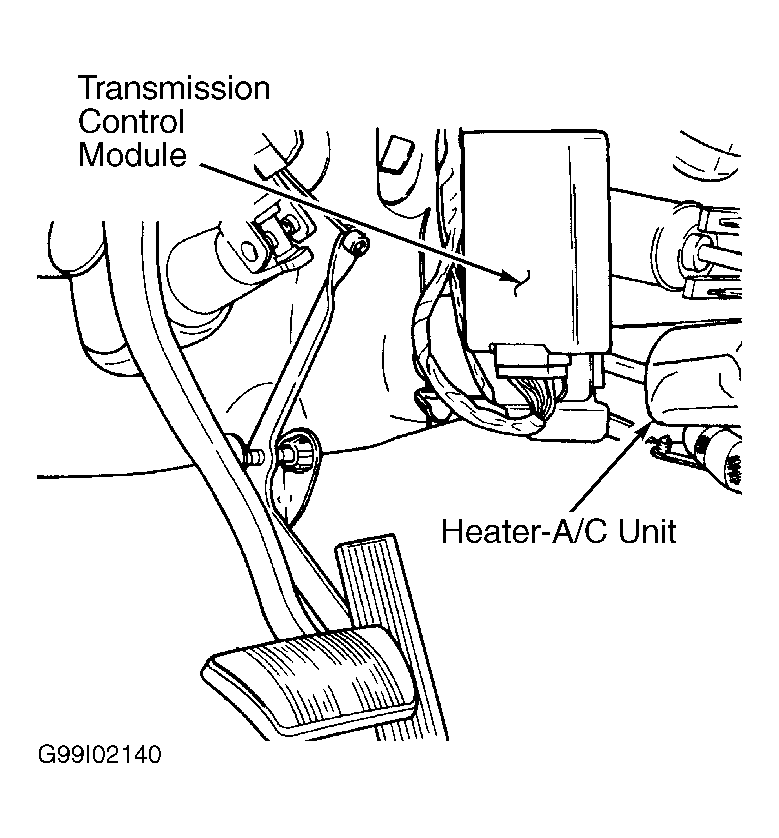

Fig 3: Locating Transmission Control Module (TCM)

Courtesy of CHRYSLER CORP.

Fig 4: Locating Sentry Key Immobilizer Module (SKIM)

Courtesy of CHRYSLER CORP.
