Fuel System Pressure Release

WARNING: Fuel system is under high pressure. ALWAYS release fuel pressure before attempting to open system for testing or component replacement. DO NOT allow fuel to flow onto engine or electrical parts while testing fuel system components.

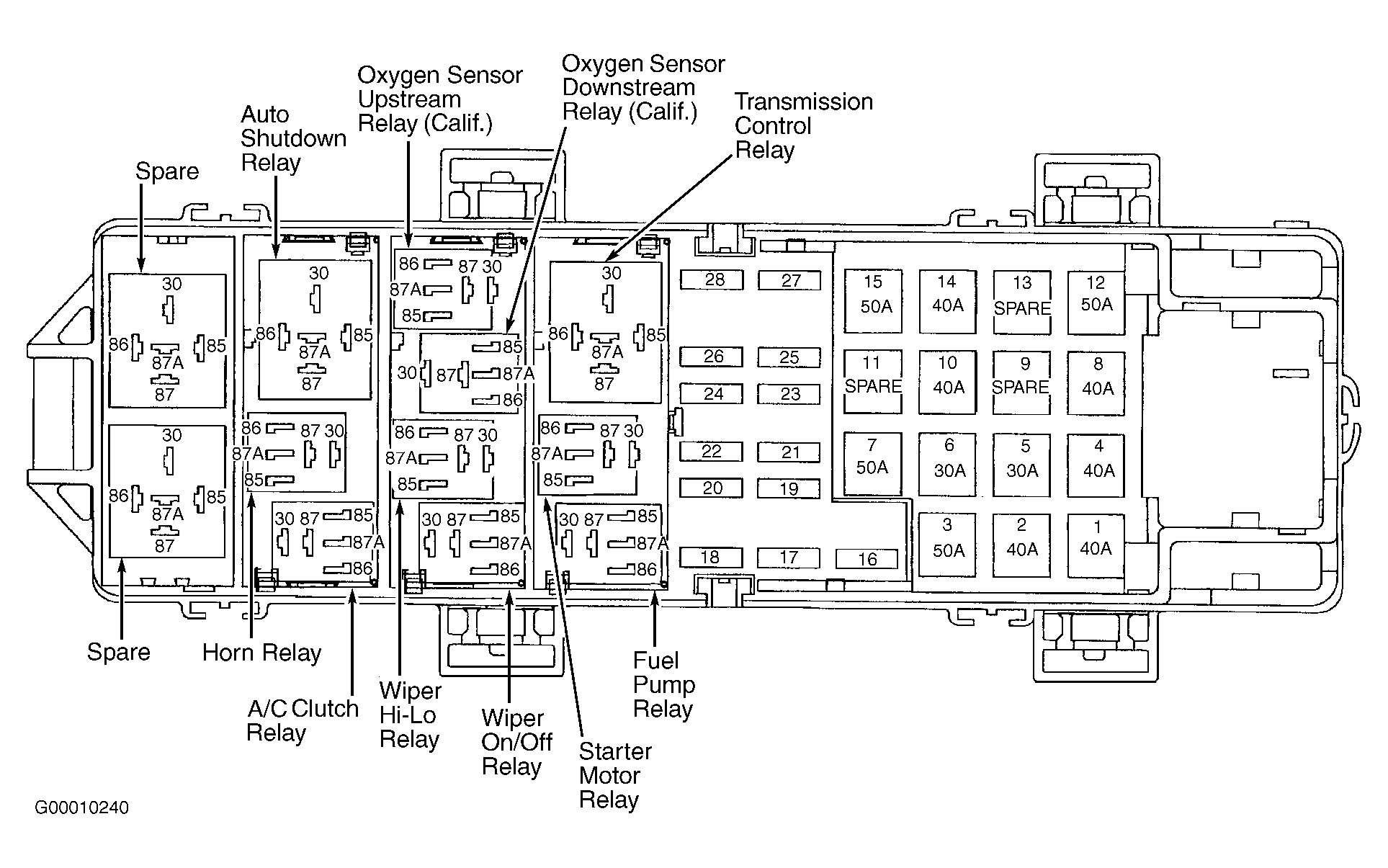

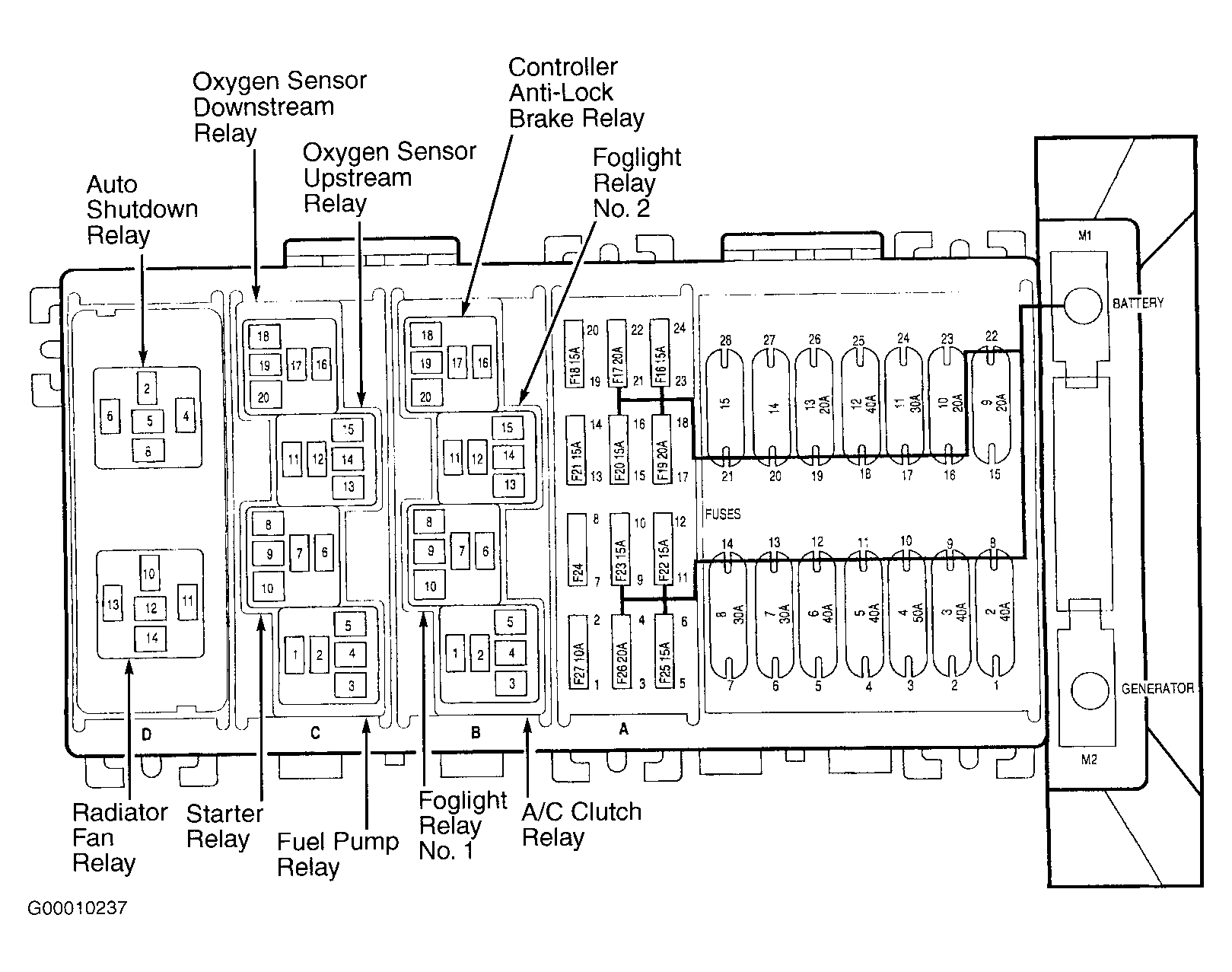

  1. Remove fuel pump relay from Power Distribution Center (PDC). PDC is located in right side of engine compartment, next to battery. See Figure , Figure or Figure . Start and run engine until it stalls. Attempt to start engine. Continue restarting engine until it will no longer run. Turn ignition off.
    NOTE: One or more Diagnostic Trouble Codes (DTC) may set when fuel pump relay is removed.
  2. Disconnect any fuel injector connector. Connect a jumper wire between either fuel injector terminal and positive battery terminal. Connect another jumper wire to other fuel injector terminal. Momentarily touch other end of jumper wire to negative battery terminal.
    CAUTION: DO NOT supply power to fuel injector for more than 4 seconds, or fuel injector may be damaged.
  3. Place a shop towel under fuel line quick-connector at fuel rail. Use care when disconnecting fuel lines, as some fuel pressure may still exist in fuel lines. Disconnect fuel line quick-connector. Reinstall fuel pump relay in PDC. Using scan tool, erase any DTCs that may have set after fuel pressure release procedure.
