Connector Identification

NOTE: For terminal identification of body control system connectors, see Fig 1 -Fig 5 . Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested.

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
Air Bag Control Module	Fig 1
Data Link Connector	Fig 2
Instrument Cluster	Fig 3
Powertrain Control Module	Fig 4
Sentry Key Immobilizer Module	Fig 5

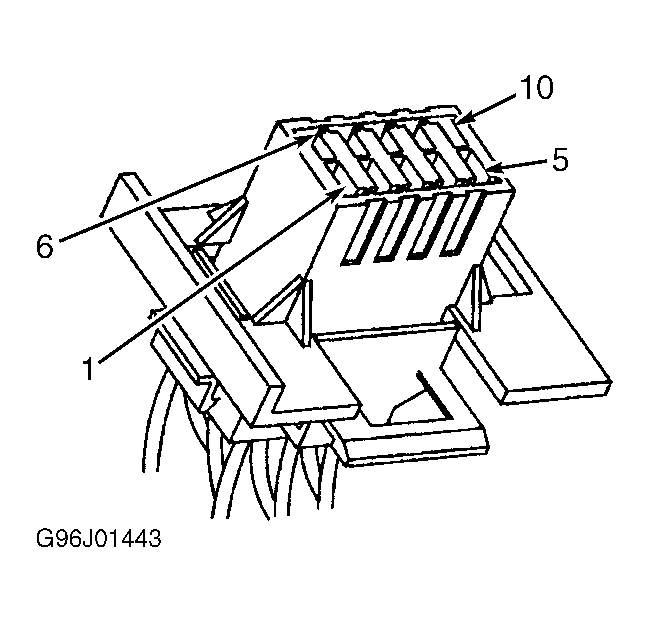

Fig 1: Identifying Air Bag Control Module Connector Terminals

Courtesy of CHRYSLER CORP.

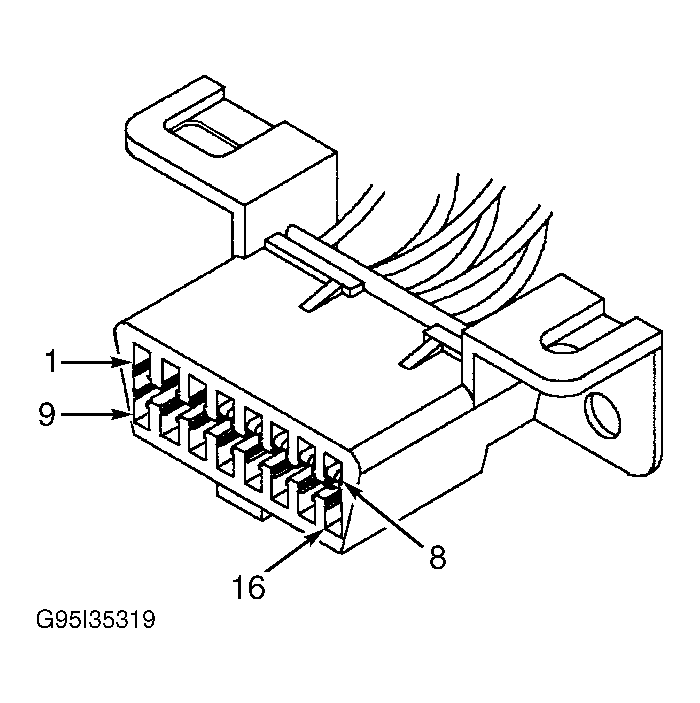

Fig 2: Identifying Data Link Connector Terminals

Courtesy of CHRYSLER CORP.

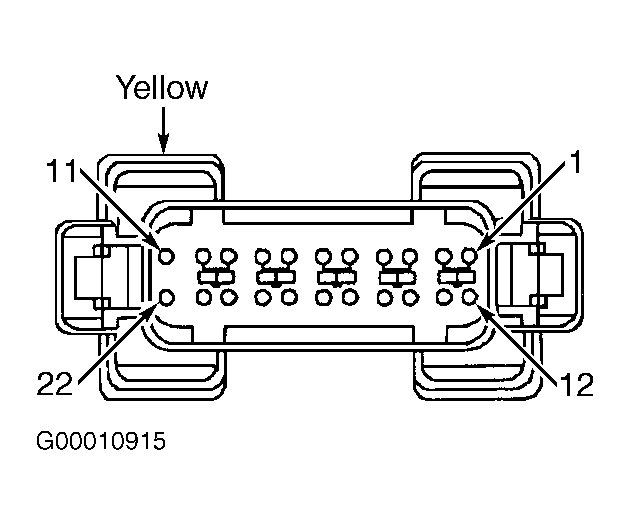

Fig 3: Identifying Instrument Cluster Connector Terminals

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Powertrain Control Module Terminals

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Sentry Key Immobilizer Module Connector Terminals

Courtesy of CHRYSLER CORP.
