Component Locations: Notes

COMPONENT LOCATIONS

Description	Location
Air Bag Control Module (ACM)	In Front Of Center Console
Powertrain Control Module (PCM)	Next To Battery
Sentry Key Immobilizer Module (SKIM)	Around Ignition Key Cylinder

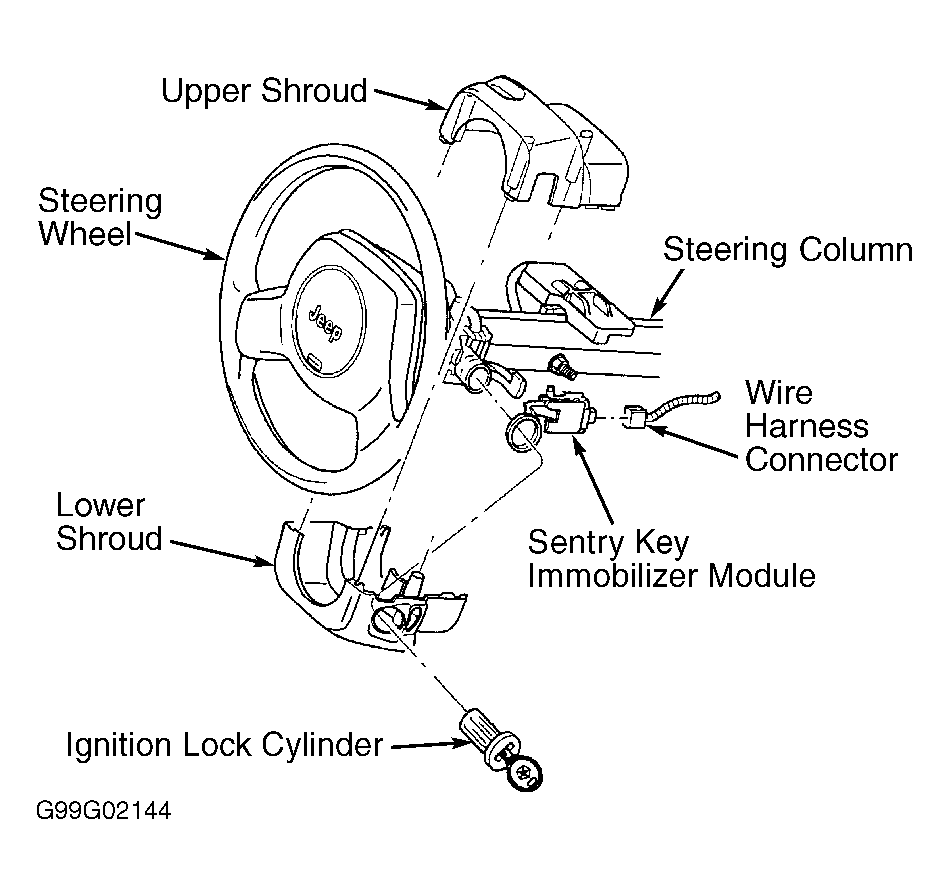

Fig 1: Locating SKIM

Courtesy of CHRYSLER CORP.
