Adjustable Pedals Module: Removal
- Disconnect the negative battery cable.
- Remove the cluster.
- Remove the steering column opening cover.
- Remove the adjustable pedal motor for accessibility.

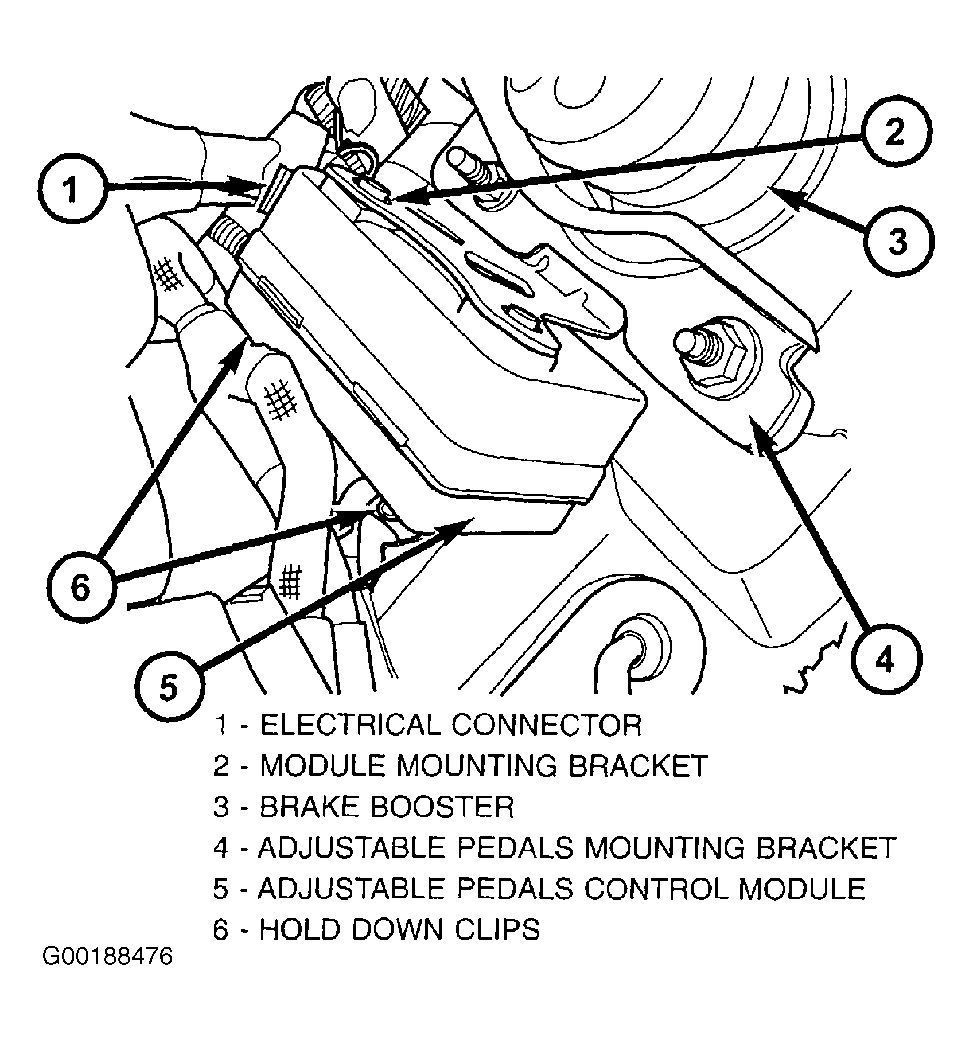

- Remove the two mounting clips from the module. See Fig 1 .
- Disconnect the electrical connector.
- Remove the adjustable pedal module.
