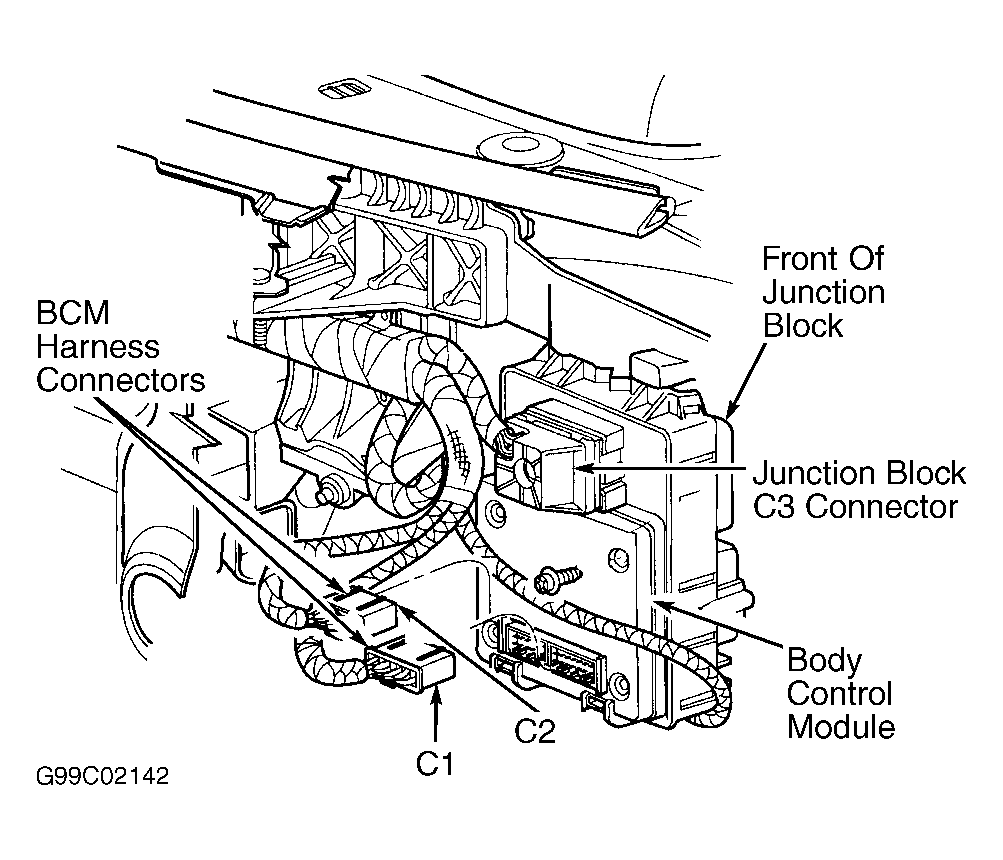

Body Control Module: Removal
- Disconnect and isolate the battery negative cable.
- Remove the instrument panel fuse cover.
- Access and disconnect the instrument panel wire harness connectors from the BCM.
- Remove the mounting screws (Torx T-20) that secure the BCM to the JB.
- Pull the BCM straight out towards the dash panel far enough to disconnect the integral BCM to JB connector. Remove the BCM.
