A/C Pressure Transducer Connector End View

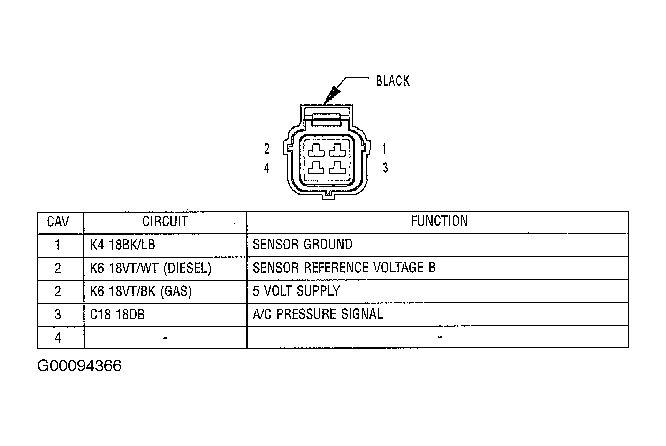

Fig 1: Identifying A/C Pressure Transducer Harness Connector
G00094366Courtesy of DAIMLERCHRYSLER CORPORATION
